Descriptions

1)   With excellent optical system and reliable structure, it makes the image much sharper, and the operation easier. With wide range of accessories (e.g. dark field, phase contrast, epi-fluorescent) and advances to expand the application scope of the BM-200M2, the versatility of the microscope provides more microscopy for you.

2)   Big operating space with backward nosepiece, sharp Image with high quality objectives

3)   Easier comparing test with dual slides finger of mechanical stage

4)   Comfortable handling with precise focusing system

Specifications

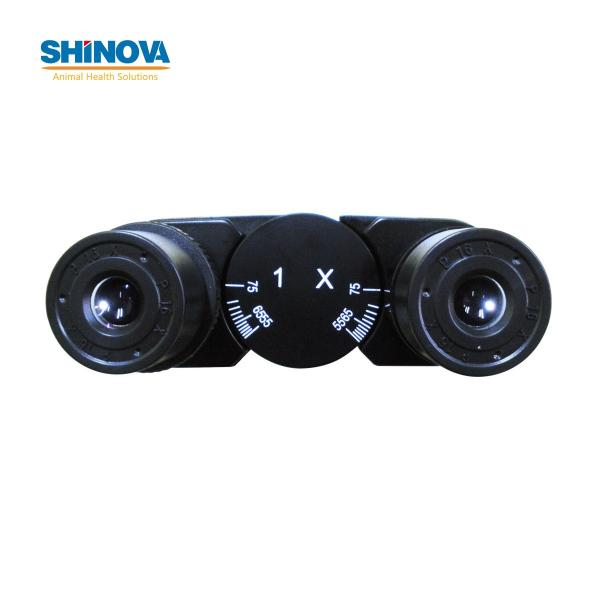

Viewing Head: Compensation free binocular head, Inclined at 30°, interpupilary distance 48-75mm

Eyepiece: Wide Field Eyepiece WF10×/18

Objective: Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

Nosepiece: Backward Quadruple Nosepiece

Stage: Double Layer Mechanical Stage 140×140mm/ 75×50mm

Condenser: NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination: Halogen Lamp 6V/ 20W, Brightness Adjustable



Configurations

Optional:

Monocular Head , Trinocular Head

Quintuple Nosepiece

Plan Achromatic Objective

Infinite Achromatic Objective

Infinite Plan Achromatic Objective

Big size stage with dual slides finger

Kohler Illumination

Aspherical Collector
