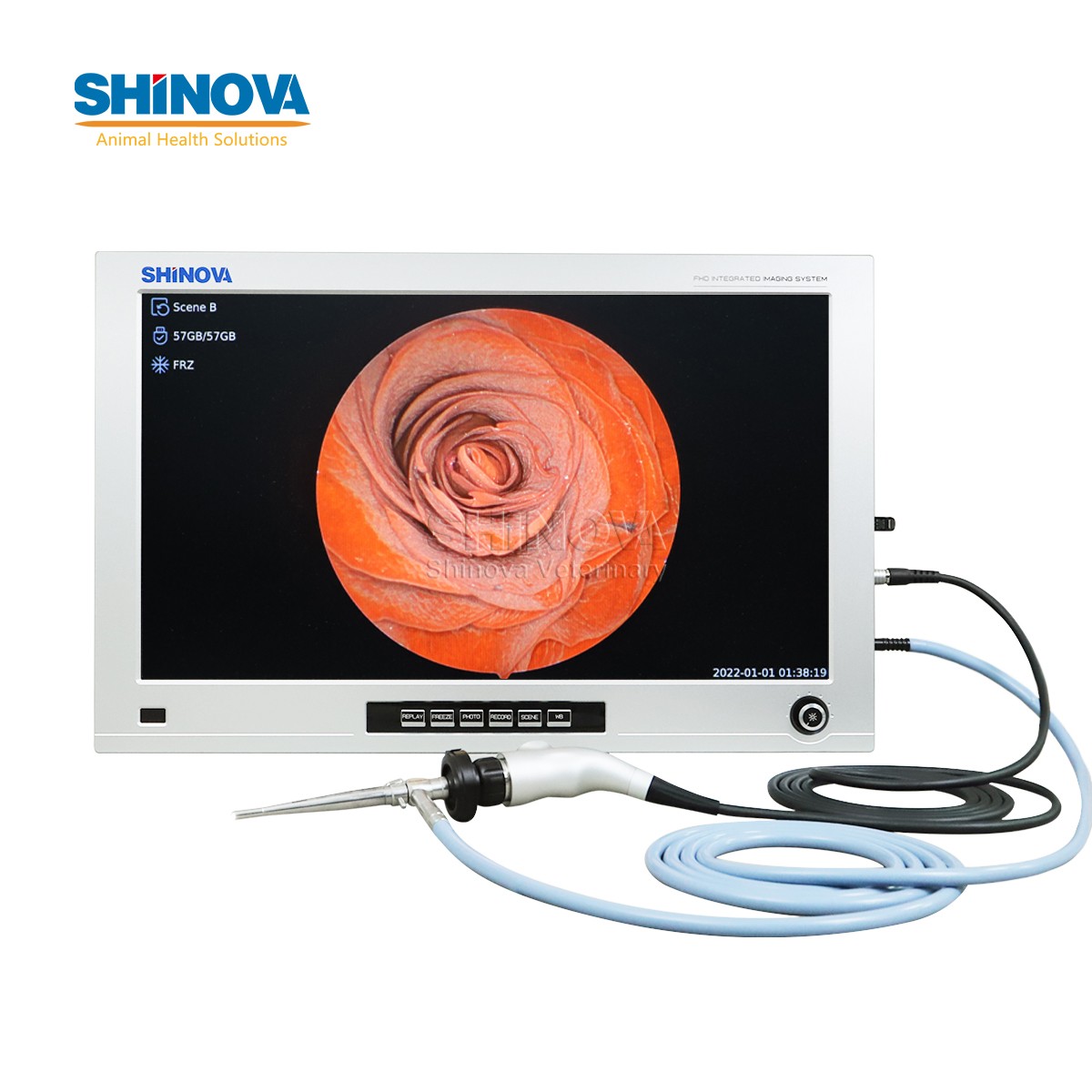

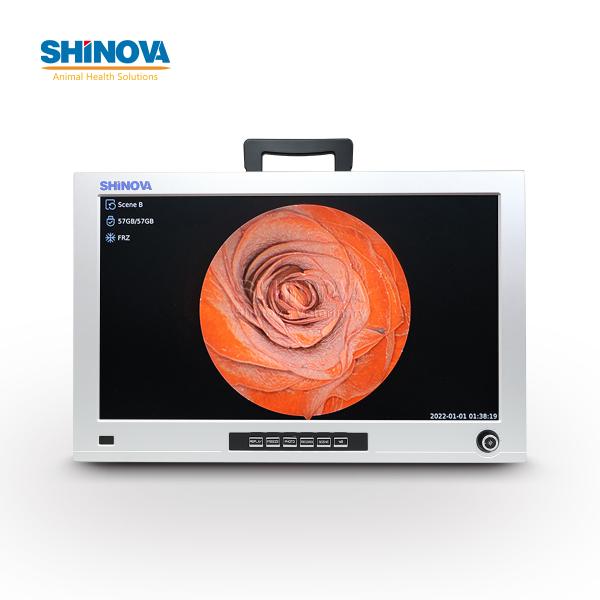

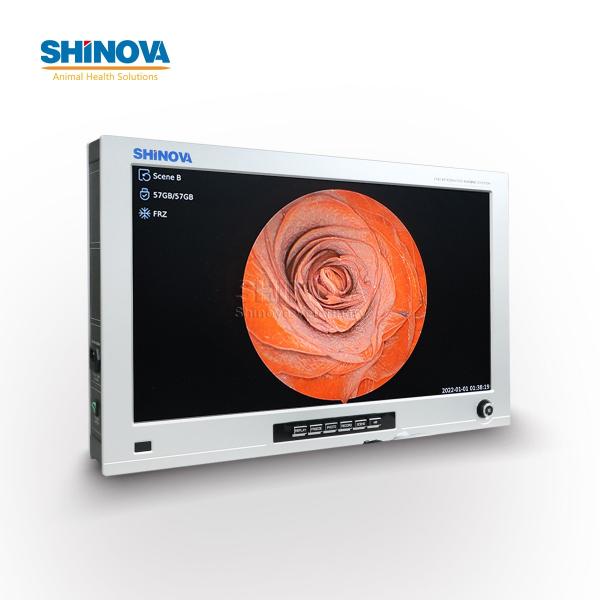

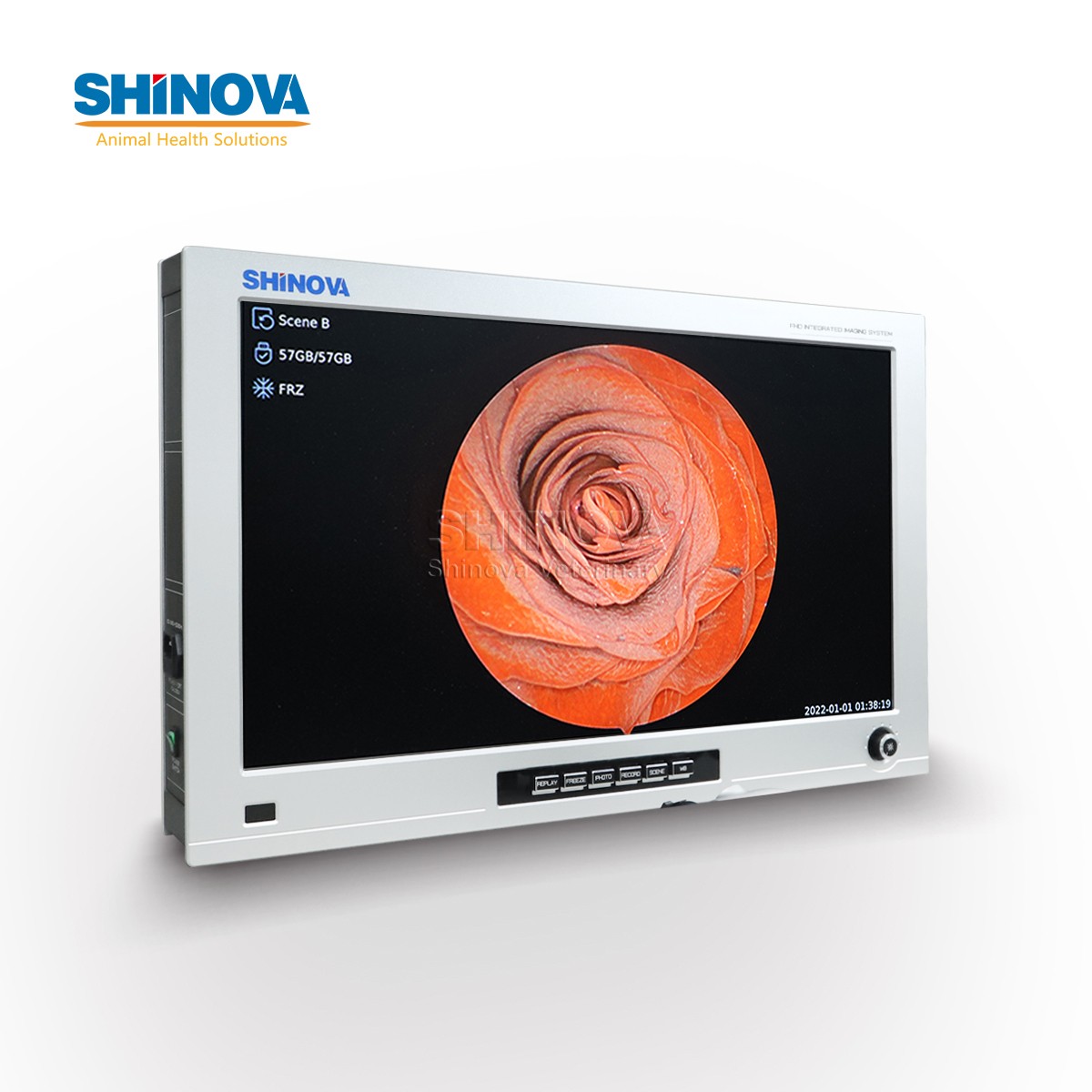

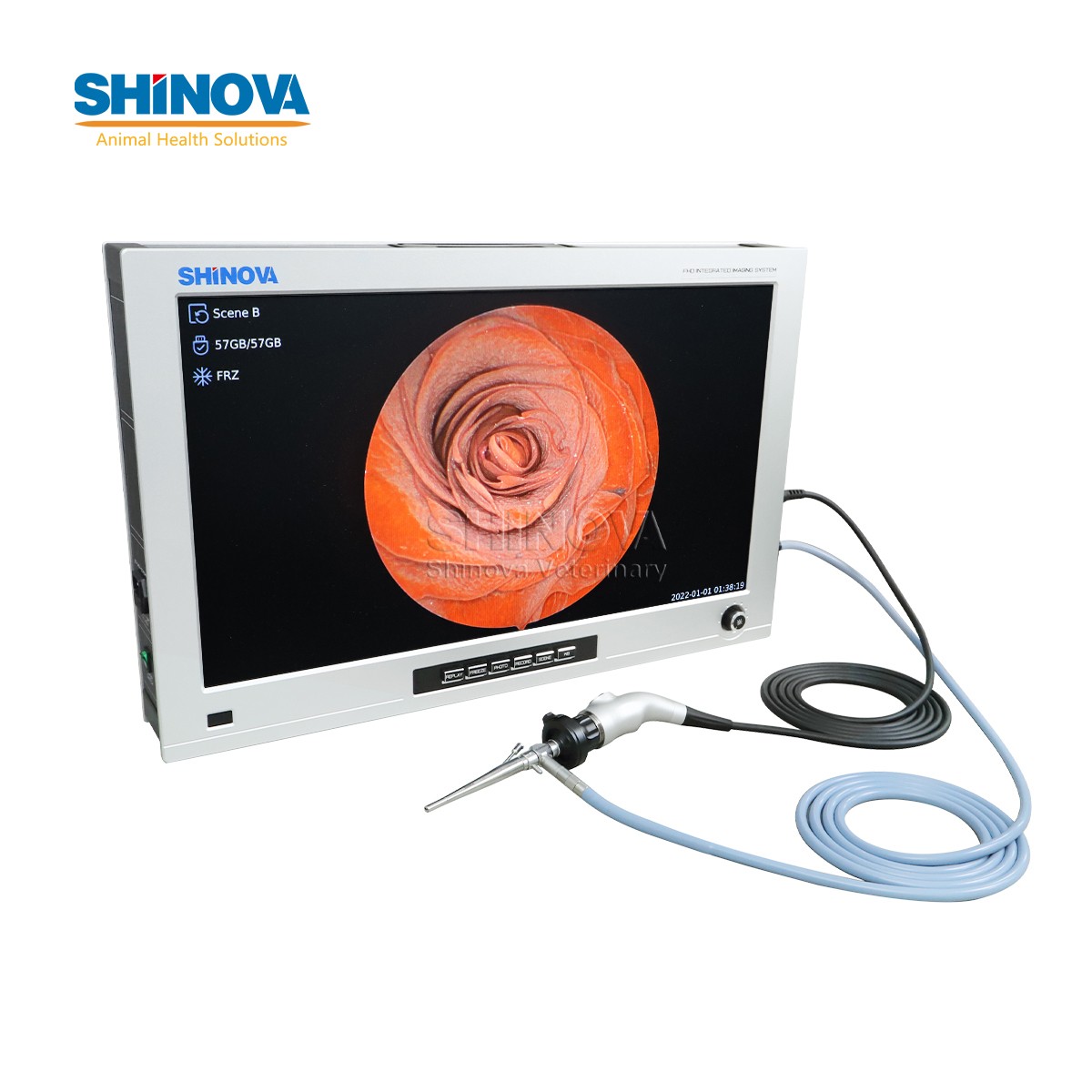

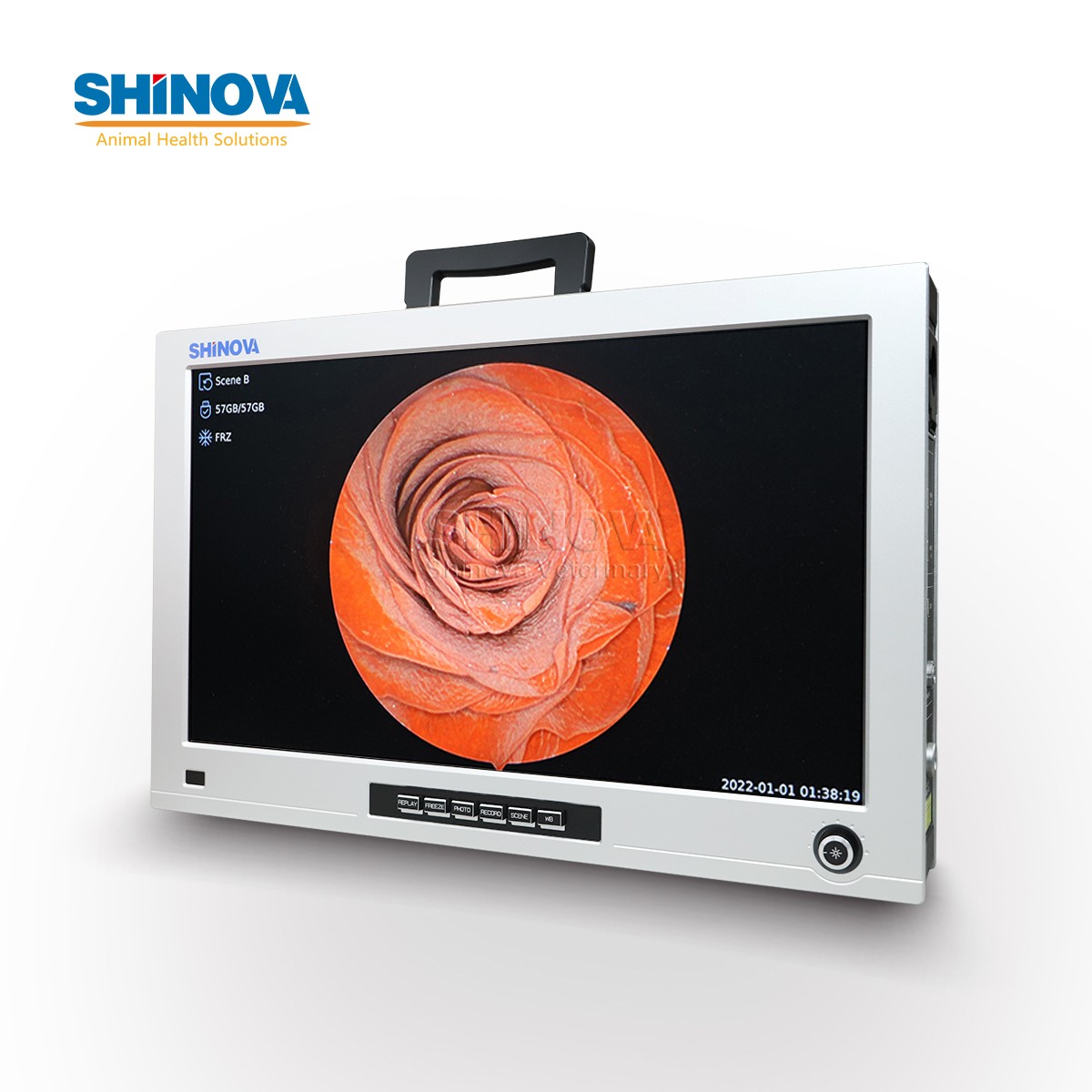

  • 26-inch Mobile High-definition Endoscopic Imaging System
    • 26-inch Mobile High-definition Endoscopic Imaging System
    • 26-inch Mobile High-definition Endoscopic Imaging System
    • 26-inch Mobile High-definition Endoscopic Imaging System
    • 26-inch Mobile High-definition Endoscopic Imaging System
    • 26-inch Mobile High-definition Endoscopic Imaging System
  • 26-inch Mobile High-definition Endoscopic Imaging System
    SHINOVA
    EndoBox-26
    Veterinary Laparoscope
    Get Latest Price!
    T/T, L/C, Paypal, Cash, Other
    1.00
    Operating Room, Exam Room

Descriptions

Monitor/camera/light source and image recorder in a machine
Smaller size/Lighter weight/Easy to move
Portable power
Utilization in variable places and fields
Variable laying style/Adjust monitor position any time as required by the operator
Compatible with Optics/Electronic/Fiber endoscopy

Functions
Camera/Display/Illumination
Image recorder/Storage/Replay/Snapshot
Simultaneous second transmission
Network video transmission

Network telecast live/Live browse on network terminal


Specifications

Full HD Monitor Technical Parameters

Size of Monitor

Display Scale

Resolution

Contrast Ratio

Luminance

12'

16:9

1280*800

800:1

700nit

15'

16:9

1920*1080

1000:1

800nit

22'

16:9

1920*1080

1000:1

800nit

26'

16:9

1920*1080

1000:1

800nit

32'

16:9

1920*1080

1400:1

800nit



Medical LED Light Source

Power: 30W

Color Temperature: 6500K

Illumination: 700,000Lux

Color Render Index: 93

Adjustment Mode: Stepless Adjustment



Integrated Control System

Control Method: Foot Switch/Remote Control

Wireless Remote Control: Infrared code full function remote control

Foot Switch: Record/Snapshot

Network Interface: Distance browsing or telecast live/Distance replay/Network backup



Camera

Sensor: 1/3inch Full HD CMOS

Resolution: 1920*1080

Scanning Method: Progressive Scanning

Scanning Frame Rate: 60fps

Minimum Illumination: 1Lux

Electronic Shutter: 1/60 ~ 1/10000s

White Balance: Manual/Auto

Back Light Compensation: Auto



Video Output Mode

Output Mode: HDMI second output simultaneously/Network output

Extended Mode: Any modes in common use



Full HD Recording & Storing Module

Storage Medium: Internal FLASH, External SD card interface

Video Recording Format: H.264, 1920*1080P60

Snapshot Format: JPEG

Operation Option: Image freezing

Interface: Operation status displayed on the monitor simultaneously
