    SHINOVA
    EOM-200T
    Operating Microscope
    Get Latest Price!
    1 Pieces
    Within 15 days against payment
    T/T, L/C, Paypal, Cash, Other
    77*58*22
    18.00
    Cat, Dog, Horse
    Operating Room

Descriptions

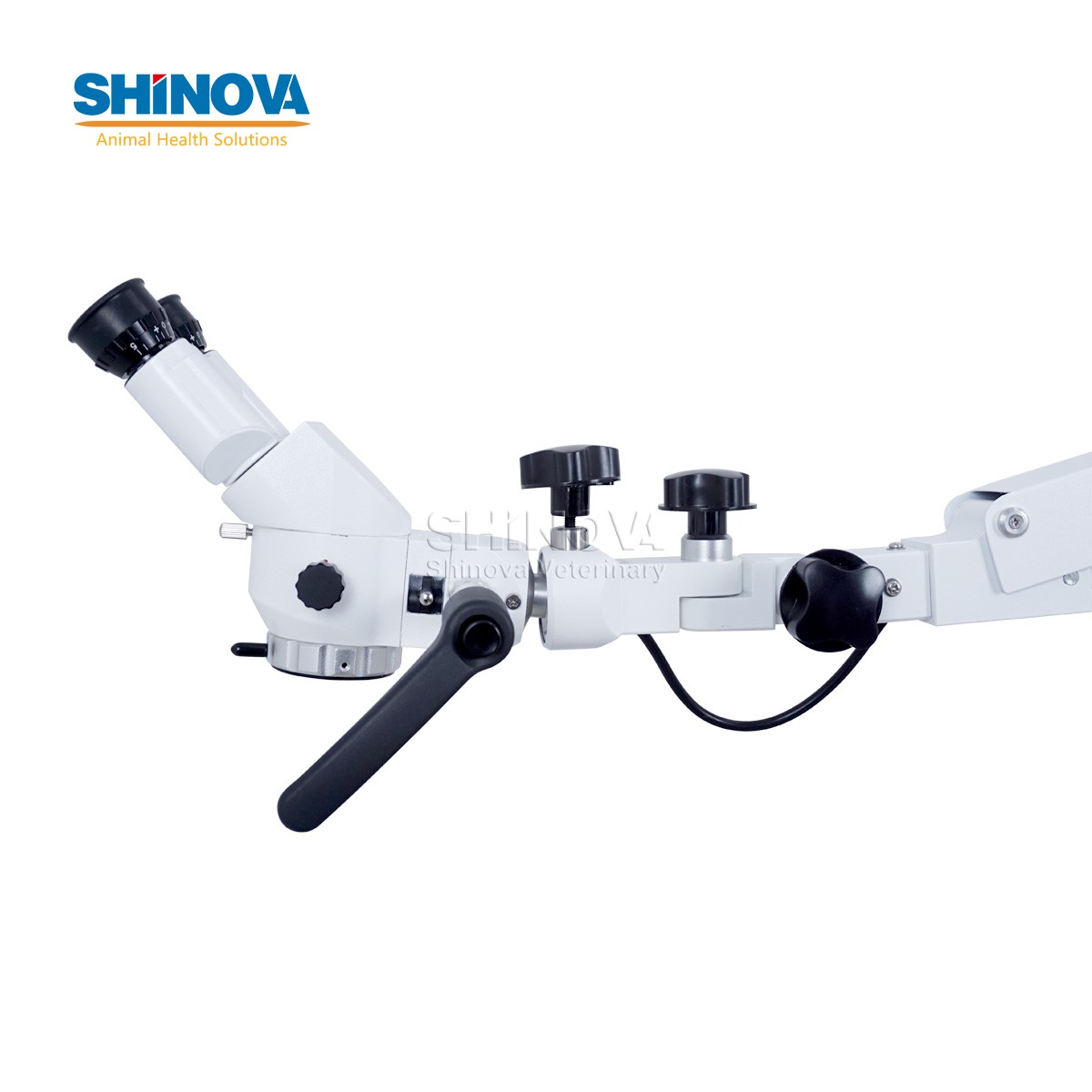

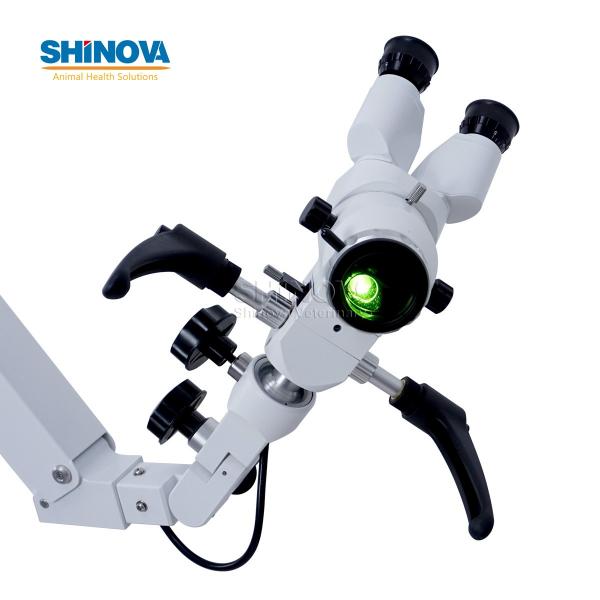

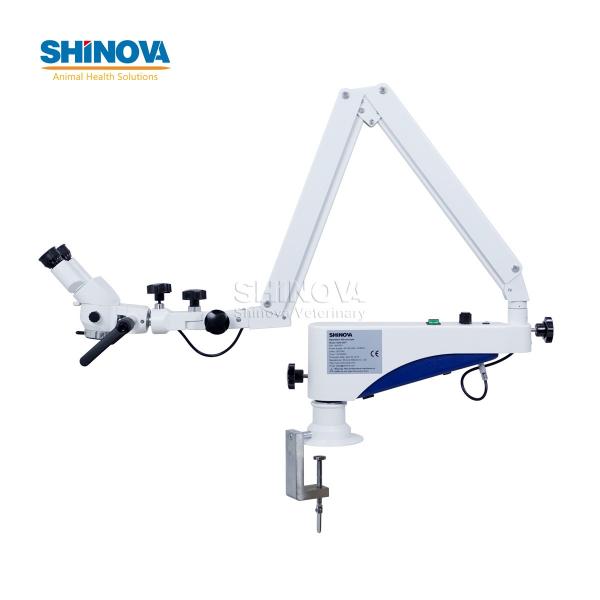

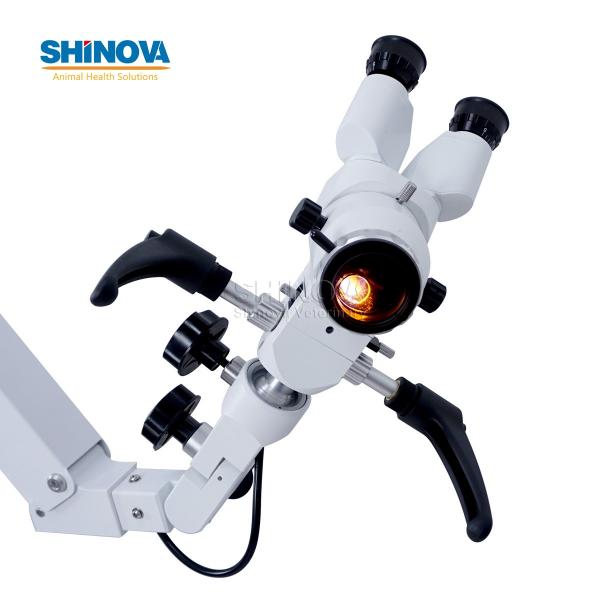

EOM Series Veterinary Operating Microscopes using fiber-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ENT, dentistry, ophthalmology, gynecology and surgery.

Applications:
EOM-200S, EOM-200SB: Clinic applications for ENT
EOM-200T, EOM-200TB: Clinic applications for Dentistry and Ophthalmology

Specifications

  Model

  EOM-200S

  EOM-200T

  EOM-200SB

  EOM-200TB

  Binocular observation

  Straight

  45º Tilted

  Straight

  45º Tilted

  Observation magnification

  6X

  Interpupillary distance

  50mm-80mm

  Diopter

  ±5D

  Magnification changer

  3-step magnification change: 0.6X, 1X, 1.6X

  Focal length of objective

  2 objectives: F=200mm, 300mm

  Total magnification

  3X-12X

  Linear field

  60.8-15.8mm

  Fine focusing range

  10mm

  Filter

  Built-in green and yellow filters

  Illumination system

  Coaxial illumination with cold light source fiber-optic cable, brightness adjustable

  Lamp

  21V 150W halogen lamp (10W LED optional)

  Power supply

  AC 220V/50Hz, or 110V/60Hz

  Beamsplitter

  No

  50:50 Beamsplitter

  TV adapter

  C-mount 1/3 inch CCD camera attachable

  Balancing arm

  With 2-part arm and table mount

  With 2-part arm, counterweight adjustable and can be locked. With floor stand.

  Optional

  Objective F=250mm & F=400mm, Wall mount

  Demonstrator, Camera, Photo adapter, Monitor,

  Objective F=250mm & F=400mm, Wall mount, Table mount
