    SHINOVA
    DM8D-II

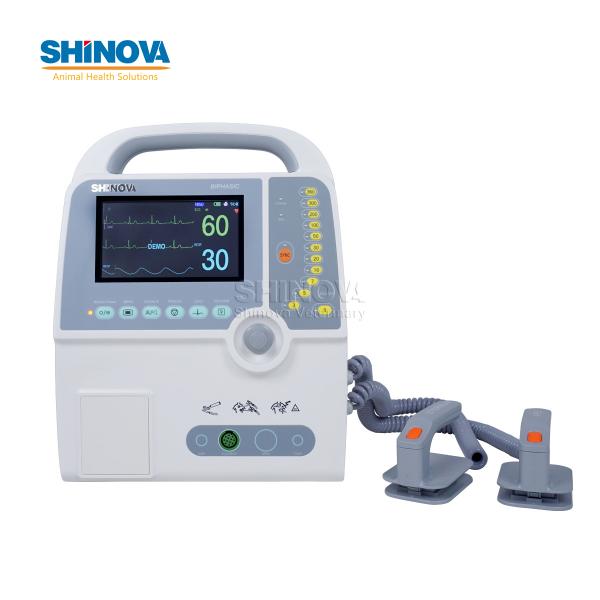

    Veterinary Defibrillator Monitor
    Get Latest Price!
    T/T, L/C, Paypal, Cash, Other

Descriptions


DM8D-II(New) has more new updated functions than DM8D-II:

 Add built-in recorder as standard configuration. Defibrillation discharge trigger recording.

 Add Li-ion battery as standard configuration.

 Add SpO2 module as optional configuration.

 Voice prompt.

 ECG waveform via paddle electrode.

 Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen



Specifications

Display

 Screen Type: High-resolution display, TFT color display

 Screen Size: 7 inches (17.7cm) diagonally

 Sweep Speed: 12.5/25/50mm/sec

 Information: Heart Rate, Lead, Alarm On/Off, Delivered Energy

 Resolution: 800x480


ECG

 Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.

 Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.

 ECG Size: 2.5,5, 10, 20, 30 mm/mV display on monitor.

 Heart Rate: 20-350BPM.

 Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation


Defibrillator

 Waveform: Biphasic

 Defibrillator type: Manual External Synchronous/Asynchronous Defibrillation.

 Charge Time: Less than 10 seconds to 360 Joules

 Energy Display: Monitor display indicates both selected and delivered energy.

 Charge Prompt Type: Voice and visual prompts.

 Energy Selection: Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules

 Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)


Battery Description

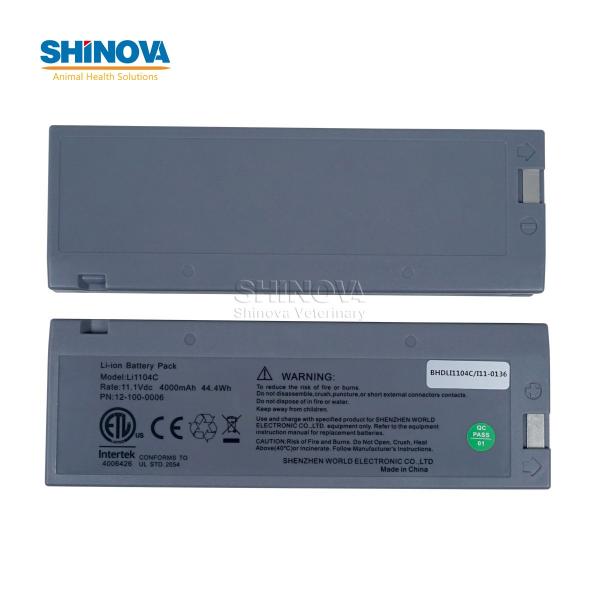

 Standard Type: Li-ion battery Li1104c 11.1Vdc 4000mAh X2

 Standard Capacity: Up to 10 hours ECG monitoring or 60 full-energy discharges.

 Low Battery Indicator: Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on

 Recharge Rate: 80% in 3 hours. 100% in 5 hours.


Built-in Recorder

 Paper: 50mm thermal.

 Printing Method: High-resolution, thermal print head.

 Record date, time, sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform

 Print mode

 HR exceed limits alarm recording

 Auto timed recording

 Real-Time Recording

 Defibrillation discharge trigger recording


Power

 AC-DC dual-use: Use the batteries, AC 100V~240V, 50/60Hz

 Vehicle Voltage (Option): DC 12V


Main unit:

 Portable design

 Dimensions: L320xW205xH410cm

 Weight:7.5kg
