Descriptions

A) 4K UHD Imaging

3840 × 2160P high-resolution imaging
1/1.8" 8MP CMOS image sensor
30/60FPS frame rate
Realistic color restoration for detailed image observation

B) Integrated Imaging Design

Integrated camera, imaging, recording, and LED light source
4K optical adapter
700,000lux or higher illumination
Color rendering index of ≥90

C) Flexible Image Management

1–3X electronic magnification
Freeze, replay, snapshot, and recording functions
USB storage support
HDMI video output

D) Professional Display

26-inch / 32-inch 4K medical monitor options
16:9 monitor ratio
Automatic or manual white balance
Automatic RGB/SPOT adjustment
Button and remote-control operation

E) Wide Endoscopic Compatibility

Compatible with multiple types of endoscopes, including:
Laparoscope
Ureteroscope
Resectoscope
Percutaneous Nephroscope
Hysteroscope
Thoracoscope
Cystoscope
Rectoscope
Ventriculoscope
Arthroscope
PELD
Discectomy Endoscope
Otoscope
ENT Endoscope
Laryngoscope
Fiberoptic Bronchoscope
Bronchial Intubation Endoscope
Choledochoscope

Specifications

Application: Endoscopic Imaging / Veterinary Endoscopy / Surgical Endoscopy

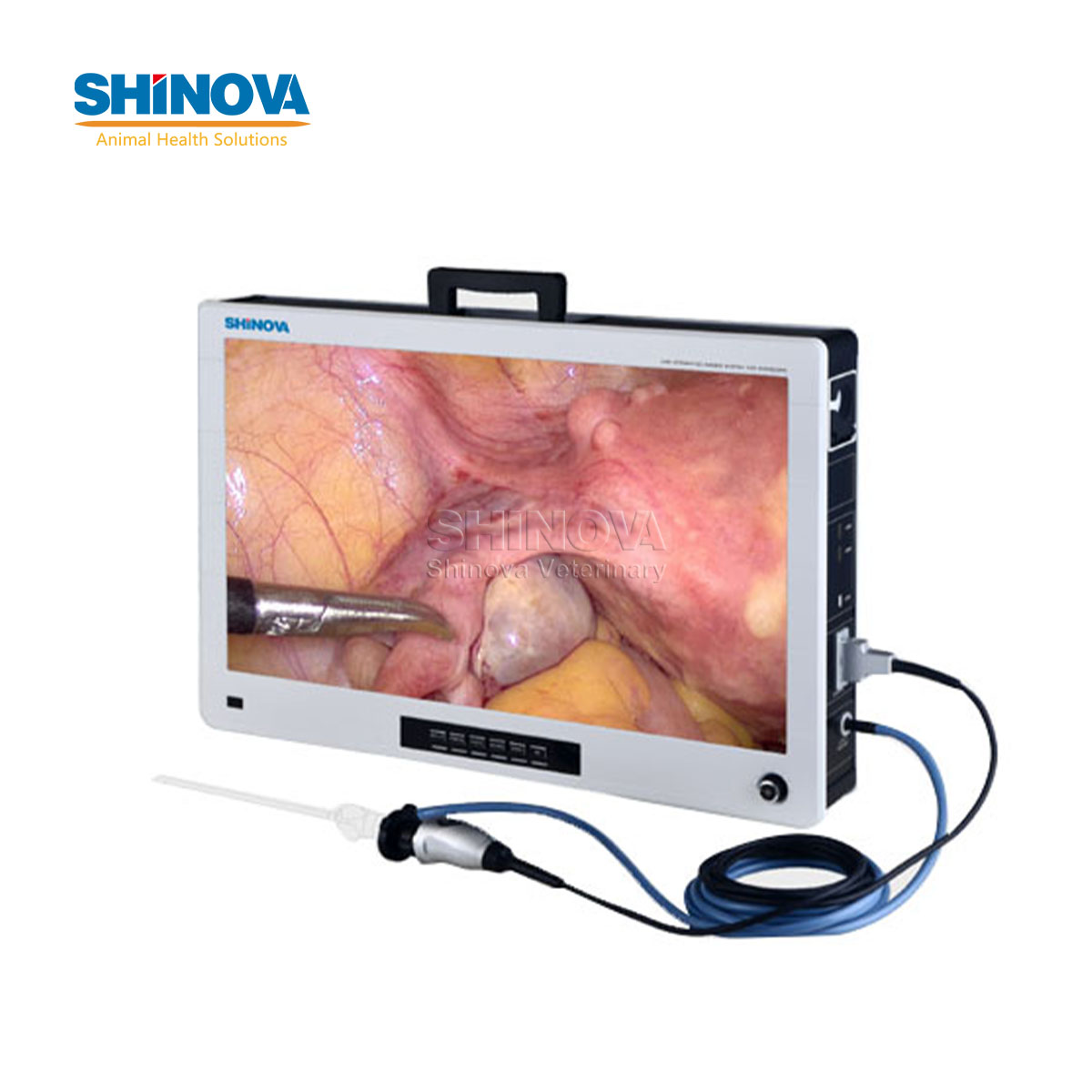

System Type: 4K UHD Integrated Endoscopic Imaging System
Monitor: 4K High-Definition Medical Monitor
Monitor Size: 26-inch / 32-inch
Sensor: 1/1.8" 8MP CMOS
Resolution: 3840 × 2160P
Frame Rate: 30/60FPS
Electronic Magnification: 1–3X
Light Source: Integrated LED Light Source
Illuminance: ≥700,000lux
Color Rendering Index: ≥90
Control Mode: Buttons / Remote Control
Storage Media: USB
Output: HDMI
Image Format: JPEG

Configurations

Standard Configuration:
4K UHD Camera ×1
4K UHD Optical Adapter ×1
Light Transmitting Bundle ×1
4K UHD Medical Monitor ×1
LED Light Source ×1
USB Storage ×1

Optional Configuration:
26-inch 4K Medical Monitor
32-inch 4K Medical Monitor
Compatible Endoscopic Optical Accessories
Medical LED Light Source
Cold Light Source for Medical Endoscope
