Descriptions
Excellent image quality with infinitive optical system
Comfortable operating with ergonomic structure
Better illumination with sliding-in centerable condenser,Convenientreplacement with phase contrast and darkfield condenser
Specifications
Specifications:
Optical system
Infinite Optical System
Viewing Head
Siedentopf Trinocular Viewing Head, 30 Inclined, Interpupillary 48-75mm
Eyepiece
WF10X/18 Wide Field Eyepiece WF 10X/18

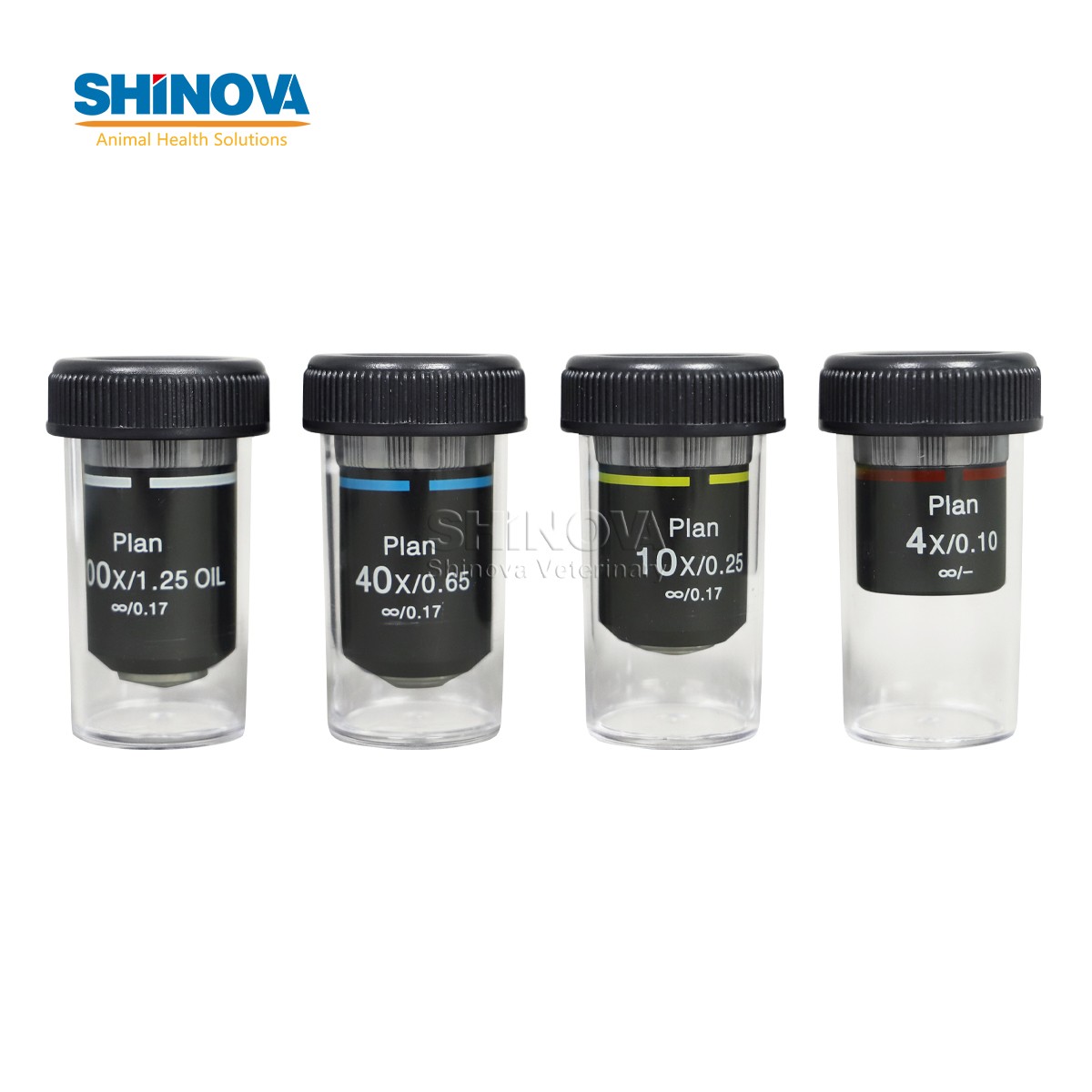

Objective
Infinitive Semi-plan Achromatic Objectives 4X,10X.40X,100X
Nosepiece
Quadruple Nosepiece
Stage
Double Layers Mechanical Stage 140mmX140mm/ 75mmX50mm
Condenser
Sliding-in Centerable condenser NA1.25
Focusing System
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm.
Illumination
S-LED Illumination, Brightness Adjustable
Optional accessories
Siedentopf Binocular Viewing Head, 30 Inclined, Interpupillary 48-75mm;
Eyepiece: EW10X/20 Extra Wide Field Eyepiece EW10X/20 with Diopter Adjustment;
Objective: Infinitive Plan Achromatic Objectives 4X,10X,40X,100X;
Illumination: 6V/20W Halogen Lamp, Brightness Adjustable;
Phase Contrast Kit;
Fluorescent Attachment: YX-2 Epi-fluorescent Attachment; FL-LED Epi-fluorescent Attachment;
Dark Field Attachment
