Descriptions
Fully automatic silent design
Free choice of three flow rates: 4L/6L/10L
Special insufflator for animals, especially for small animals like dogs, cats, etc.
Automatic alarm function and safe procedure monitoring
To provide wide view and surgical space for animal laparoscopic surgery to connect with CO2 cylinders
Specifications
Flow rate: 4L/min, 6L/min, 10L/min
Maximum flow rate: 10L/min, adjustable
Preset pressure: 0.67kPa~3.30kPa (5mmHg~25mmHg)
Control accuracy: ±0.13kPa (1mmHg)
Power: 40w
Gas source: medical CO2
Working pressure alarm: When it exceeds 4.40kPa±5% (i.e. 33mmHg±5%) for more than 3 seconds, it will alarm and relieve the pressure to the set pressure.
Cylinder pressure alarm: When the cylinder gas output pressure is ≤0.29MPa (3kgf/cm2), the insufficiency machine will alarm to remind ventilation.
Ambient temperature: 5℃~40℃
Relative humidity: 30~75%
Atmospheric pressure: 70kPa~106kPa
Power supply: AC 220V, 50Hz
Configurations

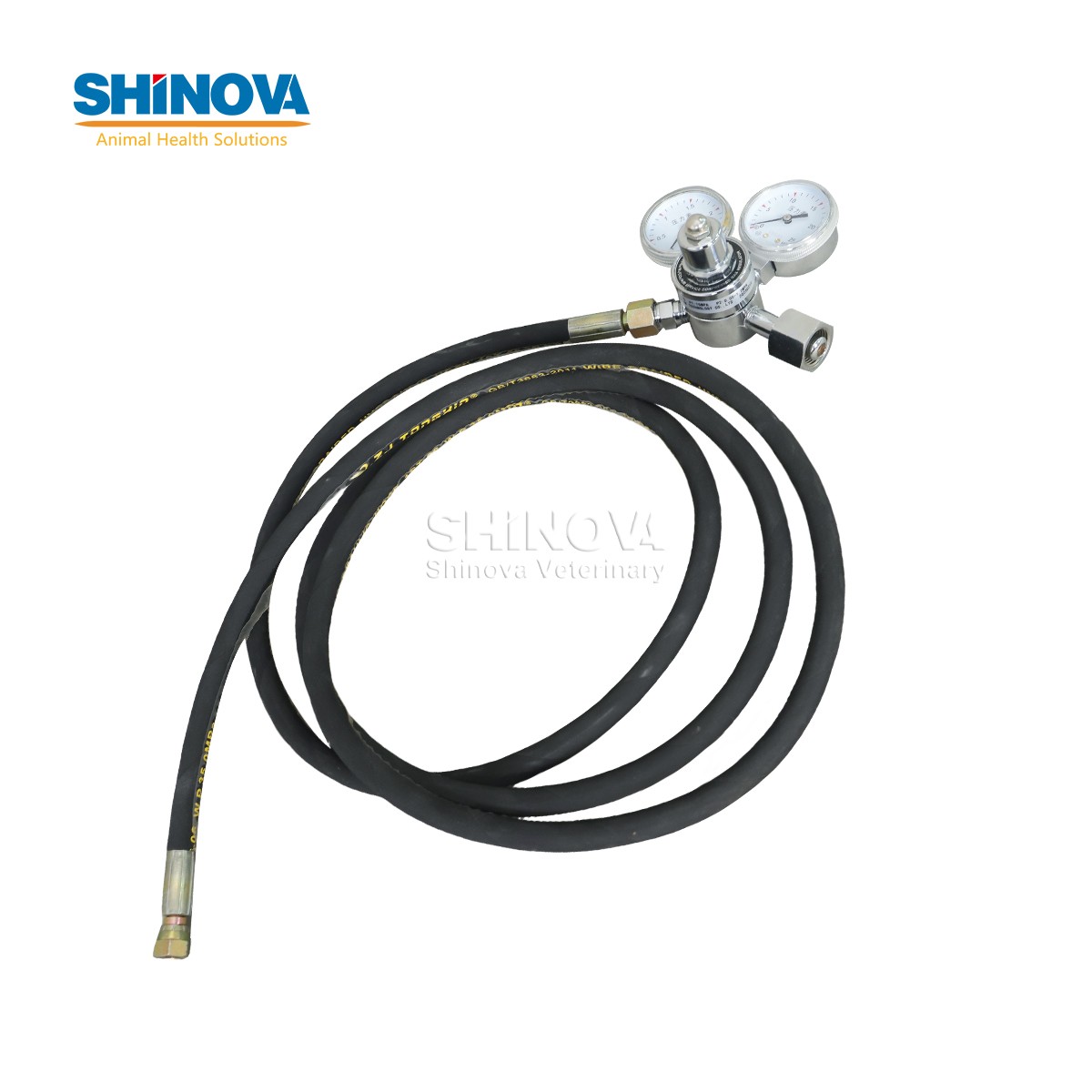

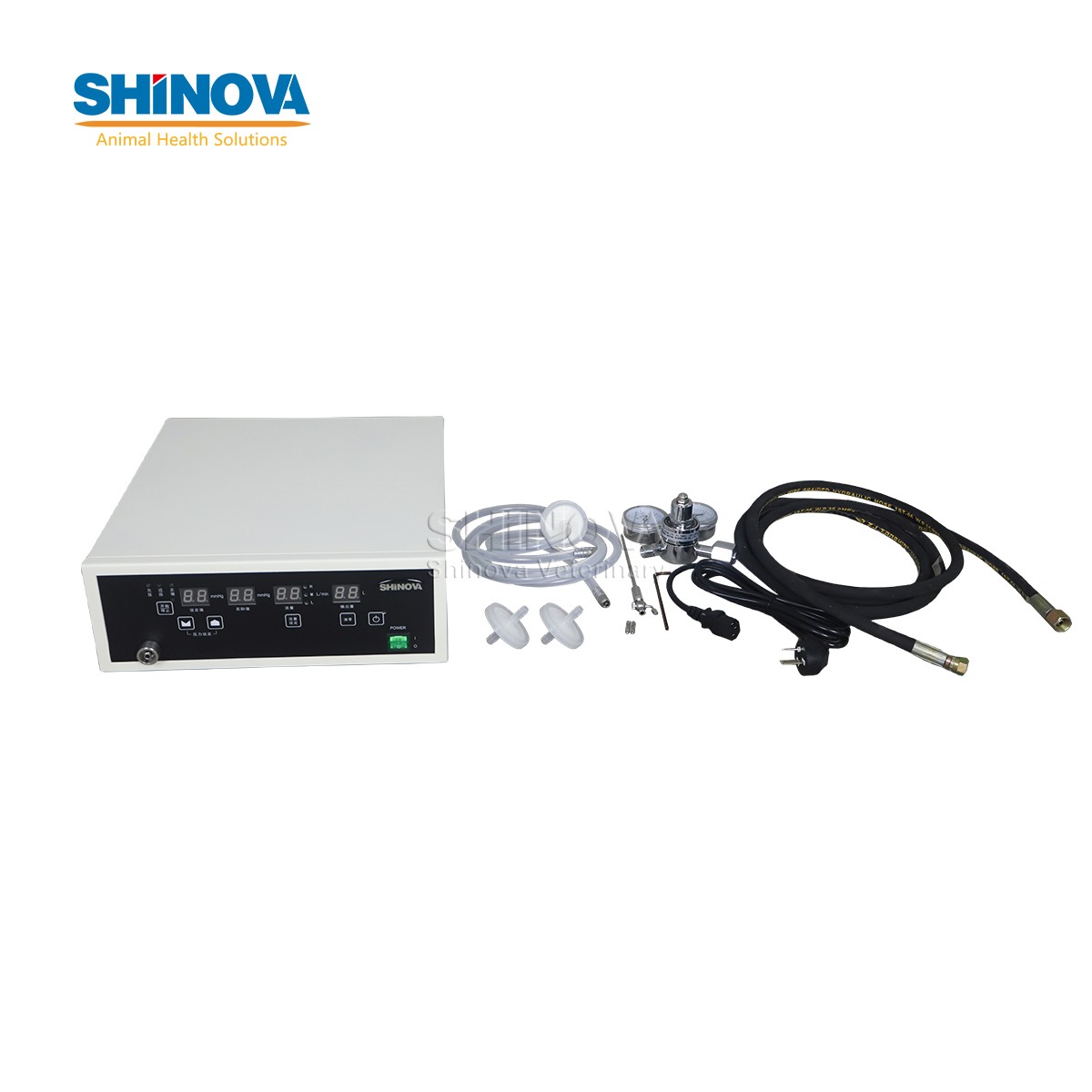

Main unit, high-pressure tube, decompressing valve, silicone tube, power cord, fuse, etc.
