Descriptions

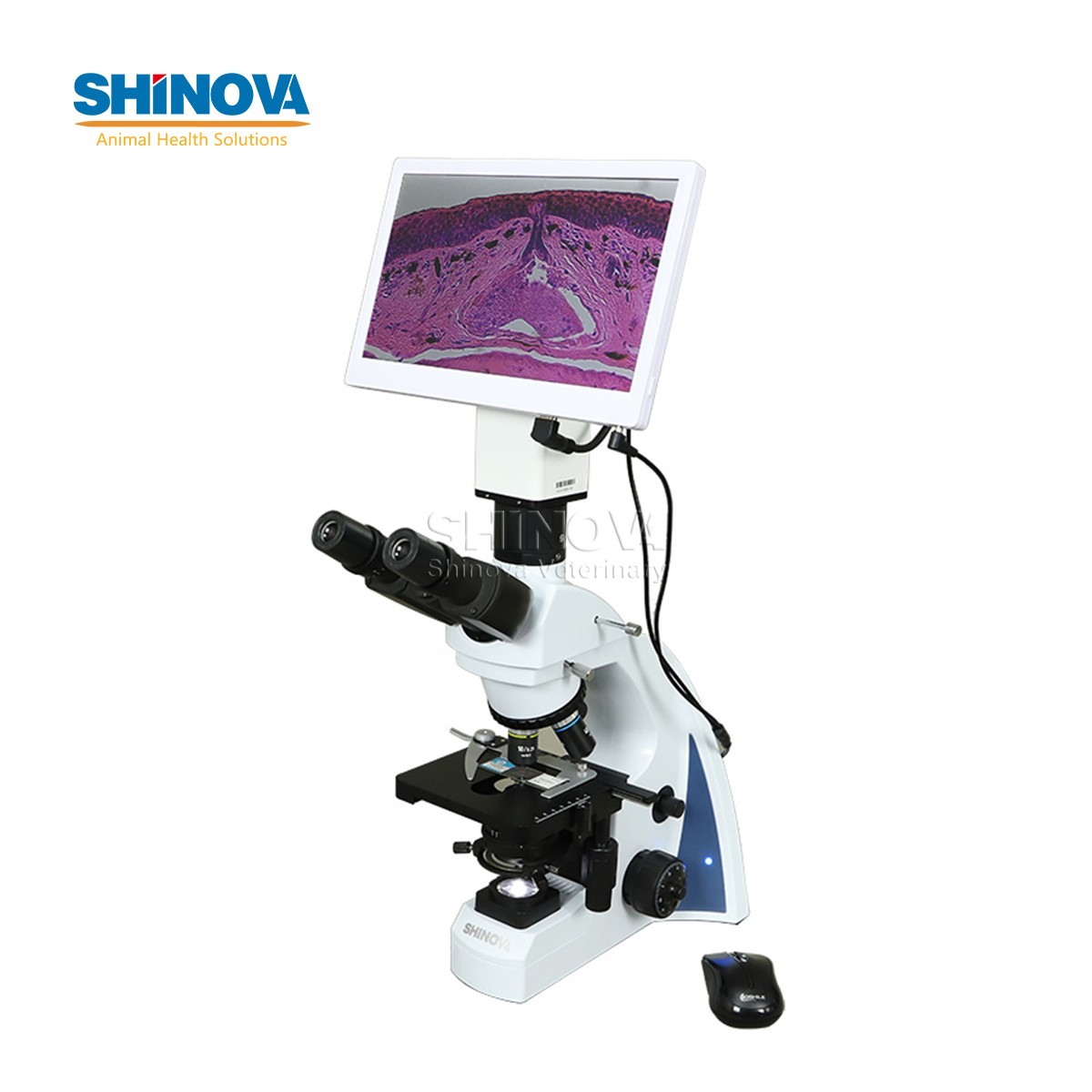

High-definition 5MP CMOS image sensor for clear images
11.6-inch large LCD screen and 1080P resolution offer more image details
Fully digital user interface supports image zoom, mouse operation, USB storage and HDMI output
Streamlined design makes the operation easy and comfortable
Infinity optical system with excellent image quality
sliding-in centerable condenser offers effective illumination and convenient replacement of attachment such as phase contrast and dark field
Eyepiece observation with upwards 180° rotation raises eyepoint level for the users of different heights
Hidden handle for easy carrying
Lamp replacement by direct removing housing
Specifications
Specifications
Display: 11.6-inch LCD screen
Pixel: 5.0MP
lmage sensor: Color CMOS
Display resolution: 1080P
Pixel size: 1/2.8"
Method of operation: Mouse
Lens interface: C-type
Output method: HDMI
Power adapter: DC 12V
White Balance: Auto / Manual
Exposure: Auto / Manual
Shutter speed: 1/50s(1/60s) - 1/10000s
Saving function: U-disk storage
Viewing head: Seidentopf binocular viewing head, 30° inclined, interpupillary 48-75mm
Eyepiece: Wide field eyepiece WF10X/18
Objective: lnfinite semi-plan achromatic objectives 4X, 10X, 40X, 100X
Nosepiece: Quadruple nosepiece
Stage: Double mechanical stage 140mm*140mm / 75mm*50mm

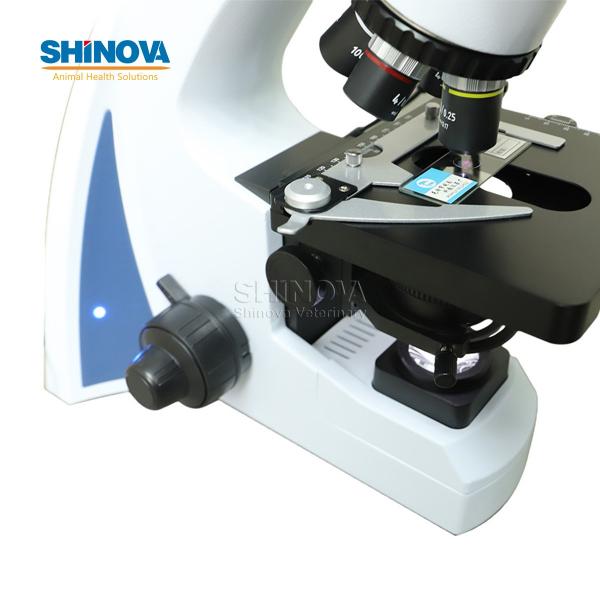

Condenser: Sliding-in centerable condenser NA1.25
Optical system: lnfinite optical system
Focusing system: Coaxial coarse and fine adjustment with division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm
Illumination: S-LED illumination, brightness adjustable
Optional Attachments
Eyepiece: Extra wide field eyepiece EW10X/18, wide field eyepiece WF10X/22
Objective: lnfinite plan achromatic objectives 4X, 10X, 40X, 100X
Nosepiece: Quintuple nosepiece
Stage: Double mechanical stage 150mm*139mm / 75mm*52mm, 230mm*150mm / 79mm*53mm
llumination: 6V/20W halogen lamp, brightness adjustable
Phase contrast kit
Polarization set
Fluorescent attachment
Dark field attachment
