Descriptions
A) Sterilization System & Performance
• Uses pure ethylene oxide gas for low-temperature sterilization
• Sterilization temperature: 50°C ±3°C
• Adjustable sterilization time from 0 to 999 hours
• Suitable for heat-sensitive veterinary instruments
• Automatic air replacement with 5 ventilation cycles
B) Intelligent Monitoring & Control
• 3.5-inch LCD screen displaying real-time parameters
• Monitors temperature, humidity, pressure, and sterilization time
• Built-in temperature, pressure, and humidity sensors
• Automatic detection and adjustment for stable sterilization conditions
C) Vacuum & Humidification System
• Oil-free vacuum pump with fast vacuum speed (≤15 min to -60 kPa)
• Pulse steam humidification under negative pressure
• Built-in distilled water tank (1.5L capacity)
• Controlled humidity range: 40%–85%
D) Safety & Protection System
• Over-temperature and over-pressure protection
• Leak detection and alarm system
• Door sealing detection and alarm
• Low pressure and abnormal temperature alarms
• Explosion-proof electric heating system
• Automatic alarm in case of system malfunction
E) Data Management & Traceability
• Stores up to 500 sterilization records
• Built-in micro printer for real-time data printing
• USB interface for data export and system upgrade
• Power failure memory function with automatic resume
F) Build Quality & Design

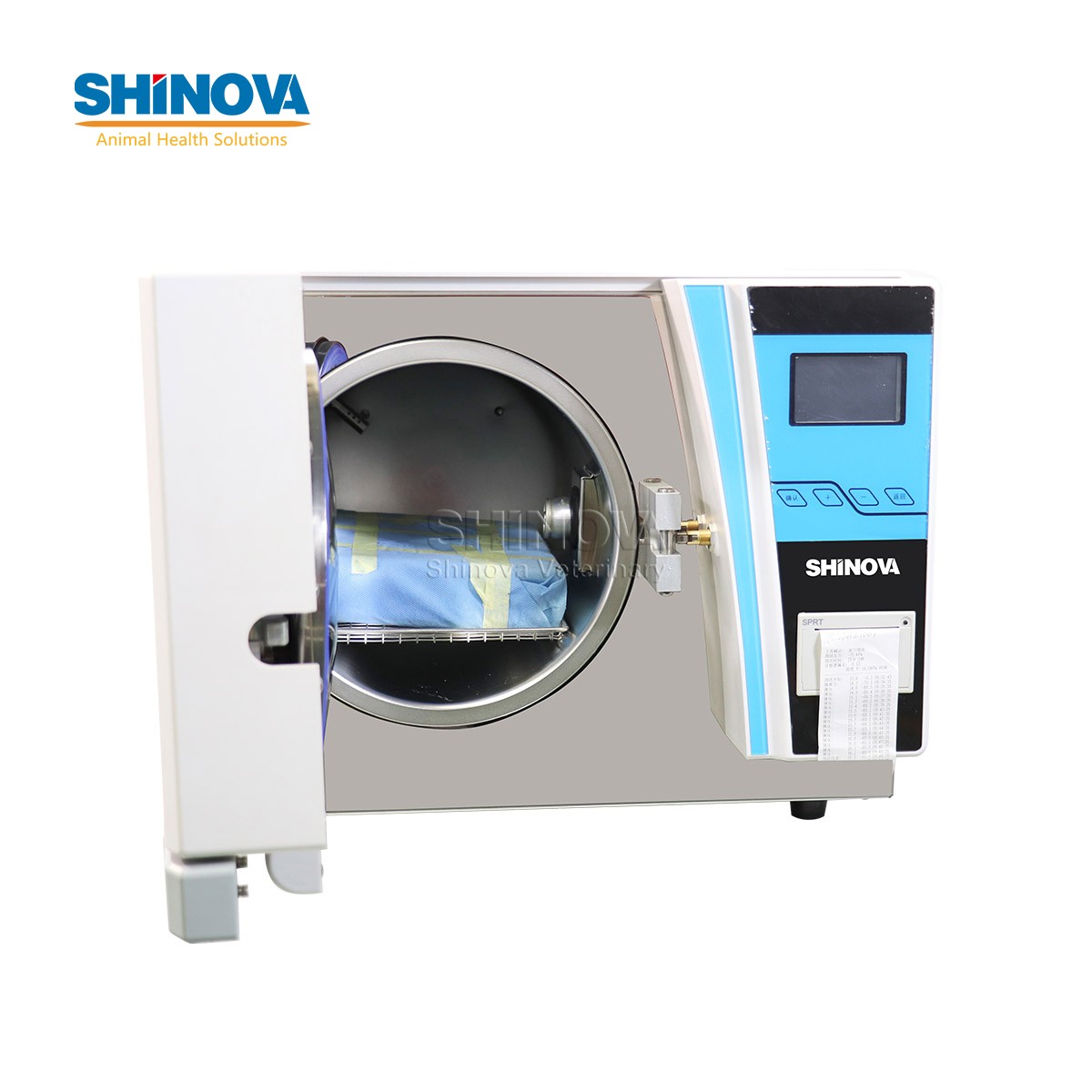

• Sterilization chamber made of 304 stainless steel
• Durable ABS outer casing
• Compact design suitable for clinics and labs
• Manual door with high pressure resistance (≥200 kPa)
Specifications
Application: Veterinary Clinic / Animal Hospital / Laboratory
Sterilization Method: Ethylene Oxide (EO Gas)
Chamber Volume: 21L
Control System: LCD Digital Control
Temperature Range: 50°C ±3°C
Pressure Range: Up to -80 kPa
Humidity Range: 40%–85%
Door Type: Manual Door
Heating Method: Electric Heating
Vacuum System: Oil-Free Vacuum Pump
Material (Chamber): 304 Stainless Steel
Material (Outer): ABS Plastic
Data Storage: ≥500 Sterilization Records
Printer: Built-in Micro Printer
Interface: USB Port
OEM/ODM: Available
Warranty: 1 Year
Configurations
Standard Configuration
• EO Sterilizer Main Unit ×1
• Power Cable ×1
• Built-in Printer ×1
• Water Tank ×1
• User Manual ×1
