Descriptions

Feature:

The fully automatic Veterinary nucleic acid detection system consists of the NC-10 full auto nucleic acid analyzer, nucleic acid reagents, and nucleic acid extraction solution.

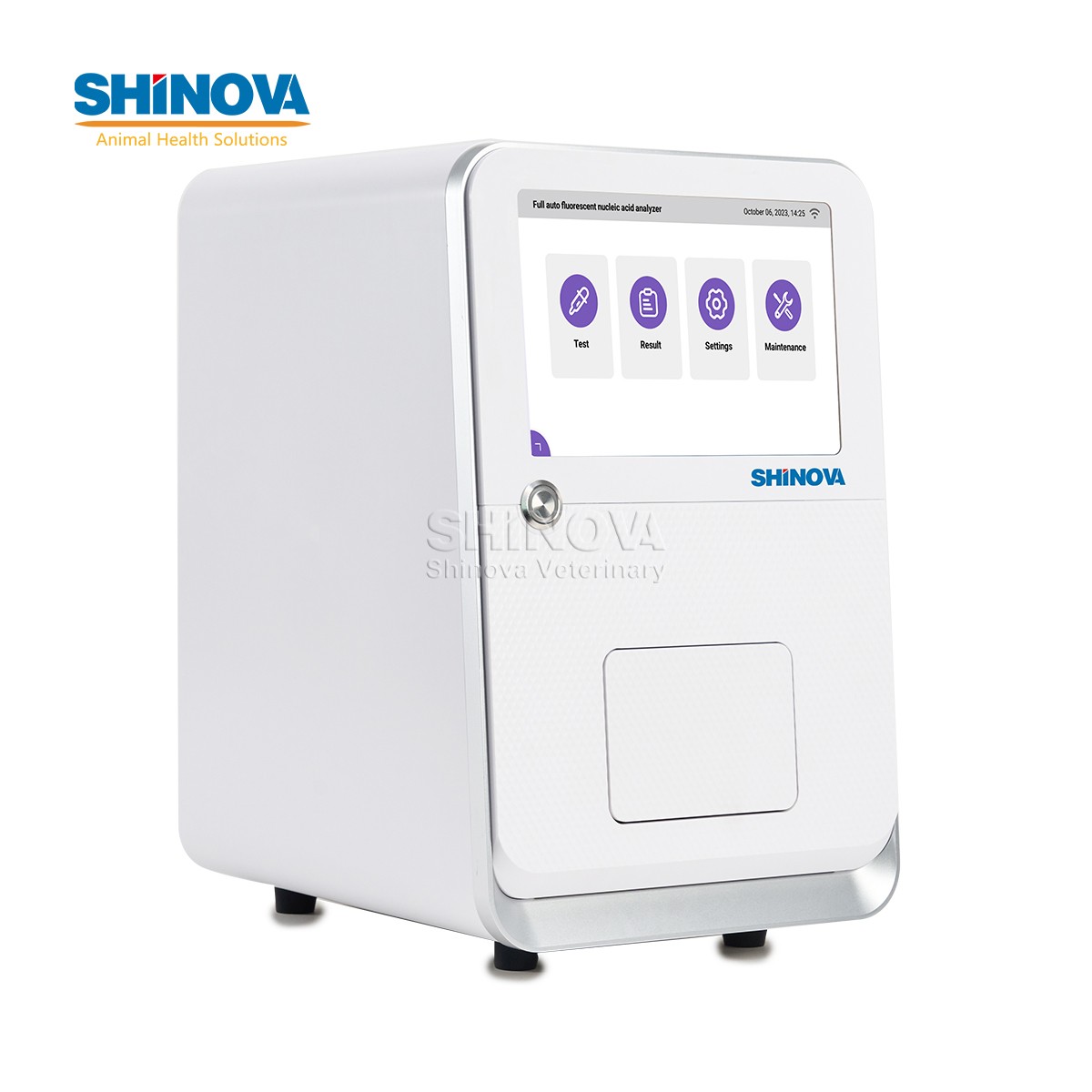

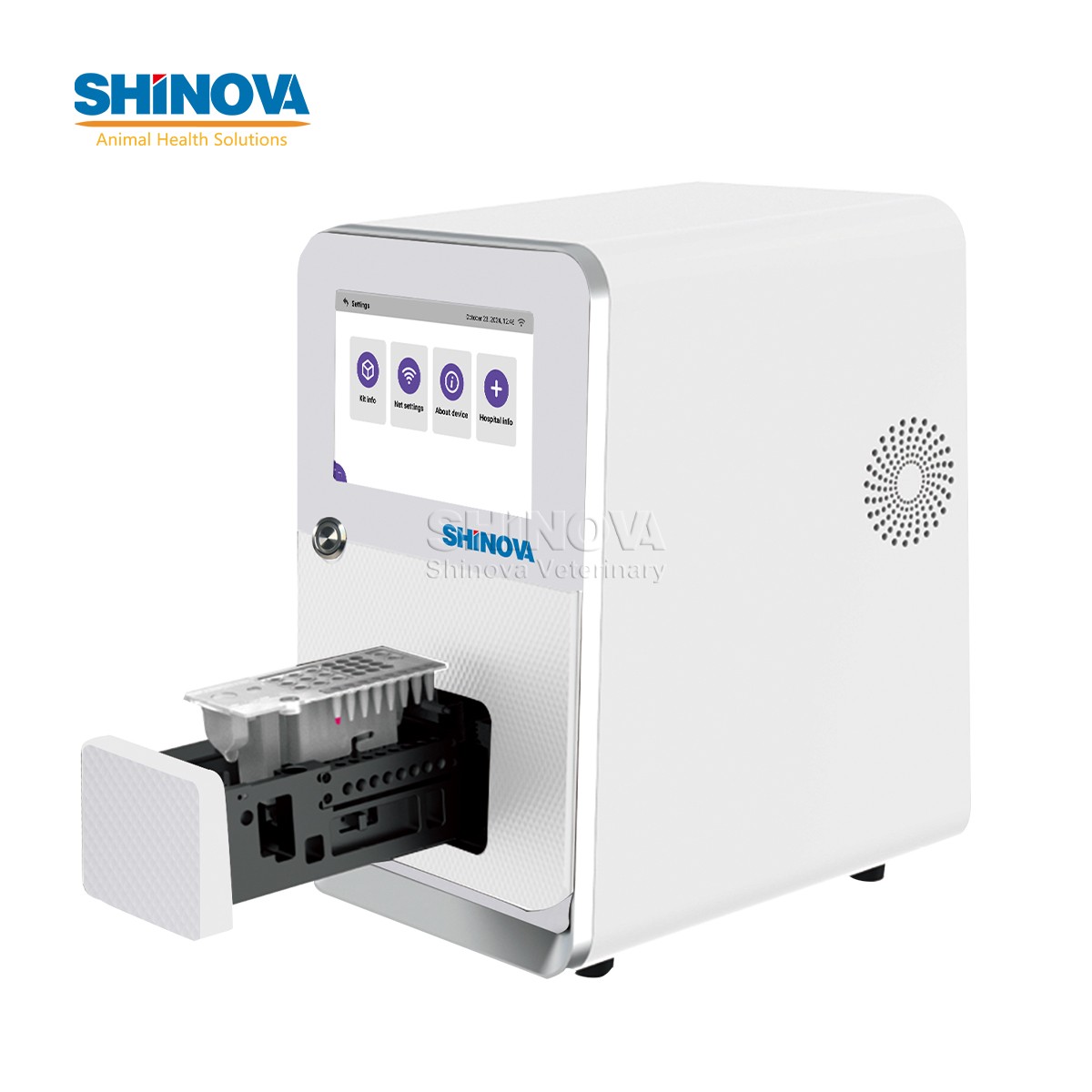

NC-10 nucleic acid analyzer is a fully automated detection device based on magnetic bead extraction technology and RAA isothermal amplification with real-time fluorescence detection

It automates quantitative pipetting, sample lysis, nucleic acid extraction and purification, isothermal amplification, and fluorescence signal detection and analysis.

After detection is completed, it automatically generates a report file that can be exported or printed.

Specifications

Specification:

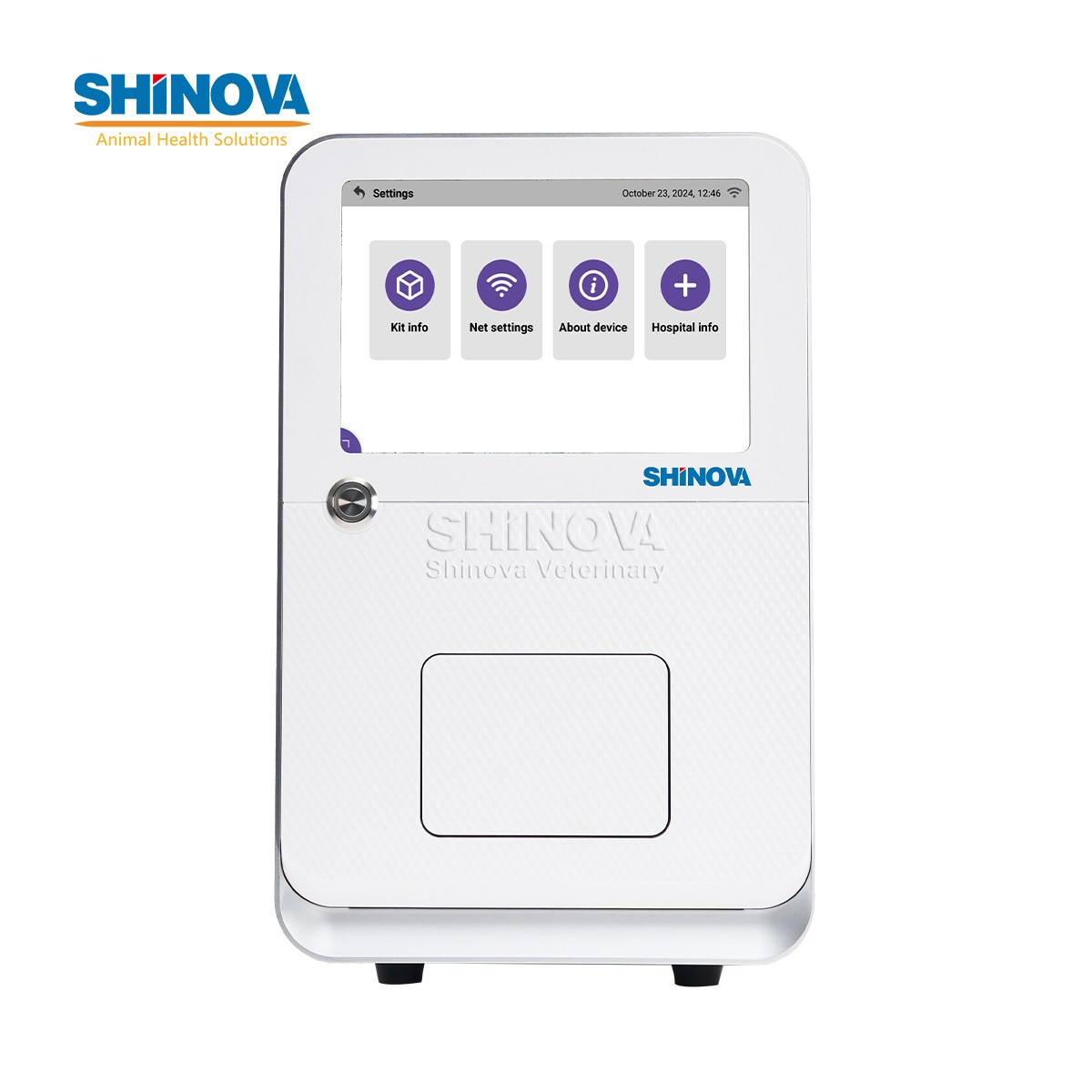

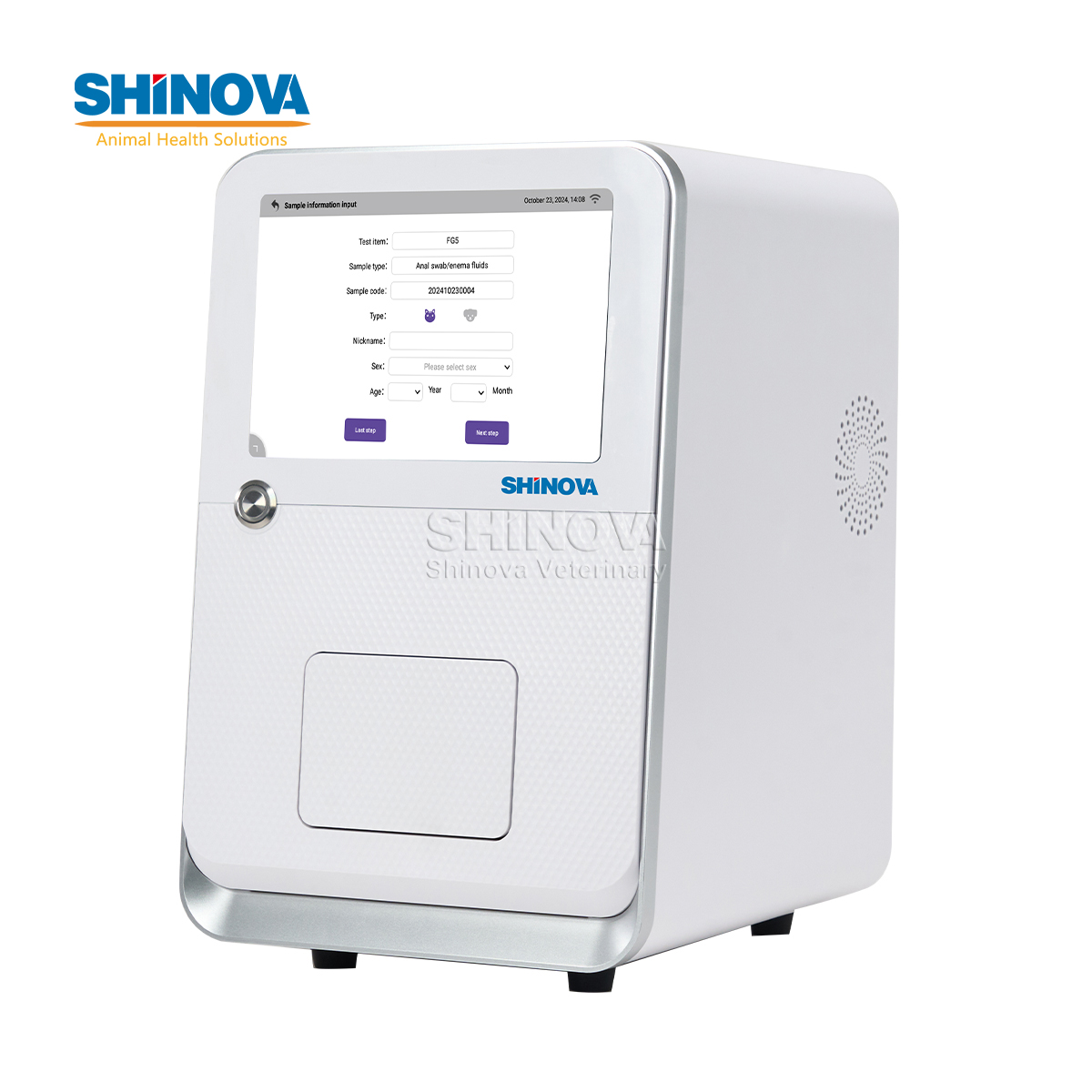

Display: 7-inch color LCD with touch control
Sample Throughput: 1 sample per run
Fluorescent Channels: Dual channels (FAM / ROX)
Detection Time: Approximately 30 minutes
Ultraviolet Lamp: Included
Air Purifier: Included
Pipette Accuracy & Precision:
   < 15>    15–50μL: Accuracy ≥ 98.5%, Repeatability (CV) ≤ 3%;

50μL: Accuracy ≥ 99%, Repeatability (CV) ≤ 1.2%;
Power Supply: AC 100–240V, 50/60Hz
Rated Power Consumption: 221W
Dimensions (W×D×H): 260 × 325 × 420mm
Net Weight: 16 kg
Operating Environment: Temperature 20°C–30°C, Humidity 20%–80% RH (non-condensing)
Storage Environment: Temperature -20°C–55°C, Humidity 10%–90% RH (non-condensing)

Configurations

• Standard configurations

• Optional configurations

  NC-10 (10L) US$0.00
