Descriptions

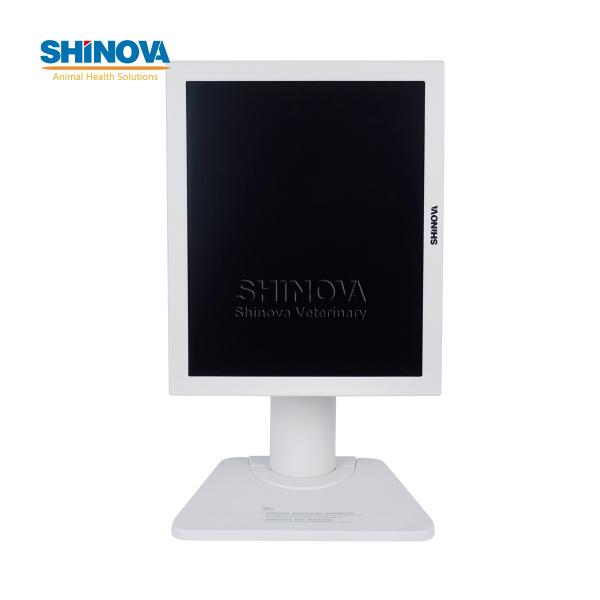

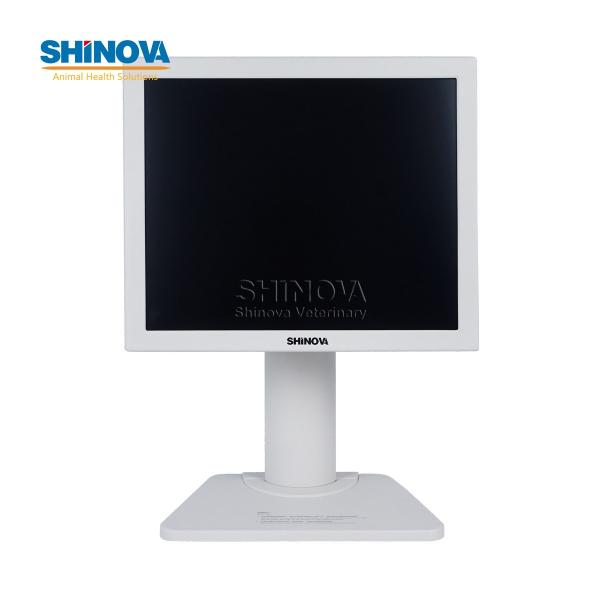

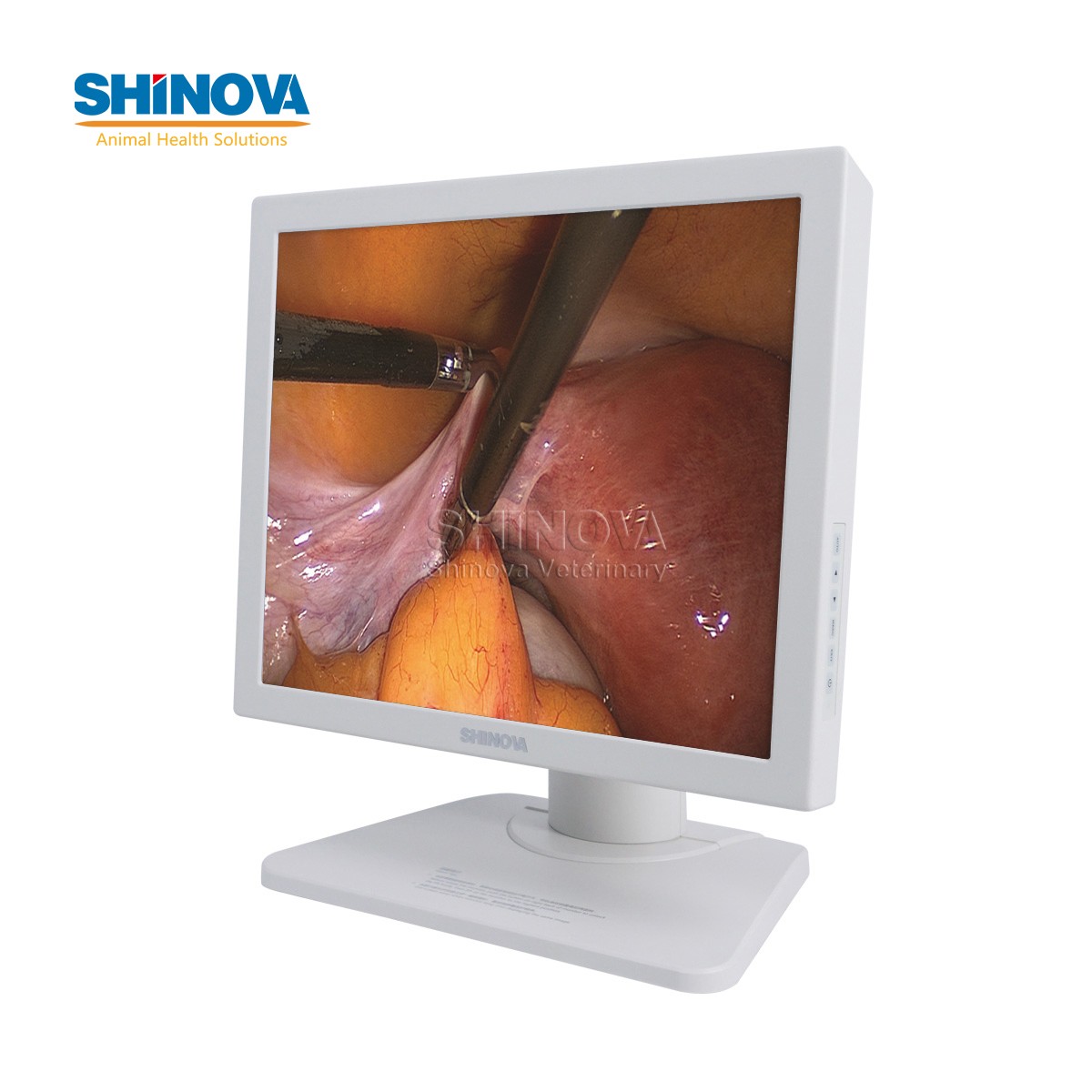

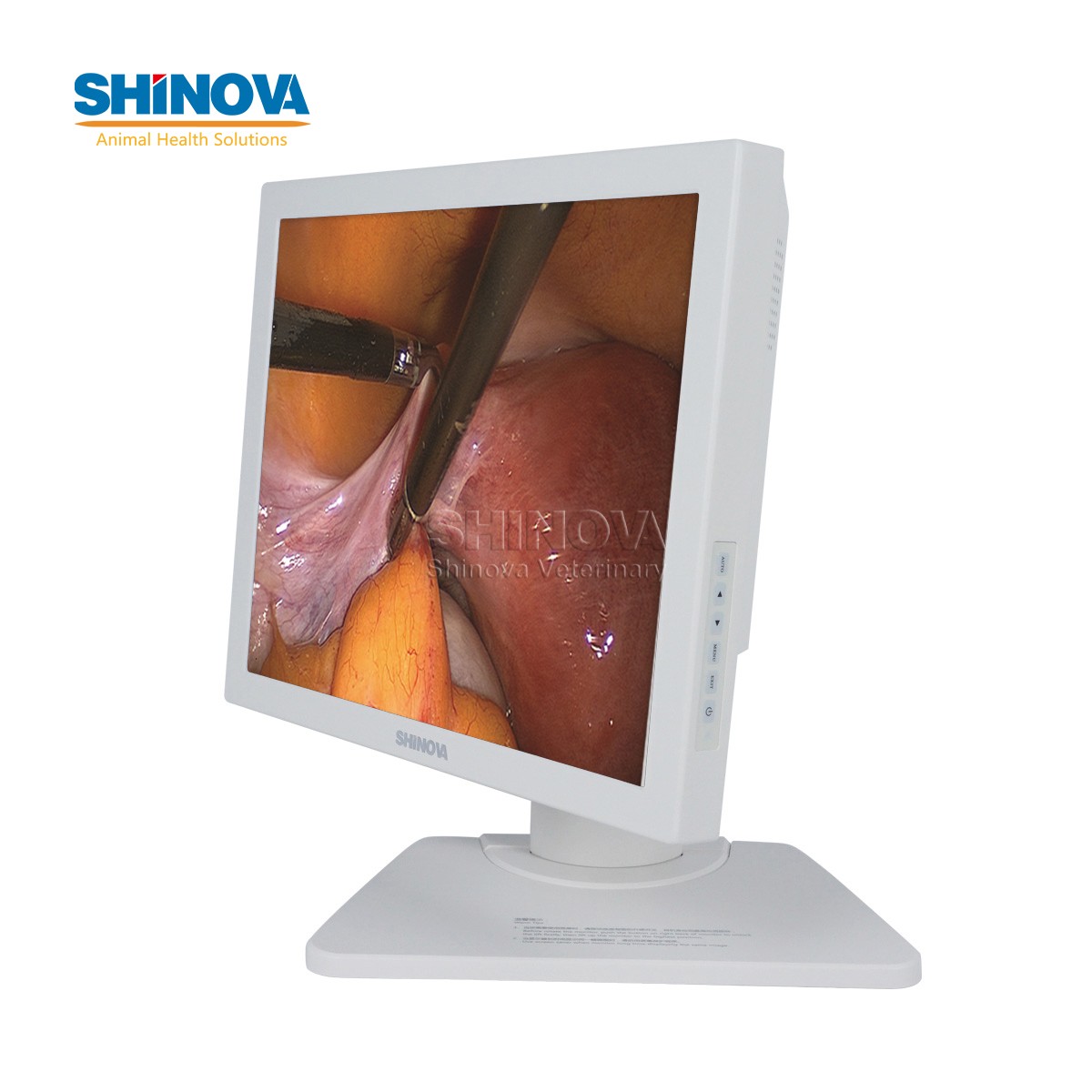

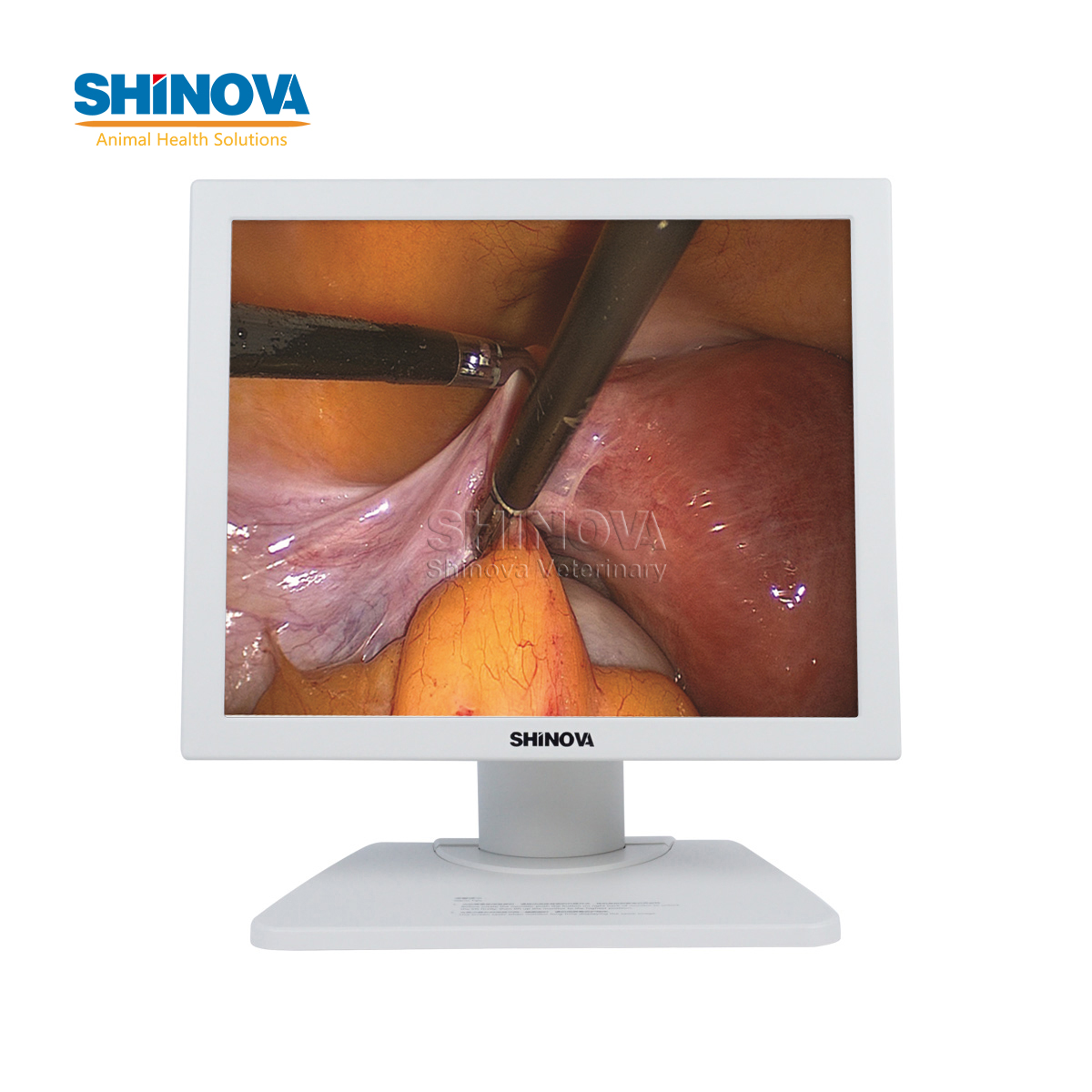

The endoscope and surgical display can restore medical image truly and accurately.
With high brightness, high contrast ratio and wide viewing angle the image display performance can be ensured during the surgery process, thus can provide liable support for doctors.
With various signal input and output interface, the display can satisfy the requirements of endoscope, operating room and lCU. The standard installation structure makes the display be fully compatible with the operating room.
Application Area
Thoracic Endoscope / Laparoscopic Surgery
Enteroscope/Gastroscope
Operating Room
ICU(Intensive Care Unit)
Backlight stabilization system
Built-in multiple display mode
True color restore
Support PIP dual screen
Signal input and output function
Specifications
Model
E190
Display size
19"
Support color
16.7M
Resolution
1280×1024
Pixel Pitch
0.294x0.294mm
Brightness
300 cd/m2 Typ.
Contrast
1000:1 Typ.
Angle of view
178 Typ.
Response time
25 ms Typ.

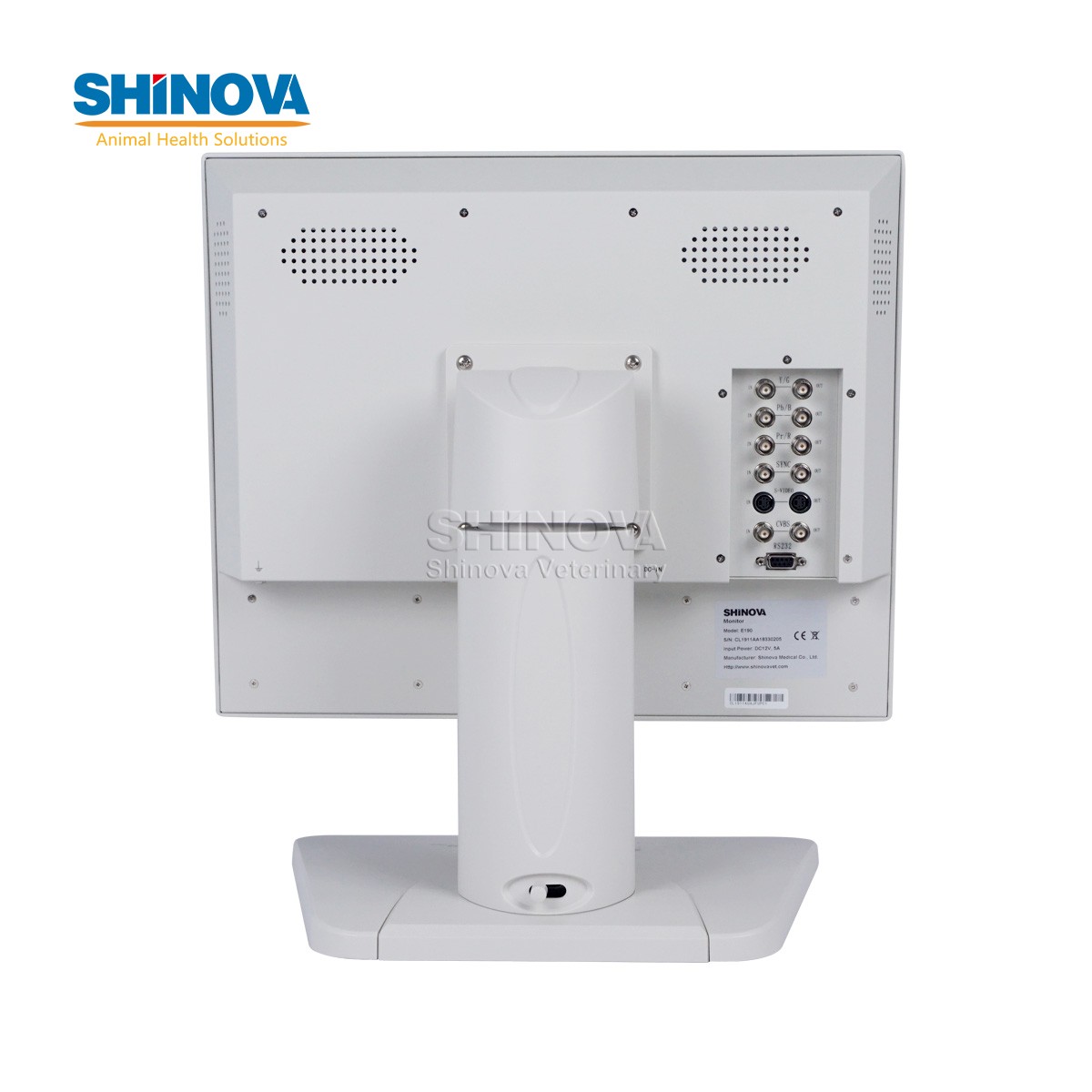

lnput signal interface
DVI-D: 24 pin / VGA: D-Sub 15 pin
C[removed] BNC /S-VIDEO: DIN4
YPbPr: BNC*3/RGBS: BNC*4
Output signal interface
DVI-D: 24 pin / C[removed] BNC
S-VIDEO: DIN4 / YPbPr: BNC*3
RGBS: BNC*4
Size
419(W)x441~564(H)x253(D)mm
Weight
8.5kg
Standard Mounting
VESA 100x100mm
Power supply
DC12V
Power Consumption
40W max.
Power Saving
EPA, VESA
MTBF
>50,000 Hours
