Descriptions

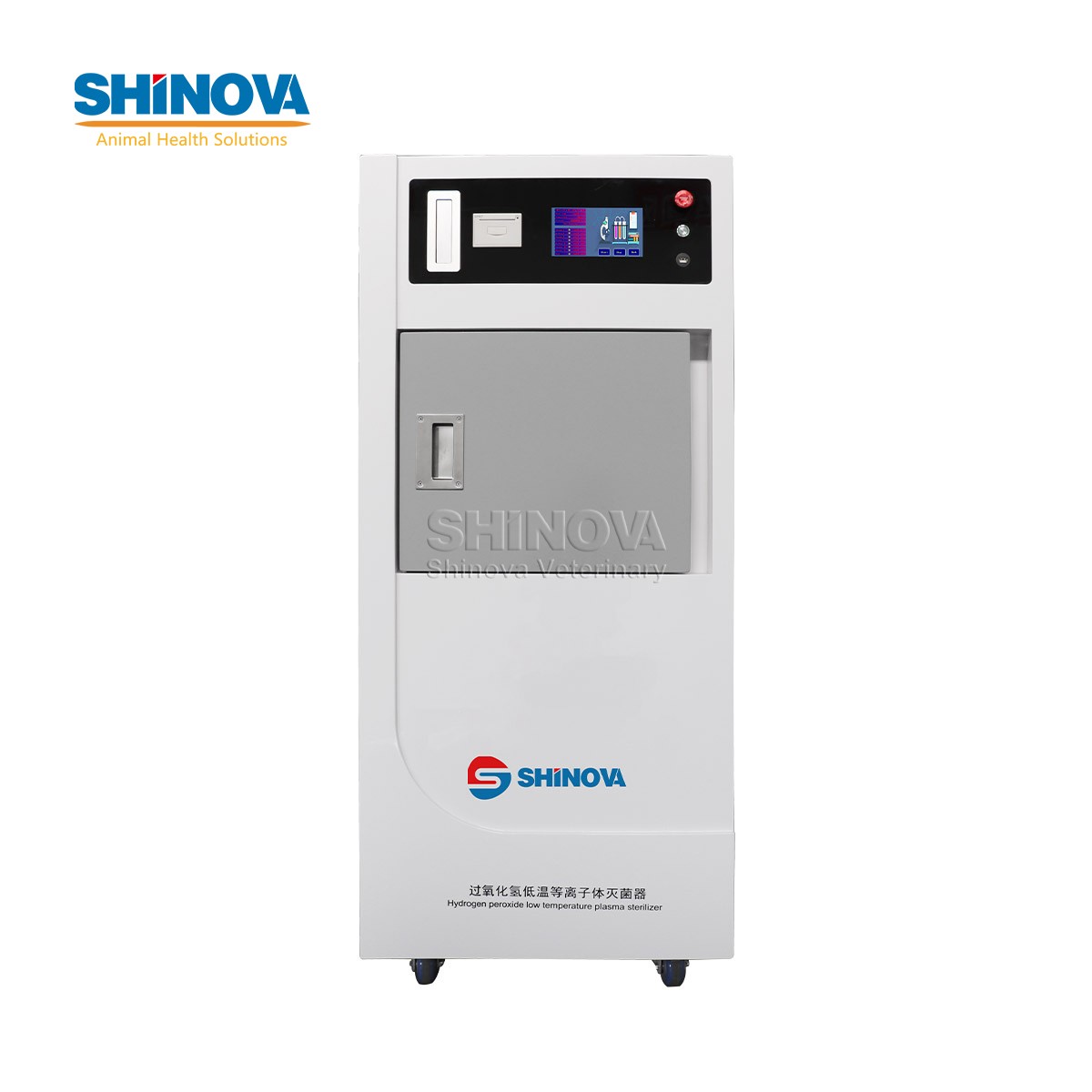

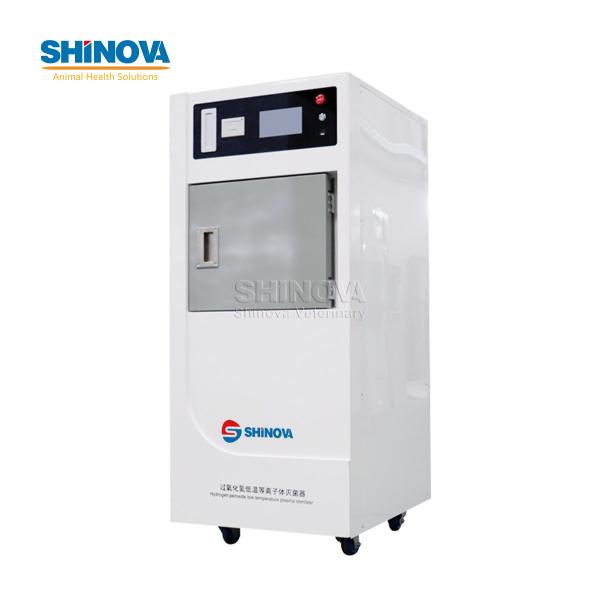

A) Plasma Sterilization Technology

• Uses hydrogen peroxide plasma (58%–60% H₂O₂)

• Low-temperature sterilization at 45°C–60°C

• Sterilization cycle time: 35–55 minutes

• Suitable for heat-sensitive and precision instruments

• Effective sterilization for long lumen devices (1mm × 4m tubing)



B) Intelligent Control System

• Siemens SMART PLC control system

• 7-inch color touchscreen interface

• Real-time display of temperature, pressure, time, and cycle stage

• Two sterilization modes: standard cycle and rapid cycle

• Stable and reliable automated operation



C) Vacuum & Injection System

• High-performance vacuum pump (≤5 min to 50 Pa)

• Electromagnetic vacuum control valve system

• Cartridge-based hydrogen peroxide dosing system

• Pulse plasma discharge with ≤800W power



D) Chamber & Structural Design

• Rectangular chamber design for higher space utilization

• Chamber made of high-strength 5052 aluminum alloy (≥8 mm thickness)

• Dual-layer perforated aluminum trays for increased loading capacity

• Manual right-pull door with ≥15 mm thick sealing structure

• Thermal insulation ≥20 mm for energy efficiency



E) Safety & Protection System

• Over-temperature and over-pressure protection

• Explosion-proof heating system

• Built-in pressure and temperature sensors

• Leak detection and alarm system

• Oil mist filtration and 0.22 μm air filtration system



F) Data Management & Traceability

• Stores up to 500 sterilization cycle records

• Built-in micro printer for full-cycle data recording

• USB communication capability

• Continuous monitoring and traceability for compliance

Specifications

Application: Veterinary Clinic / Animal Hospital / Laboratory

Sterilization Method: Hydrogen Peroxide Plasma (H₂O₂)

Chamber Volume: 68L

Control System: PLC + Touchscreen Control

Display: 7-inch Color Touchscreen

Sterilization Temperature: 45°C – 60°C

Sterilization Time: 35–55 minutes

Door Type: Manual Door (Right Pull)

Heating Method: Electric Heating

Vacuum System: High Vacuum Pump

Material (Chamber): Aluminum Alloy (5052)

Material (Outer): ABS Plastic

Loading System: Dual-layer Tray System

Filtration: 0.22 μm Air Filter

Data Storage: ≥500 Cycles

Printer: Built-in Micro Printer

OEM/ODM: Available

Warranty: 1 Year

Configurations

Standard Configuration

• Plasma Sterilizer Main Unit ×1

• Dual-layer Trays ×1 set

• Built-in Printer ×1

• Power Cable ×1

• User Manual ×1
