Descriptions

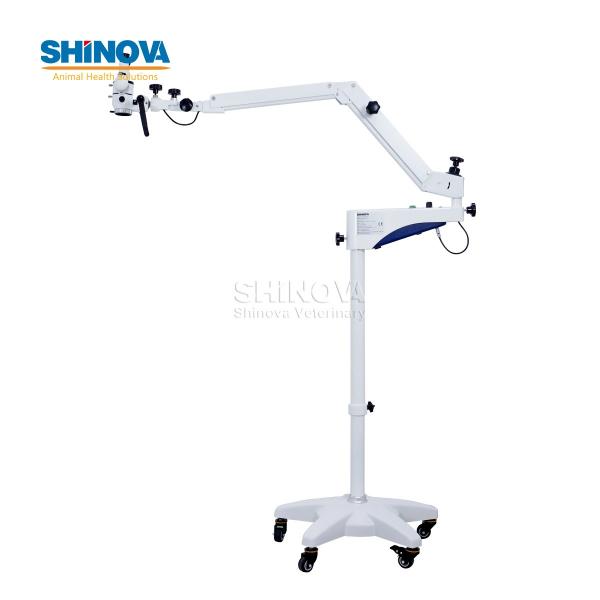

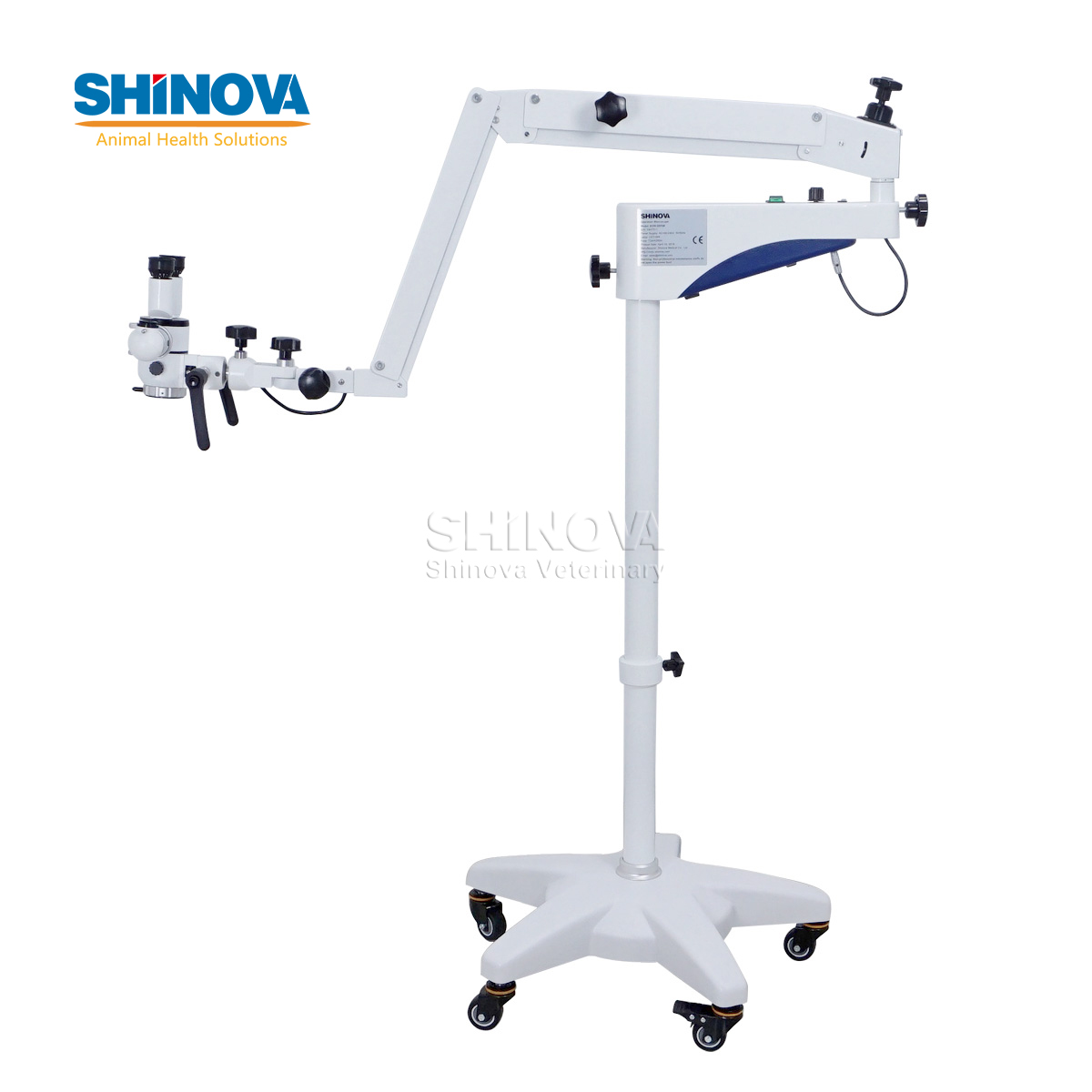

EOM Series Veterinary Operating Microscopes using fiber-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ENT, dentistry, ophthalmology, gynecology and surgery.Applications:EOM-200S, EOM-200SB: Clinic applications for ENTEOM-200T, EOM-200TB: Clinic applications for Dentistry and Ophthalmology
Specifications
Table of Specification for EOM Series Operation Microscope:
Item
EOM-200S(1)
EOM-200T(1)
EOM-200S
EOM-200T
EOM-200SB
EOM-200TB

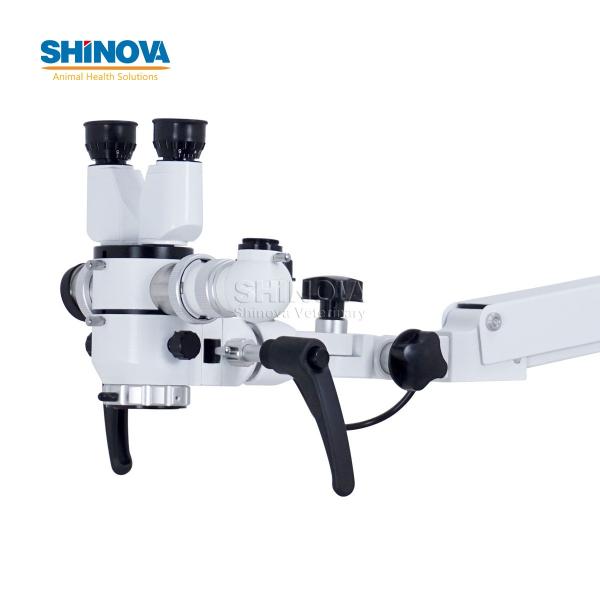

Binocular observation
Straight
45º Tilted
Straight
45º Tilted
Straight
45º Tilted
Magnification of binocular
6X
Interpupillary distance
50mm-80mm
Diopter
±5D
Magnification changer
3-step magnification change: 0.6X,1X,1.6X
Focal length of objective
Two objectives: F=200 & F=300mm (M45x0.75mm)
Total magnification
3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field
60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Beamsplitter
No
50:50 Beamsplitter
Video camera adapter
C-mount 1/3 inch video camera attachable
Fine focusing range
10mm

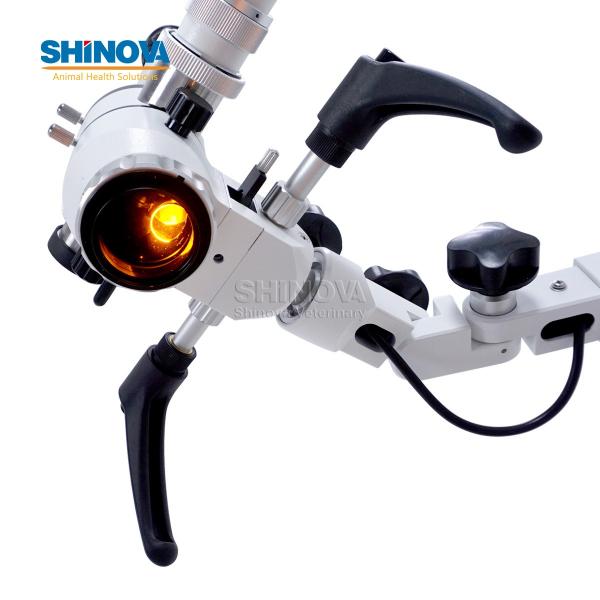

Filter
Built-in green and yellow filters
Balancing arm
2-part arm with universal joints
2-part arm with universal joints, counterweight adjustable and can be locked

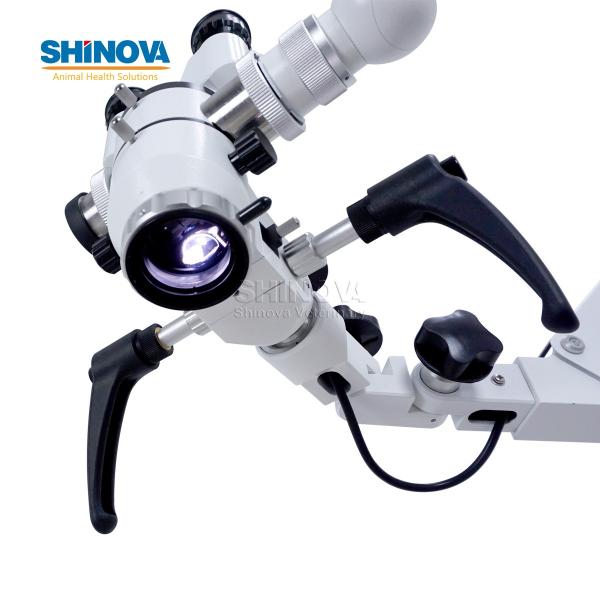

Illumination system
Coaxial illumination with10W LED lamp light source, brightness adjustable, illumination>30000lx
Stand
2-part column fitted on the five-star base with casters
Table mount clamp
2-part column fitted on the five-star base with casters
Optional accessories
Demonstrator, Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter,
Monitor (S22E360H, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket
Table of Optical Characteristics for EOM Series Operation Microscope:
Focal length of objective
F=200mm
F=250mm(optional)
F=300mm
F=400mm(optional)
Magnification on handwheel
1.6X
1X
0.6X
1.6X
1X
0.6X
1.6X
1X
0.6X
1.6X
1X
0.6X
Total magnification
12X
7.5X
4.7X
9.6X
6X
3.7X
8X
5X
3X
6X
3.8X
2.3X
Linear field (mm)
15.8
25.3
40.6
19.7
31.6
50.7
23.6
37.9
60.8
31.5
50.5
81
Exit pupil diameter (mm)
1.04
1.66
1.04
1.66
1.04
1.66
1.04
1.66
Exit pupil distance (mm)
15.3
Resolution (LP/mm)
67
44.5
29.7
60
35.4
27
47.2
31.5
23.6
35
27
19.8
