Descriptions

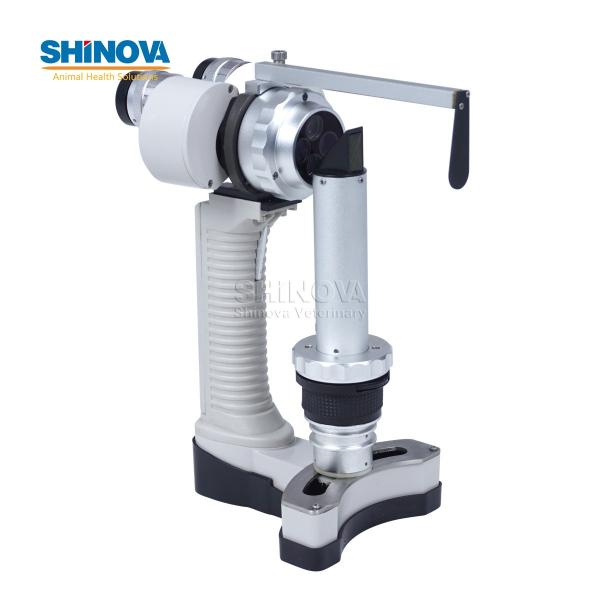

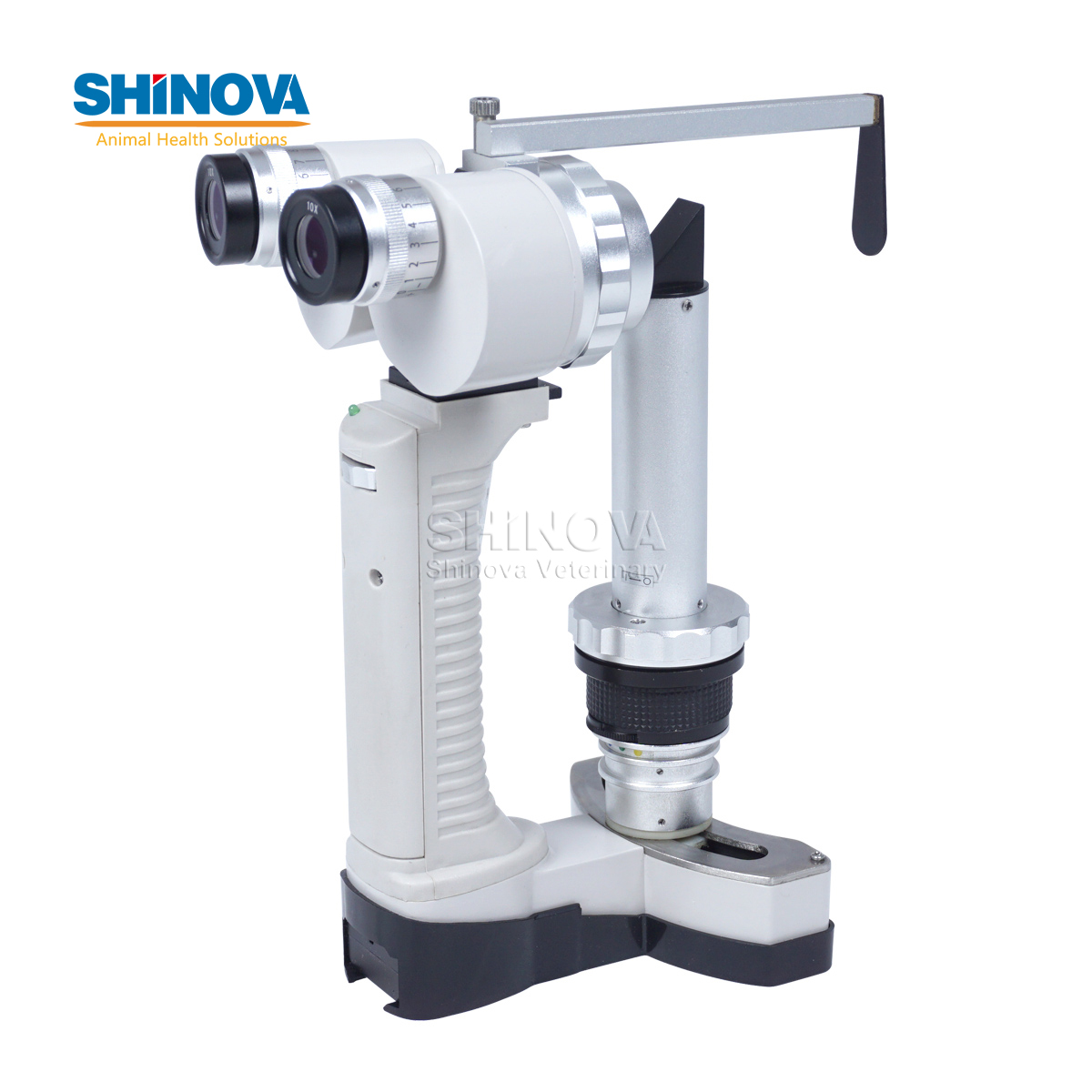

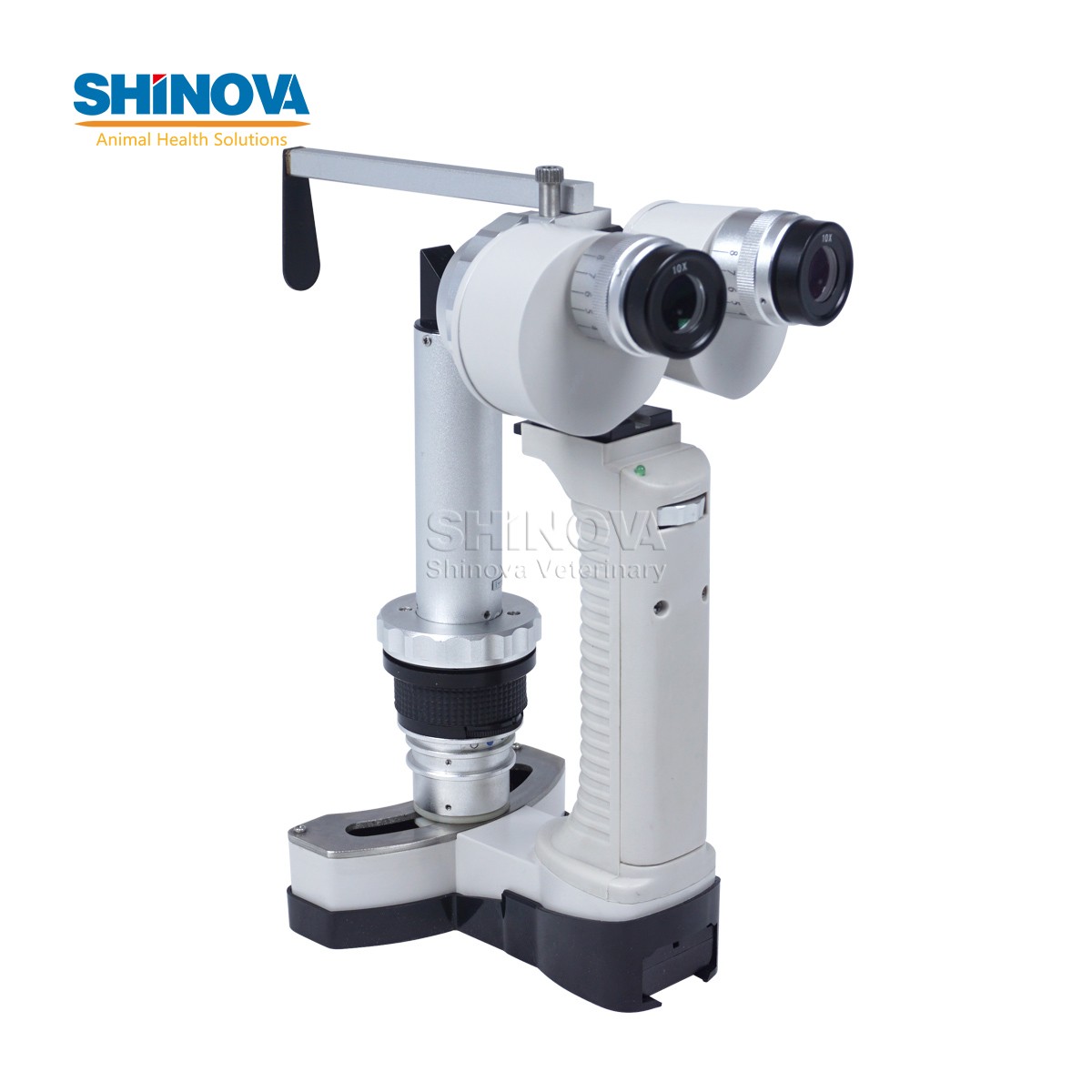

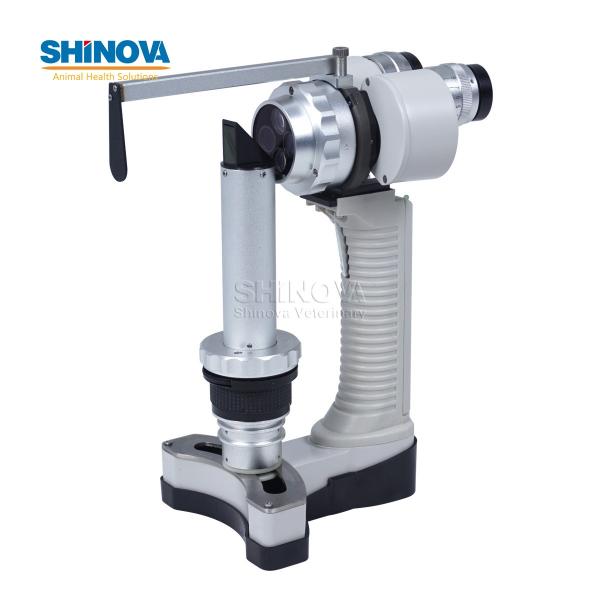

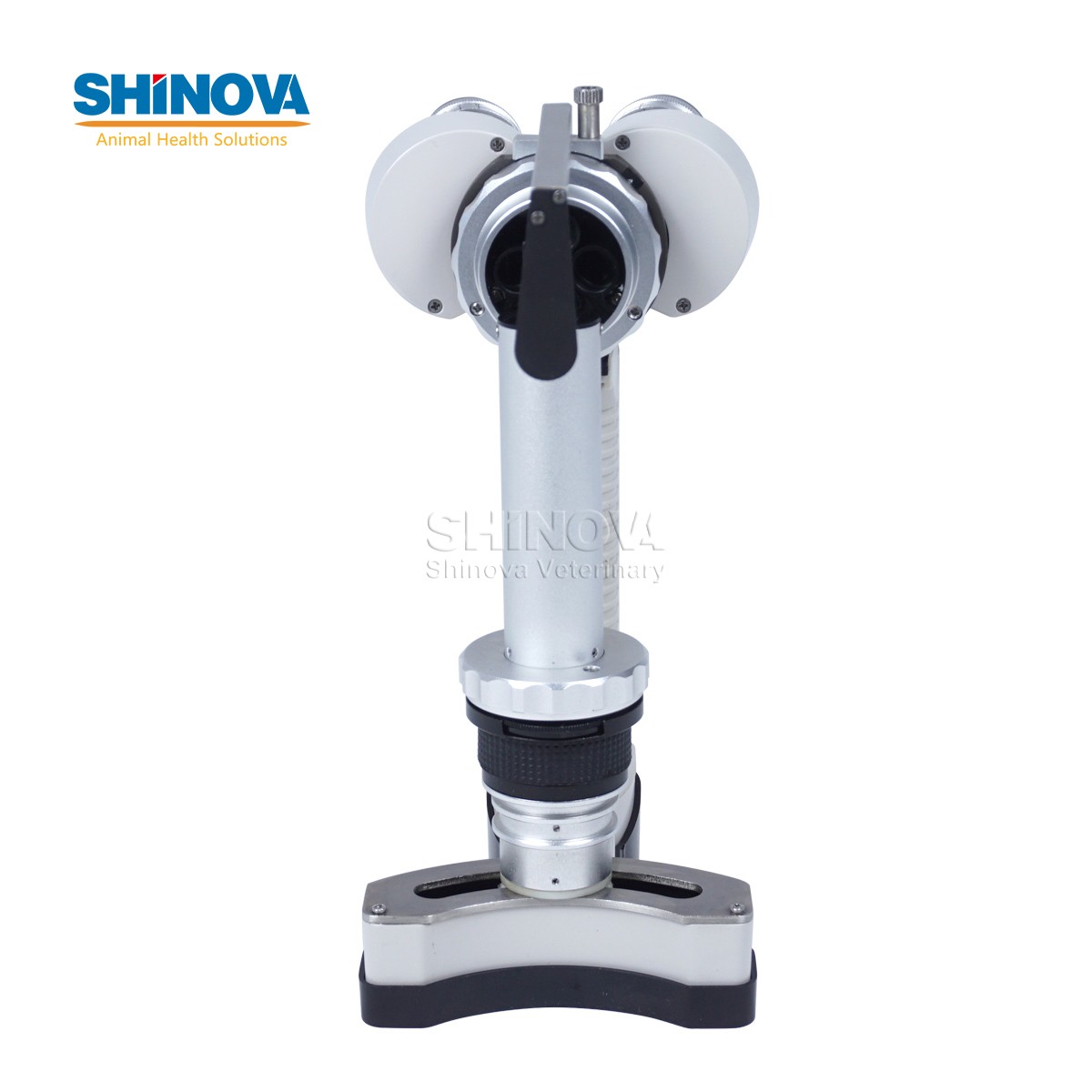

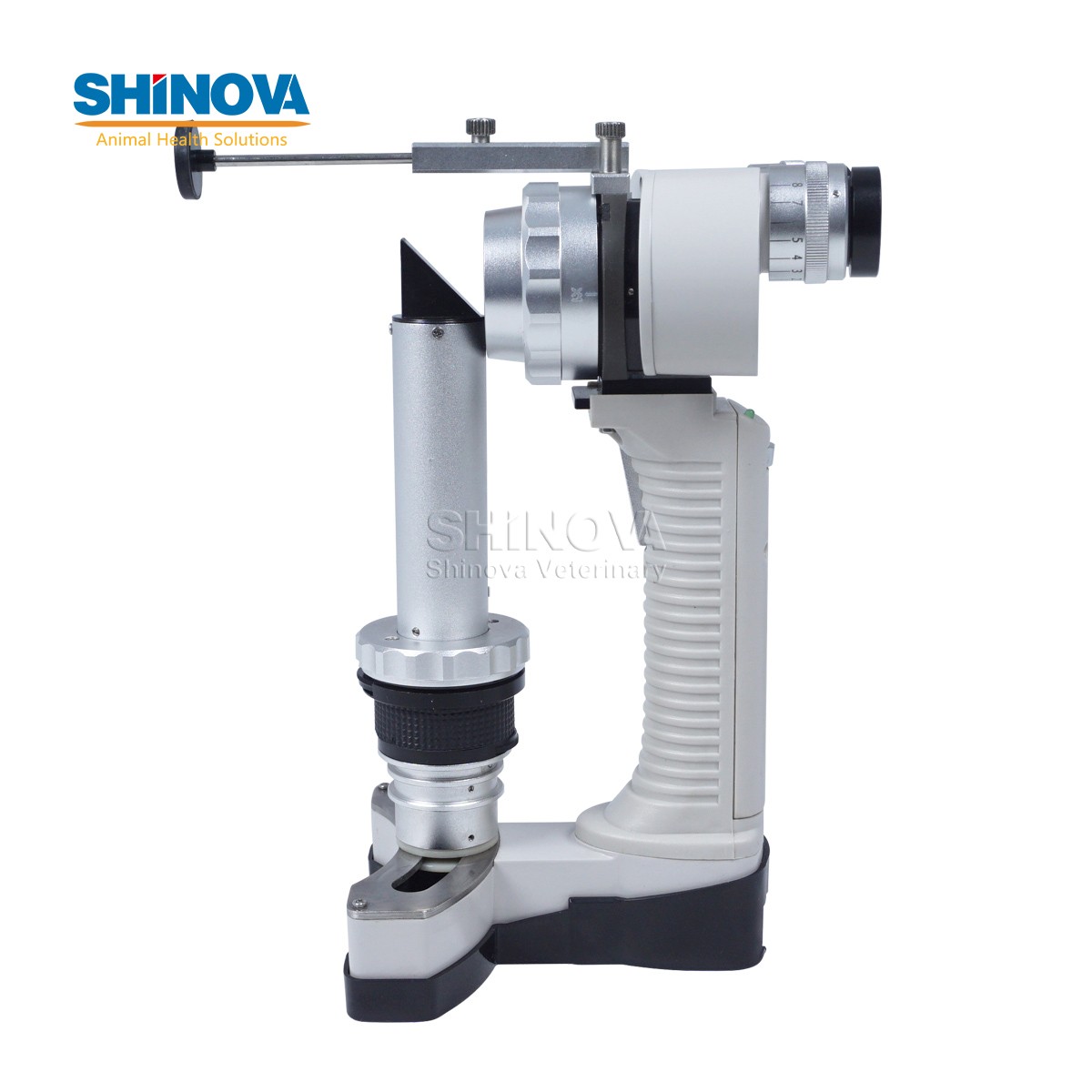

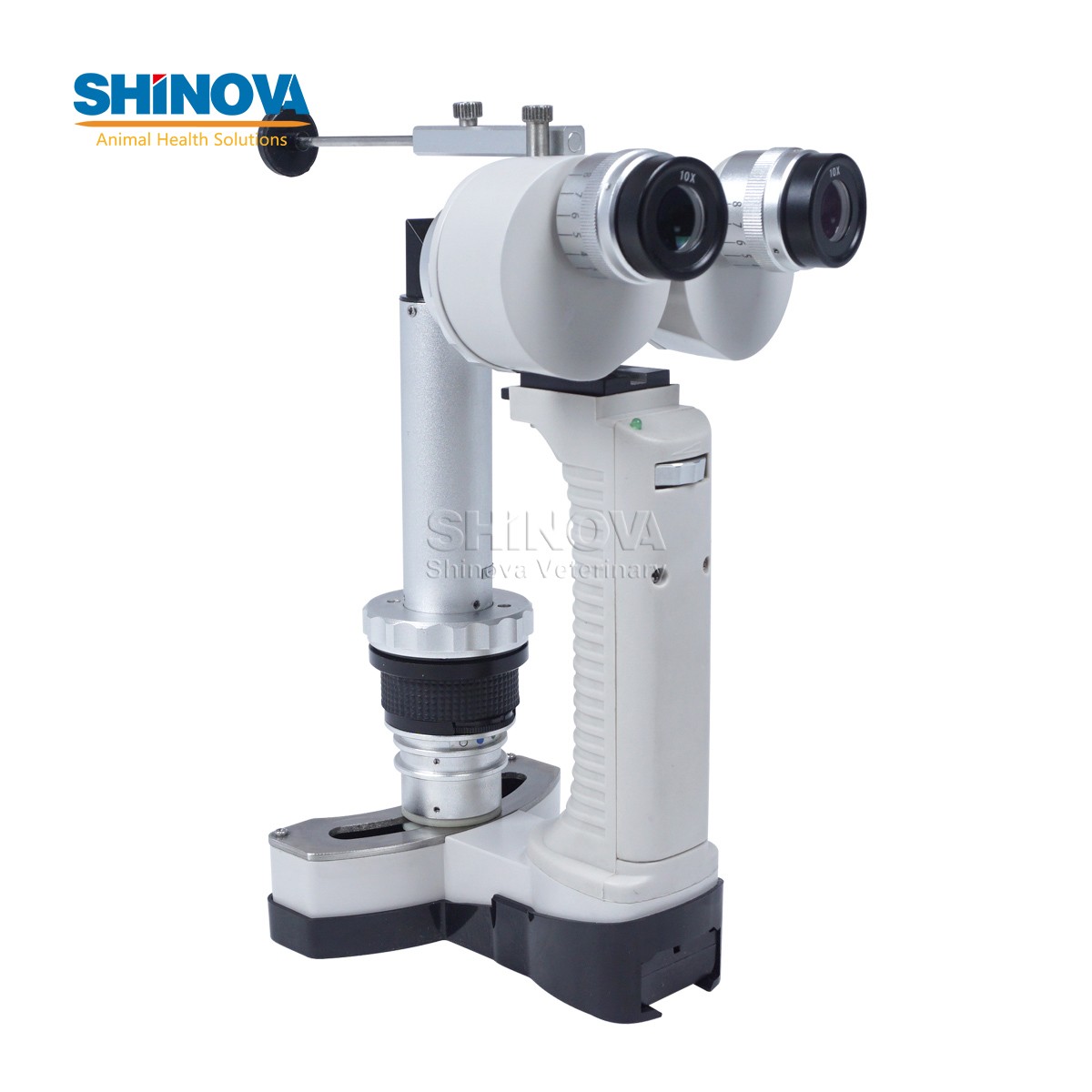

1. Portable slit lamp adopts high-brightness, cold-light illuminator, without external power supply.

2. High-brightness LED, cold-light illuminator, its brightness up to 15000 LUX, service lift more than 50000 hours

3. Sharp slit, the width can be adjusted continuously

4. Telescopic forehead-rest, easier to observe and adjust the diopter.

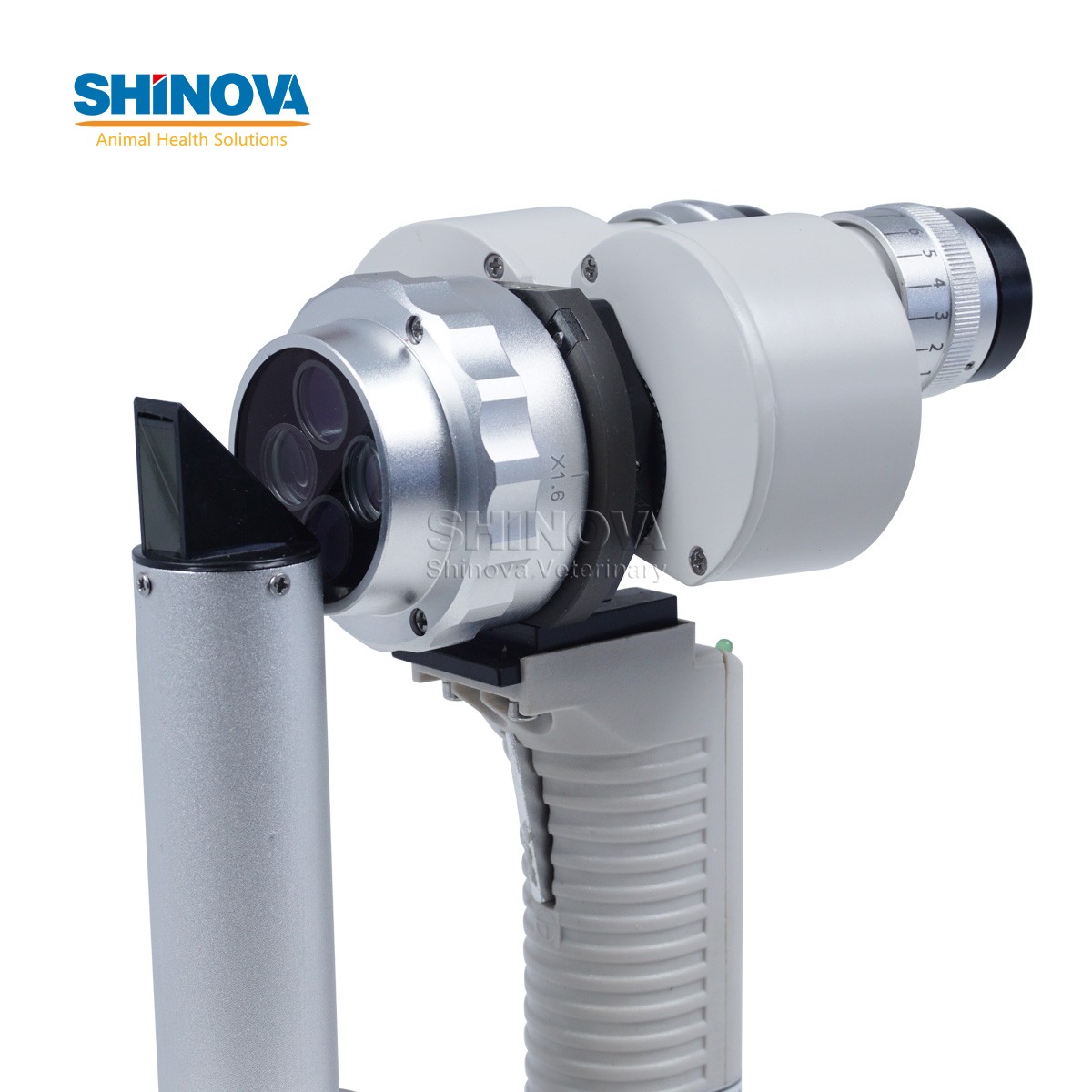

5. Easier to adjust the magnification by revolvable objective lens

6. Small and light, only 700g including battery

7. Different filter, Heat filter, light-reducing filter, red filter and cobalt filter

8. Full power supplied by battery can drive the slit lamp for 5-6 hours.

Specifications

Model Item		SL-PA	SL-PB	SL-PC
Microscope	Microscope Type	Converging
	Objective Lens	1.0X	1.0X、1.6X	1.0X、1.6X

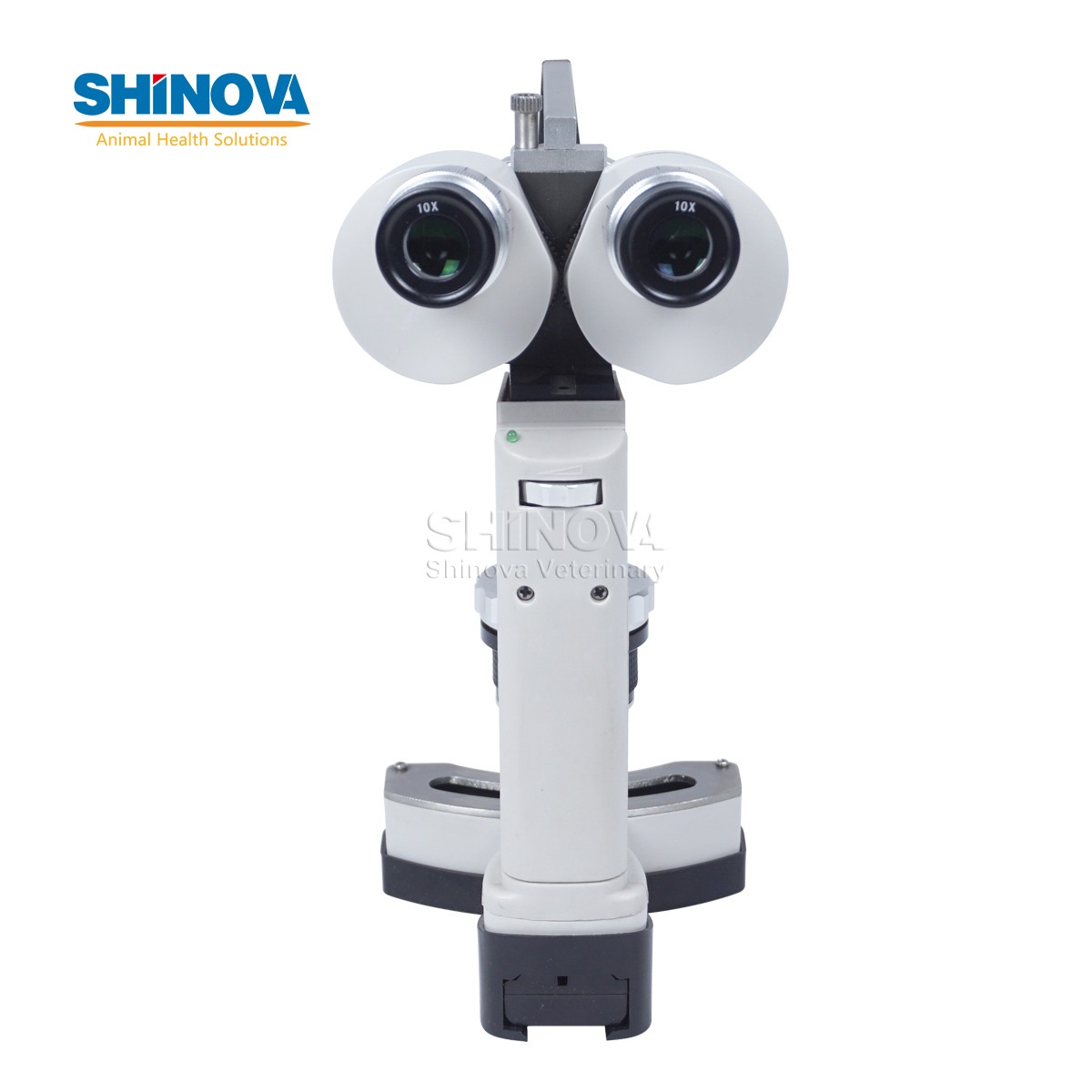

	Eyepiece	10X	10X	10X、16X
	Total Magnifications	10X	10X、16X	10X、16X、25.6X
	Working Distance	81mm
	Intraocular Distance	45mm―78mm
	Diopter Adjustment	-8D―+8D
Illumination	Slit Width	0―12mm Continuous
	Slit Height	1-12mm	1-12mm	1-12mm
	Slit Angle	12mm	ф0.2mm，ф1mm，ф5mm，ф12mm
	Filters	Heat Absorption; Yellow; Redfree(Green); Cobalt Blue
	Illumination Bulb	High-Brightness White LED
	Brightness	≥30000Lux
Power	LED Working Voltage	d . c . 3 V
	Battery	Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously
Weight and Dimension	Dimension	169.5mm×109.5mm×228.5mm
	Weight	≤700g(Including Battery)
