Descriptions

Feature:

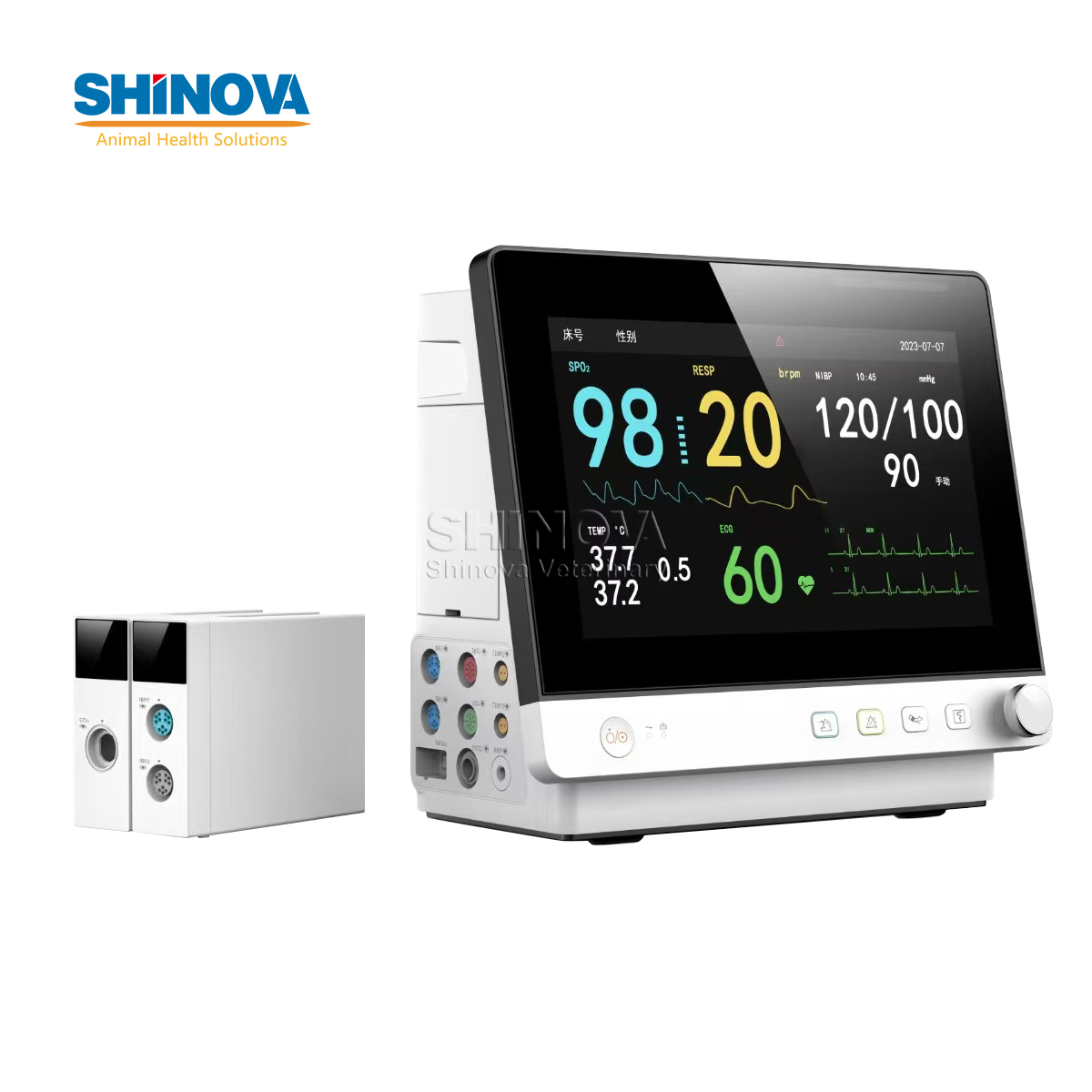

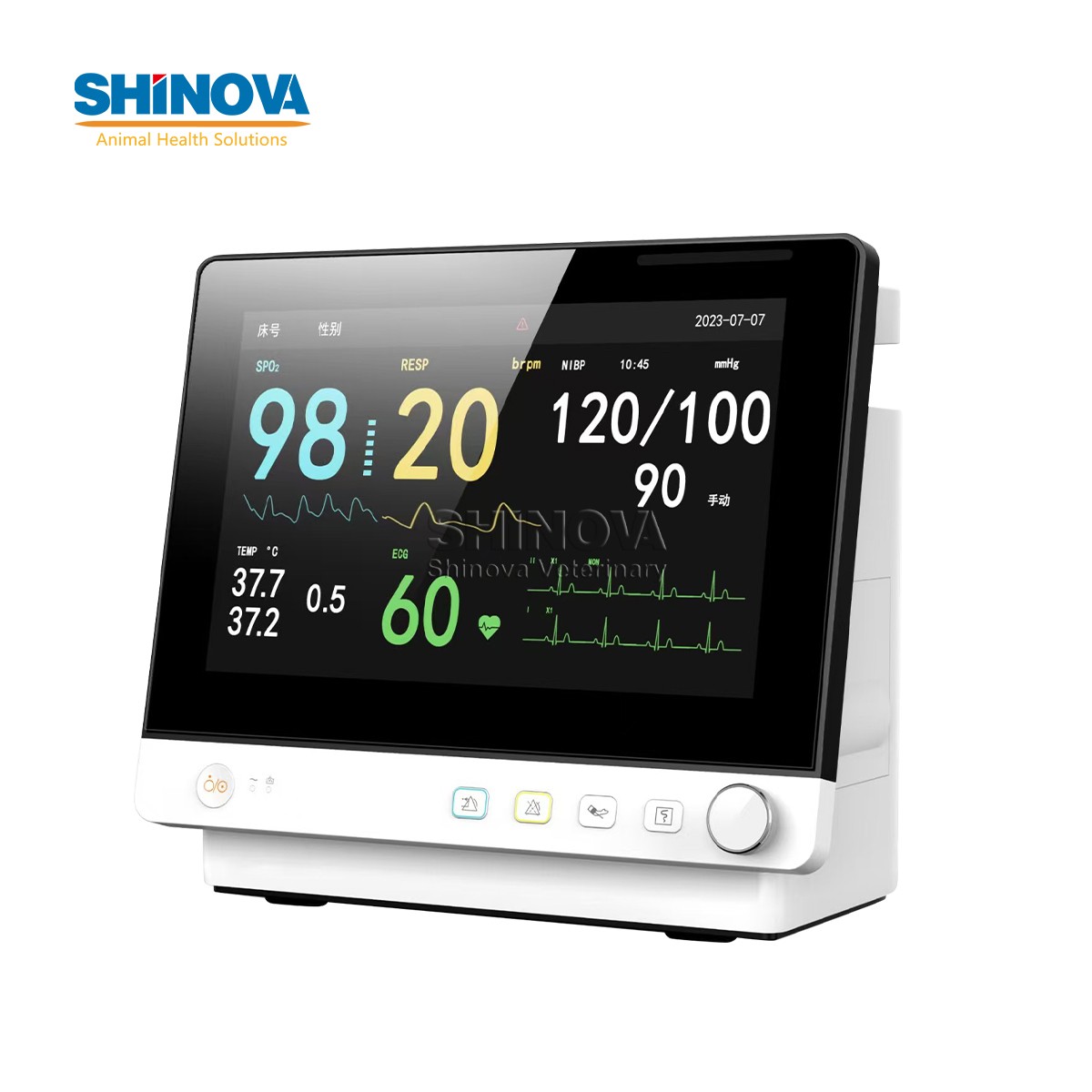

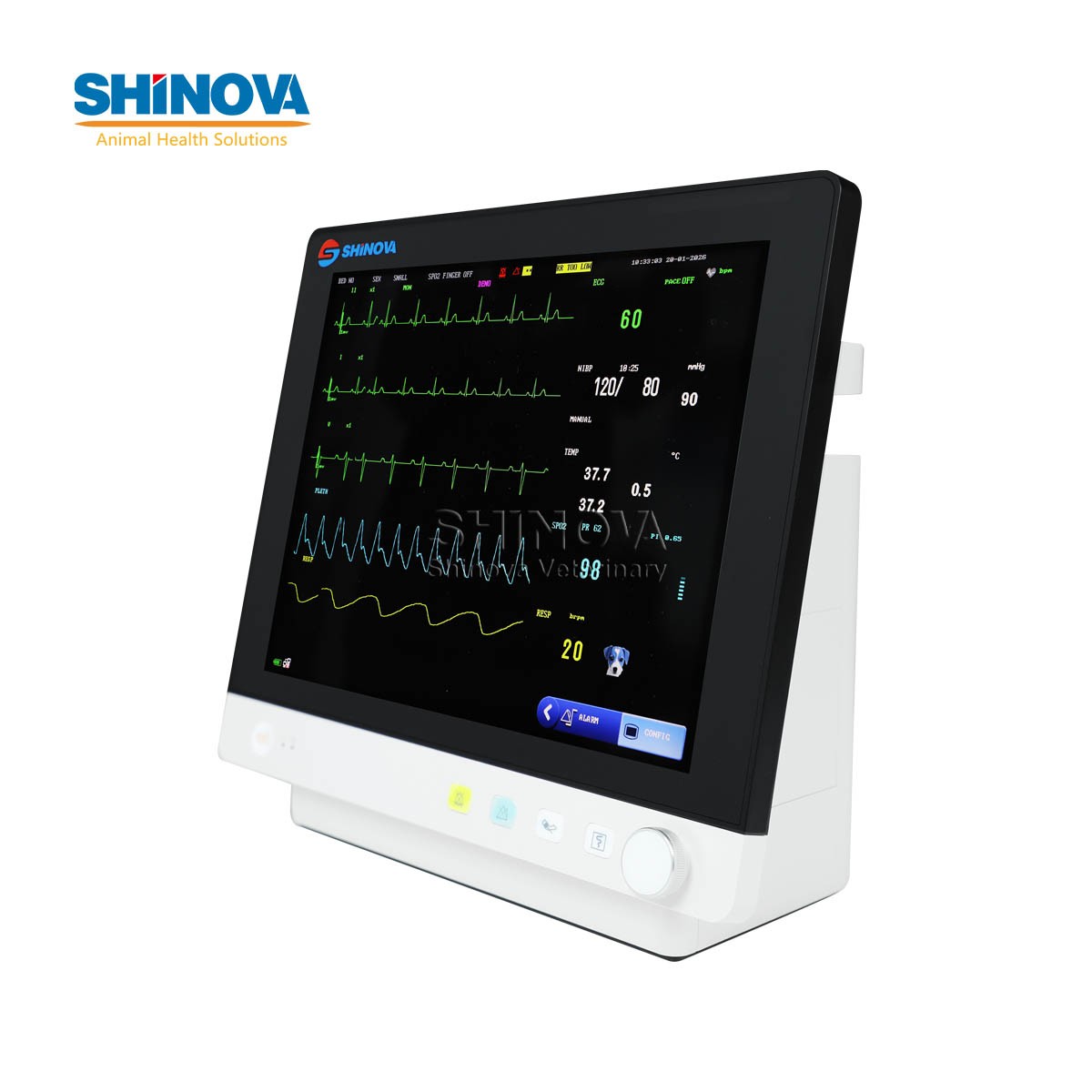

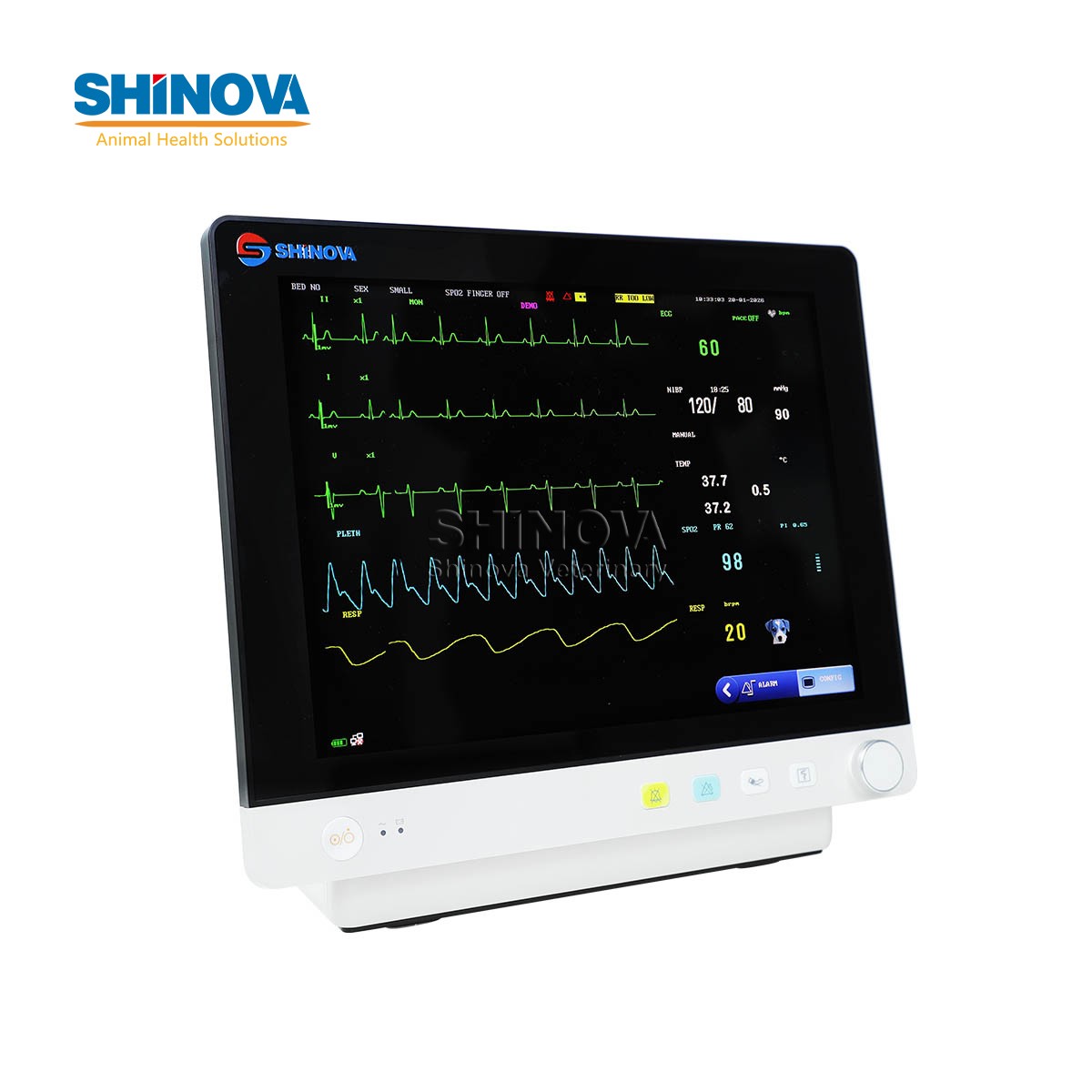

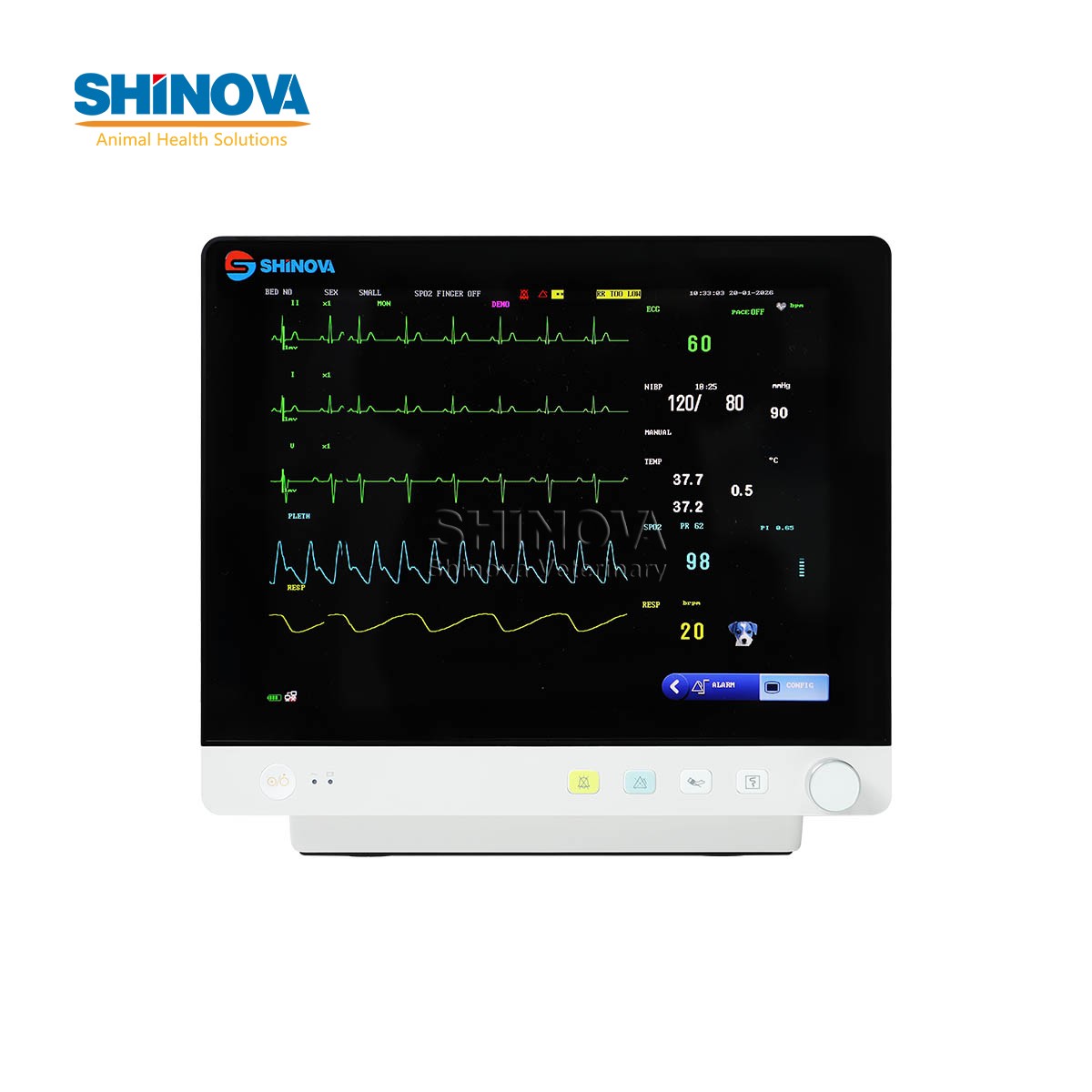

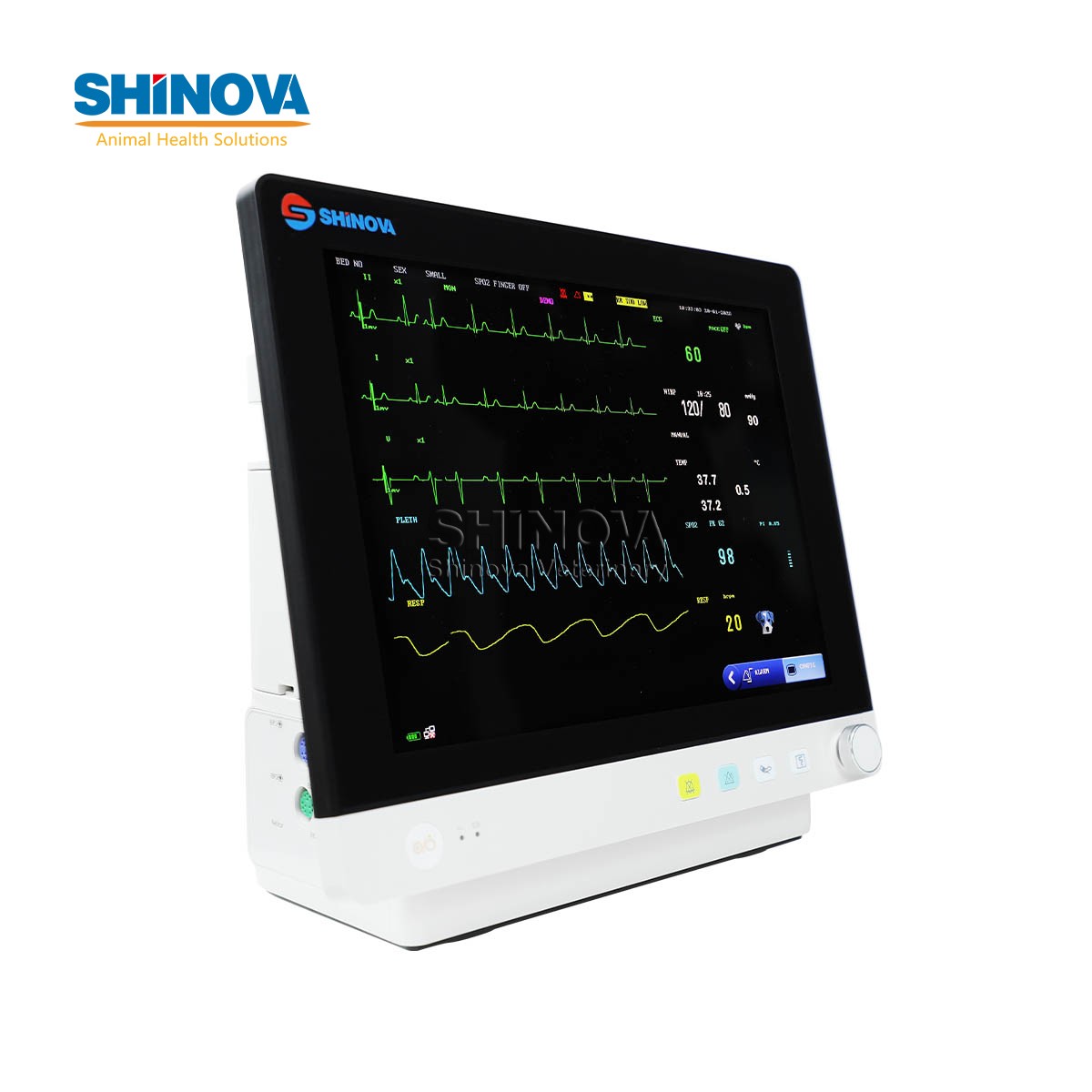

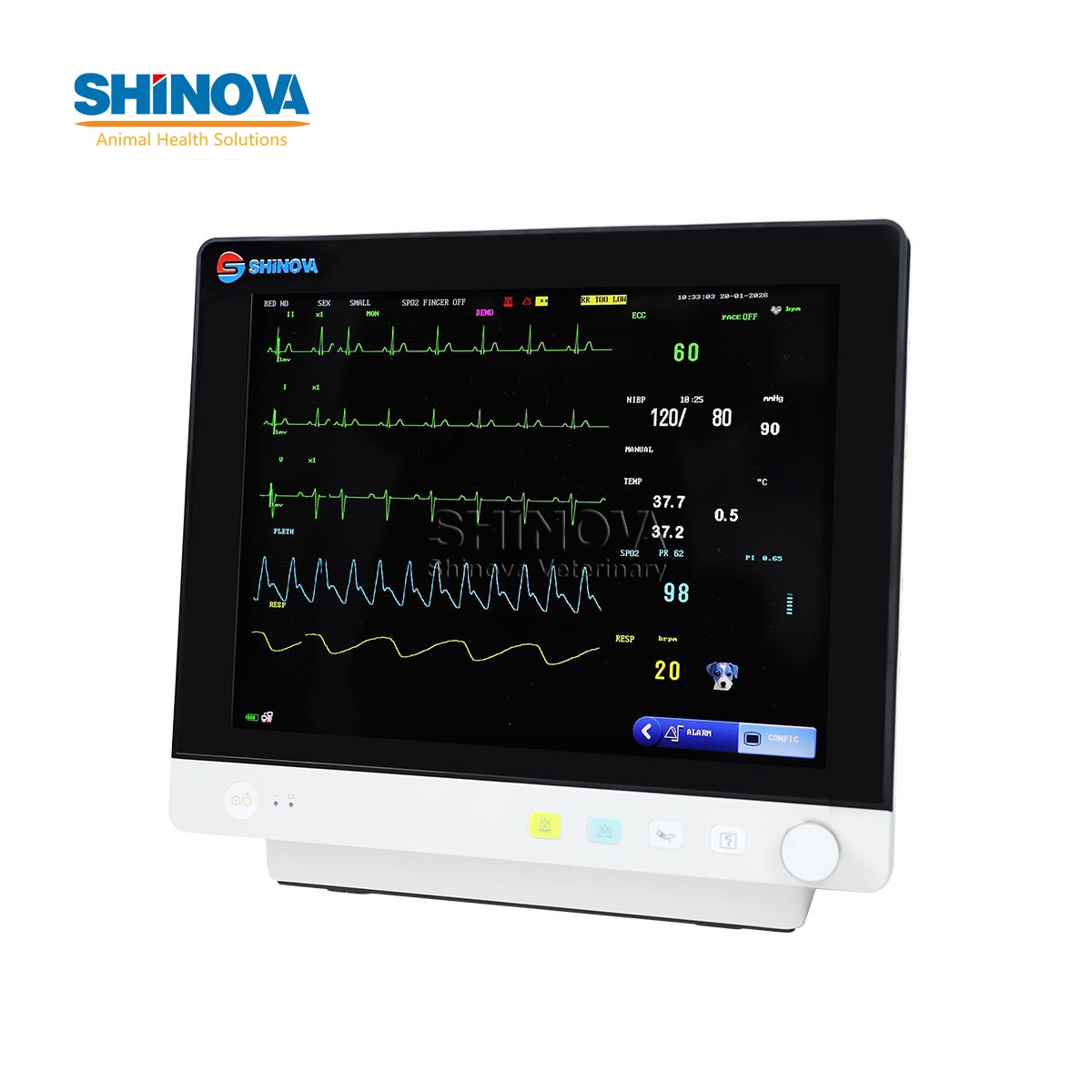

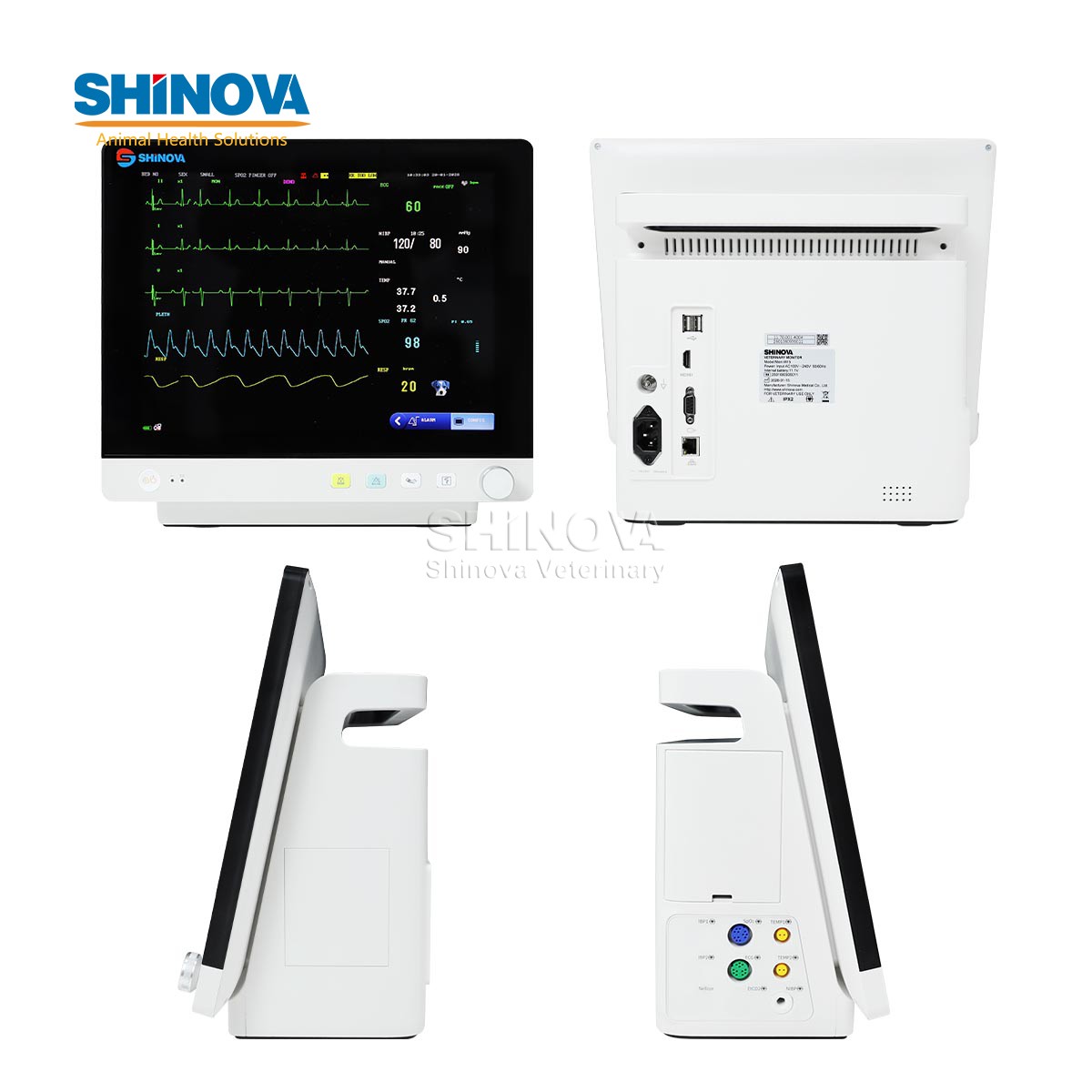

12.1/15.1 inch LCD screen display
Stand function: ECG,NIBP,SpO2,RESP, 2-TEP
Optional: IBP modular, Etco2 modular, AG module, Necllor Spo2, Touch screen,
Inside recorder
Various interfaces: large font, full/half screen seven channel, ST, QRS analysis
Central monitoring system and supports other bed observation functions,
Long time data storage, review of vet history

Product advantages:
4000mAh lithium battery, more than 4 hours back up time, lower power
consumption, longer product life and more stable & reliable.
Support for external USB storage
No fan design, avoiding secondary pollution, noiseless and quieter
Automatic sound and light dual alarm, anti defibrillation, anti high-frequency
knife
Data stortage least 400 NIBP measurement, trend chart review at least 96
hours, and trend table data review for the last 96 hours of NIBP.
Support for alarm triggered printing.

Advanced technology:
Dual slot design, IBP module, ETCO(Mainstream and Sidestream) module, AG
module, etc.
Support VGA and HDMI expansion,
HiFi4DSP coprocessing core, main frequency of up to 600MHz

RAM: 128/256/512MByteDDR3, up to max 2GByte

Specifications

AG-Specification

Parameters	Range	Accuracy
CO₂	0–15%	±(0.2%+5%) @ 0–10%
		±(0.2%+8%) @ 10–15%
RR	3–150 bpm	±1 bpm
N₂O	0–100%	±(2% + 3% of reading)
Sevoflurane	0–8%	±(0.15% + 5% of reading) @ 0–5%
		±(0.3% + 5% of reading) @ 5–8%
Isoflurane	0–8%	±(0.15% + 5% of reading) @ 0–5%
		±(0.3% + 5% of reading) @ 5–8%
Enflurane	0–8%	±(0.15% + 5% of reading) @ 0–5%
		±(0.3% + 5% of reading) @ 5–8%

Environmental

Parameter	Value
Operating temperature	0 to 40°C
Operating atmospheric pressure	70 to 120 kPa
Operating humidity	10–95%, non-condensing
Storage temperature	20 to 70°C
Storage atmospheric pressure	50 to 120 kPa

	ECG	SPO2	NIBP	RESP	TEMP	HR/PR	ETCO2	IBP	AG
Standard	√	√	√	√	√	√
Optional							√	√	√
Function Configuration:Central workstation/Available with trolley and wall bracket/Built-in printer
