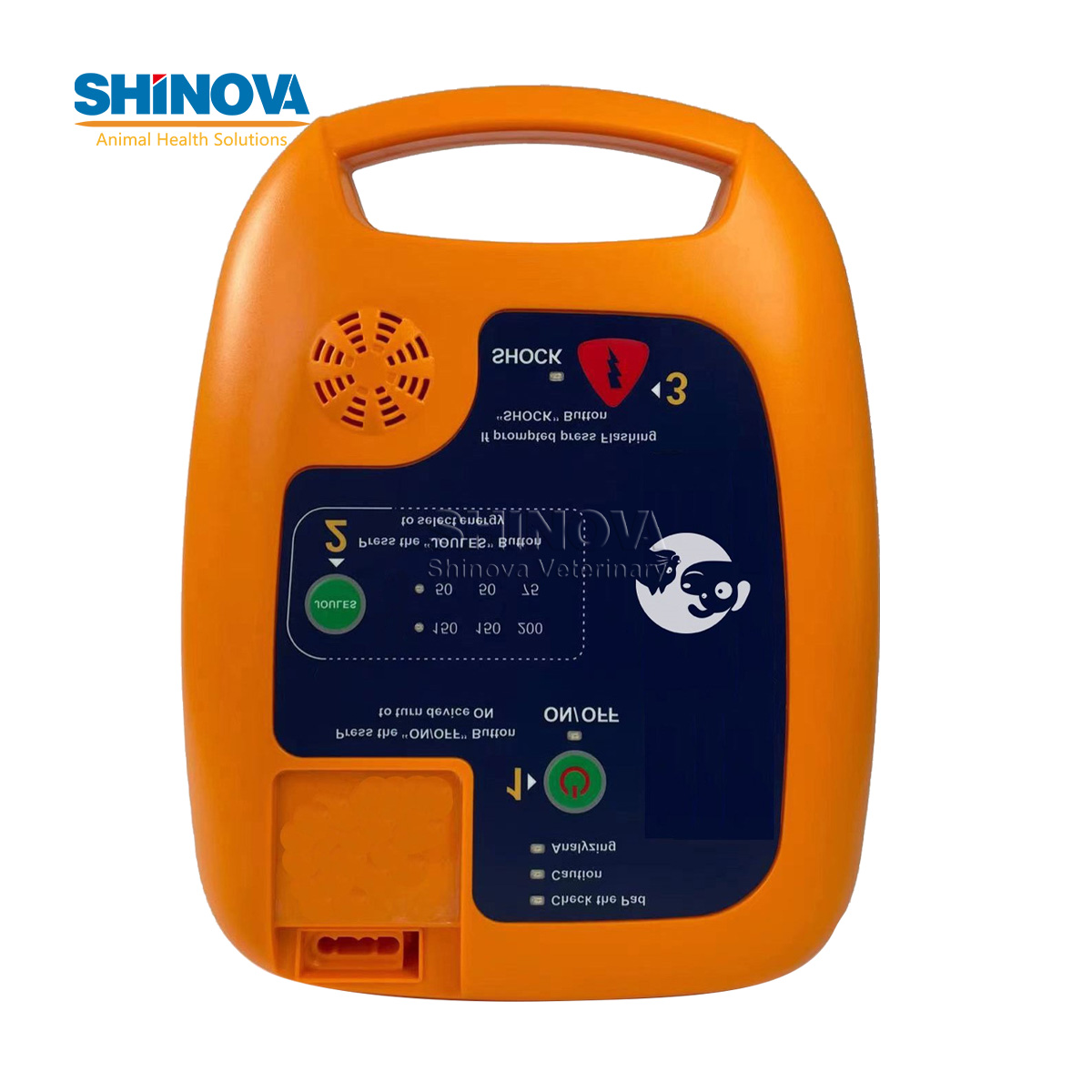

Descriptions
Advantages:
Languages to choose
5 Levels of sound volume
Adult/ Child Mode Button
Infra-Red for data transmission
Daily,Weekly and Monthly self-testusing the AED while in the bag
How Easy to use
1. Start the device
Turn on the power.The voice instruction starts immediately for guide on how to operate AED.
2. Attach the pads to the patient
After attaching the pads,AED will immediately start analysing ECG.The device will move to next step only after you attch the pads well.
3. Select energy
International resuscitation guideline* recommends to reduce the energyfor child patient to avoid burning heart muscle.
AED can reduce the energy to 30/70J just by select the energy range.4. Press the button
lf the shock is needed, the shock button is flashing.Press the button todeliver the electrical shock to the patient.
Specifications
Self-test: Daily, Weekly,Monthly
Mode: Self-test
Daily, Weekly,Monthly
Mode: Adult, Child Animals
Wave form: Biphasic truncated exponential
Energy: 200-Joules max.
Energy Sequence: Child Animal:50/50/75 Joules; dult Animal: 50/150/200 Joules
Charge time( New.at 25 ℃): Less than 6 sec. to 150J
Less than 8 sec. to 200J
Voice Prompt: Extensive voice prompt
Visual lndicators: LED prompts
Control: Two buttons: ON/OFF Shock
ECG storage: 1,500 events
Data transmission: lnfraredPower: Battery non-rechargeable
Type: 12V.2800mAh Li-MnO2 Cell
Dimensions:Depth(D):80mm, Width (W): 240mm, Length(L) 300mm
Weight (with battery): 1.9Kg (4.2 Pounds)
Operating Temperature:0℃ to 40℃
Operating Hurmidity:Relative humidity between 30% and 95%(non -condensing)
Storage Temperature(without battery): -20℃ to 55*℃
Storage Humidity(without battery):Up to 93% (non-condensing)Physical
Battery:CR123A - 4x22.8Ah 12volt non-rechargeable Battery
Disposable Pad: Designed for the use of external defibrillation, non-invasve pacing, synchronized cardioversion and monitoring on adults and Children animals.
