Descriptions
Class IV Laser
Only 1.8kg, small and lightweight, convenient for outside visits
Color touchscreen operation, simple and easy to operate
2-wavelength and 3-wavelength combinations, offering a wide range of applications
Dual-purpose device, both for physiotherapy and surgery
Modular design, low maintenance cost
User-friendly software design, with preset therapy programs for dogs, cats, horses, exotic pets and customizable programs
Suitable for laser therapy in animals for inflammation reduction, pain relief and wound healing, as well as laser surgery with minimal bleeding and quick recovery
Specifications
Model
DL-15E
DL-15EA
Wavelength Number
2-wavelength
3-wavelength
Wavelength
980nm + 635nm
980nm + 810nm + 635nm
Total Power
15.5W
25.5W
Operation Panel
8-inch color touchscreen
Operating Mode
Continuous pulse, single pulse, repeated pulse
Pulse Width
10μs-3s
Repetition Rate
0.2Hz-20KHz
Fiber Optics
400μm, 600μm, 1000μm
Main Unit Waterproof
IPX1
Foot Switch Waterproof
IPX8
Net Weight
1.8kg

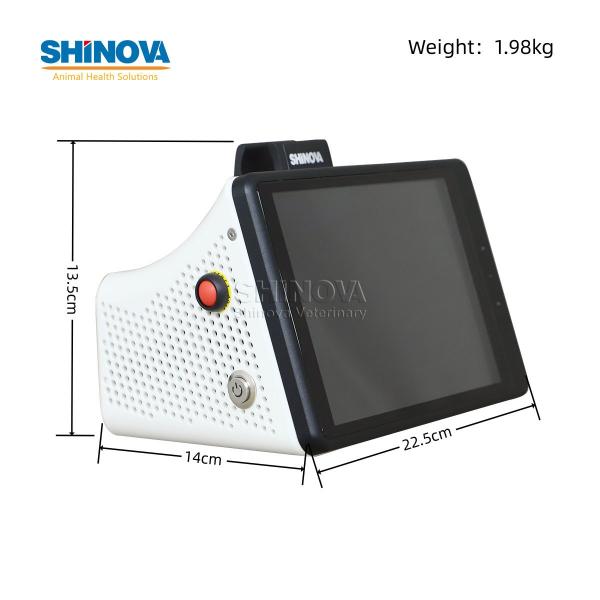

Dimensions (L×W×H)
270mm×200mm×180mm
Power Consumption
400VA
Power Supply
110~240V, 50/60Hz

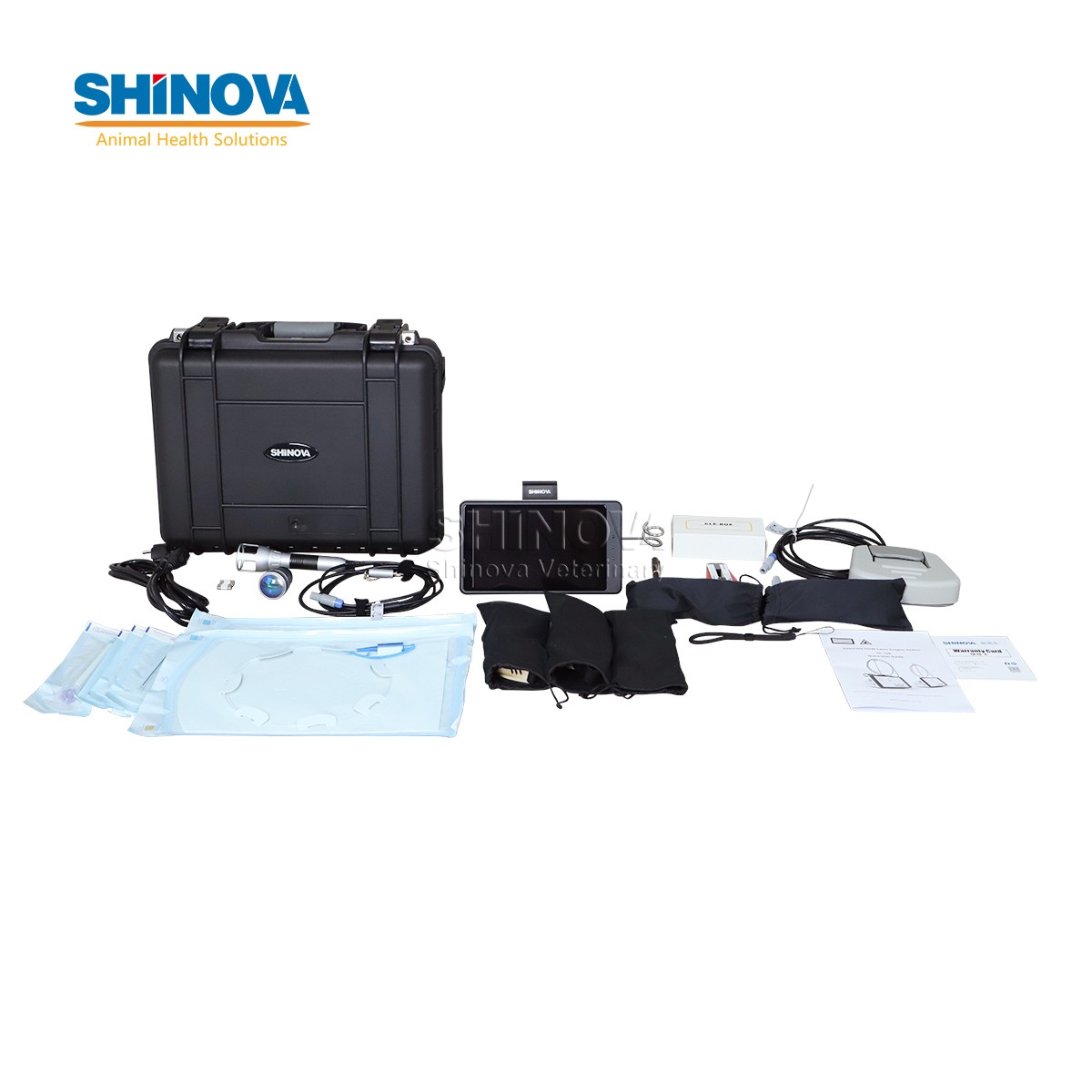

Configurations
Standard Configuration
Main Unit, 1pc
Therapy Handpiece, 2pcs
Doctor Safety Goggles, 2 pairs
Animal Safety Goggles, 3 pairs
Power Cord, 1pc
Safety Interlock, 1pc
Carrying Case, 1pc
Optional Configuration
Basic Surgery Kit:
Surgical Handpiece
Bare Fiber
Fiber Cutter
Fiber Stripper
Foot Switch
Advanced Surgery Kit
Surgical Handpiece
Bare Fiber
Teeth whitening Probe
Biostimulation Probe
Rechargeable Lithium Battery
