Descriptions

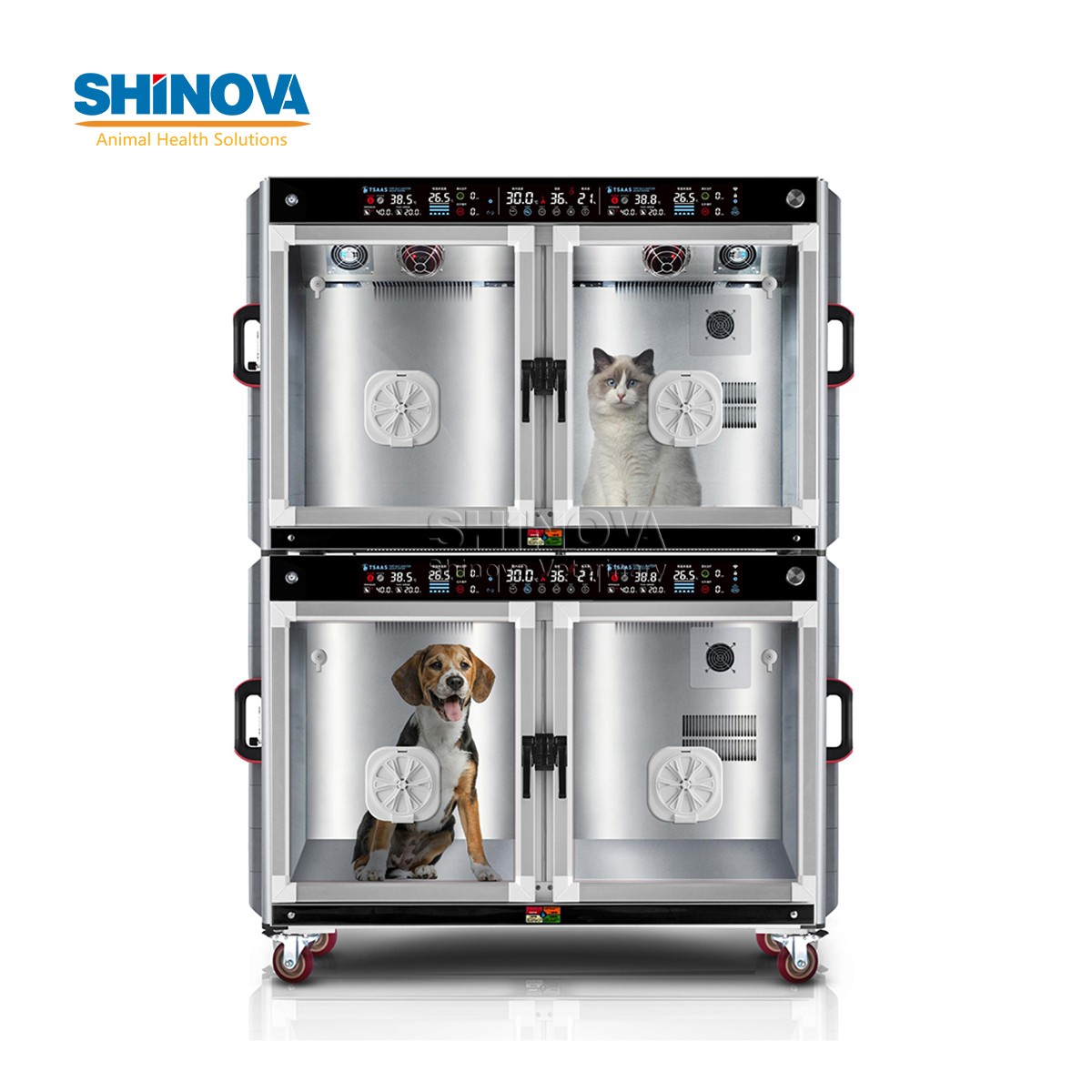

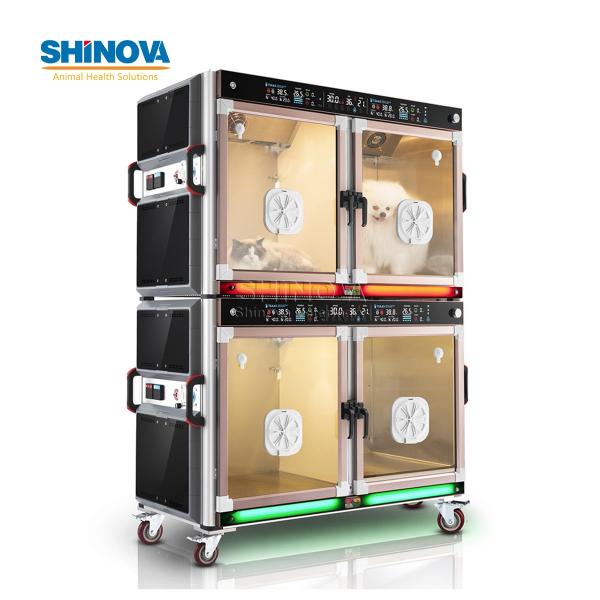

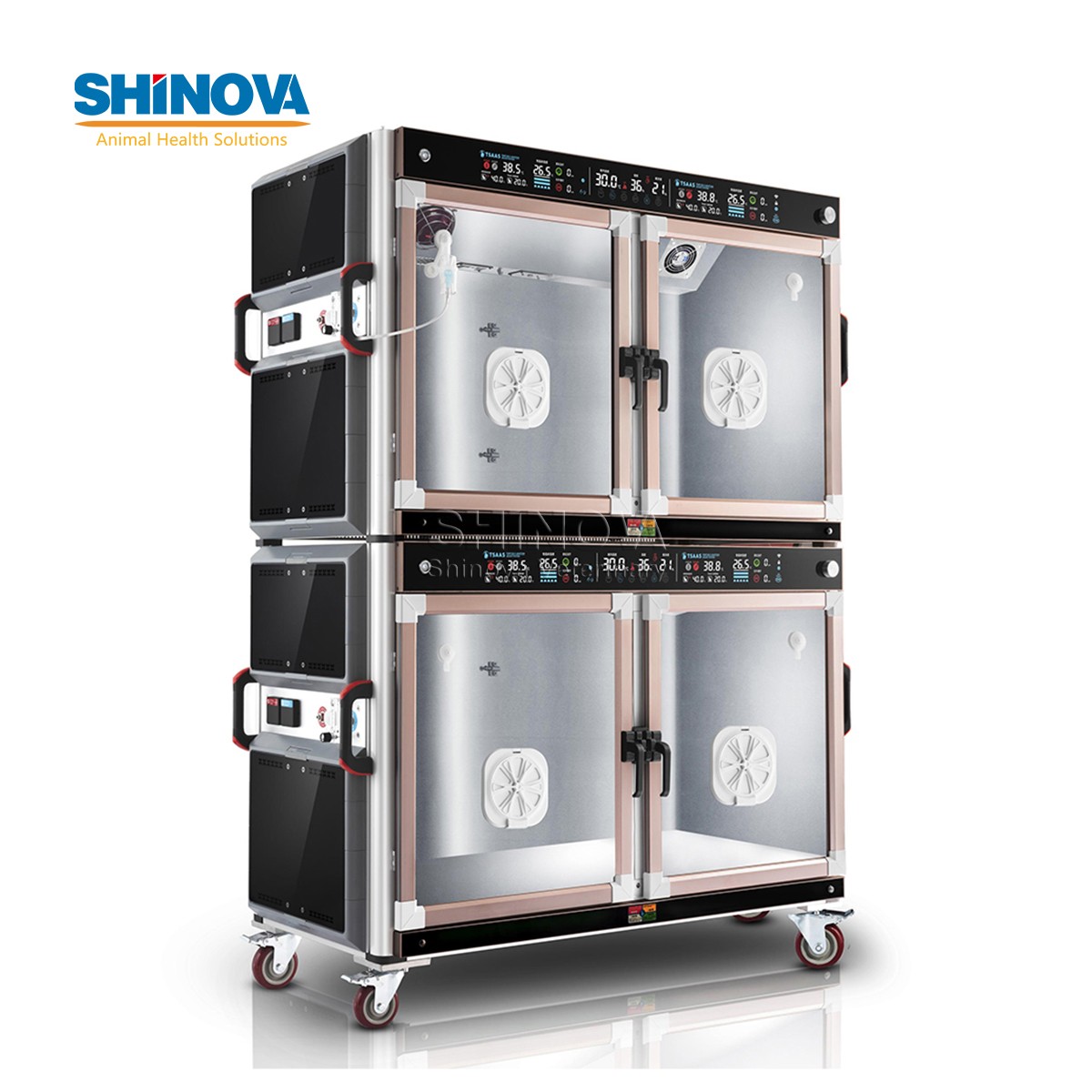

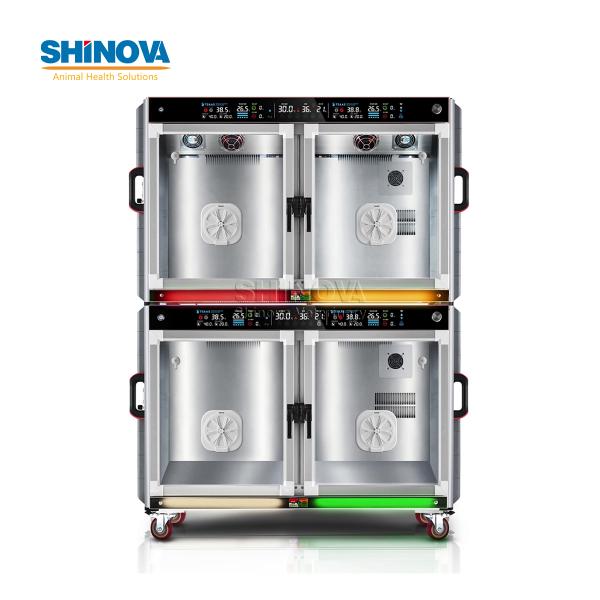

Animal ICU intensive care unit
Model: SmartCare 200G
Technical parameters:
★ Operating system: intelligent central control large touch screen
Auxiliary operating platform: mobile phone intelligent remote control software, tablet mobile remote monitoring software, PC remote monitoring software
★ Temperature control adaptive adjustment technology: the equipment automatically tracks the animal body temperature and automatically adjusts the ICU temperature setting according to the animal body temperature rise and fall
Remote monitoring: Applicable to devices such as mobile phones, pads, mobile tablets, PCS, worldwide real-time monitoring, delay does not exceed 1min
★ Number of space: 4 rooms (can be combined into 2 rooms)
★ Dimensions: 1380mm*723mm*1708mm
Chamber size: 1184mm*570mm*720mm (single large cabin)
Cabin temperature control: 18℃~43℃, accuracy ±0.5℃
Bilge temperature control: 17℃~43℃, accuracy ±0.5℃
Humidity control: 30%~90%
Oxygen concentration: 21%~80%
Negative oxygen ion medical purification: 7.2*106 PCS/CM3
Ultraviolet disinfection: wavelength 200 ~ 280 nm UVC ultraviolet efficient sterilization
External circulation system: fresh air system
Medical atomizer: maximum atomization volume ≥0.2ml/min, fog particle 0.5-2um, noise ≤40dB(A), atomization time set 1-10min
Light source: medical inspection special cold light, lighting warm light
★ Medical care indicator: Level 4 intelligent control, red light (critical care - special care), yellow light (postoperative care - primary care), white light (hospital observation - secondary care), green light (mild care - tertiary care)
Infrared therapy lamp: wavelength range 0.76-5um, peak wavelength 4um
★ Animal temperature measurement: refresh rate 5 seconds -1 minute, error ±0.2℃
Animal temperature trend continuous measurement: duration 7*24 hours
Alarm warning: temperature, humidity, oxygen concentration and other abnormal alarm prompts
Safety system: power failure safety protection
Maximum power consumption: 1600W
Weight: About 240kg
Power supply: AC 220V, 60Hz
Operating conditions: Ambient humidity -10℃~40℃ (indoor)
