Descriptions

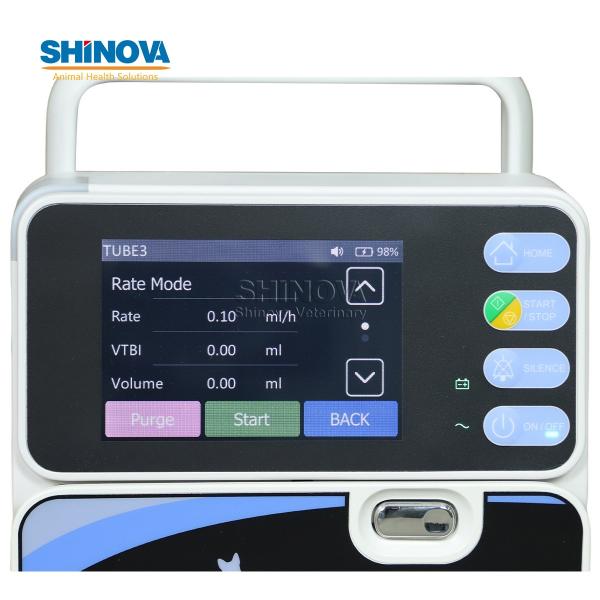

3.5 inch touch screen easy to learn interface, short learning curve.

Infula 100T satisfies both drug and blood transfusion to meet more clinical purposes.

The large-capacity battery of 12 hours at 25ml/h ensures safe transfer.

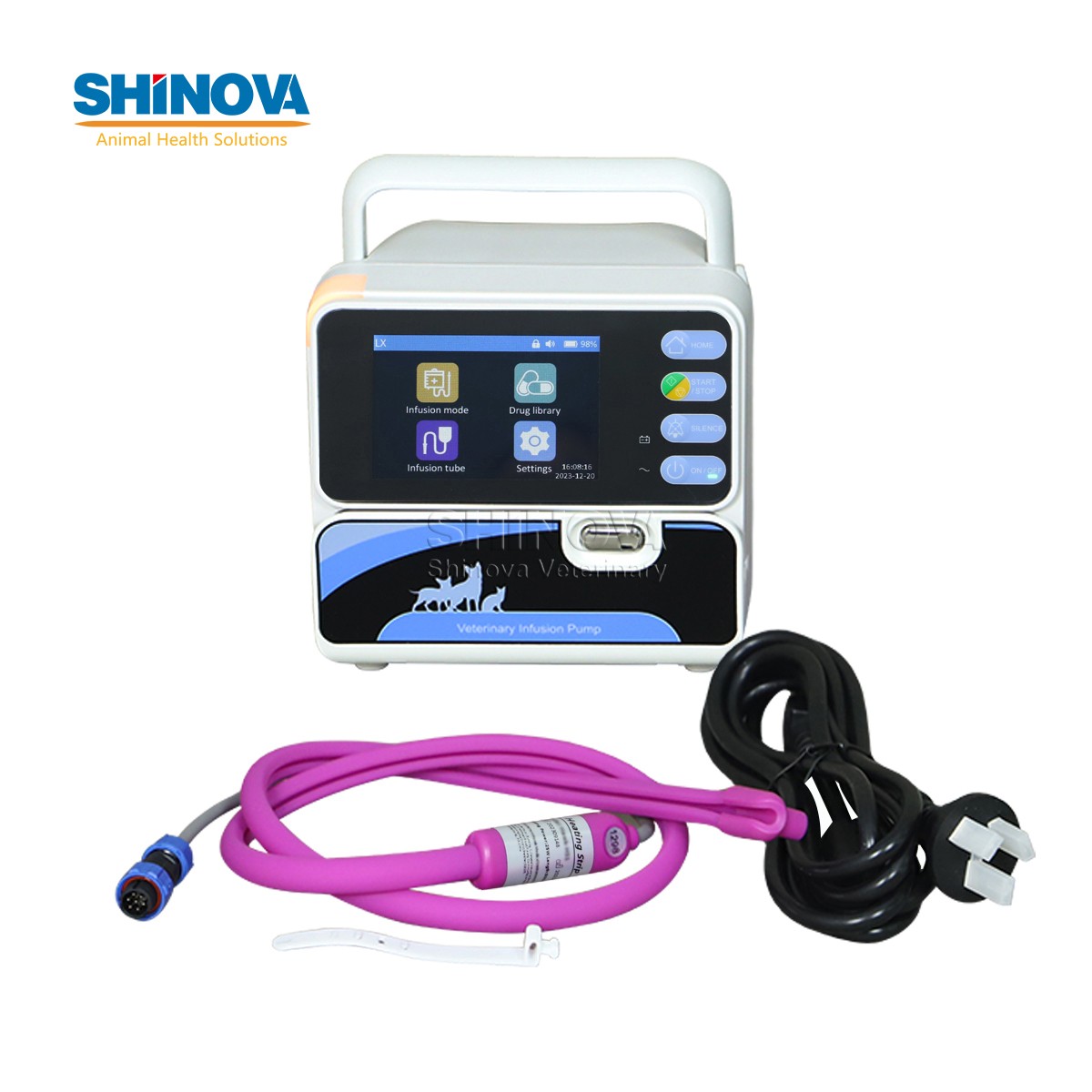

Optional warming strip brings one more option for heating and better heating effect.

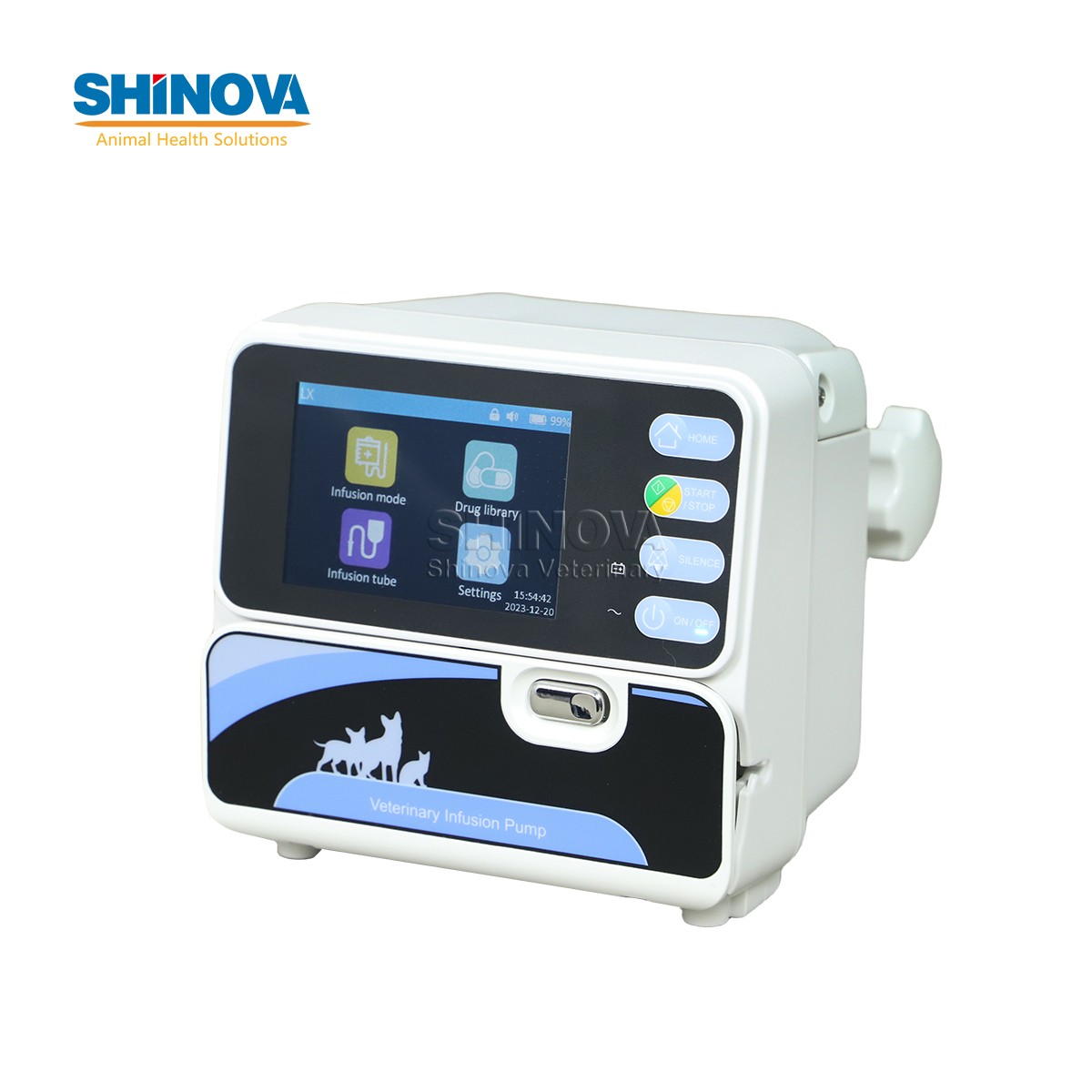

Optional hook: support hanging on the animal cage for better space management.

Highly-advanced ingress protection IP44 effectively blocks water and dust.

Specifications

Model	Model lnfula 100T
Infuse mode	Rate mode , Time mode, Weight mode, Intermittent mode, Drug library,Drip mode
Applicable infusion set	Various brands of standard infusion sets
Accuracy	±5%
lnfusion rate	(0.10-2000.00)ml/h, increment at 0.01ml/h
VTBI	(0.10～9999.99)ml
Volume infused	(0.00~99999.99)ml
KVO rate	(0.10～5.00ml/h in increments of 0.01ml/h
BOLUS rate	(0.10-2000.00)ml/h
Purge rate	(0.10-2000.00)ml/h in increments of 0.01ml/h
Bubble detection	Ultrasound sensor detection with 6 levels: 25ul-800ul
Occlusion pressure	13 levels
Drug library	Applicable for each infusion mode,and 5000 drugs can be added
History record	50000
Alarm	Air bubble , Occlusion , Door open, Battery exhaust, Low battery , No tube, Finished,Almost done, No operate,AC fail,Empty , Drop abnormal, Standby end , Tube error,Battery error,Overheating, Heating bar not installed , System error. etc.
Features	Anti-Bolus, Anti-reverse detection, Double CPU, Screen lock
Optional functions	WIFI, Drop sensor, External heating
Waterproof	IP44
Power consumption	100VA
Size	145 x 103x 137 mm(pole clamp excluded)
Net weight	Approx.1.6kg (pole clamp and battery included)
Power supply	AC:100-240V 50/60Hz ;DC:DC12V±1.2V
Battery	Li-Polymer 7.4V 7000mAh, more than 12 hours at 25ml/h
Working environment	Temperature:5°C-40°℃, relative humidity: 10%-95%
Atmosphere pressure	57.0kPa～106.0kPa
