Descriptions
A) Core Technology & Working Principle
• Ultrasonic cavitation and high-frequency mechanical vibration
• Real-time adaptive frequency tracking algorithm
• Automatic output energy adjustment during cutting
• No electric current passing through the animal
• Stable and precise energy delivery
This ensures optimal cutting and coagulation performance while reducing collateral tissue damage.
B) Cutting Modes & Key Functions
MAX Key:
• Cutting and coagulation of vessels up to 3 mm
MIN Key:
• Cutting and coagulation of vessels up to 5 mm
ADV Key:
• Safe cutting and coagulation of vessels under 5 mm
• Ergonomic design for enhanced surgical control
• Slightly reduced cutting speed for higher safety margin and more thorough vessel sealing
Operating Levels:
• Levels 1–3 recommended for closing vessels 3–5 mm
• Levels 4–5 recommended for cutting tissue and sealing vessels below 3 mm
Users may select levels according to clinical needs and surgical experience.
C) Tissue Pad & Jaw Design
• PTFE tissue pad material
• Passed biocompatibility testing
• Serrated structure with
• Enhanced tissue grip and reduced slippage
• Curved jaw design for wider surgical field of view
D) Performance Advantages
Minimal Tissue Damage
• Lateral thermal damage
Low Operating Temperature
• No eschar formation or carbonization
Reduced Smoke
• Clear surgical field visibility
Adjustable Operating Speed
• Five adjustable cutting levels
Stable Vessel Sealing
• Safely seals vessels up to 5 mm
360° Operating Angle
• Flexible and adjustable manipulation
Compact & Lightweight
• Only 2.85 kg
• Space-saving design for operating rooms
E) Clinical Applications
Suitable for:
• Hepatobiliary Surgery
• Sterilization (Spay/Neuter) Surgery
• Head & Neck Surgery
• Mammary / Breast Surgery
• Urinary Surgery
• Thoracic Surgery
• Gastrointestinal Surgery
• Minimally Invasive Surgery
• Ophthalmic & ENT Surgery
Designed for use in veterinary operating rooms and advanced surgical centers.
F) Operating & Storage Conditions
Operating Conditions:
• Temperature: 10°C–30°C
• Humidity: 30%–70% (Non-condensing)
• Atmospheric Pressure: 70kPa–106kPa
Transportation & Storage:
• Protect from heavy pressure and impact
• Avoid direct sunlight, snow, and rain
• Store in dry, clean, well-ventilated environment
• Storage Temperature: −20°C to +55°C
• Humidity: 10%–93% (Non-condensing)
• Atmospheric Pressure: 70kPa–106kPa
Specifications
Application: Veterinary Clinic / Animal Hospital / Operating Room
Model: US-200
Surgery Type: Laparoscopic & Open Surgery
Vessel Sealing Capacity: Up to 5 mm
Thermal Damage Range: < 1>
Operating Levels: 5 Adjustable Levels
Electrical Safety Class: Class I Equipment
Applied Part Type: CF-Type Components
Input Voltage: AC 220V / 50Hz
Rated Power: 200VA
Output Voltage: 200VAC (Peak)
Output Power: 45W (Peak)
Output Frequency: 55.5kHz
Weight: 2.85 kg
Operating Temperature: 10°C–30°C
Storage Temperature: −20°C to +55°C
Certification: CE
OEM/ODM: Available
Warranty: 1 Year

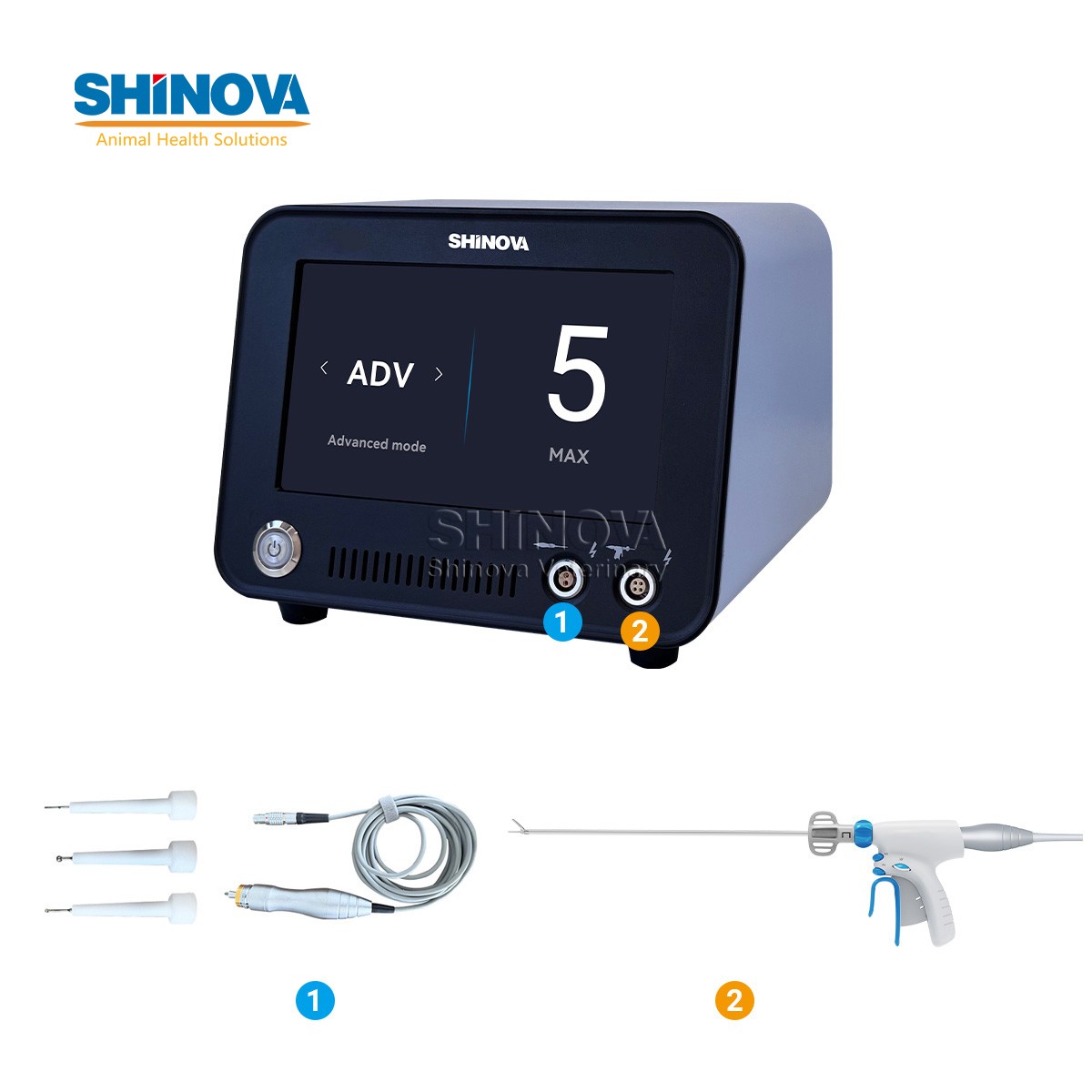

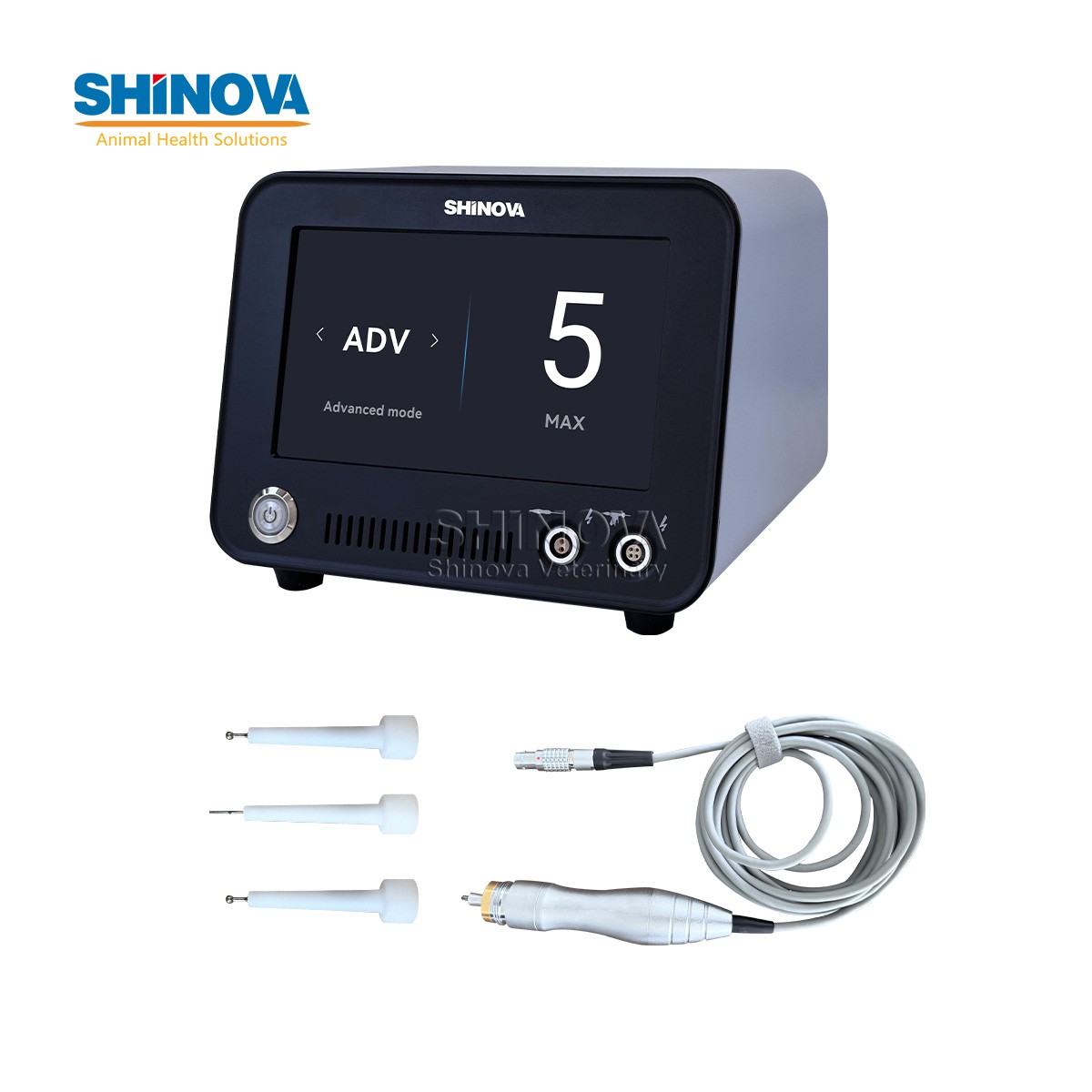

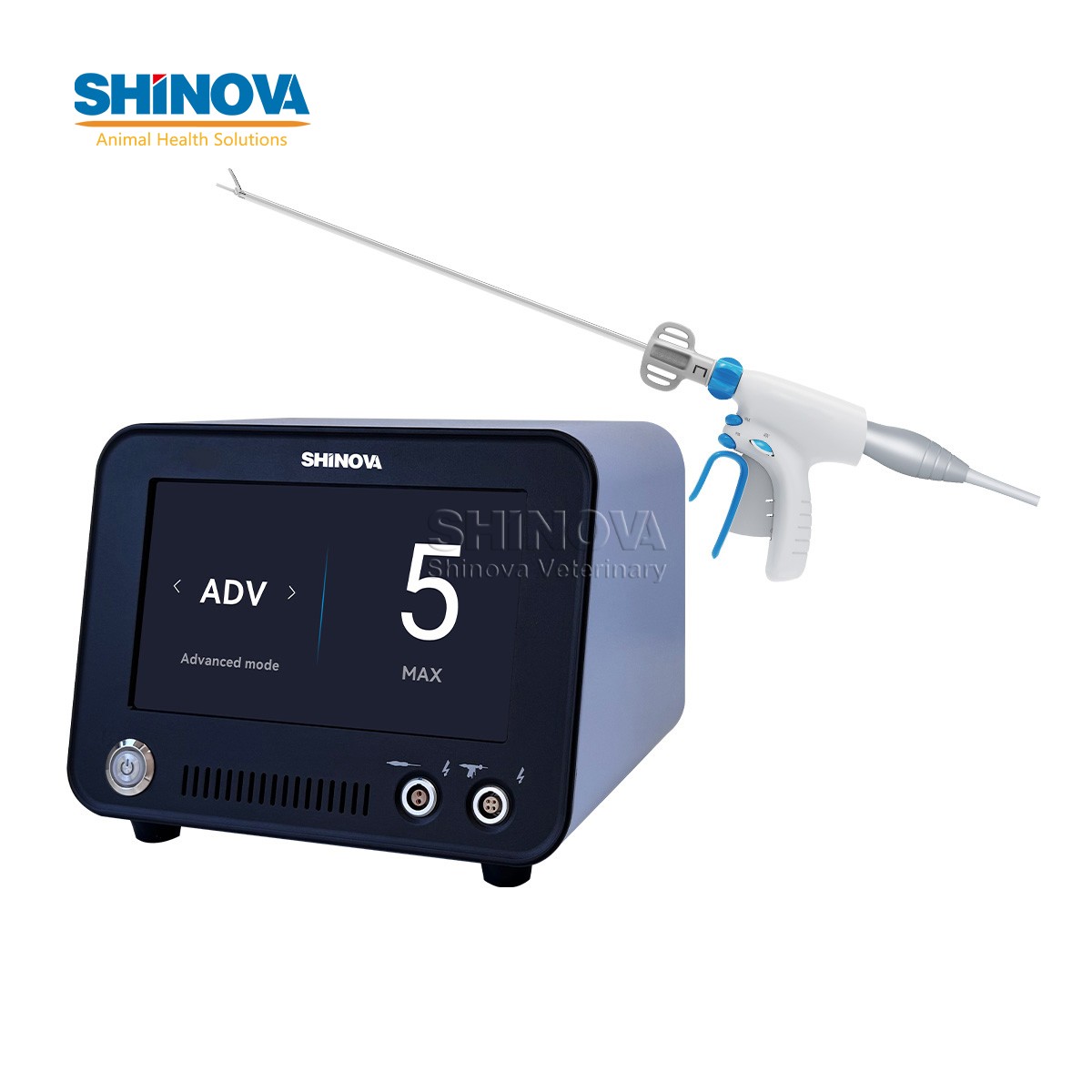

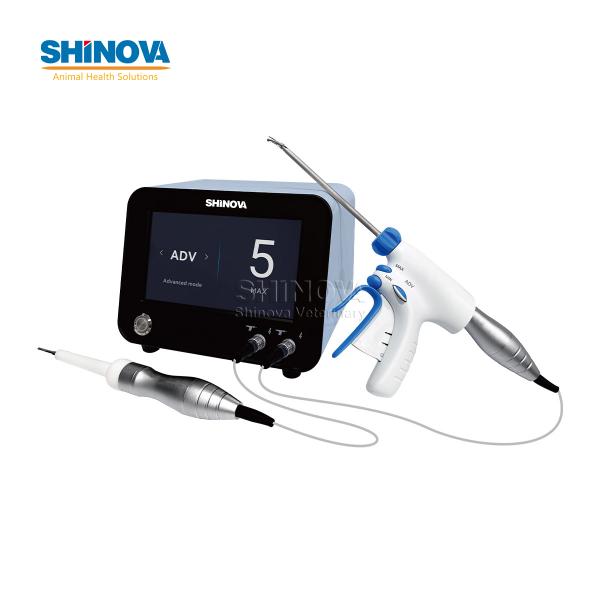

Configurations

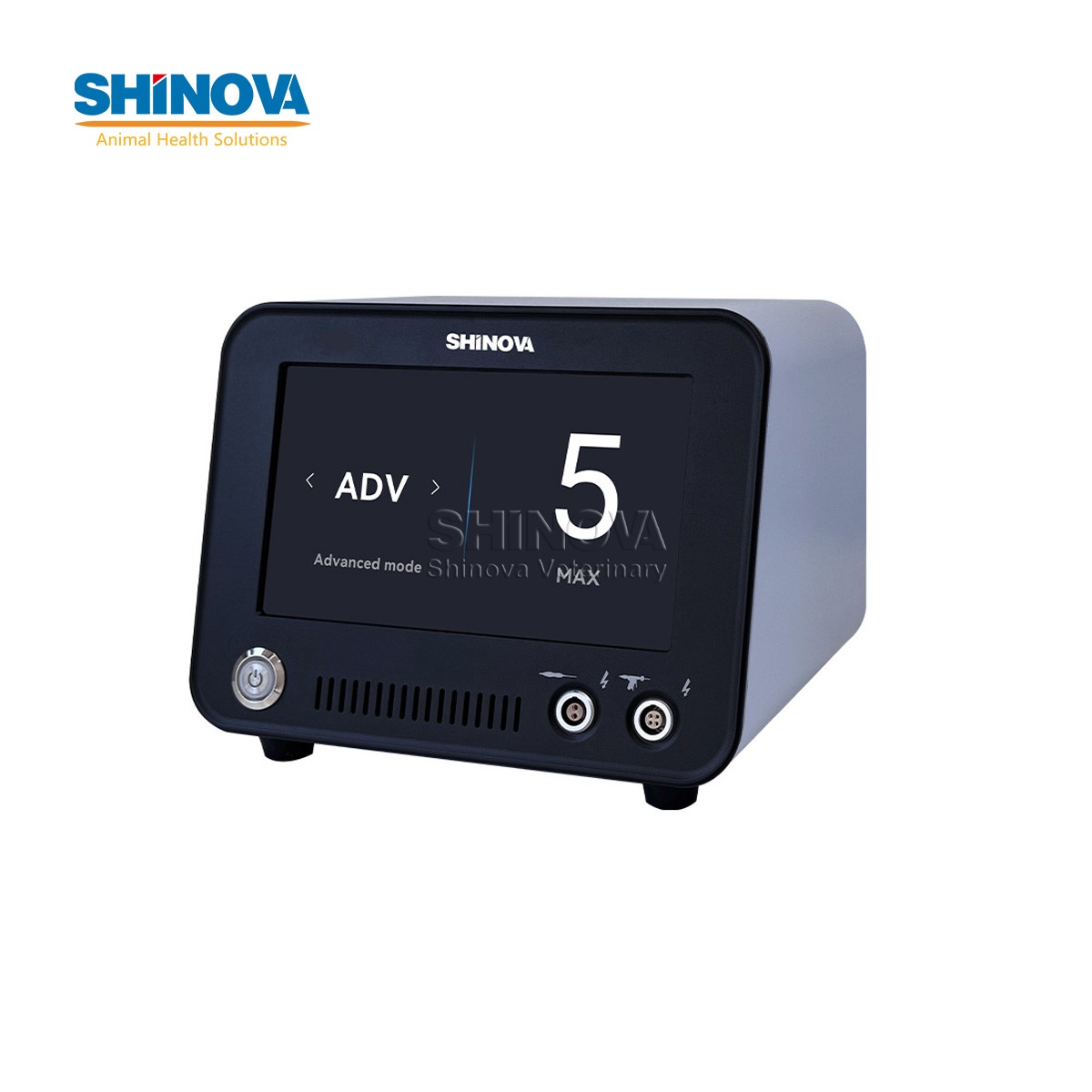

Main Unit
Ultrasonic Scalpel(23cm)
Ultrasonic Scalpel(36cm)
Transducer
Silicone Sheath
Spherical Ultrasonic Cutter Head
Foot Pedal
Wrench
Power Cord
Optional：
Ultrasonic Scalpel(14cm)Annular Ultrasonic Cutter Head
Knife-shaped Ultrasonic Cutter Head
