Descriptions
Features:
Intelligent Device- The intuitive design and user-friendly set-up of SHINOVA Electrosurgical Unit in the modern operating room.
- Monopolar and bipolar functions, they satisfy all the surgeries demands, with safety, flexibility, reliability and convenience.
- With a wide 7-inch TFT LCD touch screen, clean and sharper image quality, which provides the user with easy access to all functions. The settings or modes of operation are changed by touching icons on the screen to ensure maximum ease of operation.
REM (Return Electrode Monitoring)
The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Real-time Monitoring and Instance Response System for Tissue Density
his proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue type
![]()
Liga Sure Vessel Sealing
The machine enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation.
Automatic Self-test
Once switched on, SHINOVA unit performs a comprehensive internal test.
Specifications
Technical Parameters
High Frequency Leakage
Low Frequency Leakage
Main Frequency: 512 KHz
Monopolar: < 150mA>
Normal Polarity, Intact Chassis Ground:
Power Supply: 100-240V/50-60H
Bipolar: < 60mA>
Normal Polarity, Ground open< 50>
Dimension: 47*34*17cm
/ Reverse Polarity, Ground Open< 50>
Weight: 8.00KG
/ Sink Current, 140V Applied, All inputs< 50>
Working Mode
Max.output power
Rated Load
Monopolar Cut
Pure Cut
150 W
500 Ω
Blend Cut Ⅰ
120 W
500 Ω
Blend Cut Ⅱ
100 W
500 Ω
Monopolar Coagulation
Fulgurate Coagulation
120 W
500 Ω
Spray Coagulation
100 W
500 Ω
Bipolar Coagulation
Standard Coagulation
80 W
100 Ω
LigaSure Vessel Sealing
150 W
20 Ω

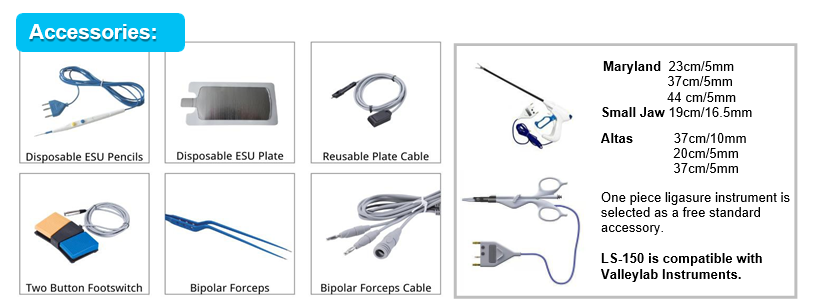

Configurations
Maryland 23cm/5mm
37cm/5mm
44 cm/5mm
Small Jaw 19cm/16.5mm
Altas 37cm/10mm
20cm/5mm
37cm/5mm
One piece ligasure instrument is selected as a free standard accessory.
LS-150 is compatible with Valleylab Instruments.
