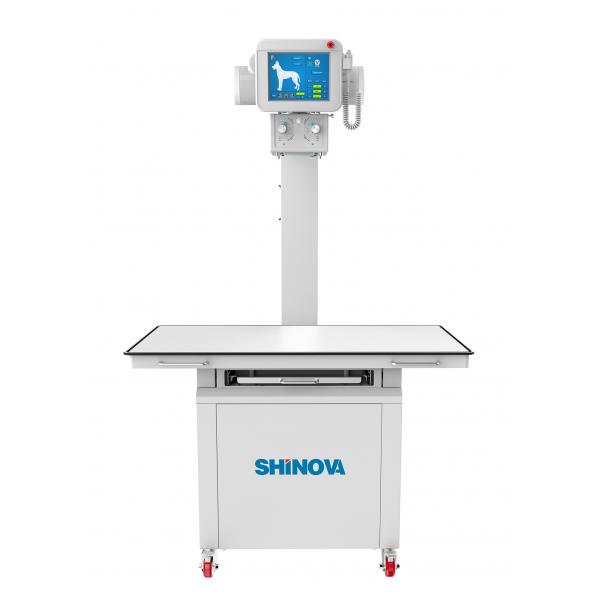

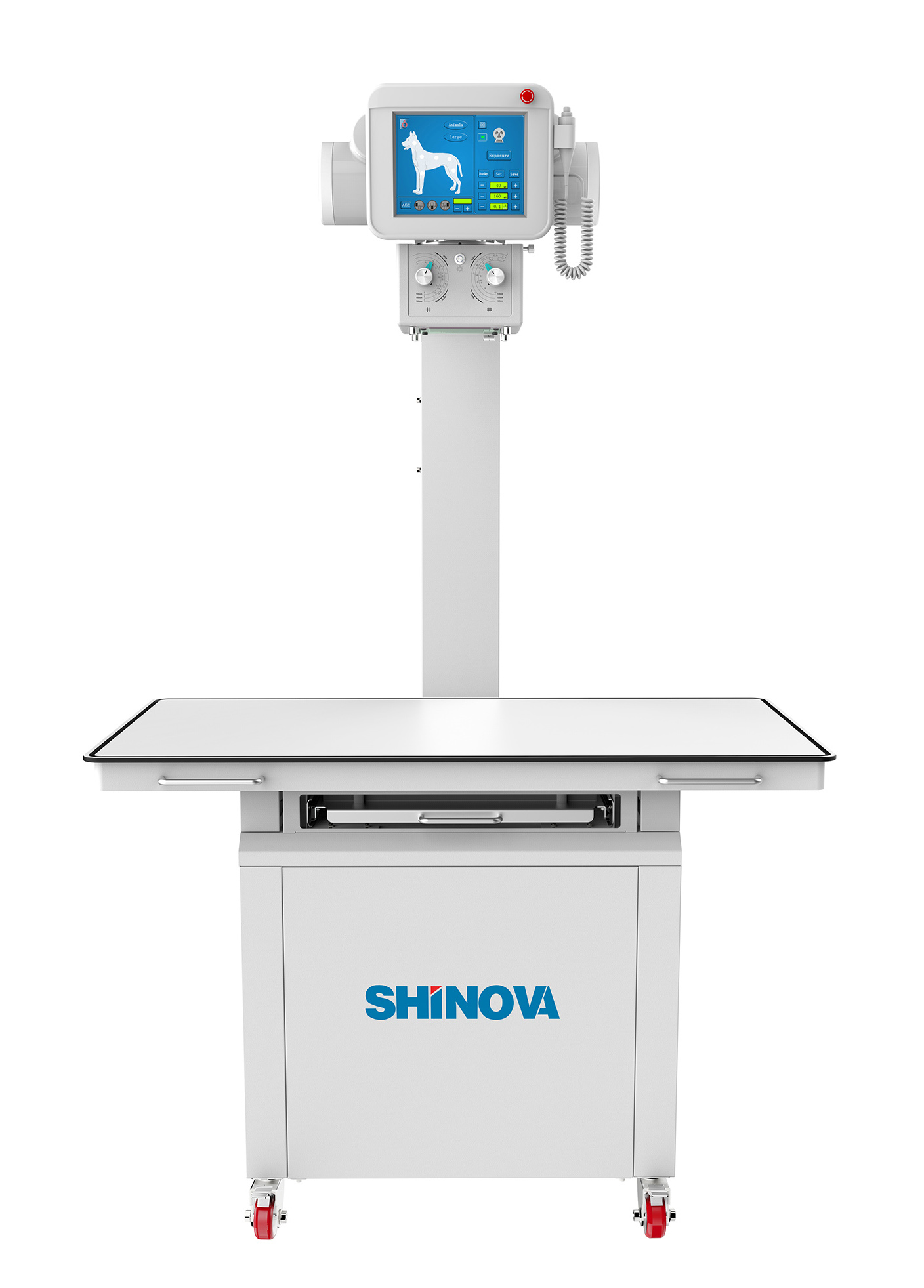

Descriptions

LCD touch-screen console

High-density tabletop

Capacitor-assisted generator

Built-in generator to save space

Specifications

X-ray Generator	Output Power	20kW
	Power Voltage	220V±22V
	kV range	40~120kV
	mA range	32~200mA
	mAs range	0.32 ~200mAs
	Loading time	10~4000ms
X-ray Tube	Small focus	1.0
	Large focus	2.0
	Anode speed	2800r/min
Collimator	Inherent filtration	1.0mm Al /75kV
	Light Source	Super LED
Mechanic Table	SID	1000mm
	Bucky	18*18
	Bearing	≤150kg
	Tabletop Size	1220mm*700mm*830mm
	Table Movement	With wheels
	Floating Tabletop Movements	Two ways
	Floating Tabletop Position	By soundless manual Brakes
