Descriptions

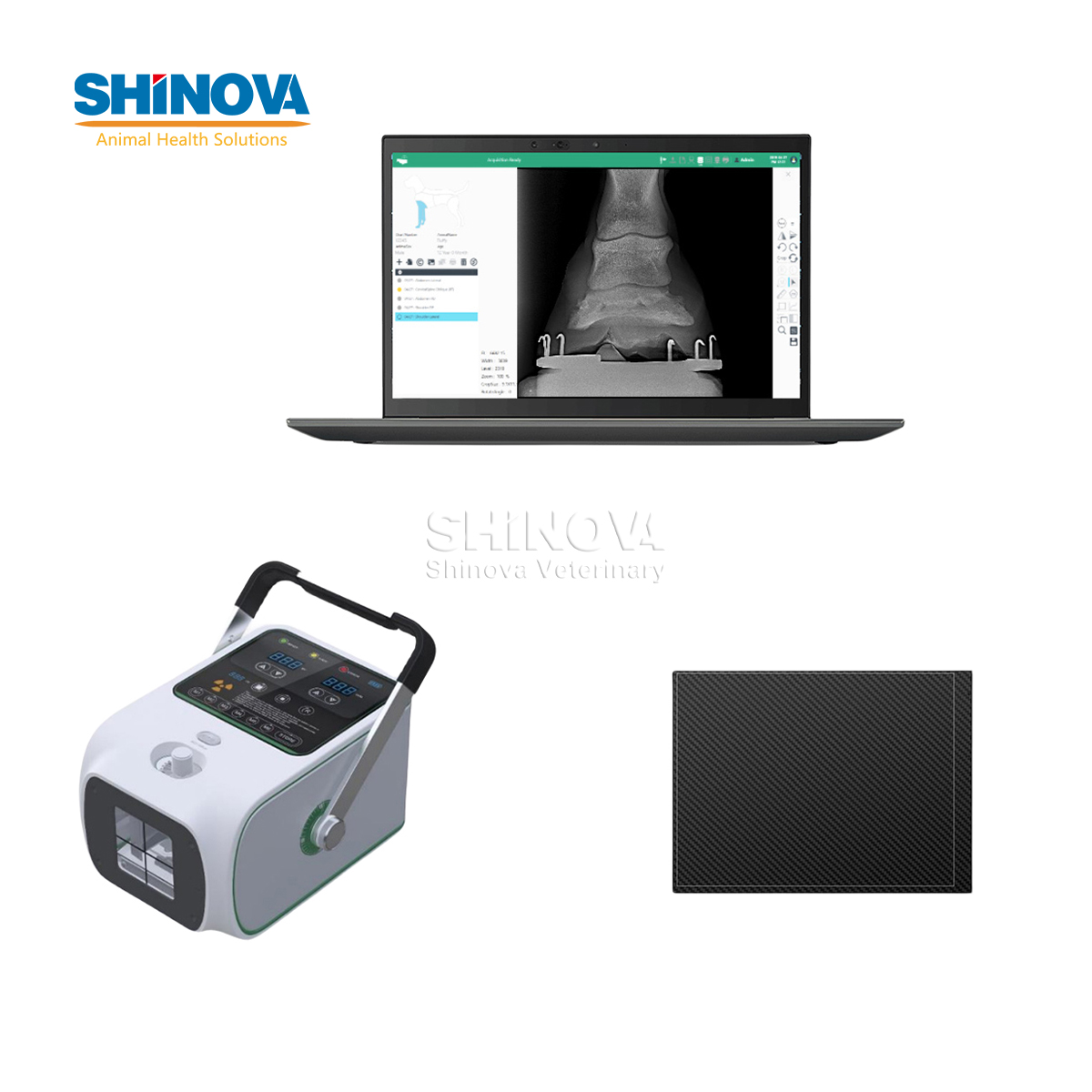

1. Portable X-ray machine
Application:
Racecourse
Pasture
Veterinary Hospital
Zoo
Animal scientific institution
Only 7 kg weight, easy to use outdoors
Built in large capacity battery can provide more than 200 exposures
Easily connect to tablet through Bluetooth and adjust ray-parameter in real time
6 sets of APR exposure parameter shortcut keys to reduce errors and improve efficiency
It has two kinds of exposure control modes: wireless and wired connection
Ultrasonic measurement of SID
Xbox-20 is a portable X-ray machine for horses. It is small, light and has a large capacity lithium battery. It includes a 1.6kw X-ray power supply unit. With high power density, it is very suitable for all kinds of outdoor portable mobile X-ray applications.
Technical Specifications
System Parameter
Power Supply
AC 220V/110V ±10%
50 / 60 Hz
SID measurement
ultrasonic
Power (kW)
1.6
Light Source On Time(sec)
30
kV
50 ~ 90
Communication
Rs232/Bluetooth
mAs
20
Exposure
Hand Switch/315M
mA
20
Weight (kg)
7
Tube
Focal Spot Sizes (mm)
1.2
Target Angle
16°
Dimensions:
242*396*172mm
2. High-Performance Cassette-size Wireless a-Si Flat Panel Detector
Wireless cassette detector per ISO 4090, fits in bucky
Best-in-class 125 um pixel pitch with 16-bit ADC for more image details
Direct deposition Csl, with excellent DQE at all frequencies
Mars 1012V is a best in class 10×12-inch wireless, cas-sette-sized FPD for radio graphic imaging. It features a125 um pixel pitch with direct deposition Csl. Cut-ting-edge technologies include a novel light-weight housing design with IP57 ingress protection, in-tray battery charging, and reliable, low power AED. With its exceptional image quality the Mars 1012V is an excellent choice for high-end DR as well as neonatal applications.
High-Performance Cassette-size Wireless a-Si Flat Panel Detector
Technical Specifications
Mars 1012V
Detector Technology
Amorphous Silicon
Scintillator
Csl
Active Area(mm3)
250 × 300
Pixel Matrix
2000 × 2400
Pixel Pitch (μm)
125
Spatial Resolution (Ip/mm)
4
AD Conversion (bit)
16
Battery Autonomy (h)
6
WIFI
2.4G and 5G,IEEE802.11 a/b/g/n/ac
Trigger Mode
AED/ Software
Full Image Time (s)
Typ.3
Dimensions (mm)
285 ×340× 15
Weight (kg)
2
Static Loading
150kg Uniformly
Ingress Protection
IP57
Operating Temperature (°C)
5~40
Storage & Transport Temperature with Package (°C)
-20~70
Operating Humidity (% RH)
10 ~90(Non-Condensing)
Storage & Transport Humidity with Package (% RH)
5-95(Non-Condensing)
