Descriptions
a) Soft touch user panel
b) Digital displays of kV, mAs and time
c) High frequency inverter type generator
d) Overload protection for kV, mA, Time and Temp
e) Self-manageable APR function with memory keys
Specifications
1. Specification for 320mA generator
Maximum output power
20kW
Range of tube current
32~320mA
Tube voltage range of radiography
40kv~120kv
Range of exposure time
10ms~5000ms
mAs range
0.32mAs~320mAs
Input voltage range
AC 220V±22V
Communication interface
RS-232
Other
Capacity lock automatically, fault diagnosis automatically, self-protection
2. Specification for X-ray tube
Max. Tube voltage
120kV
Focus
Small focus: 1.0mm Large focus: 2.0mm
Anode input power
Small focus: 20KW Large focus: 40KW
Anode speed
2800 R/M
Target angle
17.5°
Anode heat content
100kJ(140kHU)
3. Specification for veterinary radiography table
Size(L*W*H)
1220mm×700mm×830mm
Bearing weight
150kg
Table movement
With wheels
Tabletop movements
Four ways
Tabletop position
By soundless manual brakes
4. Specification for Grid
Size
18”×18”
Grid ratio
10:1
Grid density
40L/cm
Focusing distance
1500mm
5. Specifications for flat panel detector
Material
CSI
Cassette Size
17×17 inch
Active Area
405mm×405mm
Pixel Matrix
2912×2912
Pixel Size
139μm
A/D Conversion
16 Bit
Preview Image Time
3s
Full Image Time
5s
Weight
4kg
6. Specifications for imaging workstation computer and LCD monitor
CPU
≥2.8GHz
Memory
4GB
Disk Capacity
500GB
Medical LCD
19″ LCD
Function
Image acquisition, image zoom, image brightness adjustment, image contrast adjustment, image rotation, image rollovers
Connection
100M network interface, Dicom 3.0 image transmission, and query, editing & print, etc.
Management

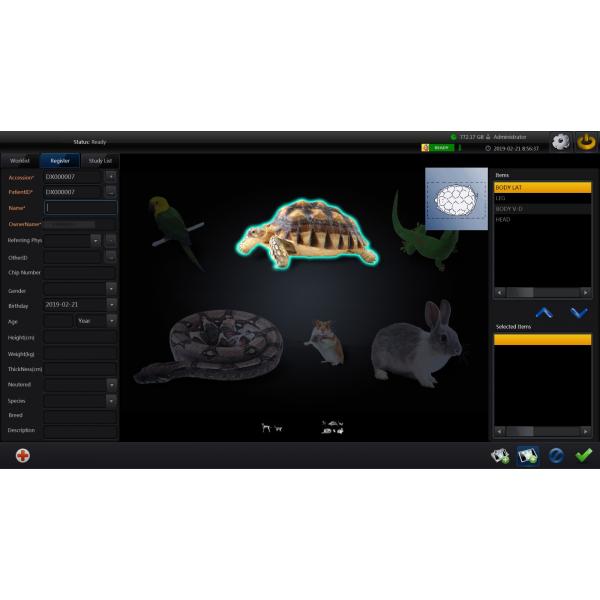

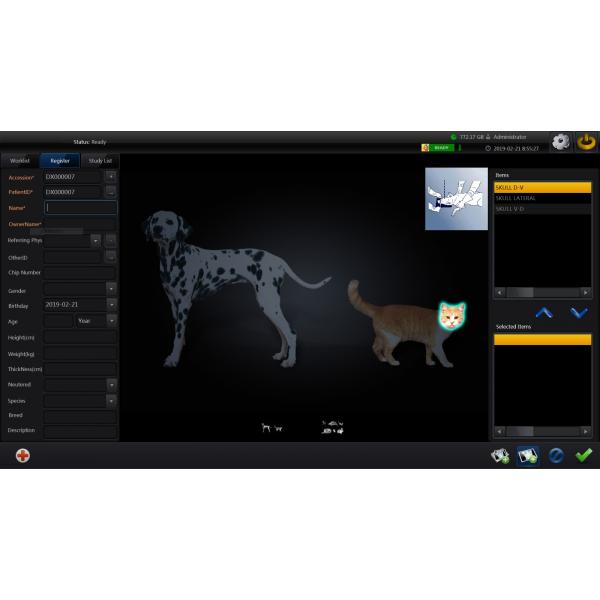

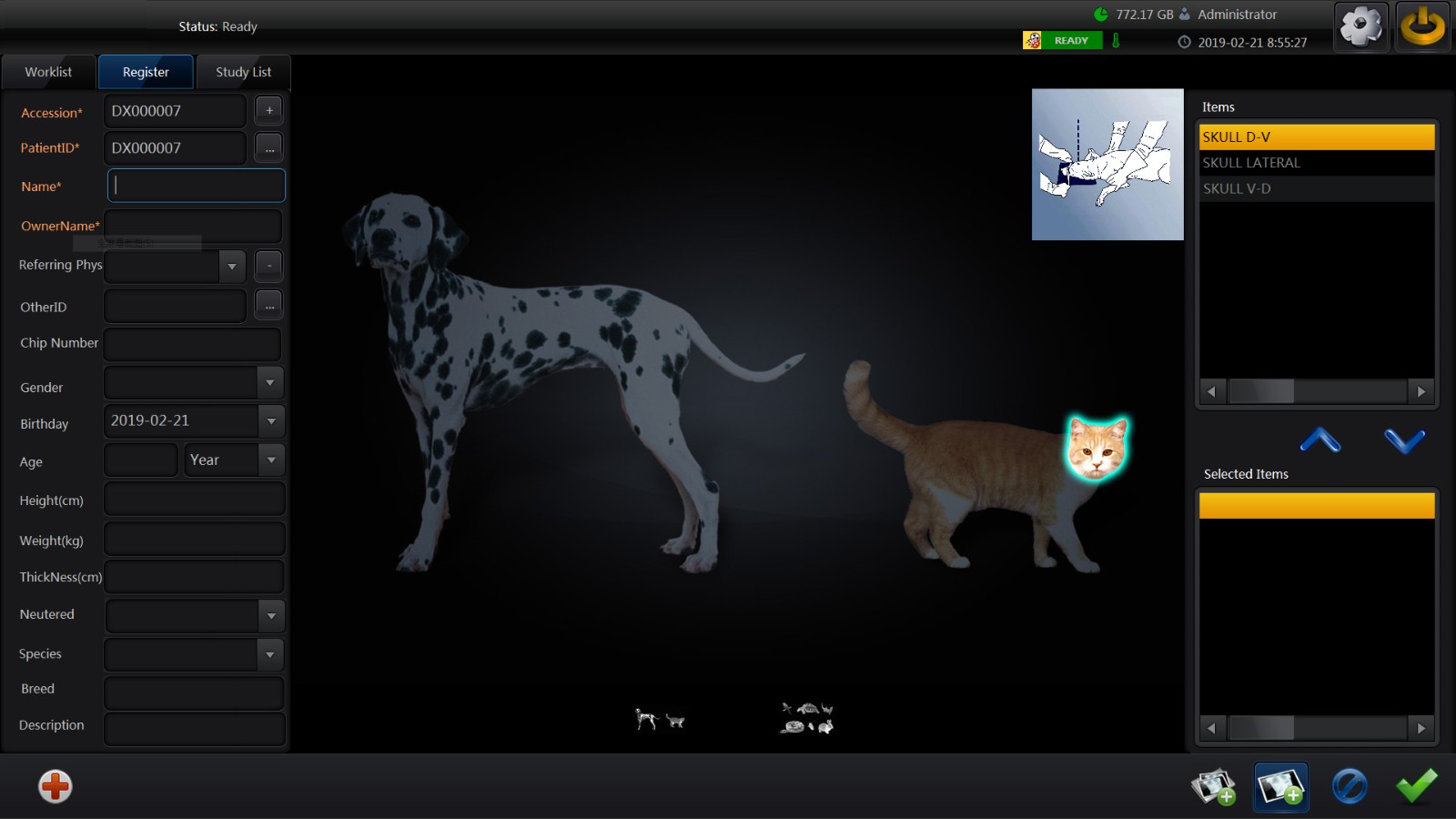

DR system to manage animals and image information
Configurations
a) 320mA HF generator and Console
b) Collimator
c) X-ray tube
d) Veterinary radiography table
e) Grid
f) Flat panel detector (wireless FPD is optional)
g) Imaging workstation computer and LCD monitor
