Descriptions

Feature:

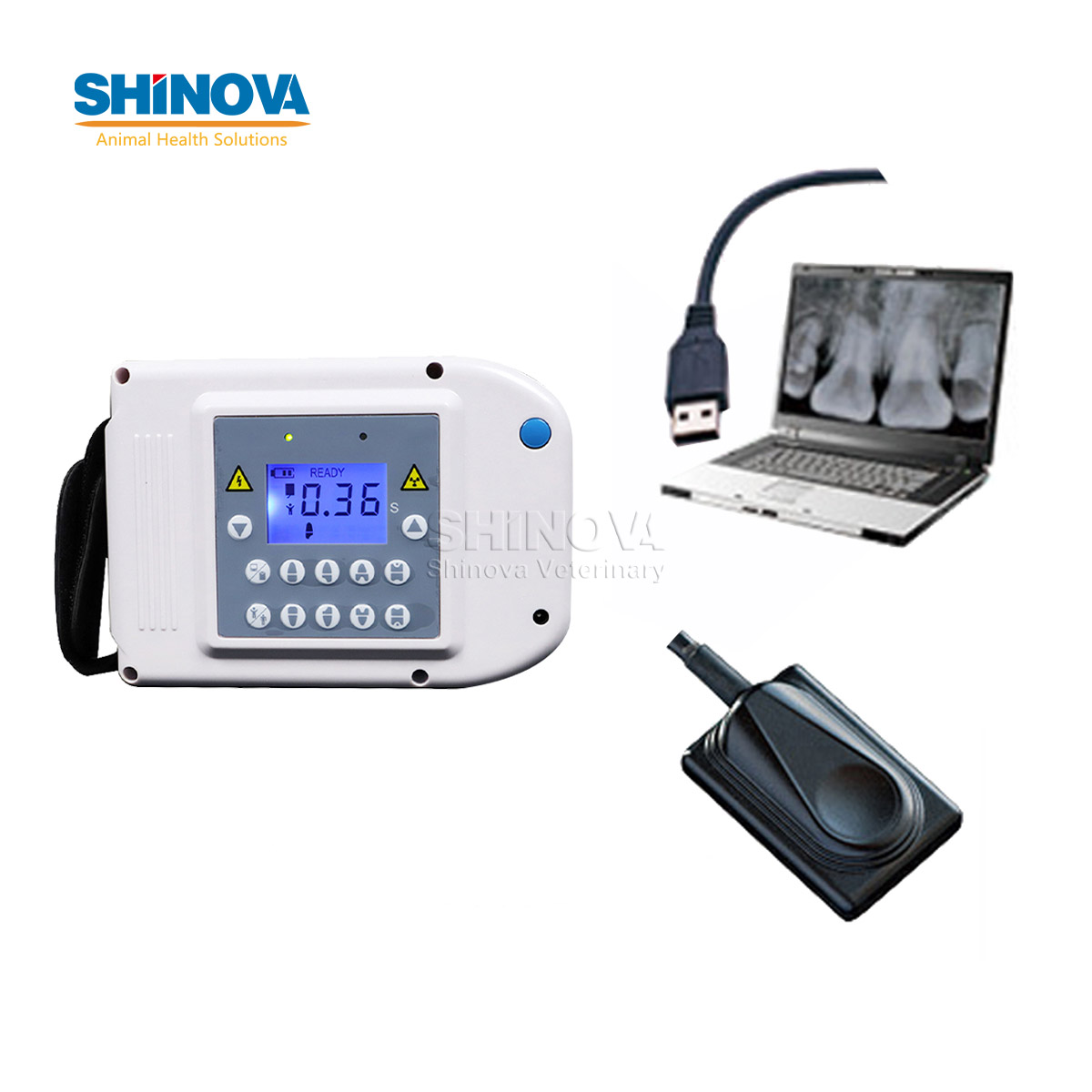

Portable high-frequency DC dental x-ray unit, small, light and nearly no radiation.

Control pannel and manual buttons are easily to operate.

The battery is durable, and it can take about five hundred images after full charged.

Wide dynamic range, easy to shoot from low dose to high dose, greatly reducing the requirements for filming experience, image clarity and sensitivity are significantly improved.

Fiber optic plate, the built-in FOP can take more realistic, high-definition images, and even fine forks can be easily found.

Wide exposure range, the sensor with width 22.5mm exceeds the average molar length, and it shoots more teeth.

Durability, the data cable has been tested for millions of times of bending, which is more durable and provides good quality assurance.

Specifications

Specification:
Dental X-Ray

Tube voltage: 60kV

Tube current: 1.5mA

Tube focus: 0.3mm

Exposure time: 0.1~2s

Frequency: 30KHz

Rated power: 60VA

Focal spot to skin distance: 130mm

Battery: DC 14.8V, 6400mAh

Charger input voltage: AC 100V~240V, ±10%

Output Voltage: DC 16.8V

Dental X-Ray Sensor

Chip Type: CMOS APS

Scintillator: GOS

Dimension: 39mm×28.5mm

Active Area: 30mm×22.5mm

Thickness: 6mm

Pixel Size: 18.5µm

Pixels: 1600*1200

Resolution: 14-20lp/mm

Power Consumption: 600mW

Operation System: Windows 2000/XP/718/10/11 (32bit&64bit)
