Descriptions
Dual band (2.4 and 5 GHz) wireless support with easy sharing
Long battery life and smart workflow
Direct deposition Csl for better image quality with lower dose
Wireless cassette detector per lSO 4090, fits in bucky
139 μm pixel pitch, with 16 bit ADC for more image details
Stable iSync+ Automatic Exposure Detection (AED)

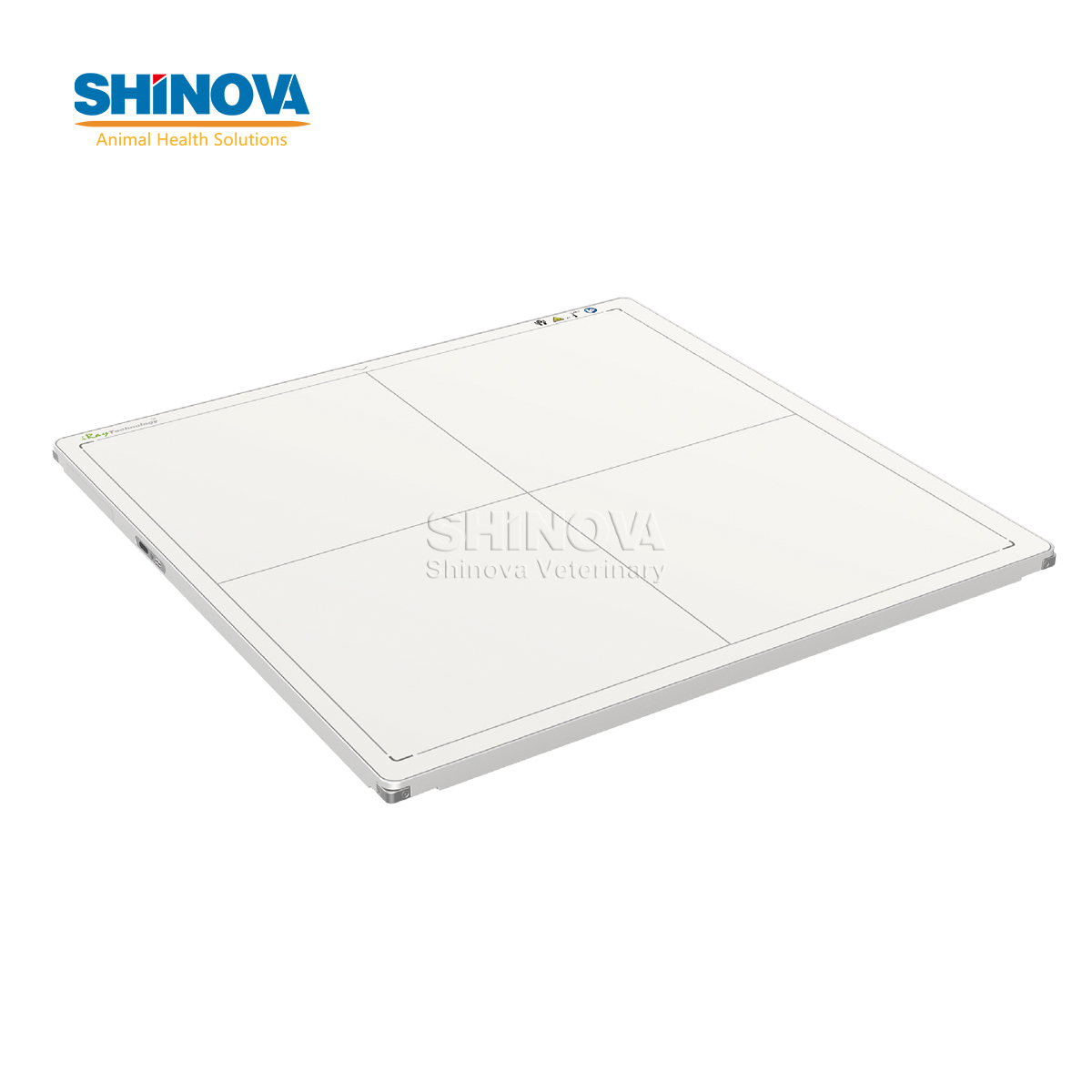

Mars 1717V is a smart 17×17-inch wireless, cas-sette-sized FPD for radio graphic imaging. It features reliable AED, dependable wireless performance,and a long battery life. The Mars 1717V supports a fast work flow,and is the optimal choice for both retrofit and new DR system solutions.
Specifications
Detector Technology
Amorphous Silicon
Scintillator
Csl
Active Area(mm3)
427× 427
Pixel Matrix
3072 x3072
Pixel Pitch (μm)
139
Spatial Resolution (Ip/mm)
3.6
AD Conversion (bit)
16
Battery Autonomy (h)
5
WIFI
2.4G and 5G,IEEE802.11 a/b/g/n/ac
Trigger Mode
AED/Software
Full Image Time(s)
Typ.5
Dimensions (mm)
460x 460x 15
Weight (kg)
4.6
Static Loading
150kg Uniformly
Ingress Protection
IPX1
Operating Temperature (°C)
5~35
Storage & Transport Temperature with Package (°C)
-20~55
Operating Humidity (% RH)
10~90(Non-Condensing)
Storage & Transport Humidity with Package (% RH)
5~95(Non-Condensing)
