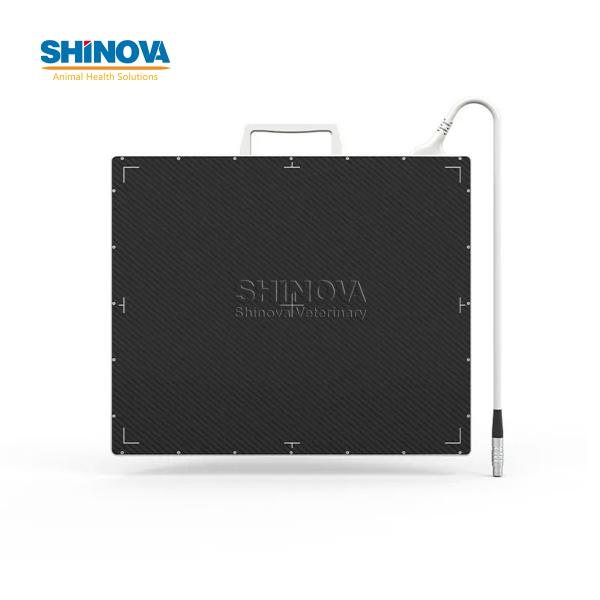

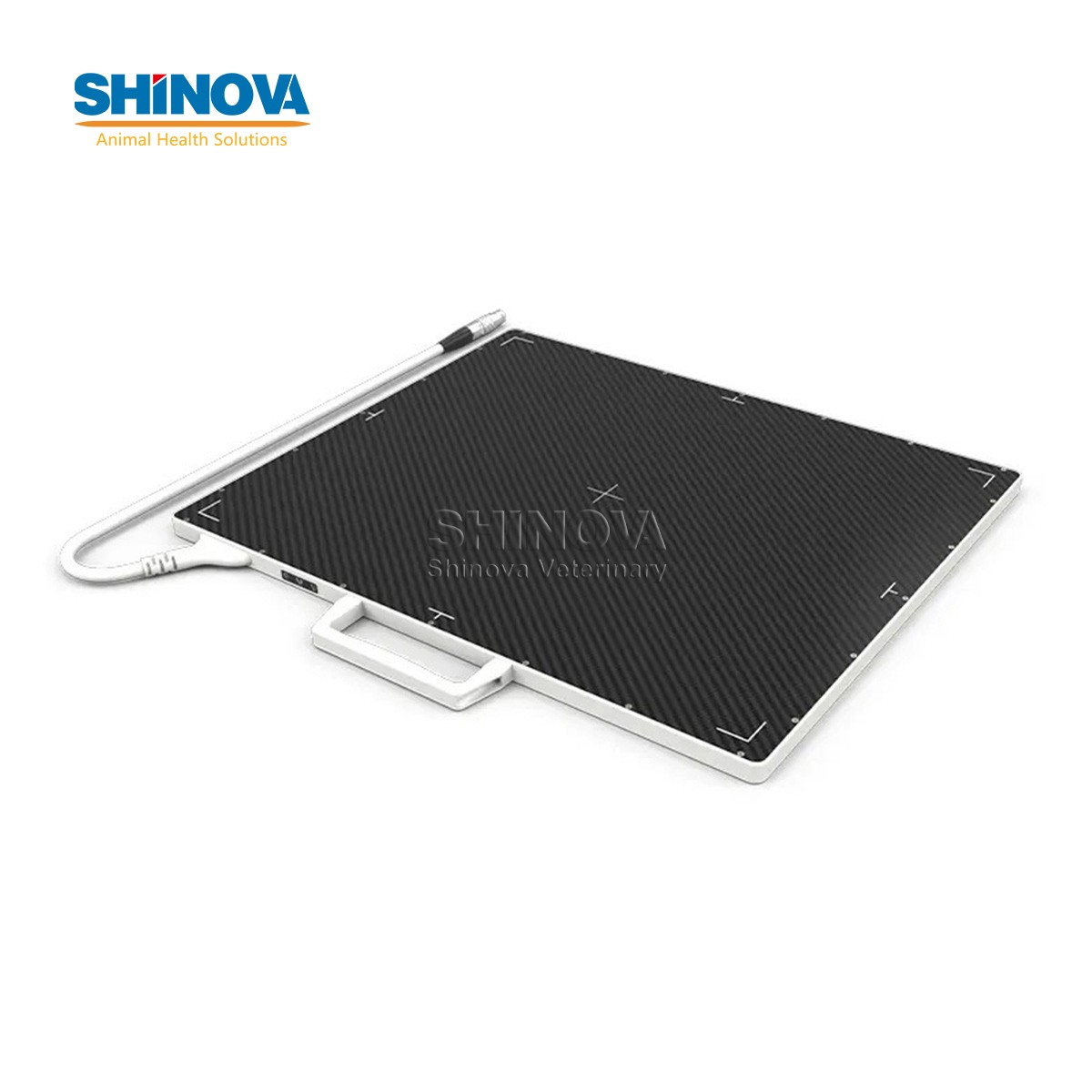

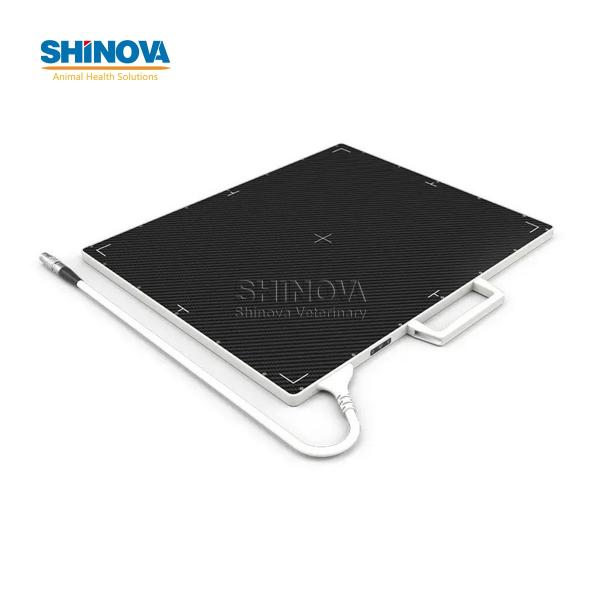

Descriptions

Feature:

140 μm pixel pitch.

Superior image quality.

Human bionic structural design.

Direct deposition Cesium lodide (Csl) Scintillator effectively reduces light scattering between pixels.

Specifications

Specification:

SensOr: a-Si

Scintillator: Csl / GOS

Active area: 350x 427 mm

Pixel matrix: 2500 x3052

Pixel pitch: 140 μm

AD conversion: 16 bits

Data Interface: gigabit ethernet

Exposure control: prepare / ready / X Ray on(edge or level)

Image acquisition time: ≤1s

Operating system: Windows7 / Windows10 0s 32 bits or 64 bits

Resolution: 3.5 lp/mm

Energy range: 40-160 KV

Dynamic range: v82 dB

DQE (2uGy): 64%6 @ (0 lp/mm)

41% @ (1 lp/mm)

28% @ (2 lp/mm)

Dimension(H x W x D): 460 x 383 x15 mm

Weight: 3.8kg

Sensor protection material: carbon fiber

Housing material: aluminum alloy

Temperature range: 10~35°C(operating); -10~50°C(storage)

Humidity: 30~70%6 RH (non-condensing)

Vibration: IEC 60068-2-64 0peration: 1G, 5-500Hz

Shock: IEC 60068-2-27 0peration: 2G, duration 11ms

Dust and water resistant: IP41

Supply: 100~240 VAC

Frequency: 50/60 Hz

Consumption: 11 W
