Descriptions

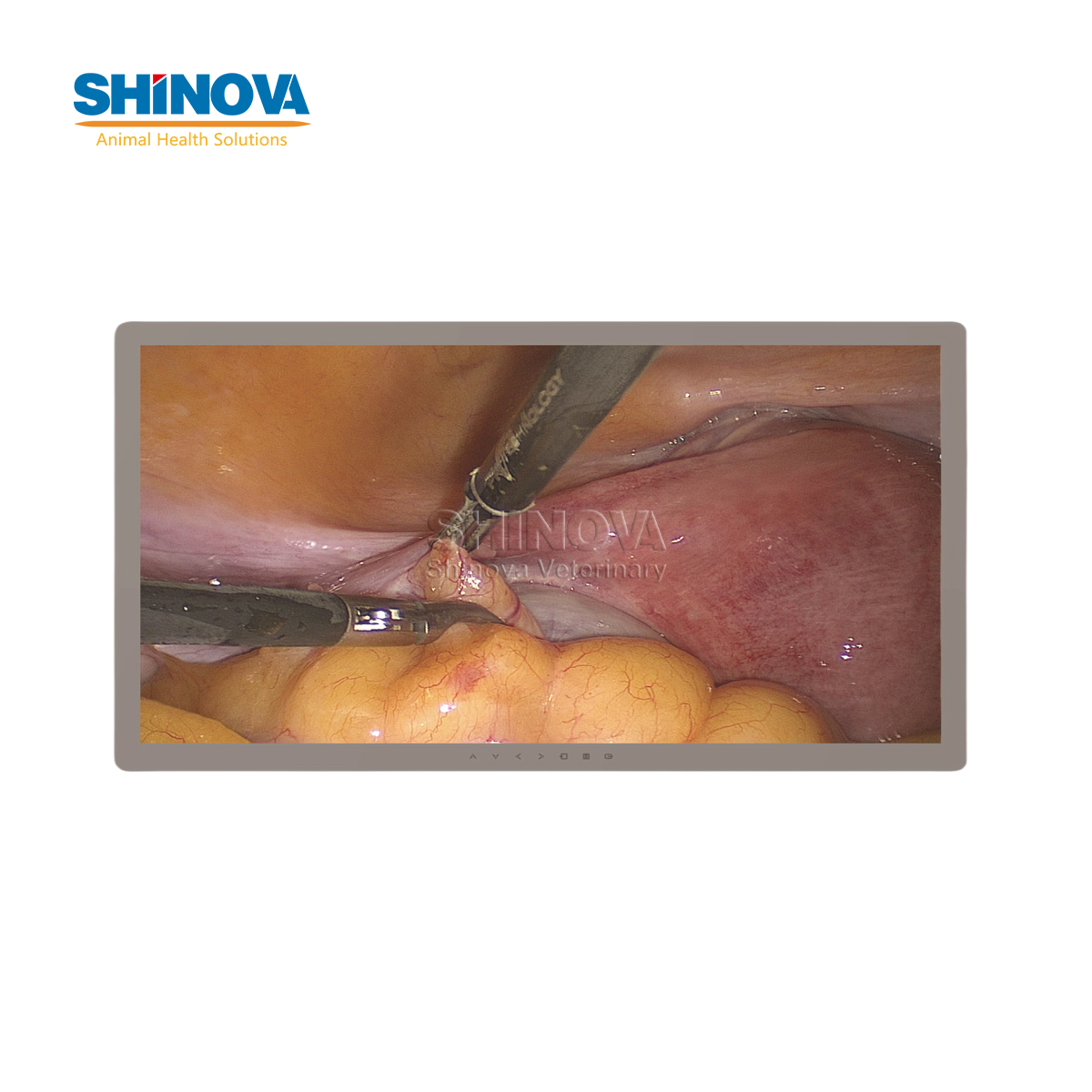

E270 is a high performance full HD endoscopic surgery medical display specially designed for operating rooms.

E270 has the characteristics of high brightness, high contrast, wide viewing angle. After connection with the surgical endoscopy system, surgeons and staff in the operating room can view the smooth, clear, true full HD surgical images.

With full bonding process, super low reflection and true color, its picture becomes more sophisticated, and provides surgeons with visual experiences precisely and realistically.



Application Area

Endoscopy

Operating room

ICU



Built-in multiple display mode

Professional protective glass

True color restore

Wide viewing angle

Full bongding

Signal input and output function

Specifications

Model	E270
Display size	27"
Support color	1.07 Billion
Resolution	1920×1080
Pixel Pitch	0.3114×0.3114mm
Brightness	700 cd/m3 Typ.
Contrast	1000:1 Typ.
Angle of view	178 Typ.
Response time	14 ms Typ.
lnput signal interface	DVI-D: 24 pin /3G-SDI:BNC YPbPr:BNC*3/RGBS: BNC*4 C[removed]BNC/ S-VIDEO: DIN4 VGA: D-Sub 15 pin/Fiber: FC (Optional)
Output signal interface	DV-D: 24 pin/3G-SDI:BNC
Size	645.25(W)×392(H)×50(D)mm
Weight	9.0kg
Standard Mounting	VESA 100x100mm
Power supply	DC24V
Power Consumption	55W max.
Power Saving	EPA, VESA
MTBF	>50,000 Hours
	Optional base
