Descriptions

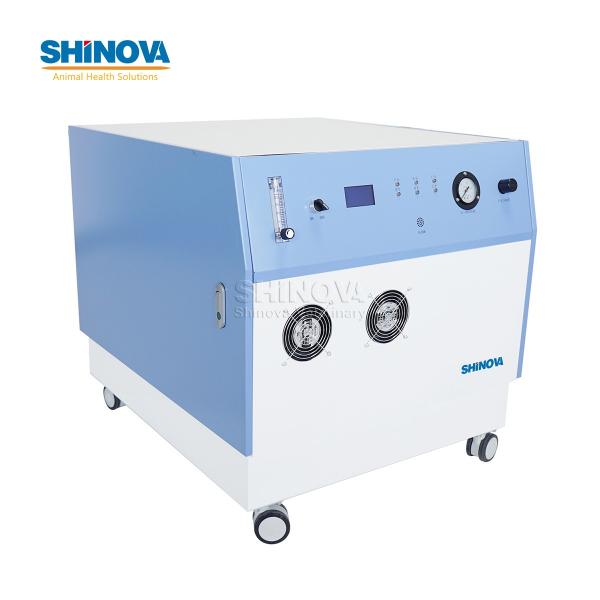

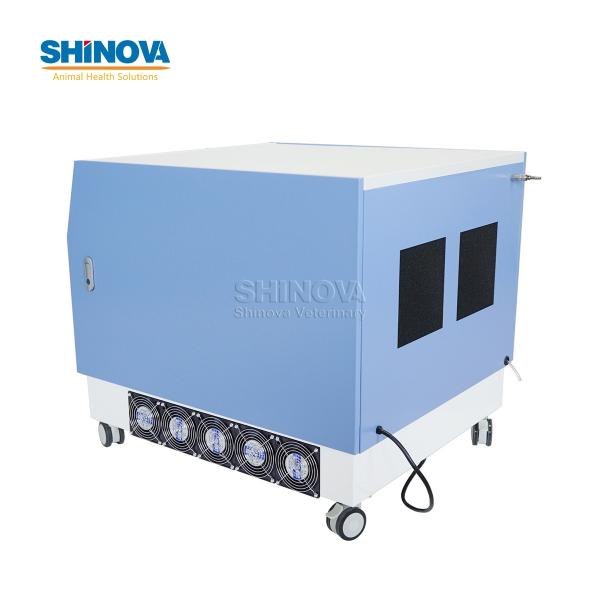

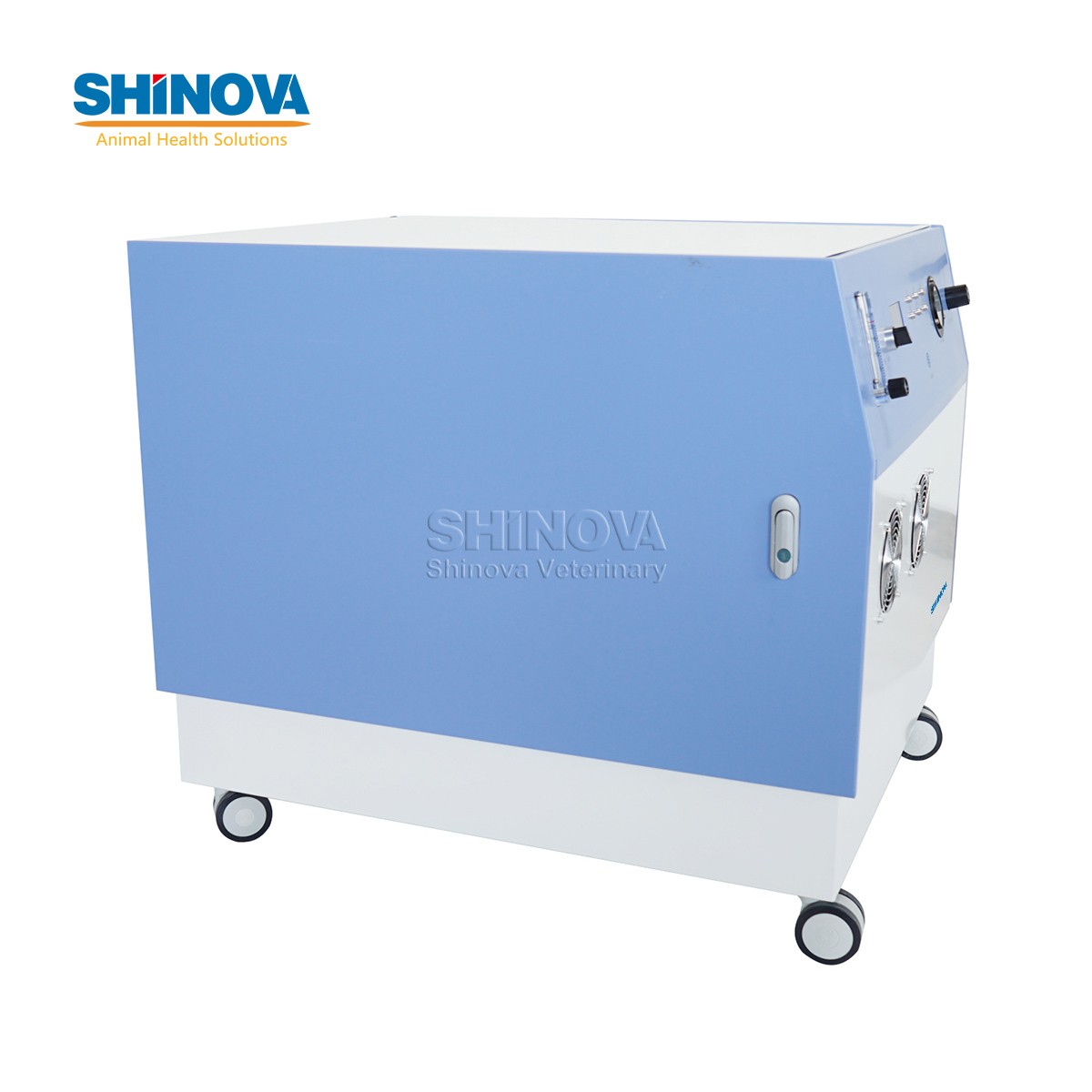

SOC-10H/ SOC-15H/ SOC-20H oxygen concentrator with high pressure (0.14-0.4Mpa): Oxygen supply for big animals such as horse, ox, etc.
0.4Mpa high pressure oxygen concentrator can be connected with ventilator or anesthesia machine to help save animal's life in surgery.

Specifications

Model	SOC-10H SOC-15H SOC-20H
Flow Rate	0-10LPM/0-15LPM/0-20LPM
Power	AC220V (±10%), 50/60±1Hz; AC110V (±10%), 50/60Hz (±1Hz)
Purity	93% (±3%)
Outlet Pressure	0.14-0.4Mpa
Sound Level	≤50dB/≤60dB/≤60dB
Power Consumption	≤850W/≤1500W/≤1800W
LCD Display	Switch times,operating pressure,present working time,accumulated working time
Alarm	High & low pressure alarm, Power failure alarm
Net Weight	65Kgs /118Kgs/125Kgs
Size	830×360×600mm/860×580×660mm/860×670×660mm
