Descriptions
Turbo-driven design, no need of high-pressure air source, just an oxygen concentrator to make it work
Ventilation parameters are calculated automatically by setting animal’s weight only
Light and easy to move, save animal hospital space
With breathing mode VCV, PCV, SPONT, etc. to meet different clinical requirements
With SPONT mode, auto ventilation while animal have no spontaneous breathing
With electric PEEP to adjust expiration end pressure
With intelligent spontaneous mode to avoid breathing confrontation
With Apnea alarm and Apnea time adjustable
With proximal respiratory flow monitoring,more accurate

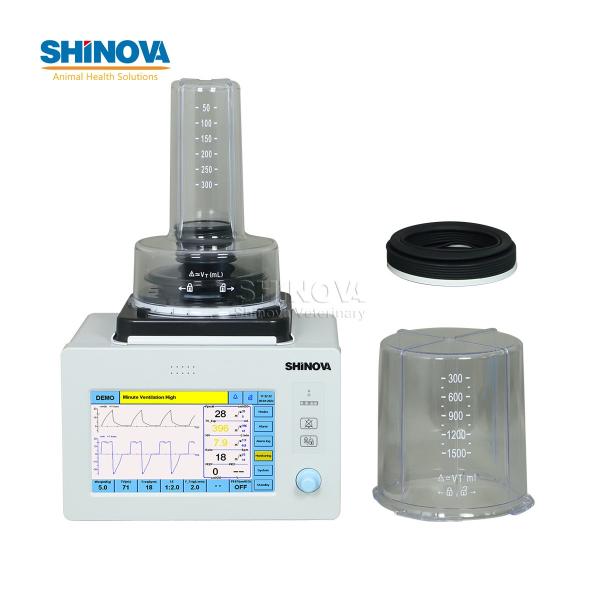

With big animal bellow and small animal bellow to satisfy different animals
Gas source hose takes the high precious gas source, no leakage forever
HD TFT touch screen and touch key to set parameters, very easy to operate
Compatible with different brand veterinary anesthesia machine
Suitable for various animal surgical scenarios, widely used in pet hospitals, animal clinics, scientific research institutions, animal laboratories, animal husbandry schools, wildlife rescue stations, training institutions, agricultural identification stations, etc.
Specifications
Ventilation Parameters
Setting Range
Tidal volume (TV)
20-1500ml
Breathing rate (Freq)
1-150bpm
Spontaneous breathing rate (Freq_Spont)
0-150bpm
Ratio of inhalation and exhalation (I:E)
9.9:1-1:9 adjustable
Hold time
0-50%
Flow trigger sensitivity (F_Tring)
0.5-20L/min, OFF
Pressure Trigger Sensitivity (P_Tring)
-1-20cmH2O, OFF
End-expiratory pressure
3-20cmH2O, OFF
SIMV frequency (Fre_SIMV)
2-60bpm
Inspiratory time (T_Insp)
0.1-12s
Pressure support (PS)
0-60cmH2O
Inspiratory pressure (T_Insp)
0-60cmH2O
Tidal volume of expiratory
0-2500ml
Tidal volume of inspiratory
0-2500ml
Minute Ventilation (MV)
Display range: 0-99L/min
Use range: 0-25L/min
Spontaneous minute ventilation (MV_Spont)
Display range: 0-99L/min
Use range: 0-25L/min
Peak pressure (Ppeak)
0-80cmH2O
Platform pressure (Pplat)
0-80cmH2O
Mean pressure (Pmean)
0-80cmH2O
Inhaled oxygen concentration (FiO2)
15-100%
End-expiratory pressure (PEEP)
0-20cmH2O
Driving gas pressure (Press_Drive)
0-900kpa
Paw-T waveform
Pressure monitoring range: 0~120cmH2O;
X-axis: 0~10s
Flow-T waveform
Y-axis:-1800~180L/min
X-axis: 0~10s
V_T waveform
Z-axis:0~2000L/min
X-axis:0~10s
Alarm Parameters
Setting Range
Pressure upper limit
0-60cmH2O
Pressure lower limit
0-60cmH2O
Tidal volume upper limit
0-1500ml
Tidal volume lower limit
0-1500ml
Ventilation volume upper limit
0-40L/min
Ventilation volume lower limit
0-40L/min
Oxygen concentration upper limit
15-100%
Oxygen concentration lower limit
15-100%
PFFP upper limit
0-25cmH2O
PEEP lower limit
0-20cmH2O
Breathing rate upper limit
1-150bpm
Breathing rate lower limit
1-150bpm
Apnea time
3-20s
Gas source pressure low
Less than 280kpa
low battery
8±0.2V
Alarm volume
2-10
