Descriptions

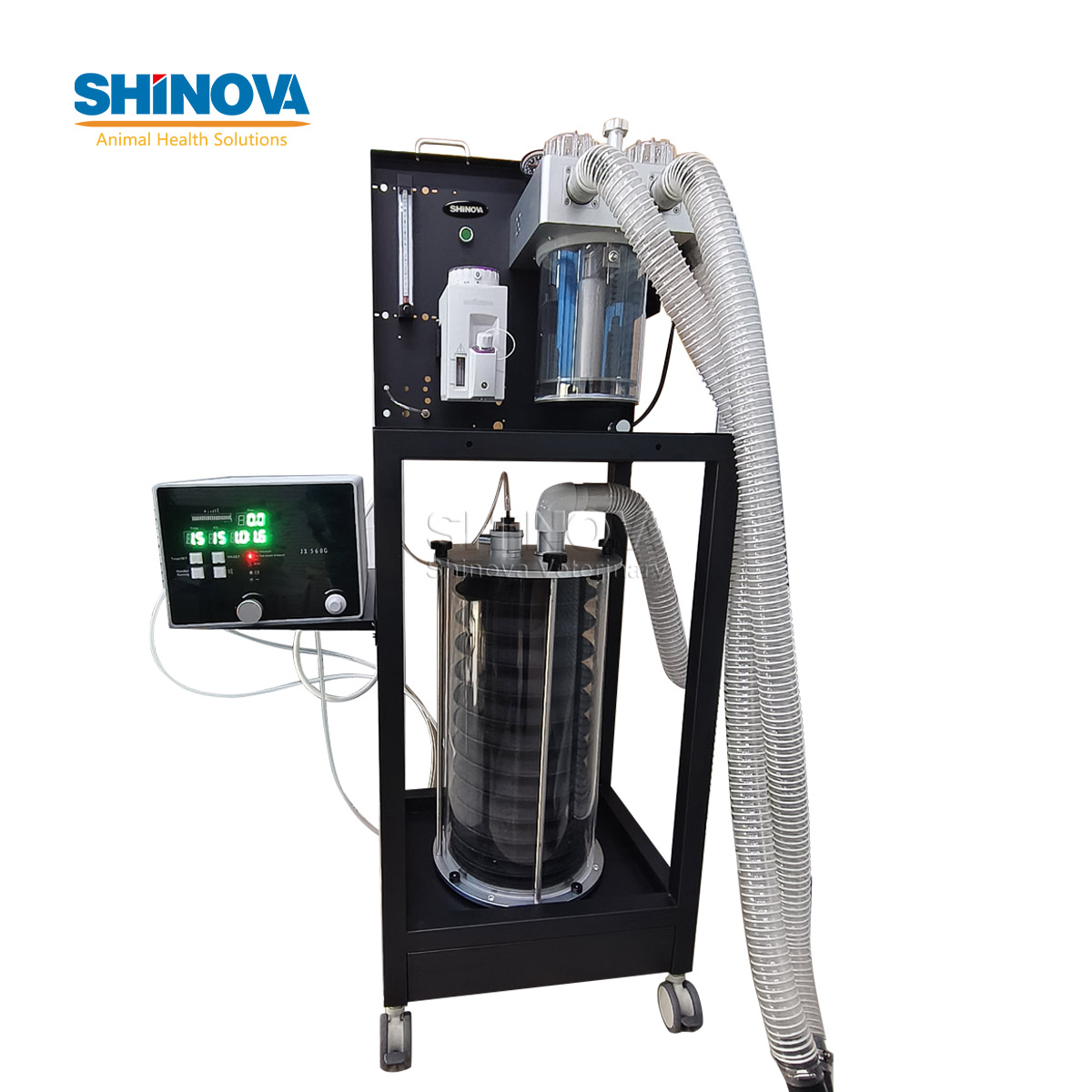

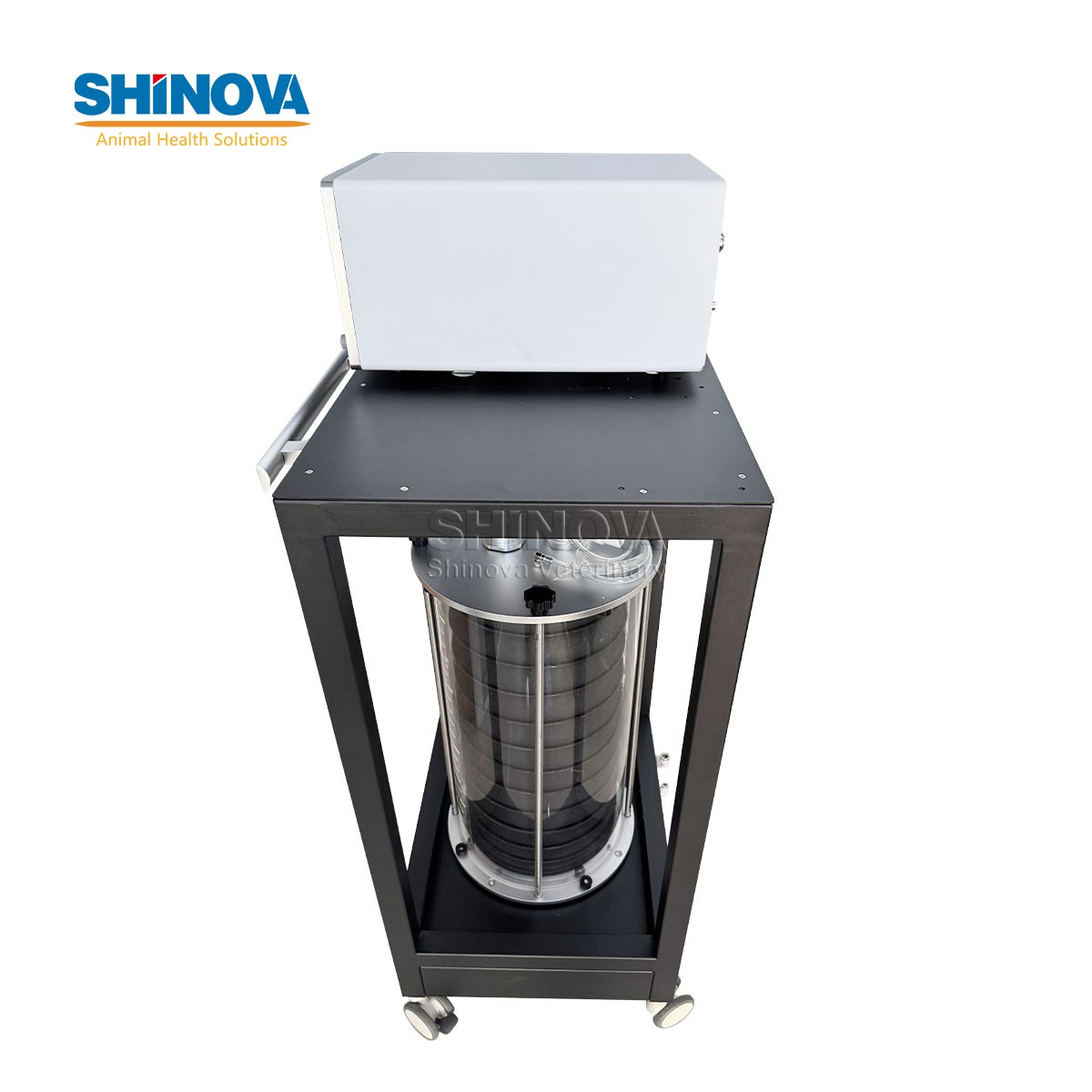

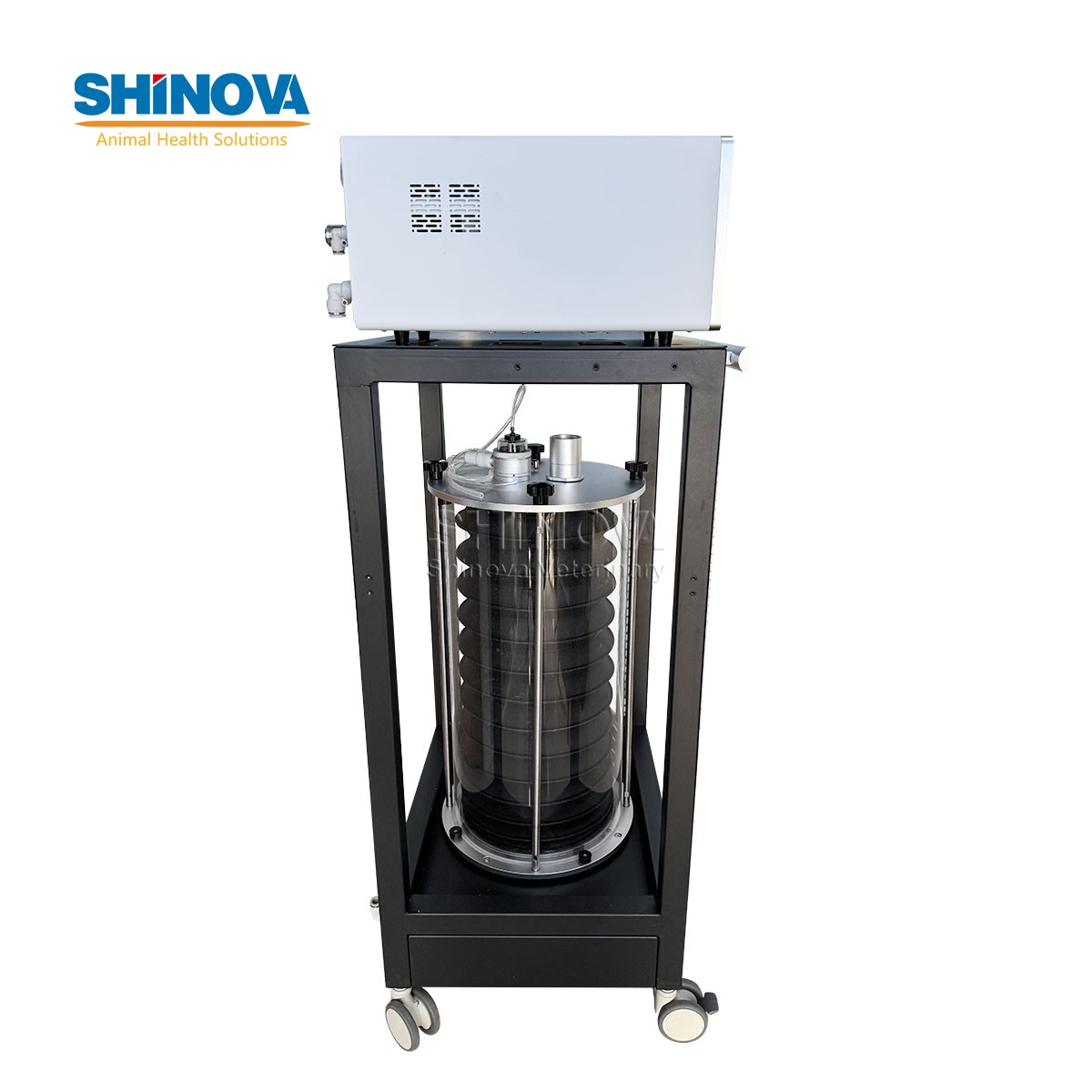

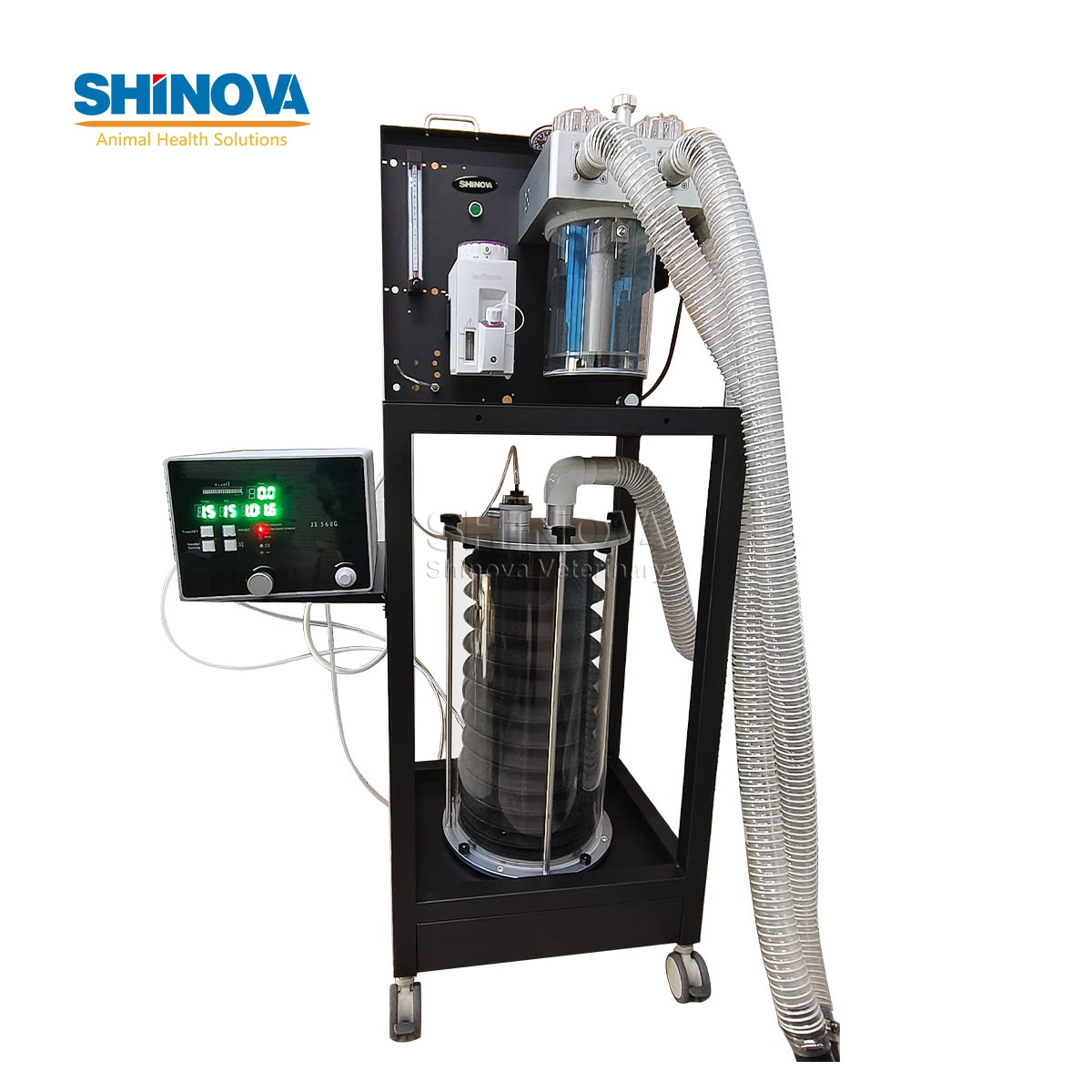

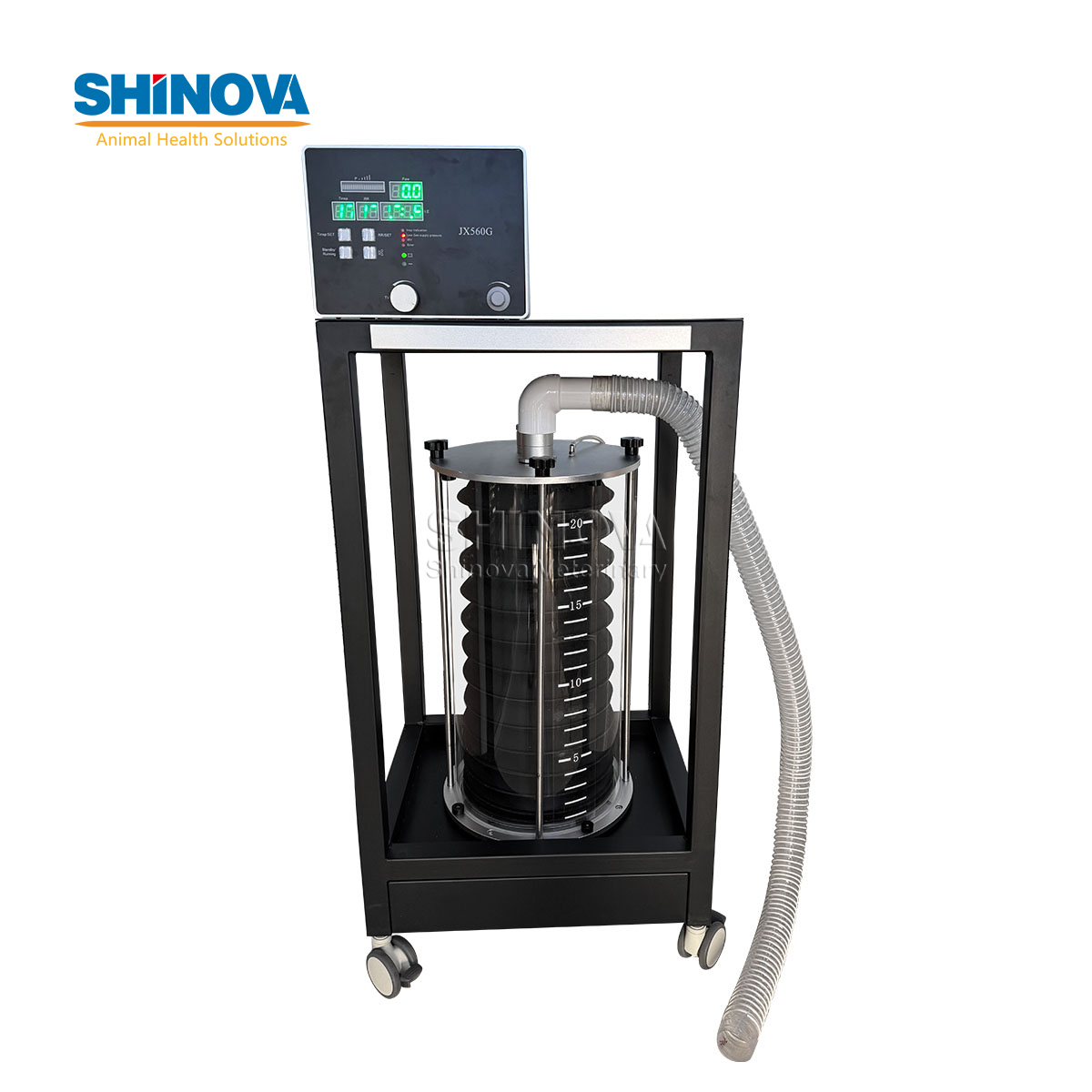

Large-Capacity Ventilation Designed for Equine Anesthesia
20L bellows capacity with a tidal volume range of 0–20L, specifically designed to meet the ventilation requirements of equine and other large animals under anesthesia.
Pneumatic Drive with Electronic Control for Stable and Precise Ventilation
A pneumatic drive system combined with electronic control ensures high reliability and precise parameter adjustment, ideal for long-duration equine surgical anesthesia.
High Peak Flow for Effective Gas Exchange
A peak inspiratory flow of 400L/min enables rapid response to the large lung capacity of horses, ensuring stable and efficient gas exchange during anesthesia.
Integrated Safety Features for Enhanced Anesthesia Protection
Intelligent PEEP and pop-off valve integration, combined with multiple critical alarms, effectively prevents airway overpressure and enhances anesthesia safety.
Built-in Battery Backup for Continuous Ventilation
An integrated battery provides ≥90 minutes of operation in the event of power failure, ensuring uninterrupted ventilation during critical procedures.
Specifications
Ventilation System
Drive Type: Pneumatic, electronically controlled
Ventilation Mode: IPPV (Intermittent Positive Pressure Ventilation)

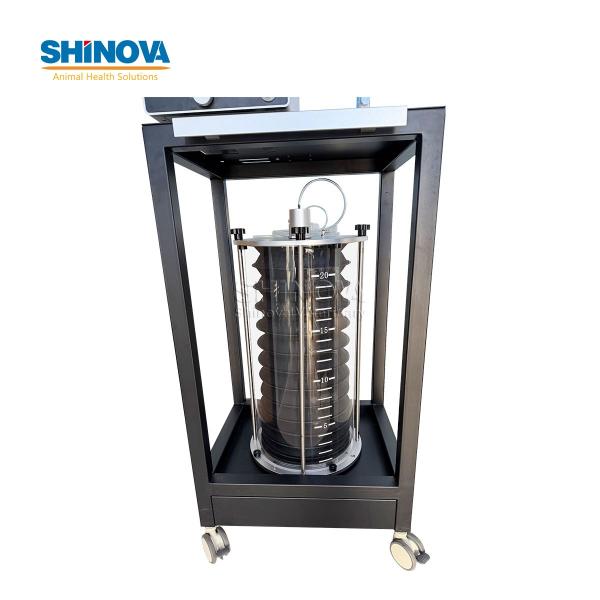

Bellows Capacity: 20L
Tidal Volume Range: 0-20L
Gas Supply Pressure: 0.35-0.6MPa
Peak Inspiratory Flow: ≥400 L/min @ 0.35MPa
Inspiratory Time (Tinsp): 0.2-10s
Respiratory Rate: 2-80 breaths/min
Airway Pressure (Paw): 0-99 cmH2O
PEEP Function: When PEEP is set ≥5 cmH2O, the integrated pop-off valve automatically releases excess pressure to ensure patient safety.
Alarm System
1) Low Gas Supply Pressure Alarm
Triggered when gas supply pressure drops below 0.35MPa
2) AC Power Failure Alarm
Activated when AC power is disconnected or interrupted
3) Inverse I:E Ratio Indicator
Visual indication when inverse ratio ventilation is selected
4) Low Battery Alarm
Alerts when battery capacity falls below safe operating level
Electricity Supply
Power Supply: AC 100-240V, 50/60Hz
Power Consumption:Internal Battery: Lithium battery, DC 12 V, 2600 mAh
Battery Operating Time: ≥90 minutes under typical operating conditions with a new fully charged battery
Operating Environment
Ambient Temperature: 10-40°C
Relative Humidity: 15%-95% RH, non-condensing
Atmospheric Pressure: 70-106 kPa
Storage & Transportation Conditions
Temperature Range: -10~60°C
Relative Humidity: 10%-95% RH, non-condensing
Atmospheric Pressure: 50-106 kPa
