Descriptions

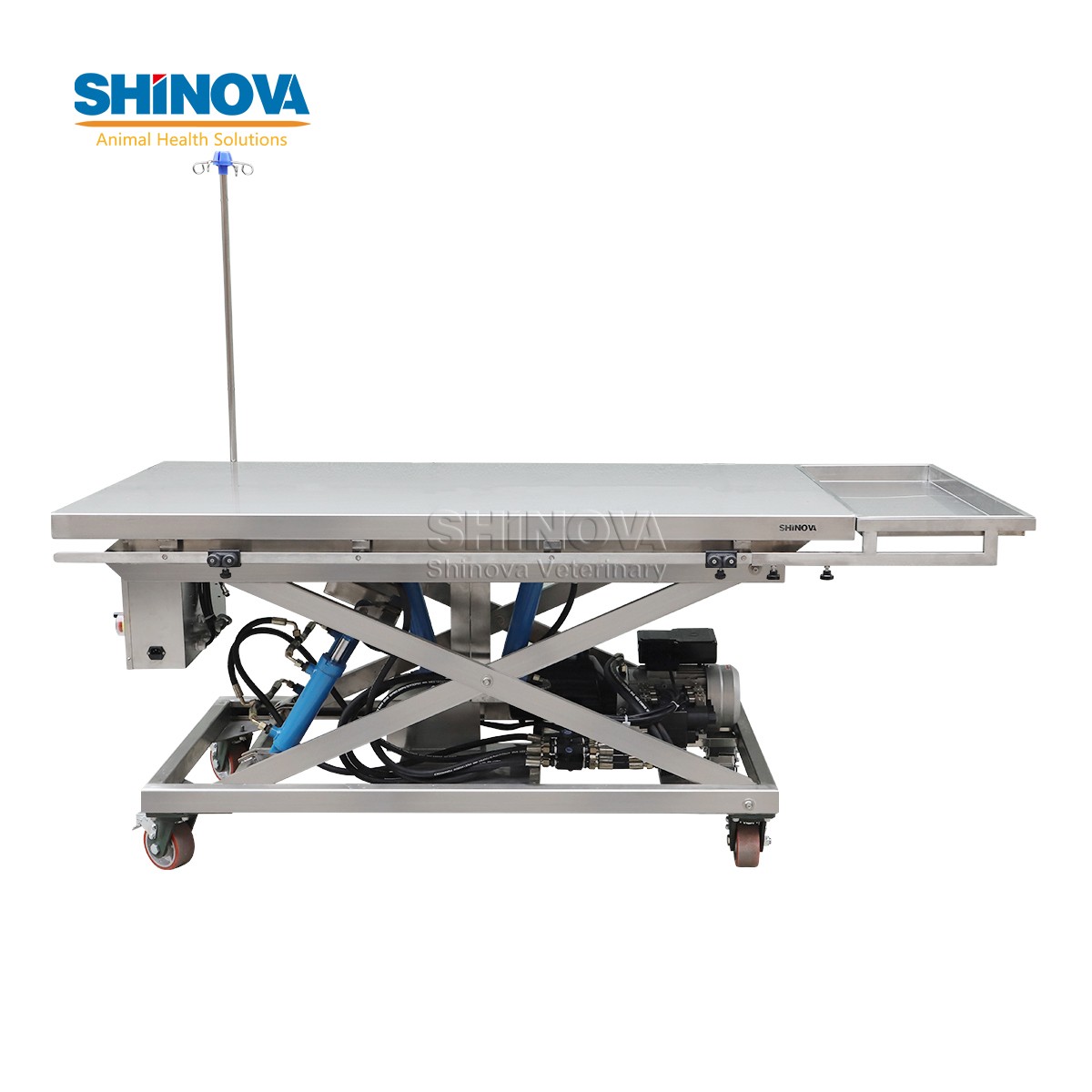

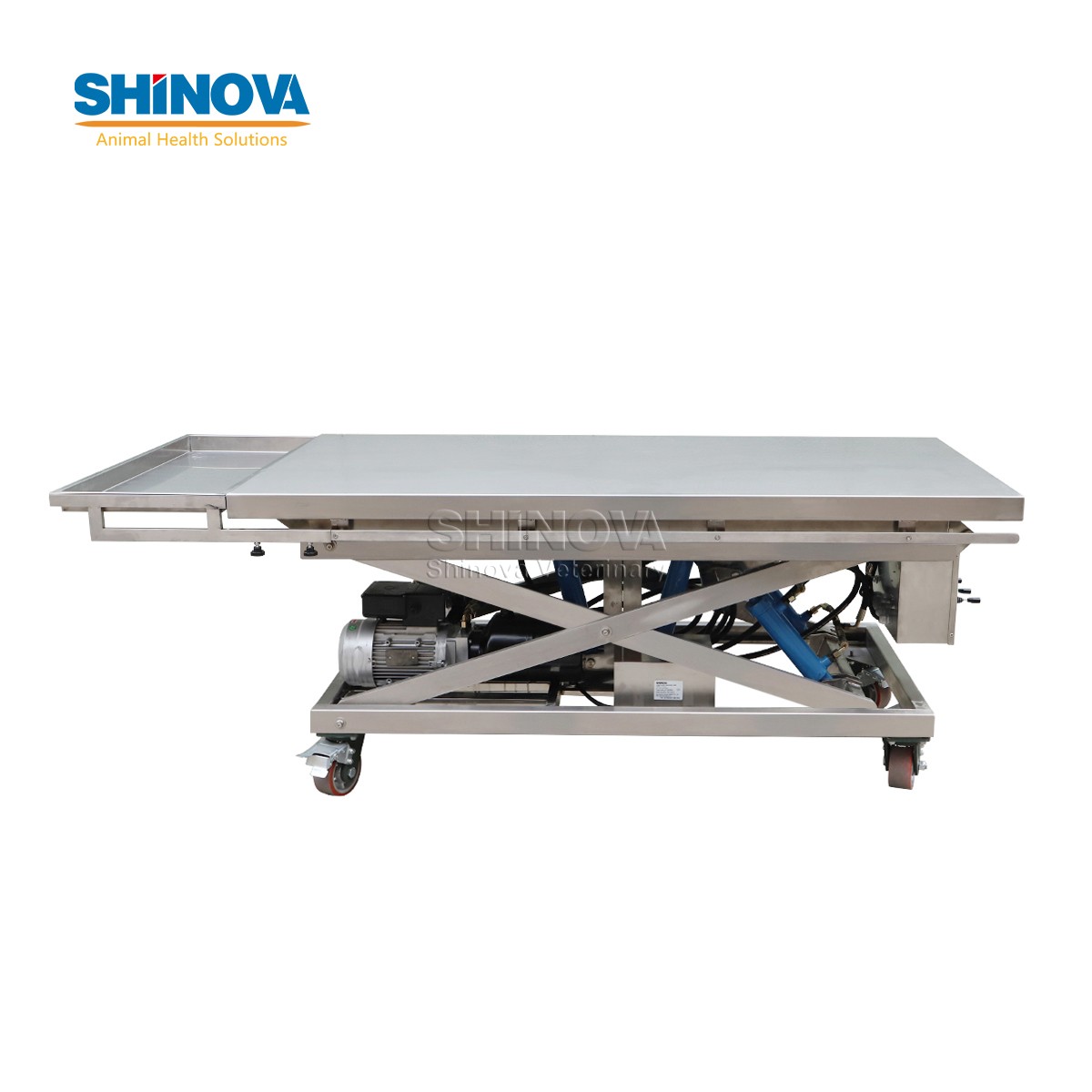

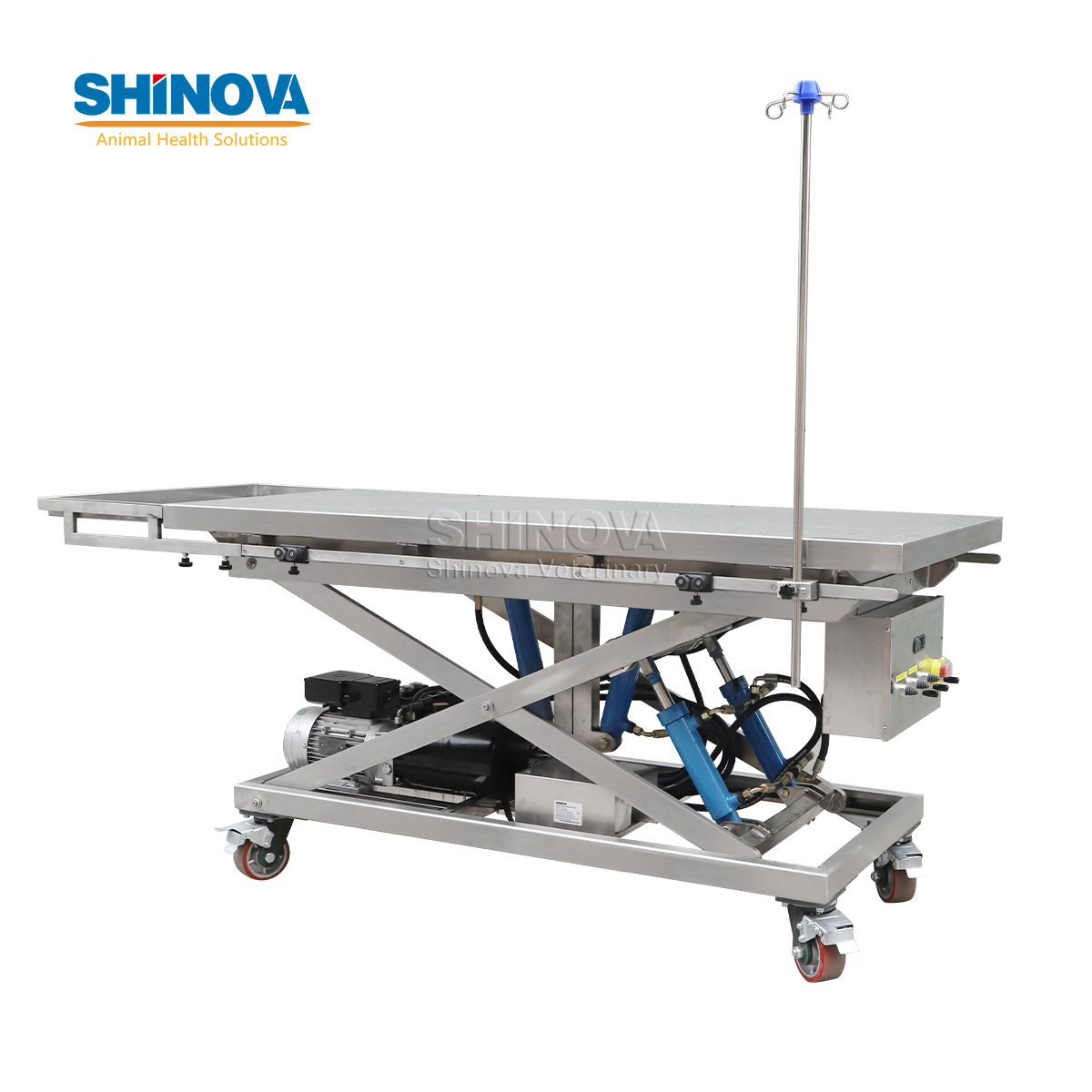

1. OT-03DV adopts flat design and electric-hydraulic lifting system.

2. The overall material is made of 304 stainless steel (including instrument table), acid-proof and anti-corrosion.
3. The thickness of stainless steel plate is at least 2.5mm.

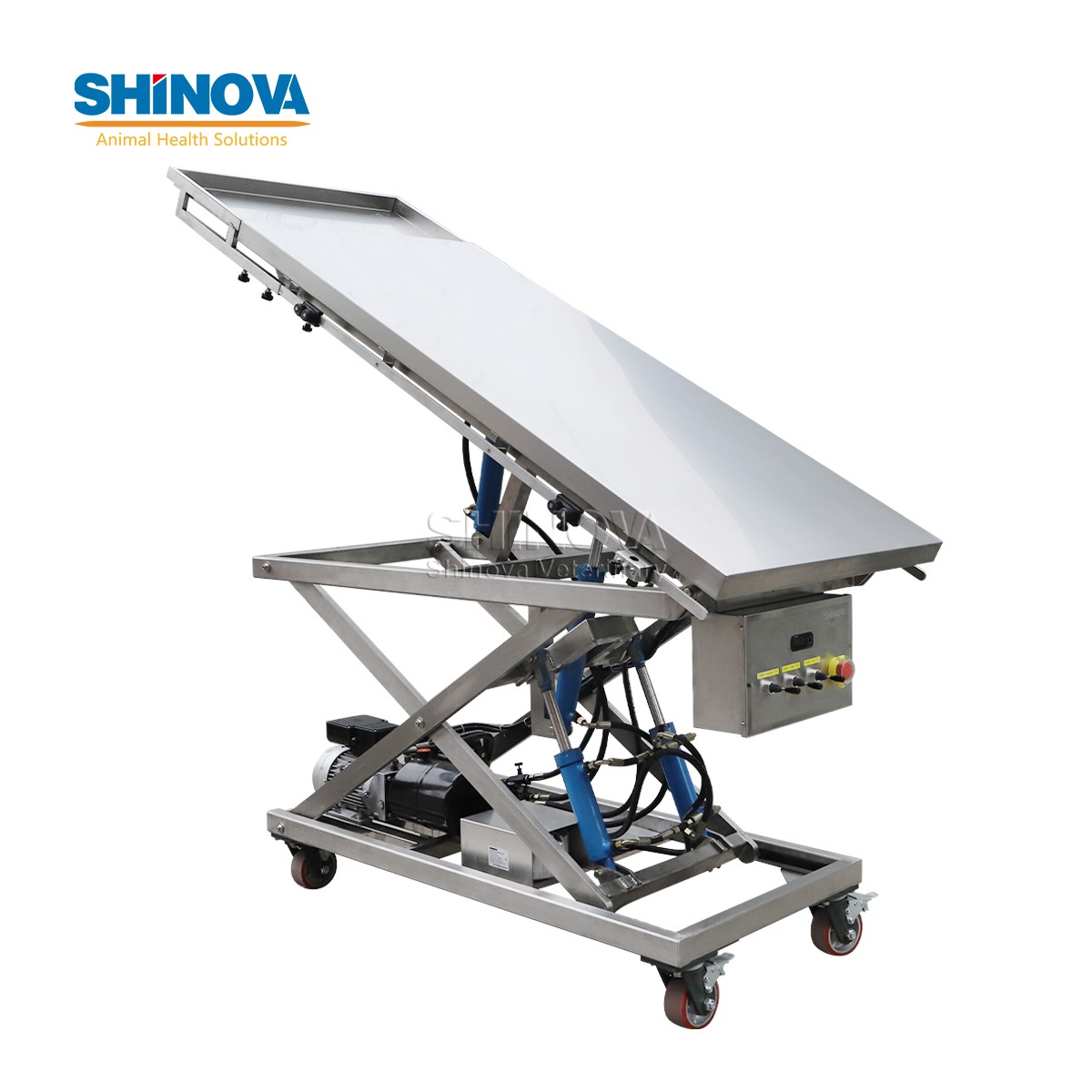

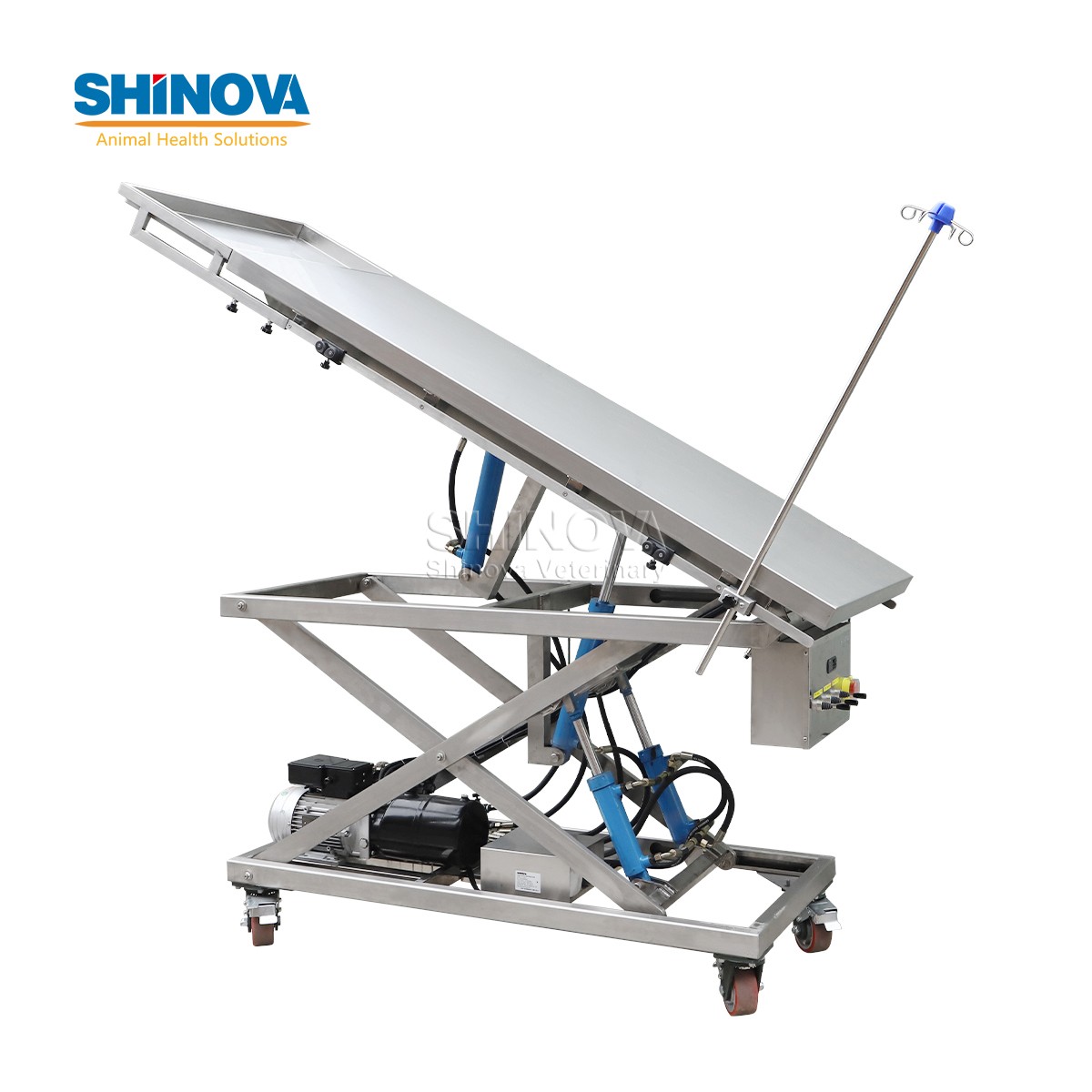

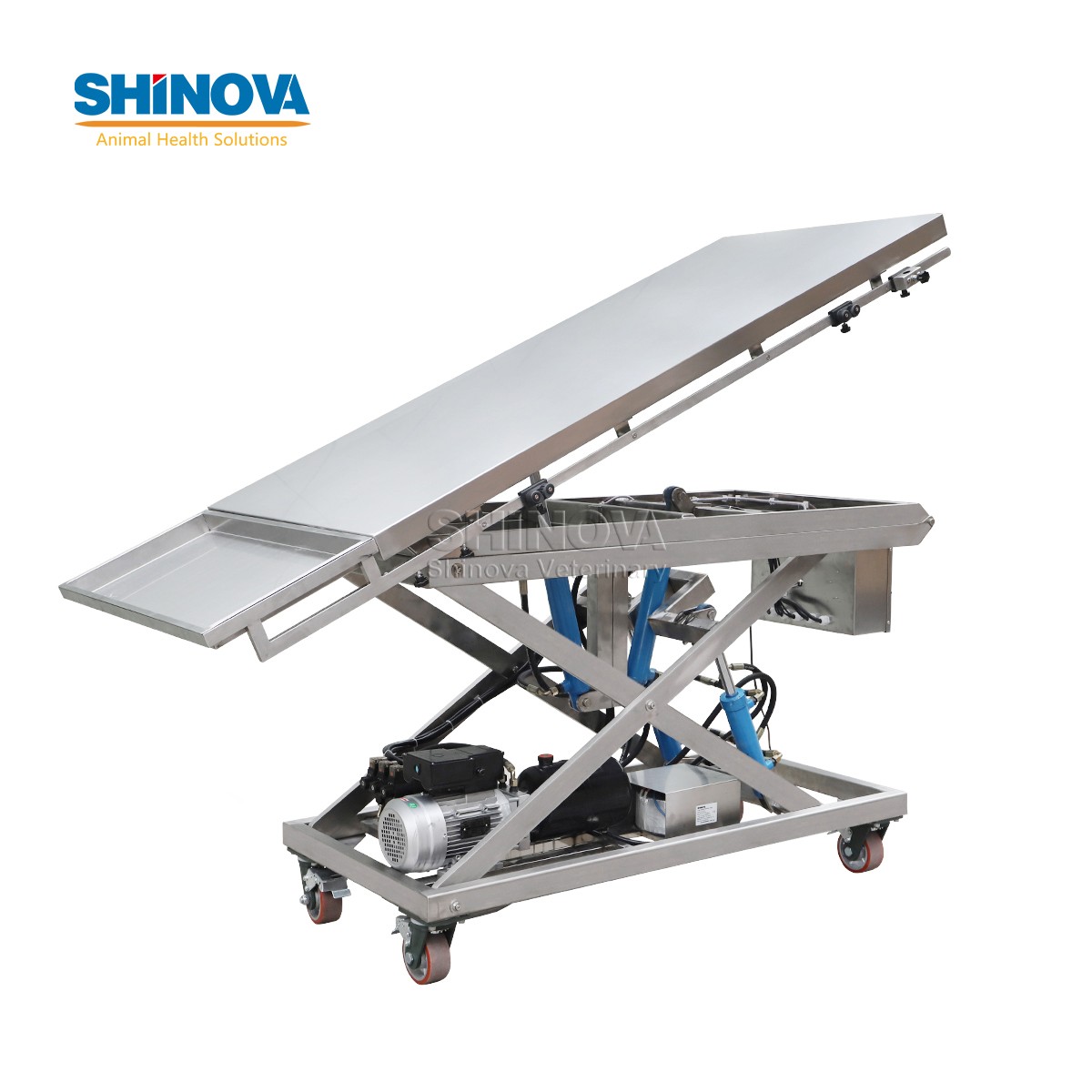

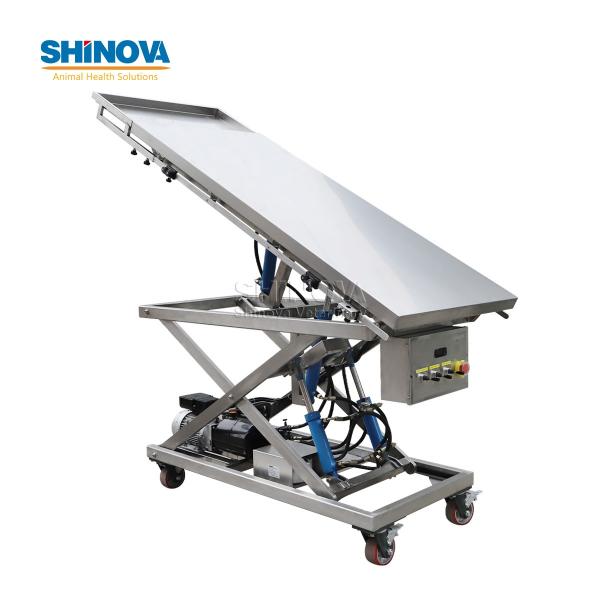

4. Tilt head to toe is 0-30 degrees, and it's tilted on both directions.
5. Table size of length 1800mm and width 815mm are very suitable for large animals like sea turtle.

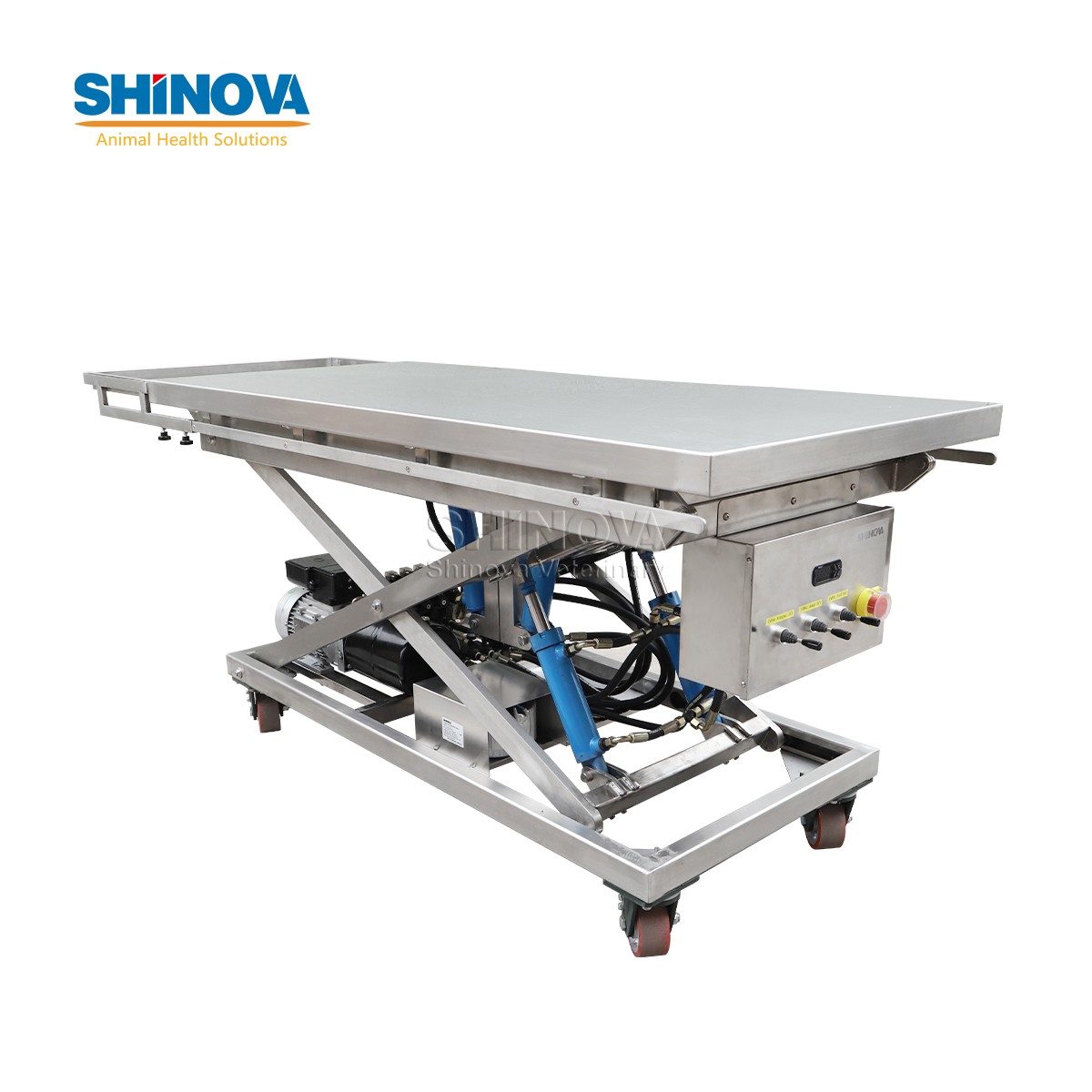

6. Table height is adjusted by control panel or remote control, and the height adjustment range is 790mm-1050mm.
7. Side poles is pluged on both sides and are removeable.
8. A surgical instrument tray connected with the table is to place surgical instruments, which is flush with the height of the operating table.
9. Load-bearing capacity is not less than 800kg.
10. The tabletop can be heated to protect the animal from hypothermia.
11. Both sides with the tracks for tightening.
12. With six casters, it is safe and easy to move anywhere.

Specifications

Material	304 stainless steel
Plate thickness	≥2.5mm

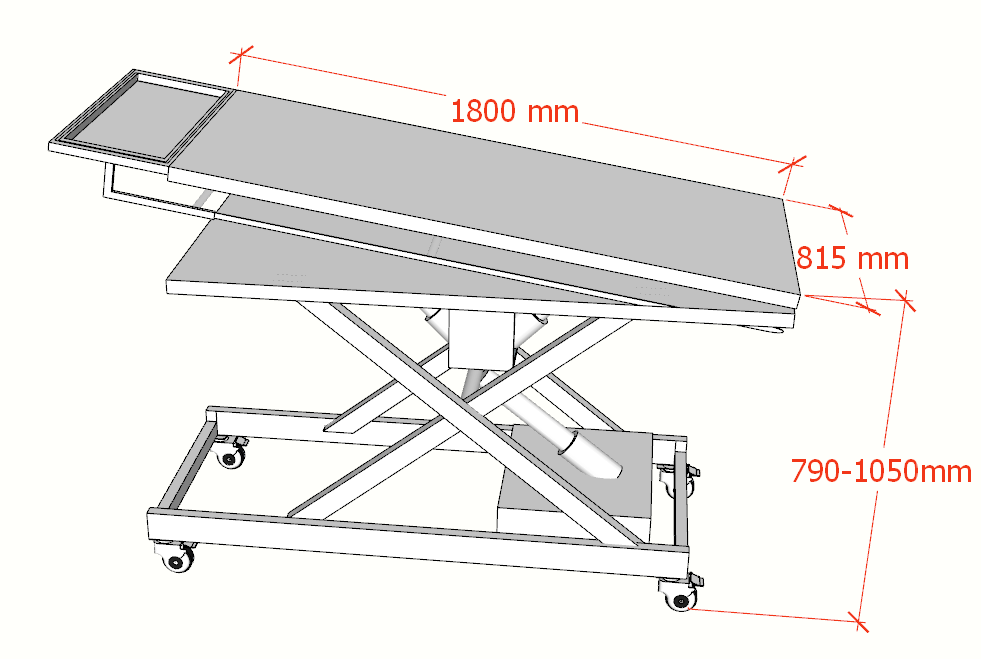

Table size (length*width)	1800*815mm
Height adjustment	790-1050mm
Tabletop tilt angle	0-30°, two directions
Load weight	≥800kg
Power Supply	220V, 50Hz or 110V, 60Hz
Accessories	instrument tray, side poles, casters, tightening bolts, etc.
