Descriptions

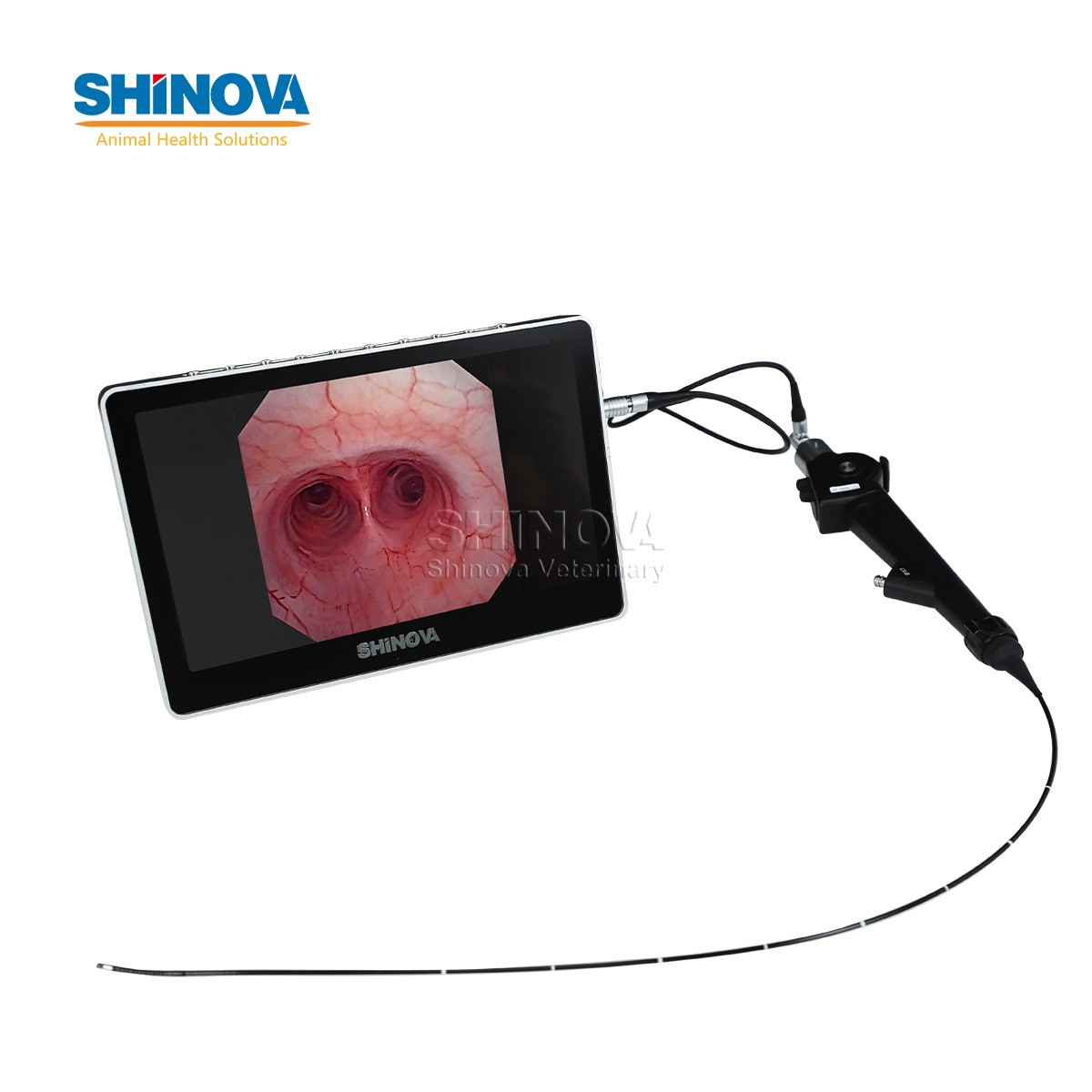

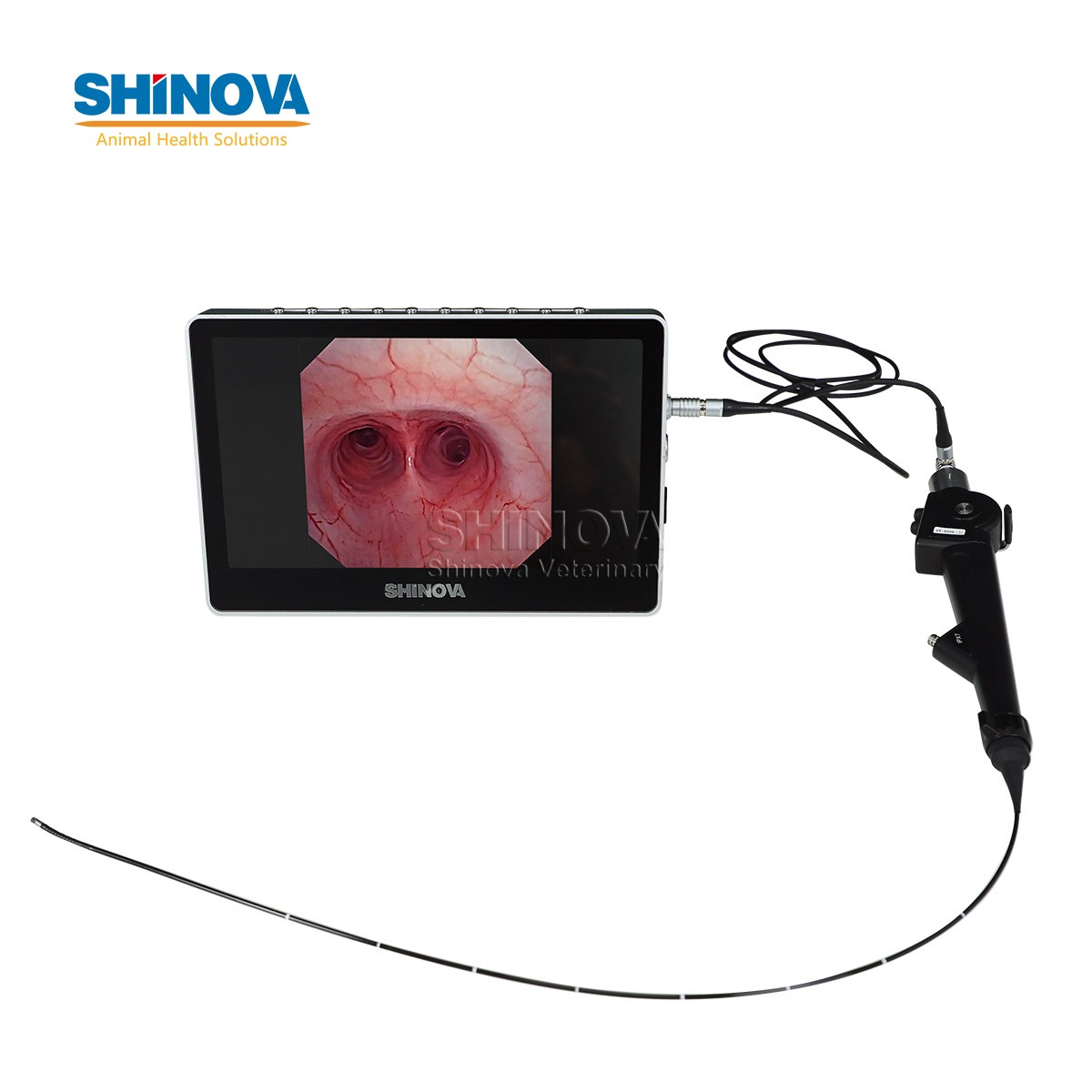

A) High-Definition Imaging System

12-inch HD capacitive touchscreen image processor
High-resolution CMOS image sensor
Real-time 1080P imaging with smooth display
Integrated image display, recording, storage, and playback

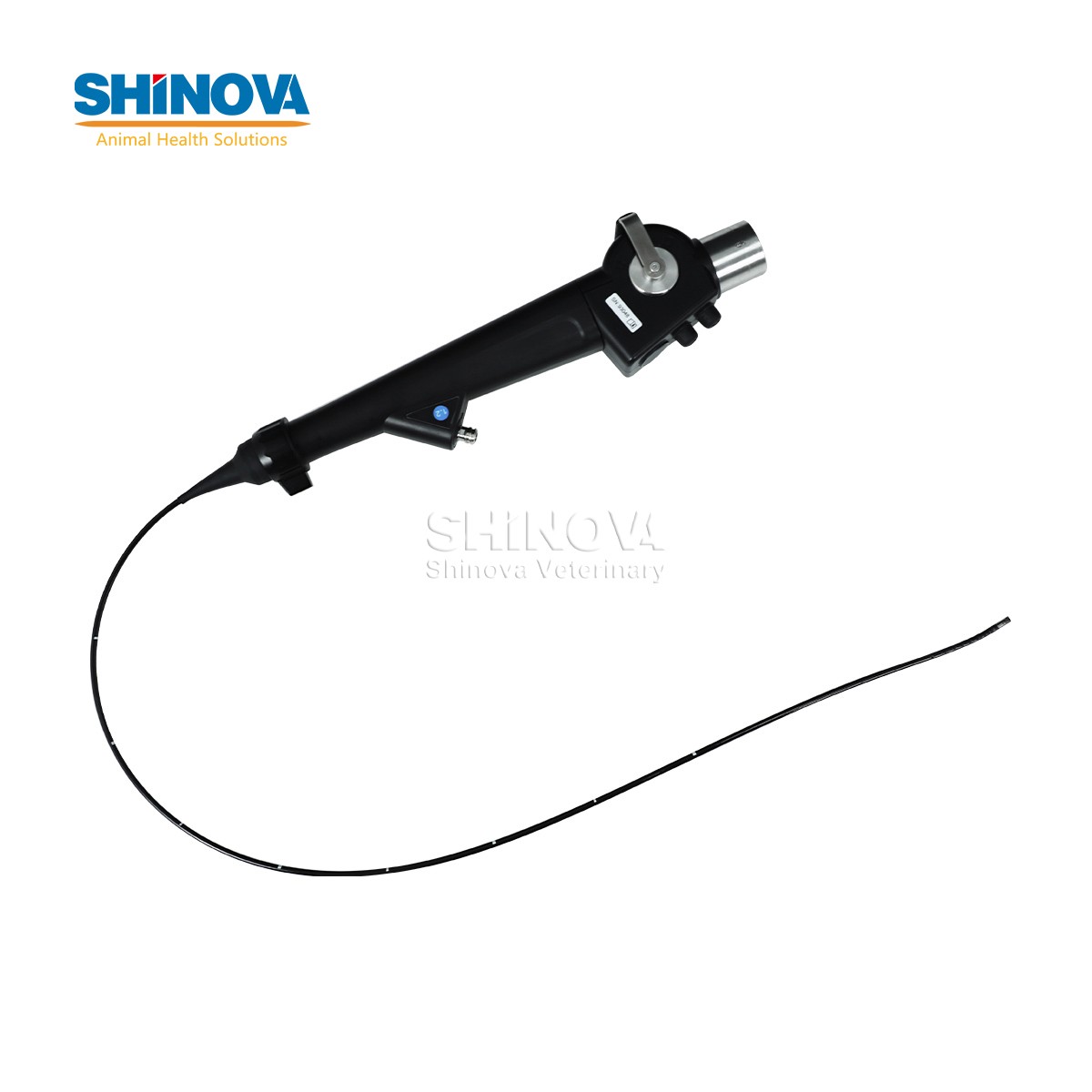

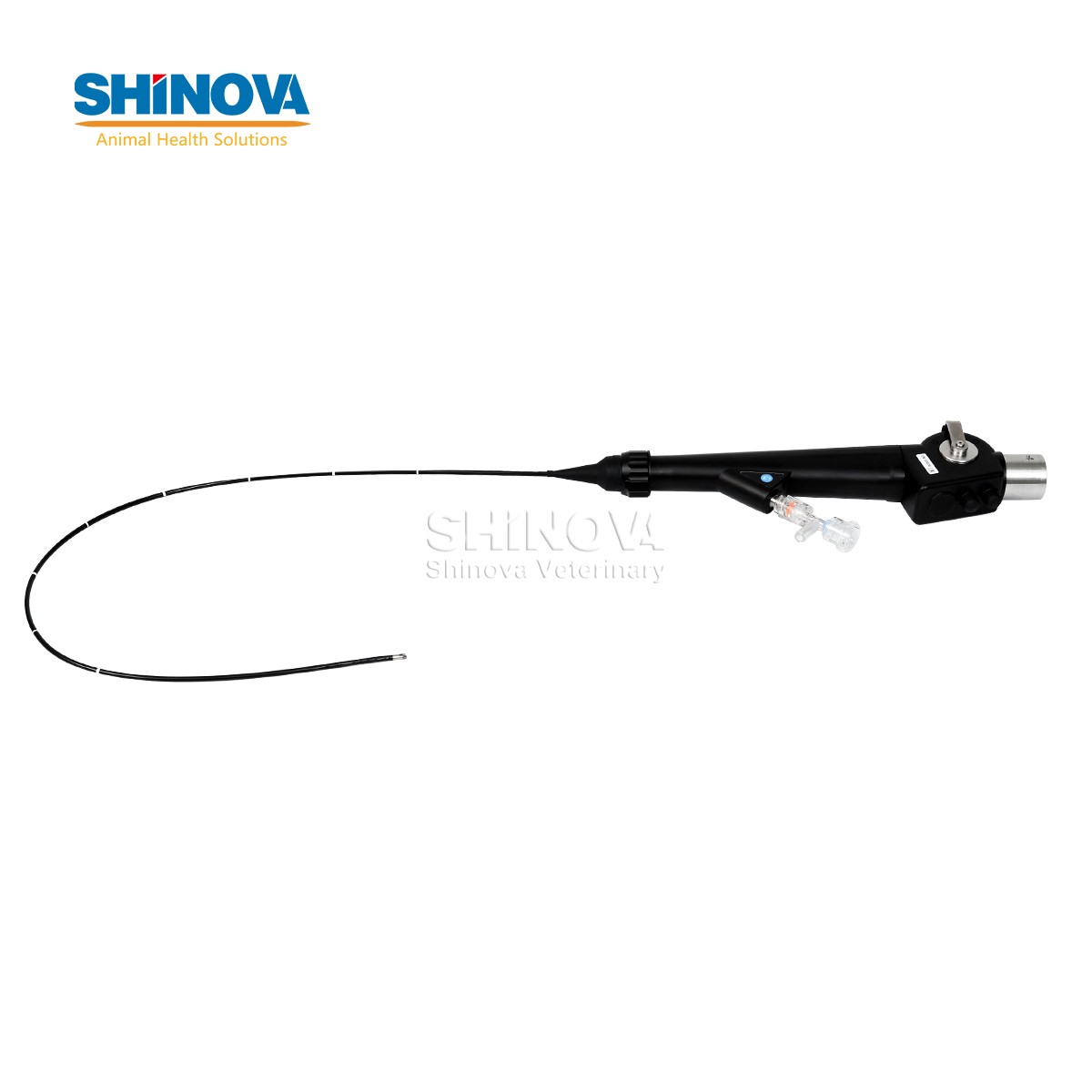

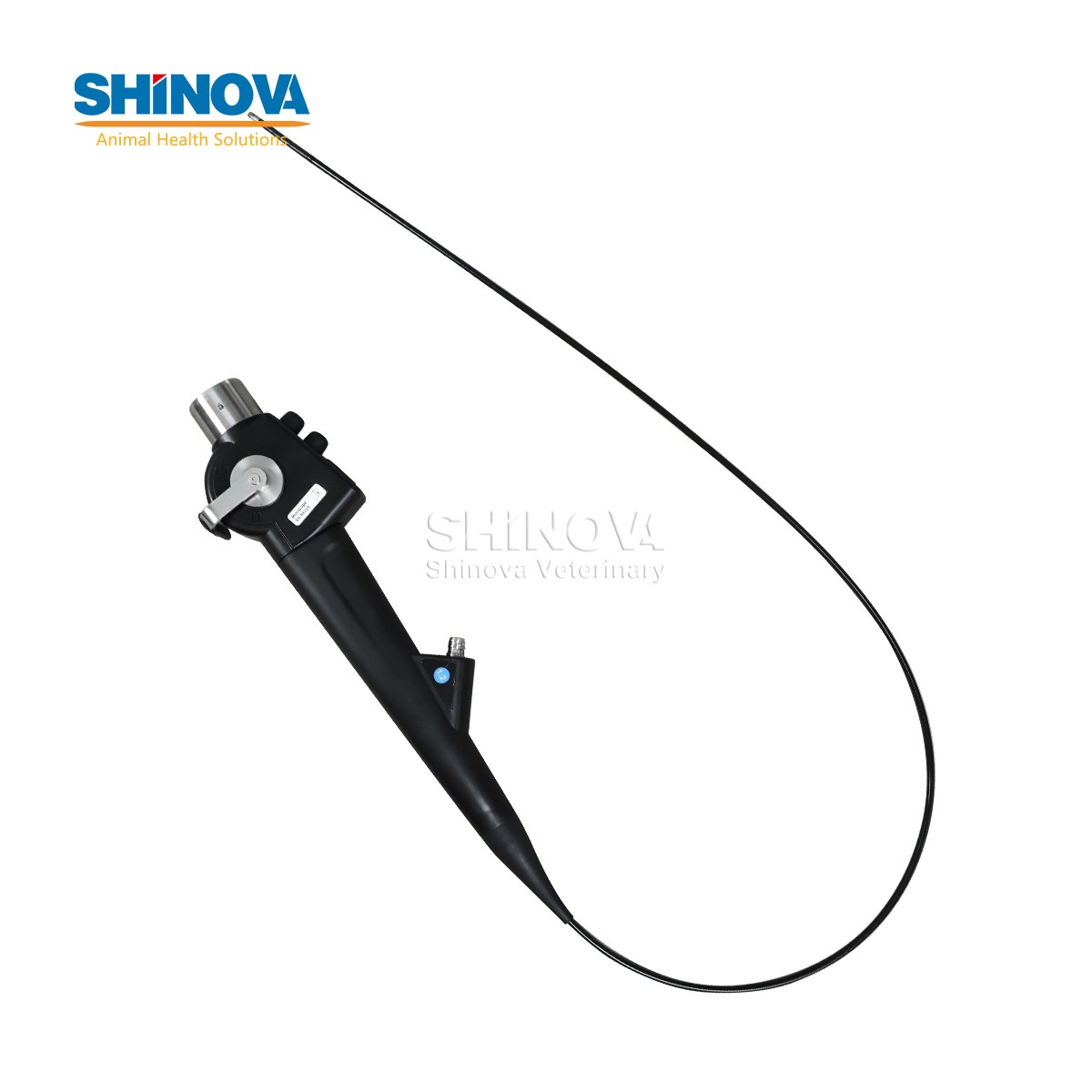

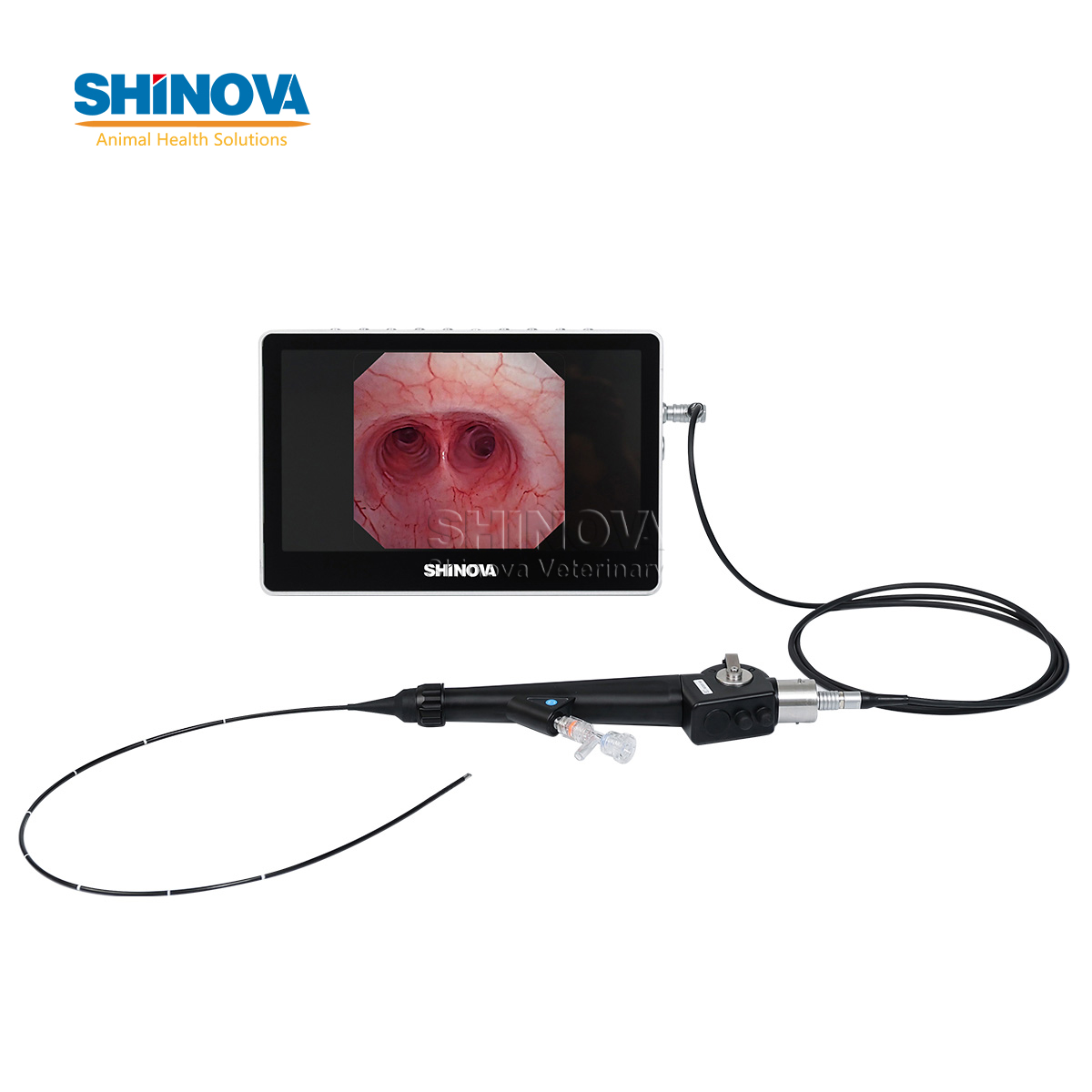

B) Slim Endoscope for Small Animals

Ultra-slim 3.0mm insertion tube
1.2mm working channel for diagnostic instruments
120° field of view
2-50mm depth of field for close observation



C) Convenient Clinical Operation

Integrated LED light source with stable illumination

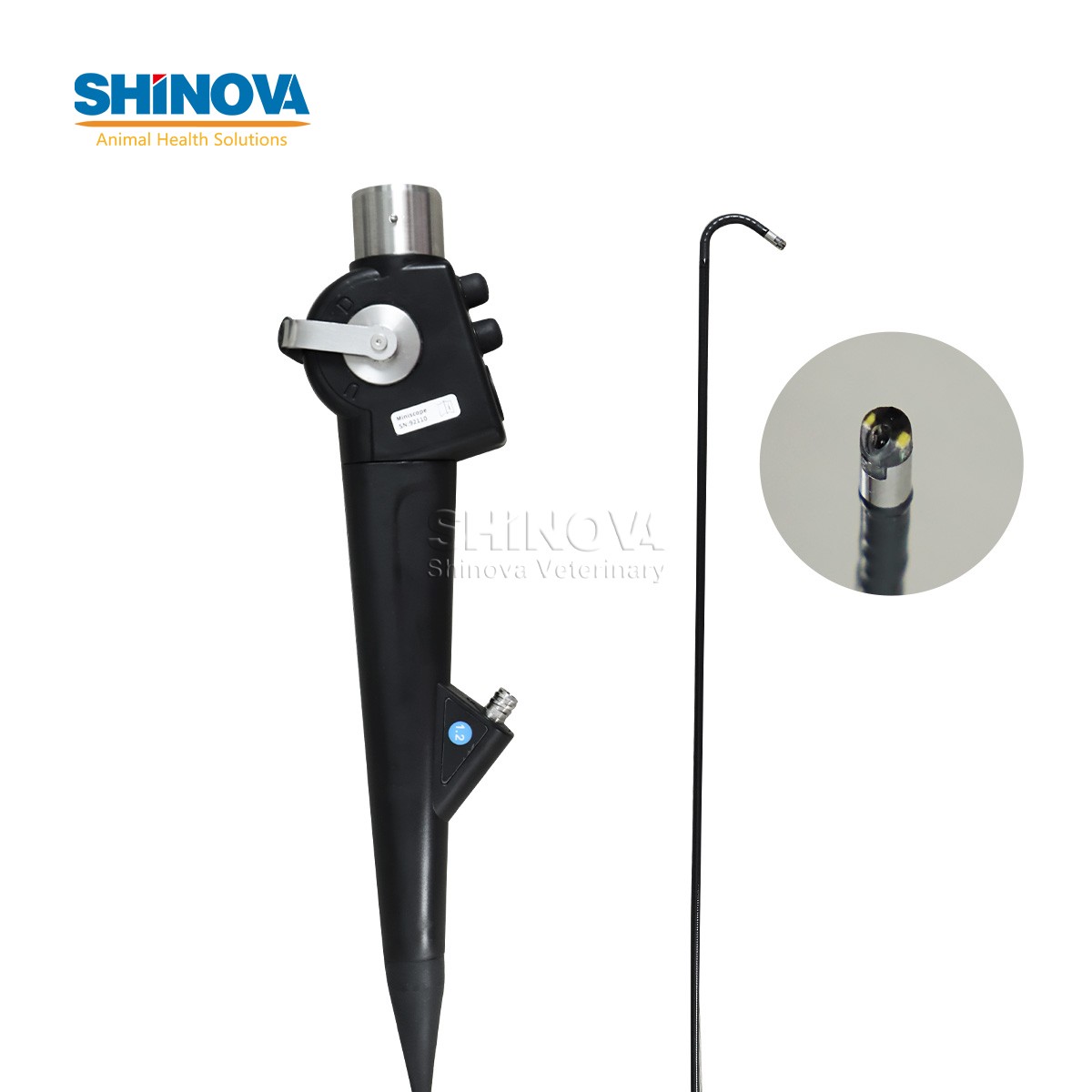

Handle buttons support photo, video recording, freeze, and zoom
One-handed operation improves examination efficiency
HDMI output for external display



D) Flexible Endoscopic Maneuverability

180° up and 180° down angulation
120° left and right rotation
Allows multi-directional observation in narrow anatomical structures
Suitable for complex small animal examinations



E) Wide Veterinary Applications

Suitable for examination and treatment of:
Ear canal
Nasal cavity
Pharynx and larynx
Bronchi
Bladder
Gastrointestinal tract
Dogs, cats, and other small animals

Specifications

Application: Veterinary Endoscopy / Animal Hospital / Veterinary Clinic
Animal Type: Dogs, Cats and Small Animals
Display: 12-inch HD Capacitive Touchscreen Image Processor
Resolution: 1080P / 30fps
Insertion Tube Diameter: 3.0mm
Working Length: 600mm
Working Channel: 1.2mm
Light Source: LED
Storage: SD Card
Video Output: HDMI
Power Supply: AC 100-240V, 50/60Hz
Certification: CE, ISO
Warranty: 1 Year

Configurations

• Standard configurations

  US$0.00

<!-- x-tinymce/html -->

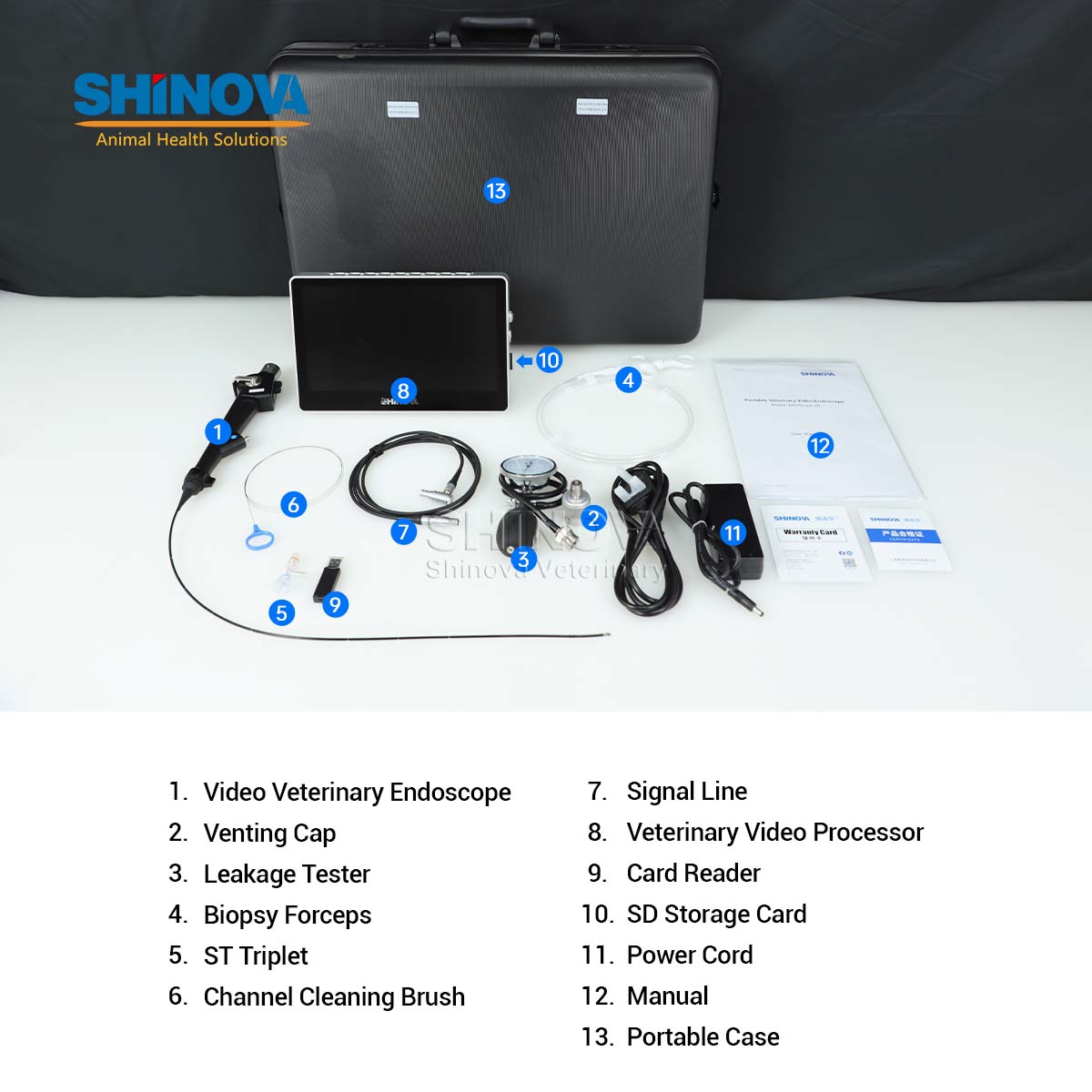

Standard Configuration:

1. Video Veterinary Endoscope
2. Venting Cap
3. Leakage Tester
4. Biopsy Forceps
5. ST Triplet
6. Channel Cleaning Brush
7. Signal Line
8. Veterinary Video Processor
9. Card Reader
10. SD Storage Card
11. Power Cord
12. Manual

13. Portable Case
