Descriptions
A) High-Definition Imaging System
• HD 720P imaging with CMOS sensor
• 1:1 pixel-to-pixel display for clear image reproduction
• LED light source for stable illumination
• Wide field of view (120°) for comprehensive airway observation

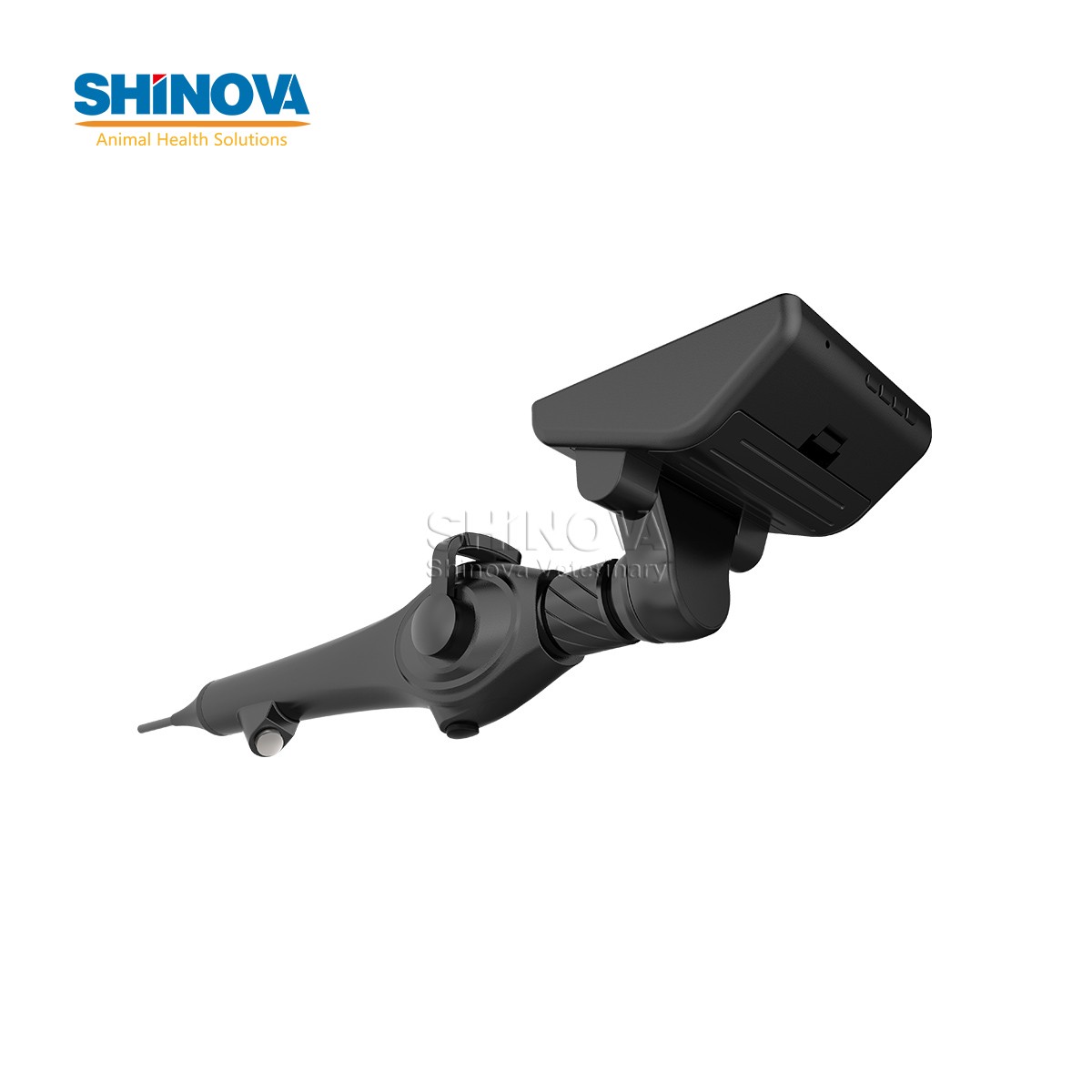

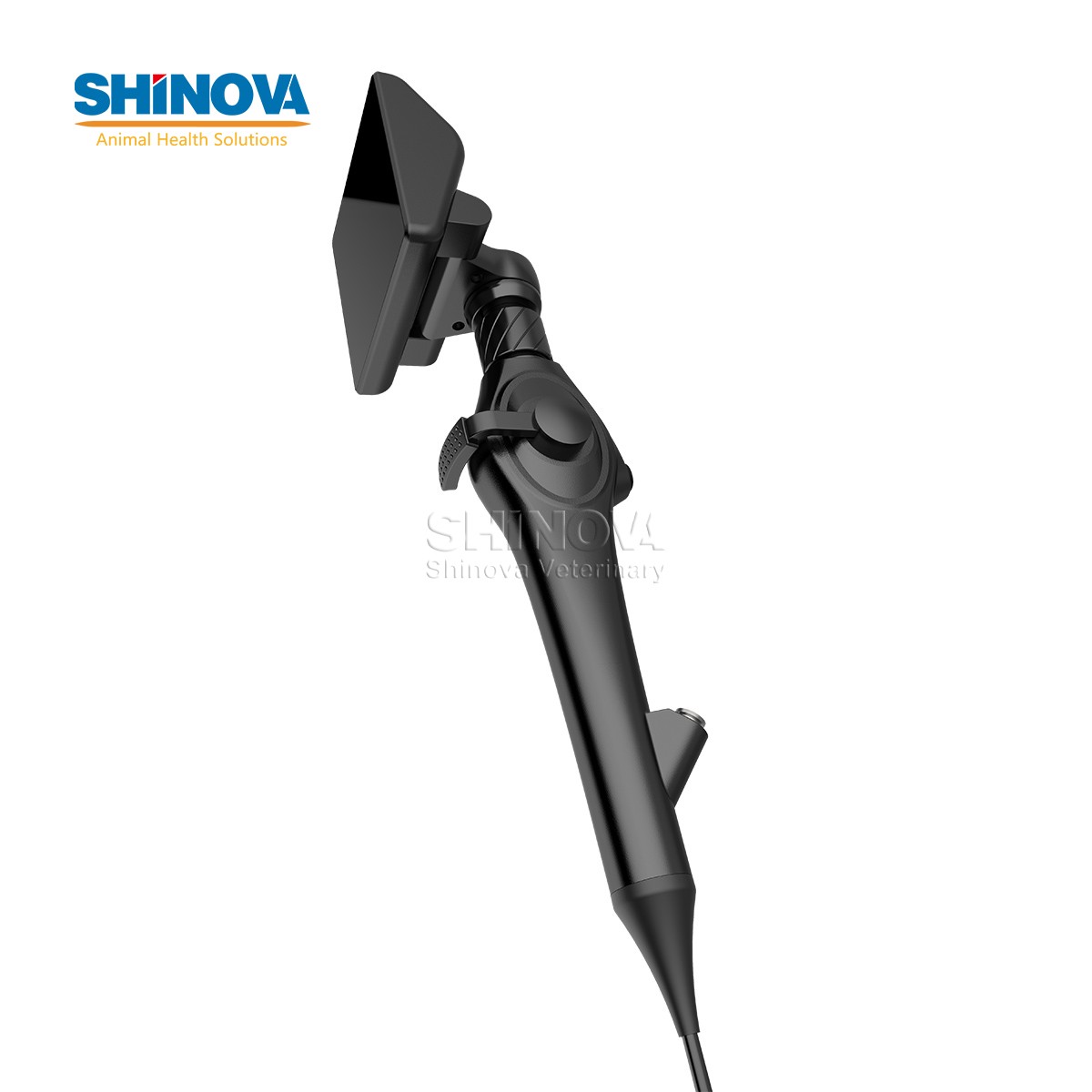

B) Portable All-in-One Design
• Integrated image processor with 4-inch IPS touch screen
• Compact and lightweight for field and clinical use

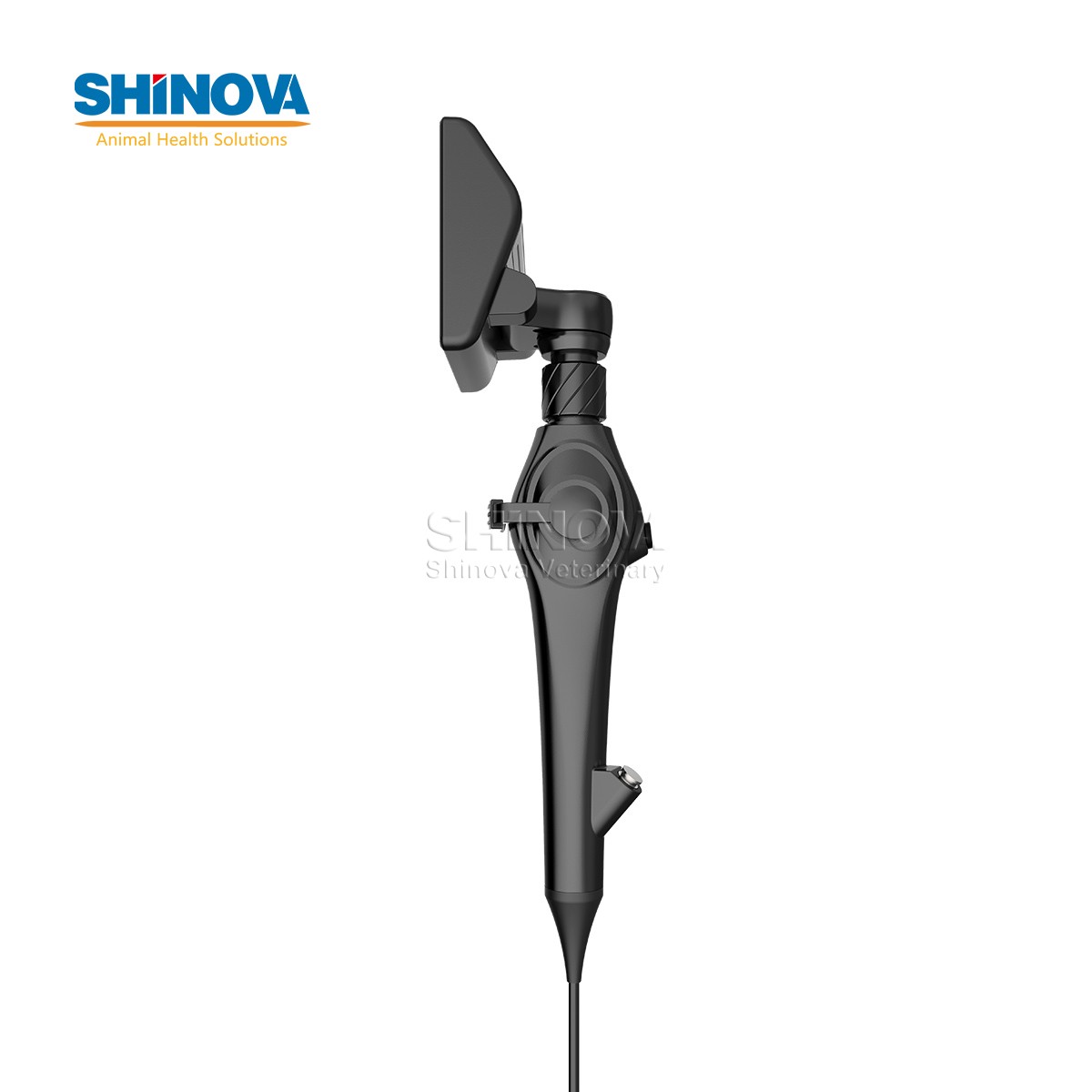

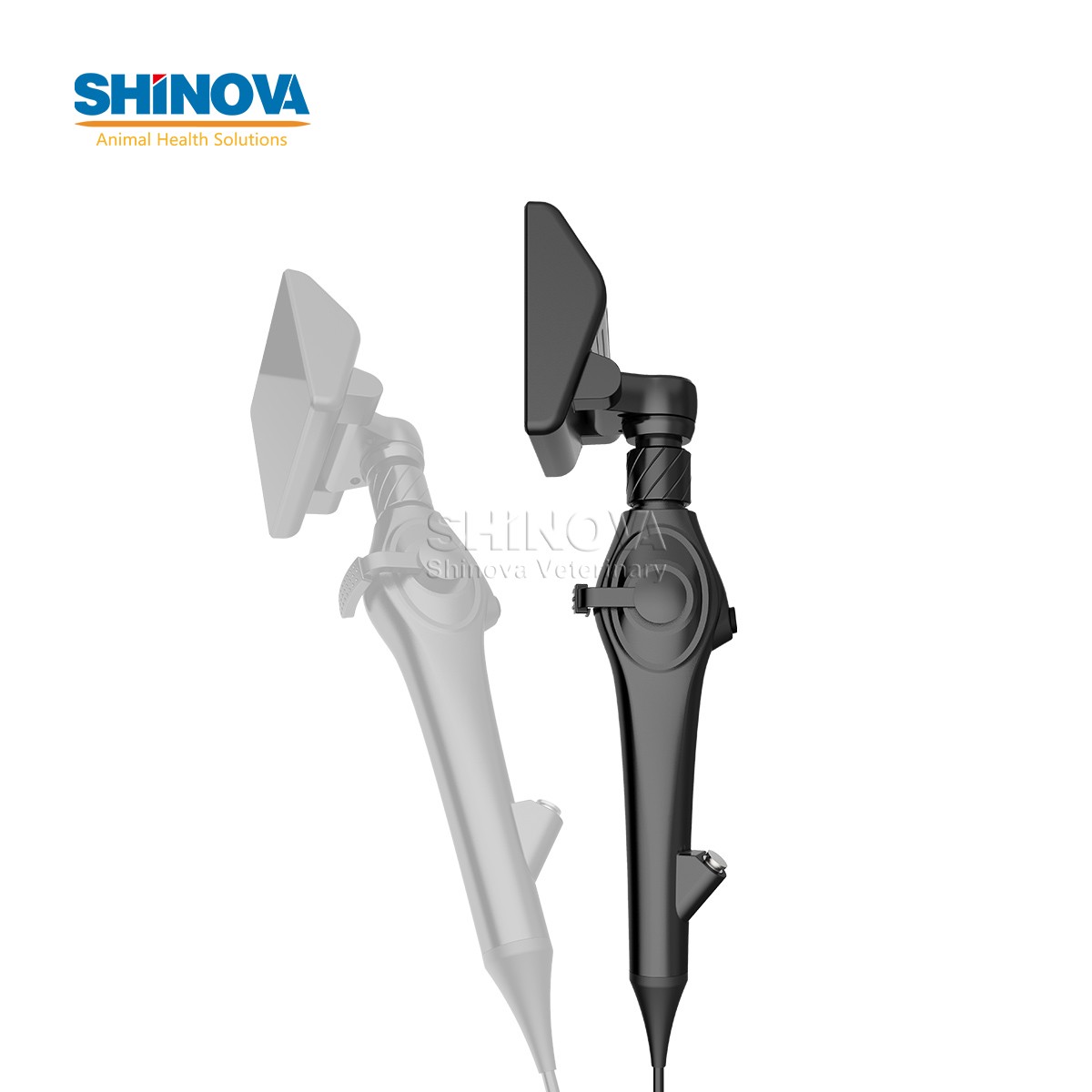

• Tilt & swivel display for flexible viewing angles
• Built-in rechargeable battery for mobile operation

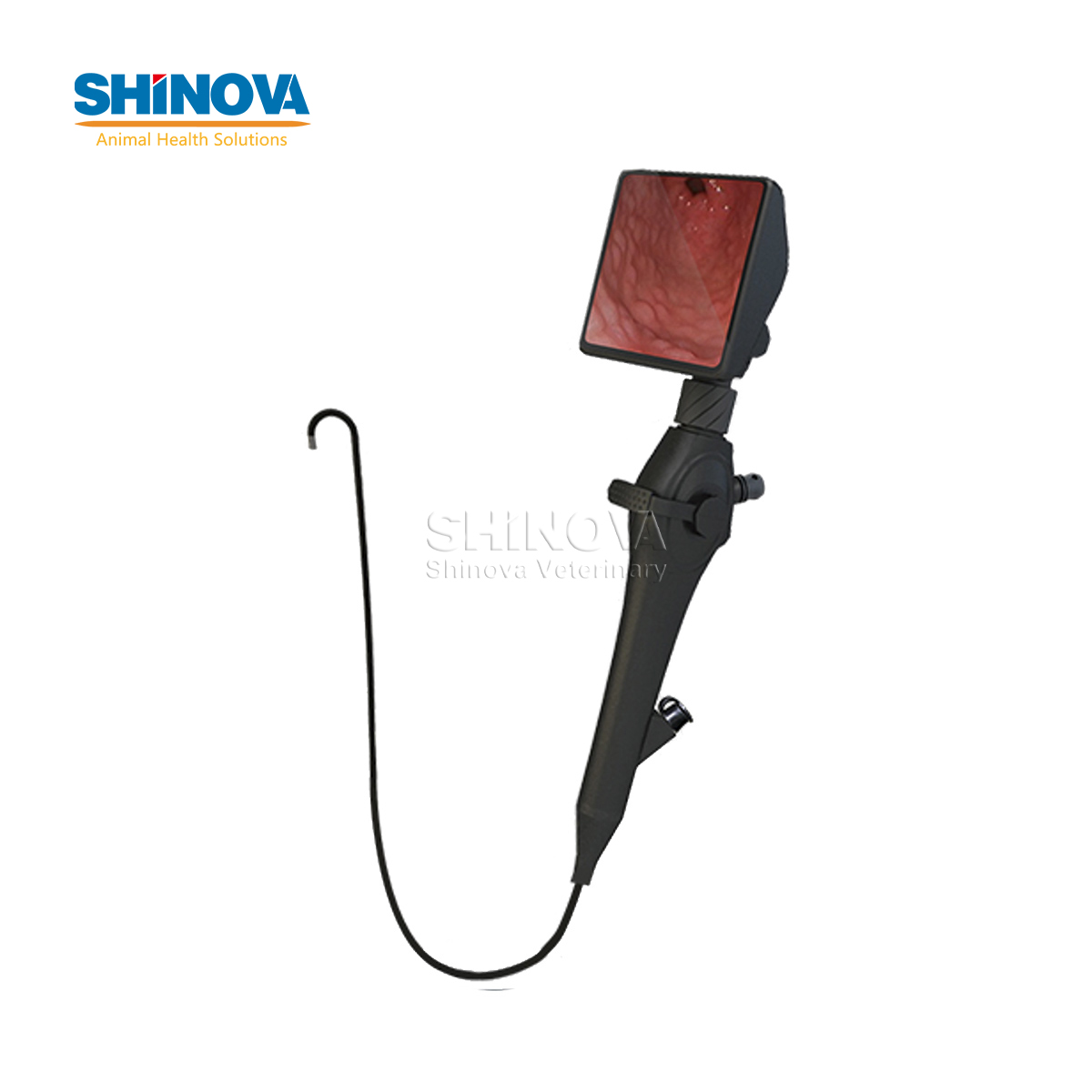

C) Flexible Endoscope Performance
• Working length: 1500 mm for equine airway access
• Insertion tube diameter: 8.3 mm
• 2.8 mm working channel for instrument access
• 4-way angulation:
– Up 210° / Down 90°
– Left 100° / Right 100°
• Smooth maneuverability for precise examination
D) Multi-Function Control System
• Touchscreen with shortcut buttons
• Functions include:
– Image capture
– Video recording & playback
– Freeze function
– One-touch white balance
– Brightness and color adjustment
– Image zoom
E) Data Storage & Connectivity
• Supports TF card storage up to 32GB
• USB 2.0 interface for data transfer
• HDMI output for external display connection
• Simultaneous LCD and external monitor display
F) Clinical Applications
Suitable for:
• Equine respiratory examination
• Bronchoscopy procedures
• Airway inspection and diagnosis
• Veterinary clinics and field services
Common Use Cases:
• Tracheal and bronchial inspection
• Diagnosis of respiratory conditions
• Foreign body detection
• Treatment guidance and sampling
Specifications
Application: Equine Clinic / Veterinary Hospital / Field Diagnosis
Product Type: Veterinary Bronchoscope
Model: VE-8015P
Display: 4" IPS Touch Screen
Resolution: HD 720P
Working Length: 1500 mm
Insertion Tube Diameter: 8.3 mm
Channel Diameter: 2.8 mm
Angulation: 4-Way
Field of View: 120°
Depth of Field: 3–100 mm
Storage: TF Card up to 32GB
Output: HDMI + LCD Display
Battery: 2600mAh Rechargeable
Warranty: 1 Year
Configurations
- Standard configurations

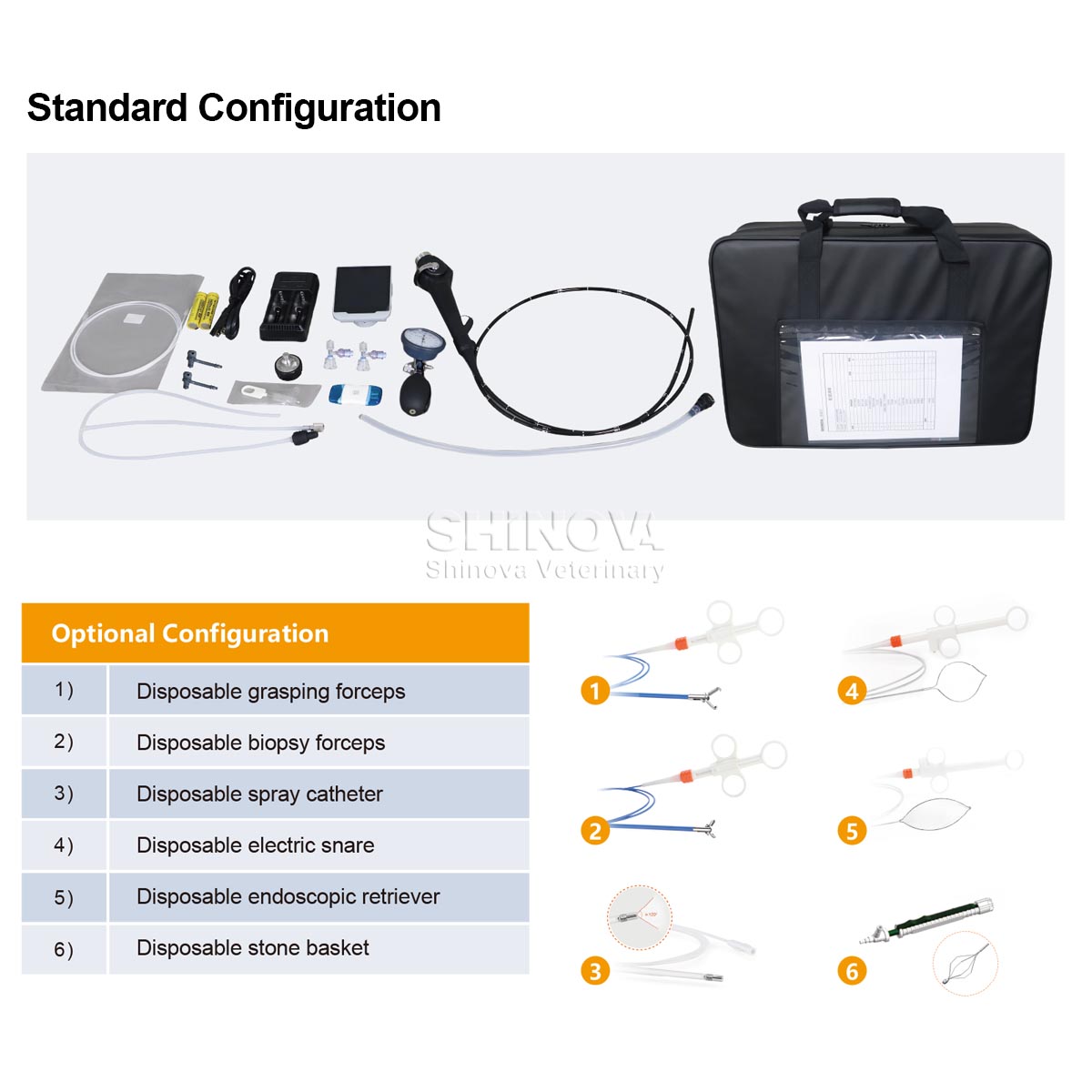

Standard Configuration
• Veterinary Endoscope ×1
• Image Processor ×1
• Venting Cap ×1
• Leakage Tester ×1
• Biopsy Forceps ×1
• Foreign Body Forceps ×1
• Cleaning Brush ×1
• Channel Plug ×1
• Cleaning Adapter ×1
• TF Card ×1
• TF Card Reader ×1
• Battery ×1
• Battery Charger ×1
• User Manual ×1
• Carrying Suitcase ×1
Optional Configuration
• Disposable Grasping Forceps
• Disposable Biopsy Forceps
• Disposable Spray Catheter
• Disposable Electric Snare
• Disposable Endoscopic Retriever
• Disposable Stone Basket
