Descriptions

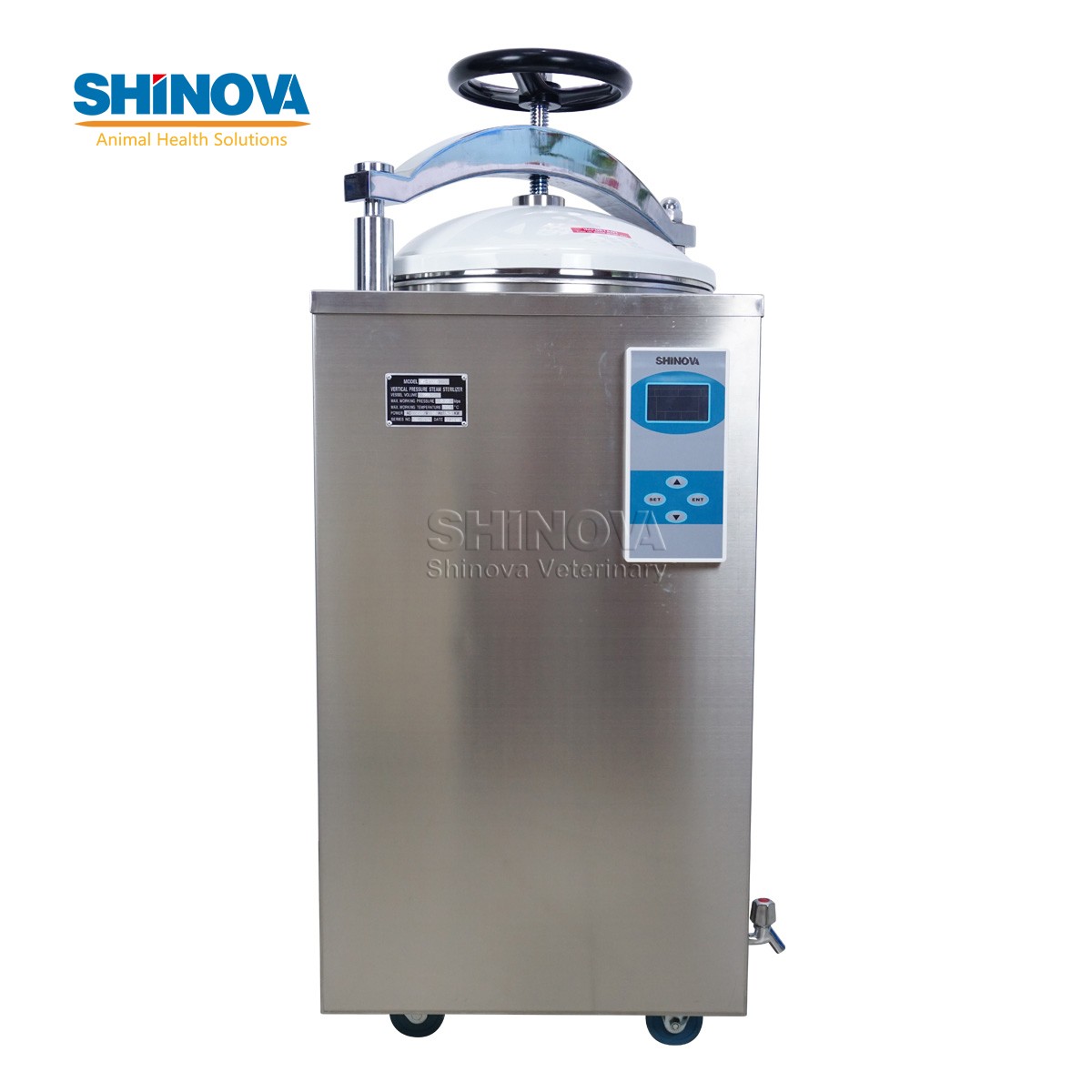

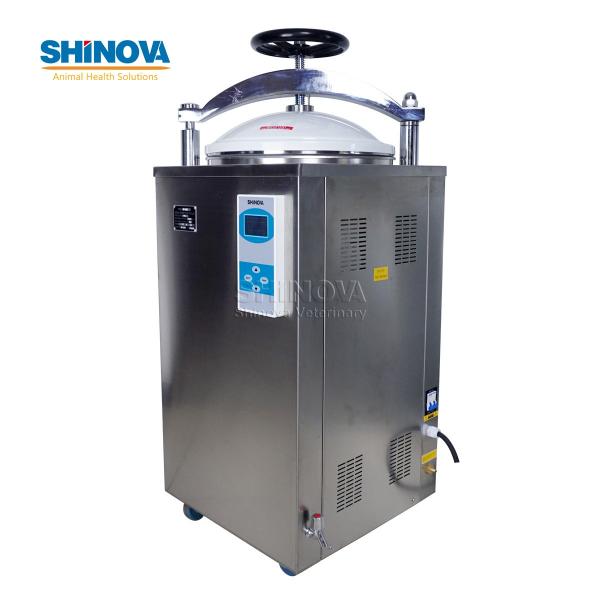

Vertical Pressure Steam Sterilizer
Model: MS-V35HD, MS-V50HD, MS-V75HD, MS-V100HD
Use
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation.They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments， fabrics, glasses,culture media etc.
Characteristics
Fully stainless steel structure.
Hand wheel type of quick-open door structure.
Door safety lock system.
LCD display of working status,touch type key.
Auto discharge the cool air, and steam discharge automatically after sterilization.
Over temperature & over pressure auto-protection.
Safe protection of water lacking.
Self-inflating type seal.
Automatically shut off with beep reminding after sterilization.
Easy to operate, safe and reliable.
With two stainless steel sterilizing baskets.
With drying system.
MODEL Technical Data
MS-V35HD
MS-V50HD
MS-V75HD
MS-V100HD
Chamber volume
35L
Φ318×450mm
50L
Φ340×550mm
75L
Φ400 × 600mm
100L
Φ440×650mm
Working pressure
0.22Mpa
Working temperature
134℃
Max. working pressure
0.23Mpa
Heat average
≤±1℃
Timer range
0~99min or 0~99hour59min
Temperature adjust range
105~134℃
Power
2.5Kw/AC220V.50Hz
3Kw/AC220V.50Hz
4.5Kw/AC220V.50Hz
Overall dimension
450×450×1010
510 ×470×1130
560 ×560×1120
540x560×1250
Transport dimension
570 ×550 x 1150
590×590× 1280
650×630 ×1280
680×630× 1370
G.W/N.W
72Kg / 56Kg
88Kg /68Kg
100Kg /80Kg
110Kg/85Kg
