Descriptions

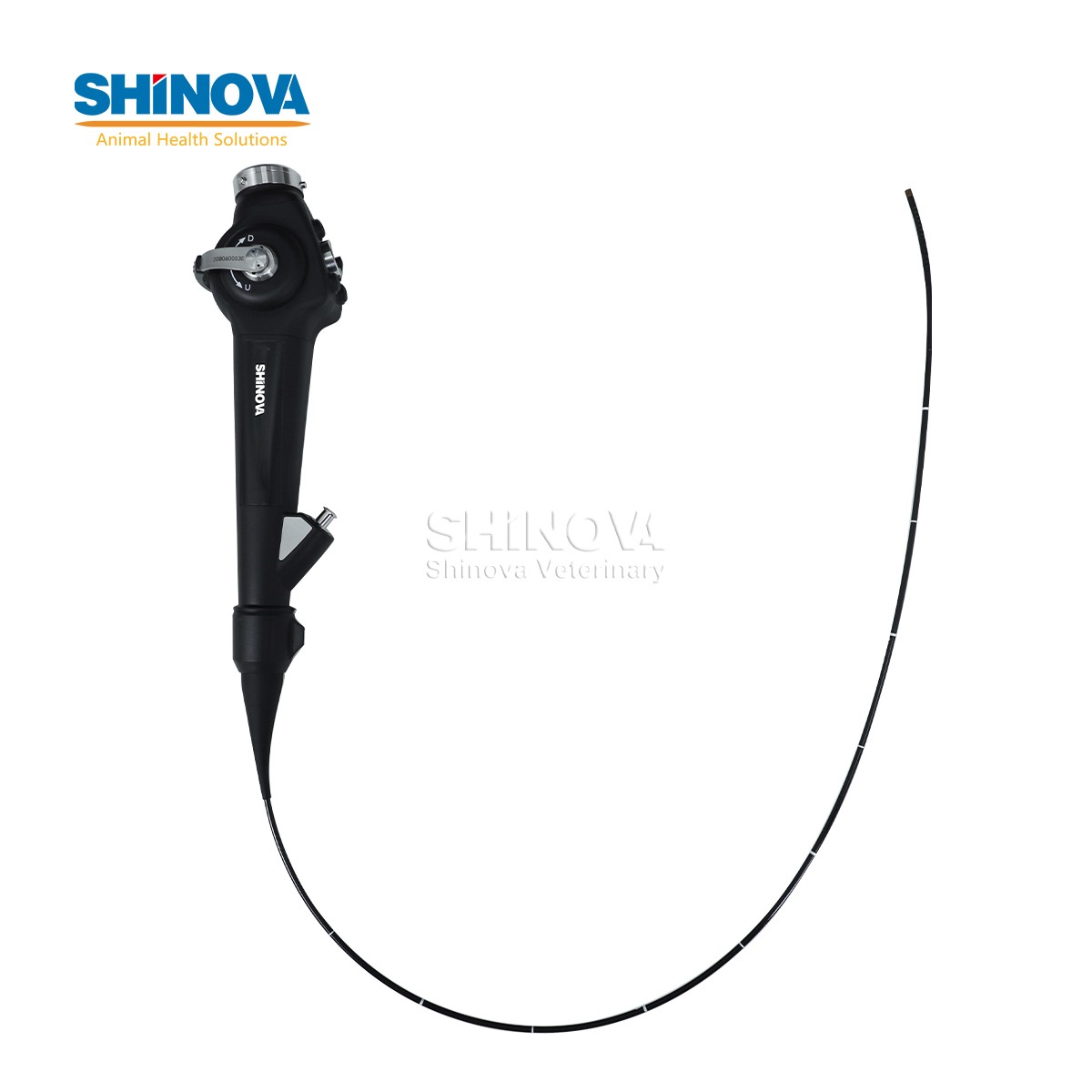

A) Flexible Small-Animal Design
2.8mm standard outer diameter suitable for cats and small dogs
Optional 3.8mm, 4.8mm and 5.8mm diameters for different animal sizes
Compact insertion tube provides convenient access to narrow anatomical structures
Multiple configurations support different clinical requirements
B) Wide-Range Visualization
120° field of view for broad anatomical observation
210° upward and 130° downward bending
120° left and 120° right rotation
Flexible control supports examination of complex luminal structures
C) Adequate Working Length
610mm standard working length
Optional 1000mm and 1500mm working lengths
Suitable for examination of lower airways and urinary bladder
Provides a balance between access and handling control
D) Flexible Imaging Connectivity

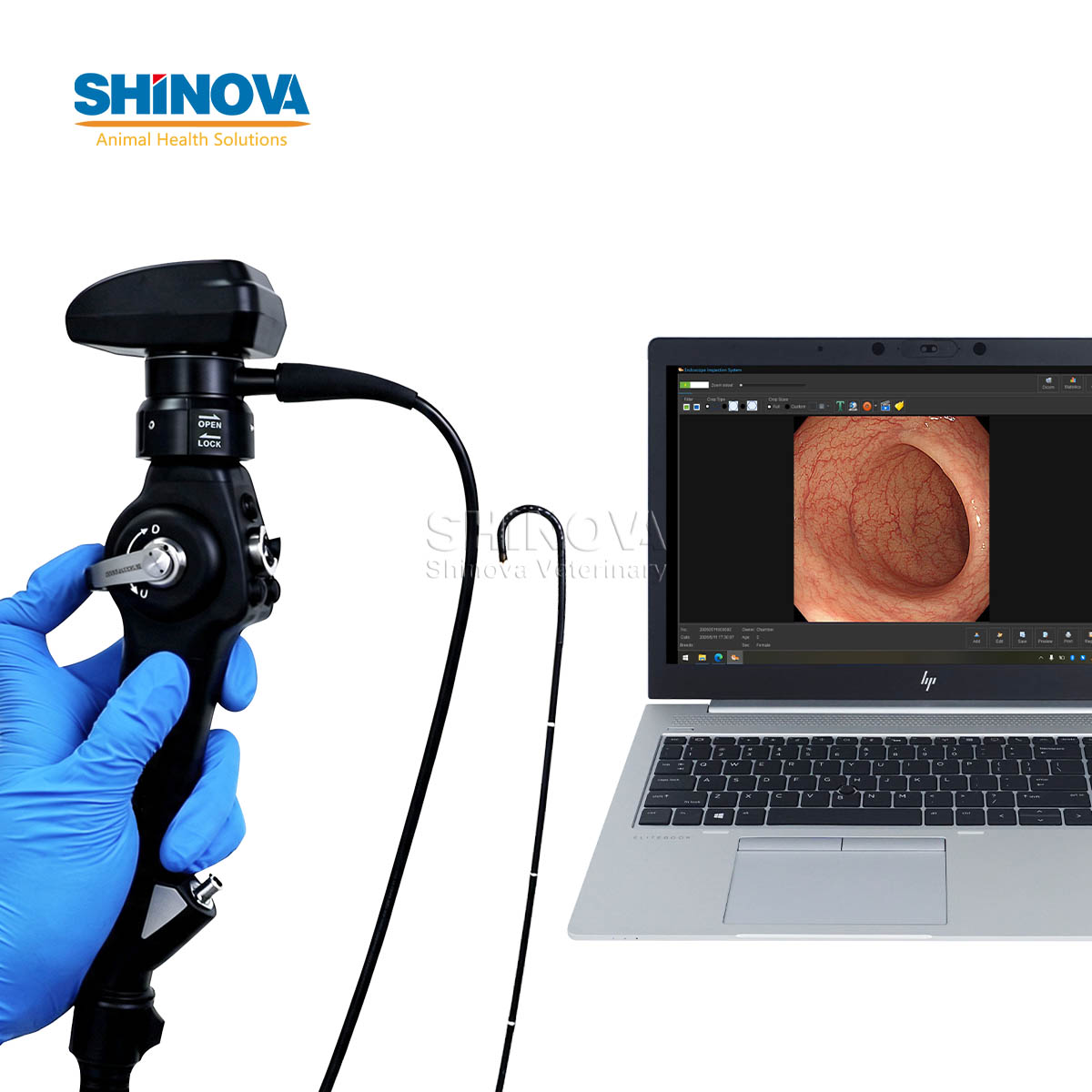

Compatible with USB-capable computers and tablets
Can connect to dedicated veterinary image processors
Supports real-time image capture and recording through compatible imaging systems
Suitable for clinical examination and remote consultation workflows
E) Easy Cleaning and Maintenance

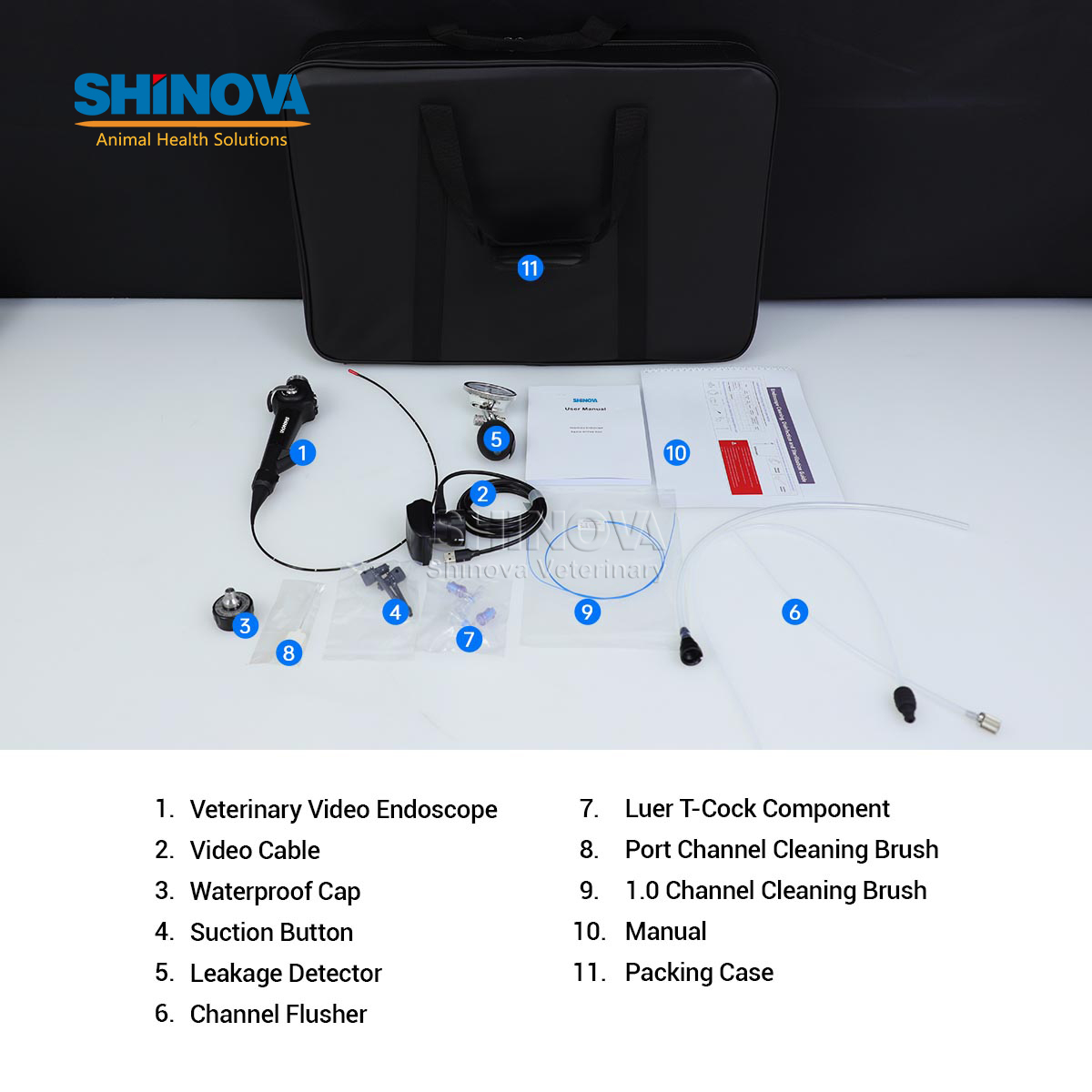

Supplied with cleaning accessories
Includes cleaning brush for the working channel and suction port
Waterproof cap and air pressure leak detector included
Designed to support routine cleaning and infection-control procedures
Specifications
Application: Veterinary Endoscopy / Diagnosis / Treatment
Animal Type: Cats, Small Dogs, Medium Dogs and Large Dogs
Endoscope Type: Flexible Veterinary Endoscope
Standard Outer Diameter: 2.8mm
Working Channel: 1.2mm
Standard Working Length: 610mm
Field of View: 120°
Up/Down Bending: 210° / 130°
Left/Right Rotation: 120° / 120°
Connection: USB-Capable PC/Tablet or Shinova Image Processors
Optional Outer Diameter: 3.8mm / 4.8mm / 5.8mm
Optional Working Length: 1000mm / 1500mm
Warranty: 1 Year
