Descriptions

Suitable for experimental animals such as rats, mice, rabbits, cats, hamsters, rats guinea pigs, etc.

Coaxial tube gas circuit design saves operating space and is easy to operate The internal serpentine pipeline design for clinical application ensures that the gas output is not affected by pressure changes

Oxygen or air can be selected as gas supply source

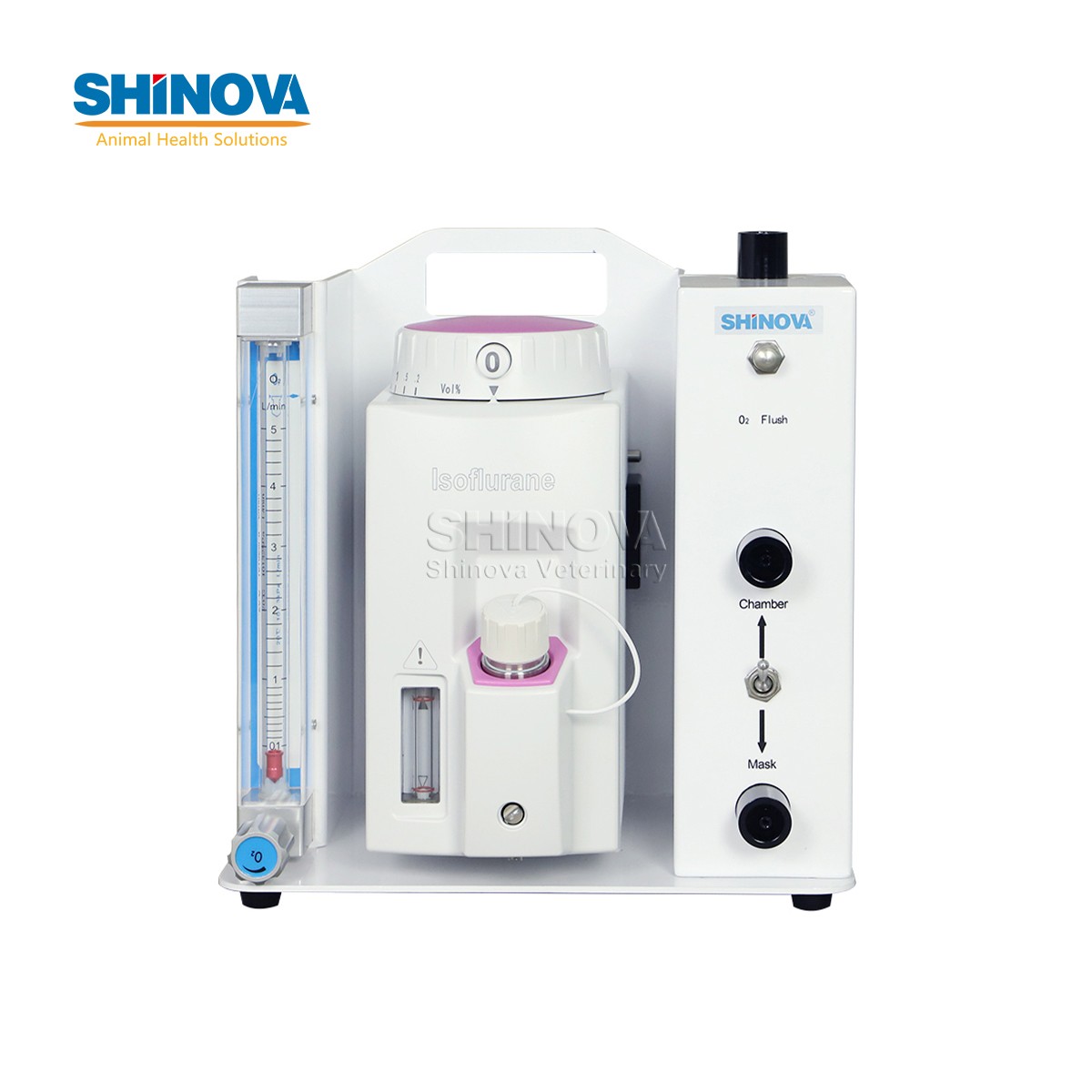

Provide accurate oxygen flow meter; flow controllable range is 0-500ml/min The anesthesia vaporizer has stable output, good airtightness, safety and reliability, and is not affected by changes in flow, temperature, flow rate, and pressure

The vaporizer has automatic flow and temperature compensation, the accuracy is not lower than 0.5%, and the temperature is maintained in the range of 15-35°C, which reduces the number of dosing and makes it more convenient to use

Anti-accidental opening lock structure and closed state safety protection structure to ensure safety

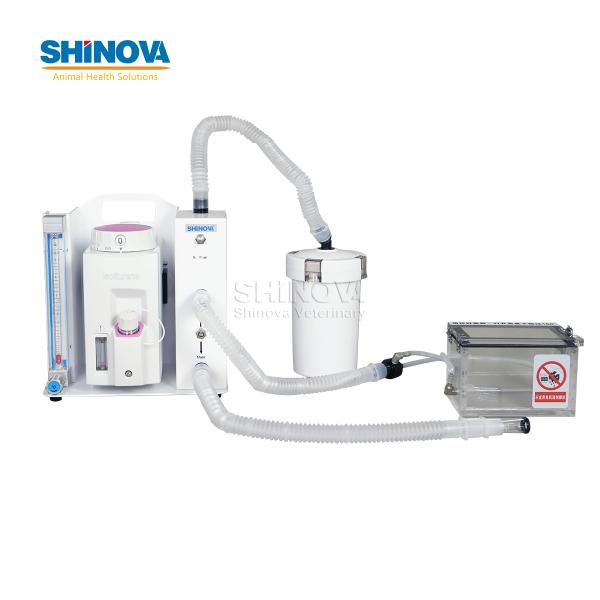

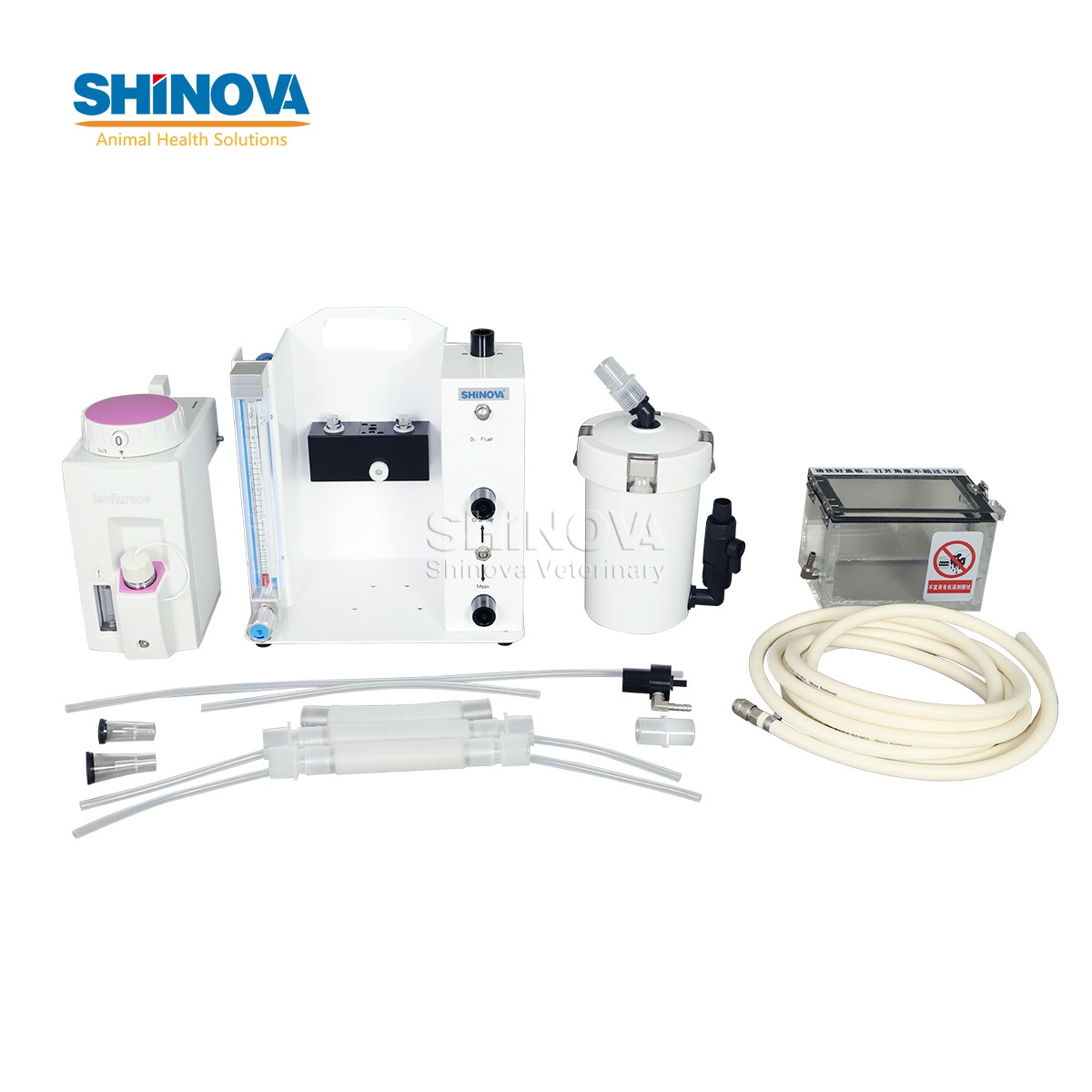

According to experimental requirements, different types and sizes of animals can choose various specifications and accessories(such as induction box,anesthesia mask ,etc)

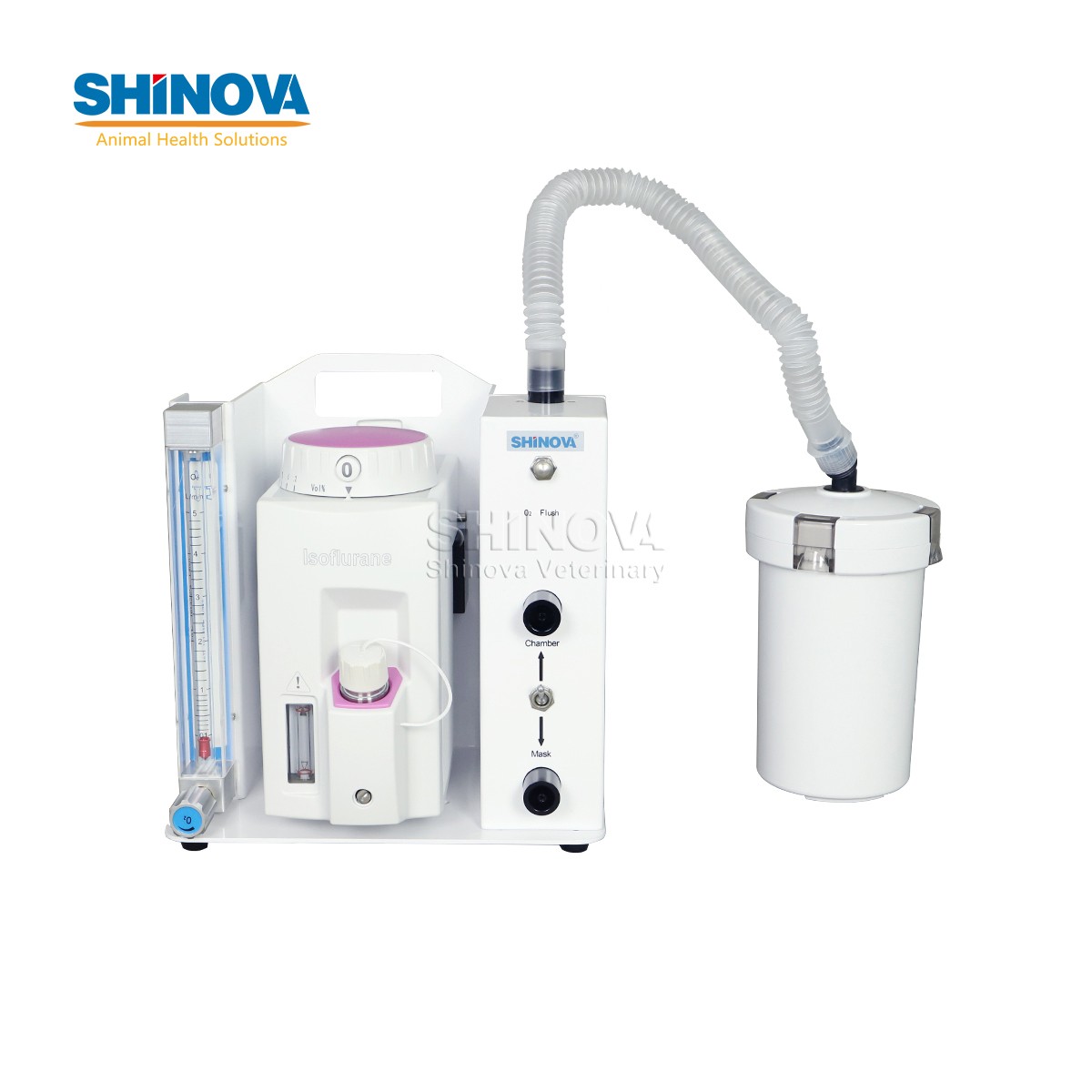

With exhaust gas recovery system to ensure a clean laboratory environment

One-key switch of gas path, saving time and effort

With fast oxygen function to ensure that animals inhale oxygen Can be upgraded to mobile, wall-mounted anesthesia machine.

Specifications

Model	AneLab-10
Gas source supply flow rate	0.2~15L/min,If the concentration is greater than 4%,0.2~8L/min
Gas source supply quality requirements	Medical pure oxygen and air mixture, or O2 and N2O mixture oxygen and air
Channel	1
Control concentration range	Sevoflurane : 0.2-8% or Isoflurane : 0.2~5%(v/v)
Control knob control value	Sevoflurane: 0-0.2-0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0-4.5 -5.0-5.5-6-6.5-7-7.5-8 %(v/v) Isoflurane:0 - 0.2 - 0.5 - 1.0 - 1.5 - 2.0 - 2.5 - 3.0 - 3.5 - 4.0 4.5-5.0%(v/v)
Concentration control accuracy	±5% of full scale or ±15% of set value
Anesthetic dose	The total volume of the dry wick is about 300mL,The visible liquid level is about 250mL between the minimum and maximum scale.
Consumption of anesthetic	About 3 x supply gas flow (L/min) x set concentration value (%(v/v)) ,When the isoflurane concentration is 2% and the gas flow rate is adjusted to 600mL/min, a 100mL bottle of isoflurane can be used for approximately 28-30 hours.
Loss of anesthetic	22℃, 0 graduation, less than 0.5mL/24h.
Maximum pressure load	20kPa
Maximum use tilt angle	30°
Material	Mainly aluminum
Working conditions	temperature :5~40℃，Atmospheric pressure :700~1060hPa
Storage conditions	temperature :-40~55℃，Atmospheric pressure :500~1060hPa
