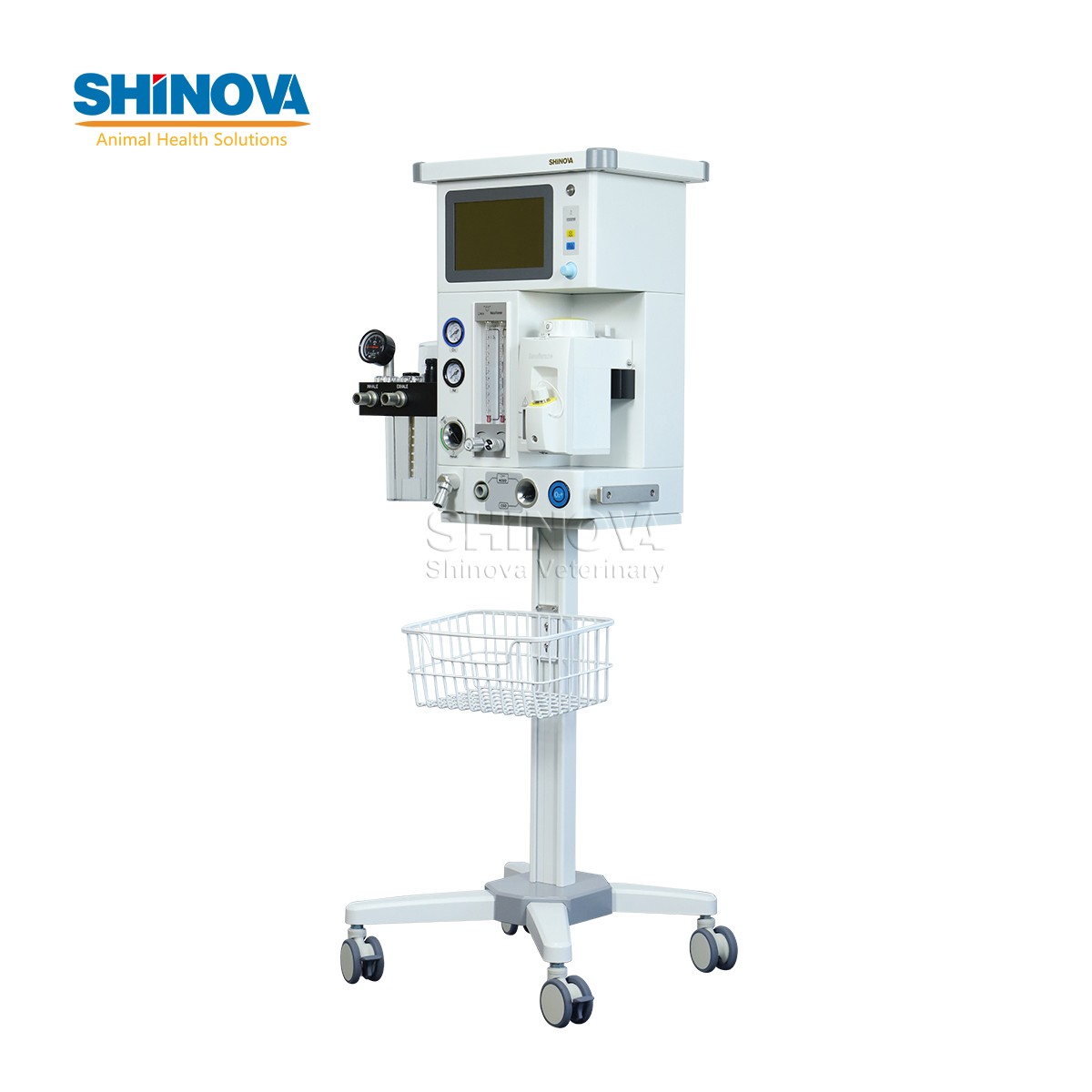

Descriptions

Turbo-driven design, no need of high-pressure oxygen cylinder, just an oxygen concentrator to make it work

9" color touch-screen display

High-quality aluminum trolley
Intelligent calculation by inputting animal to calculate other parameters automatically

With pressure, volume, manual and other breathing modes, meet different clinical needs

Built-in high-precision sensor and valve control technology ensure the safety, stability and accuracy of pressure, flow and volume monitoring

Equipped with high-precision anesthesia vaporizer
Integrated circuit, easy to install and remove
Non-breathing circuit interface at the front of the unit is convenient for small animals

Built-in proportional valve control system
Triple visual and audio alarm system to ensure safety during surgery

Wide application to animals of different weights and sizes
Oxygen concentrator is optional

Specifications

Anesthesia Main Unit:
Working mode: Cyclic breathing and non-cyclical bretahing
Driving mode: Electrical drive and electronic control (Turbo-driven)
Anesthesia gas source switch: Start or stop gas source
Pressure gauge: oxygen source pressure, oxygen working pressure
Anesthesia vaporizer: lsoflurane, sevoflurane, enflurane, halothane
Oxygen flush: 25L/min~75L/min

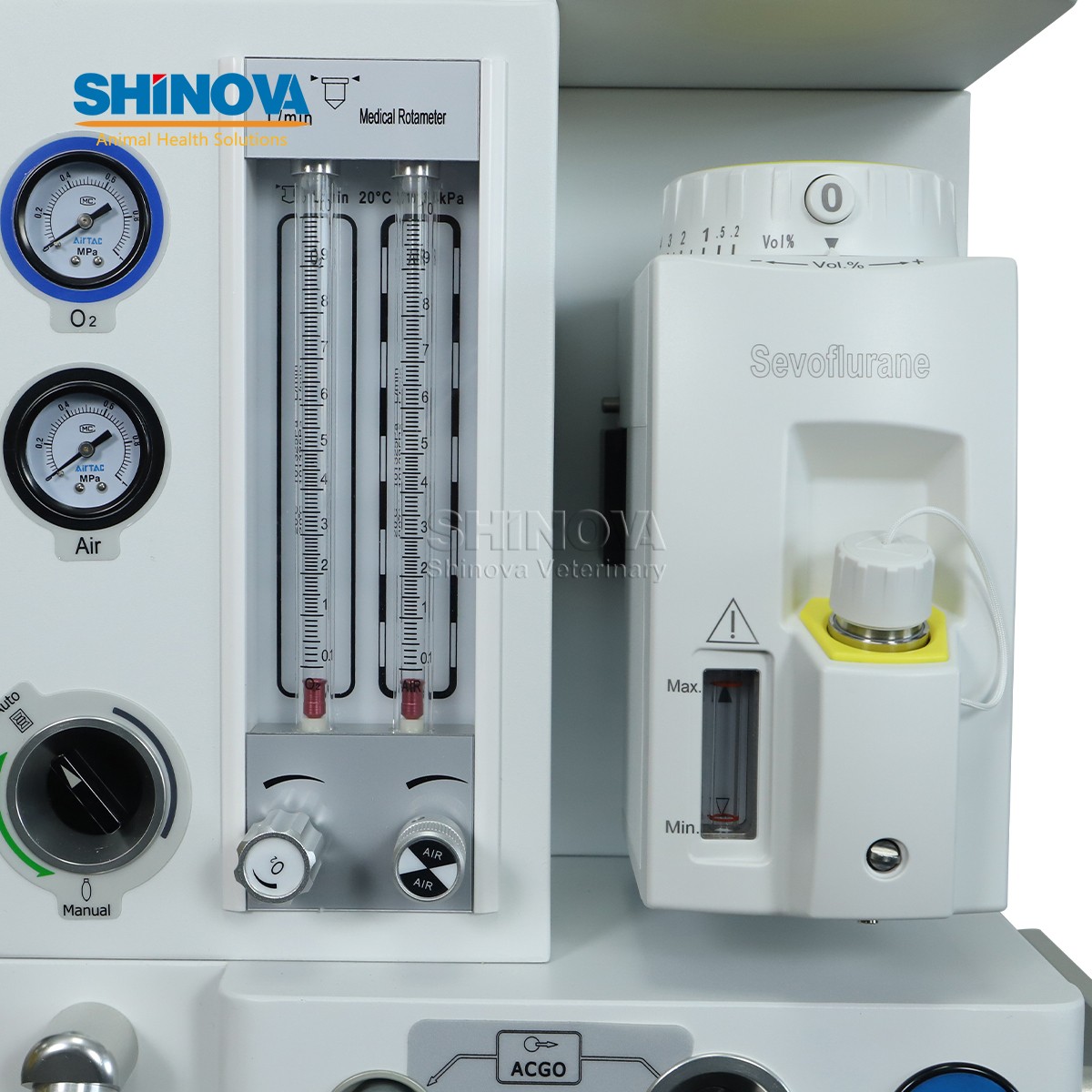

Flowmeter: double tube flowmeter, 0~1L/min, 1~10L/min
Application: 0.8-120kg animals

Anesthesia Ventilator:

Ventilation mode: VCV, PCV,Spont, Manual, Demo

Tidal volume: Automatic 3-1600ml, manual 5-1600ml

Bellow: 0-300ml, 300-1500ml

Waveform: Pressure, flow, volume

Loop: Pressure-volume, flow-volume

Breathing rate: 1~100bpm

1:E: 9.9:1 to 1:9.9

Inhalation time: 0.1~10s

Inspiratory pause: 0-50%

PEEP: Off, 3~20cmH₂O

Pressure support: 0~60cmH₂O

Pressure control: 5~60cmH₂O

Flow rate trigger: 0.5~20L/min

Pressure trigger: -1~20cmH₂O

Anesthesia Vaporizer:
With pressure, flow and temperature automatic compensation
Concentration range: lsoflurane: 0.2 to 5%, Sevoflurane: 0.2 to 8%, Halothane: 0.2 to 5%
Flow rate range: 0.2 to 15L/min

Suspension type: Selectatec
Anesthetic volume: 340ml (dry cavity), 300ml (wet cavity)
Monitoring Parameters:
Tidal volume, breathing rate, spontaneous breathing rate, l:E, driving gas pressure, spontaneous ventilation volume, minute ventilation volume, peak/airway/average airway pressure, PEEP end-tidal pressure, inspiratory platform pressure, FiO₂, EtCO₂

Alarm Parameters:
Tidal volume, minute ventilation volume, breathing rate, airway pressure, peak airway pressure, apnea alarm, supply pressure failure alarm, power supply alarm, pipeline falling or leakage, low air gas pressure, PEEP end-tidal pressure, FiO₂(optional), FiCO₂(optional)

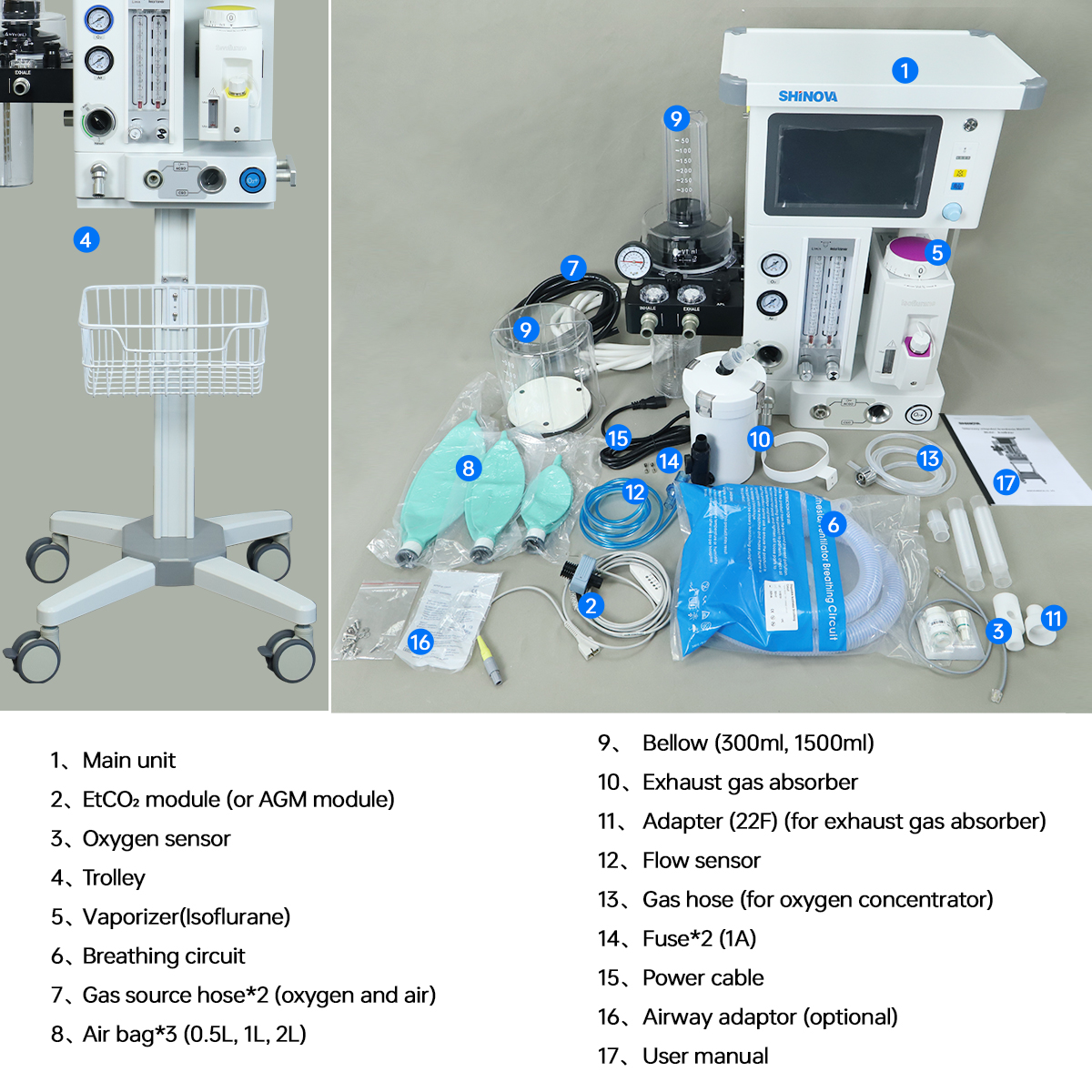

Configurations

• Standard configurations






  No.	Item	Model	Quantity	Remark
  1	Main unit	AneMotor	1 pc
  2	EtCO2 module (or AGM module)		1 pc	Mainstream or sidestream; Anaesthetic Gas Monitoring is optional
  3	Oxygen sensor		1 set
  4	Trolley		1 set
  5	Vaporizer		1 pc	Isoflurane
  6	Breathing circuit		1 pc
  7	Gas source hose		2 pcs	Oxygen and air
  8	Air bag	0.5L	1 pc
  		1L	1 pc
  		2L	1 pc
  9	Bellow		1 set	300ml, 1500ml
  10	Exhaust gas absorber		1 pc
  11	Adapter	22F	1 pc	For exhaust gas absorber
  12	Flow sensor		1 set
  13	Gas hose		1 pc	For oxygen concentrator
  14	Fuse	1A	2 pcs
  15	Power cable		1 pc
  16	Airway adaptor		1 pc	(optional)
  17	User manual		1 pc
