Descriptions
A) Advanced Imaging Technologies
• Full digital color Doppler imaging system
• Tissue Harmonic Imaging (THI)
• Speckle Reduction Imaging (SRI)
• Elastography imaging
• Extended Field-of-View (EFOV)
• Compound imaging technology
• Real-time dual and triple synchronous imaging
• Four-dimensional (4D) imaging support

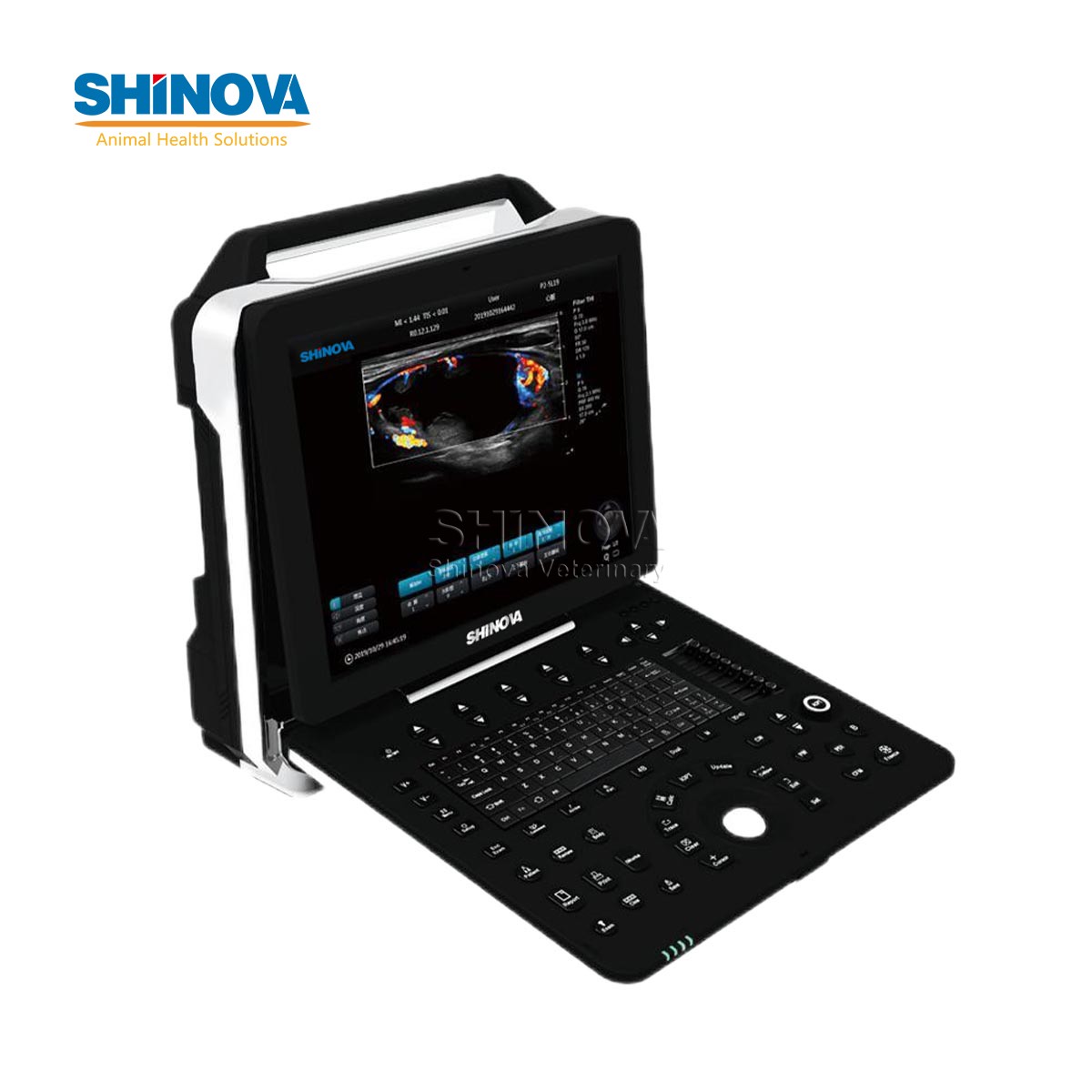

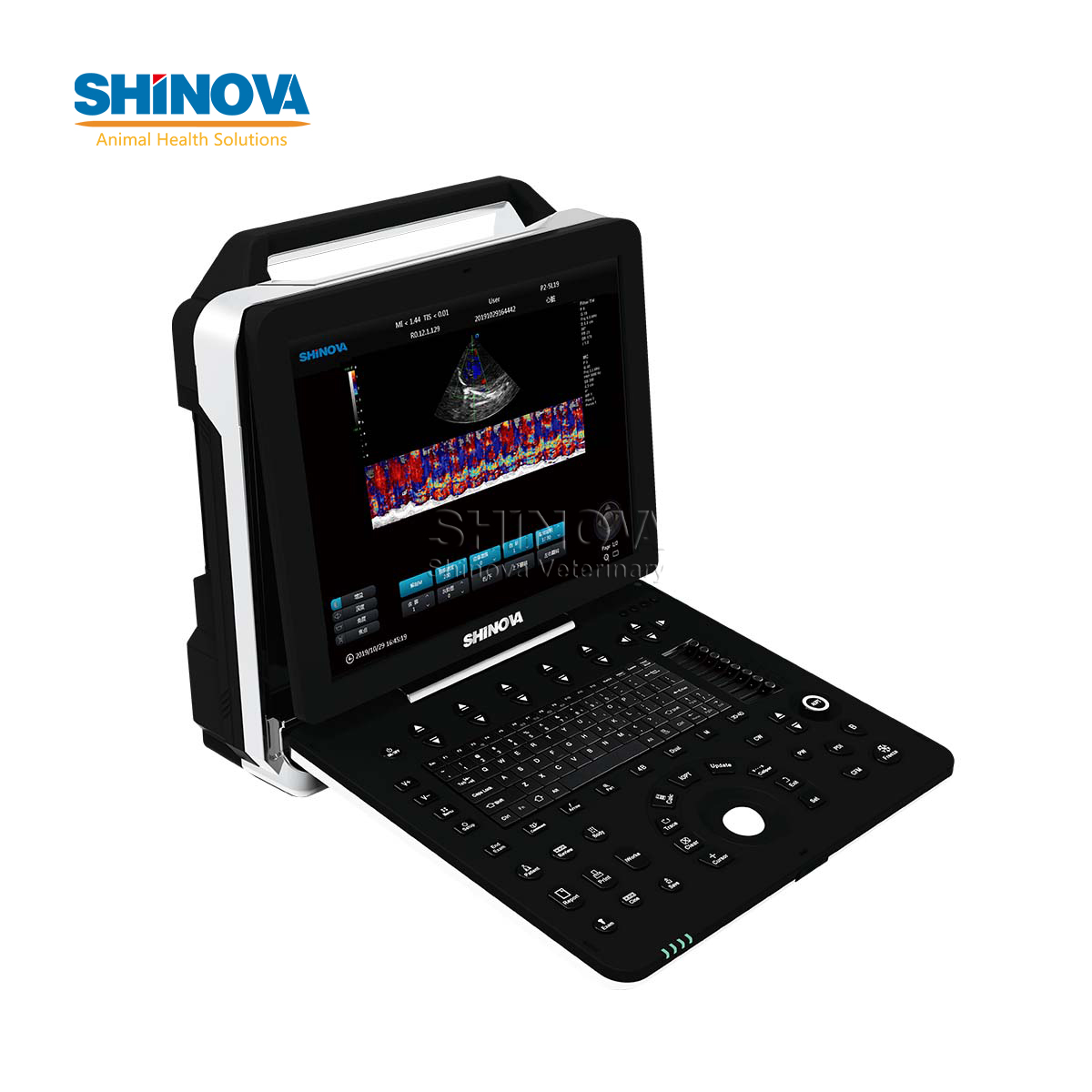

B) Comprehensive Doppler Functions
Supports:
• Color Flow Mapping (CFM)
• Power Doppler Imaging (PDI)
• Pulsed Wave Doppler (PW)
• Continuous Wave Doppler (CW)
• Tissue Doppler Imaging (TVI)
Suitable for vascular and cardiac evaluation in veterinary diagnosis.

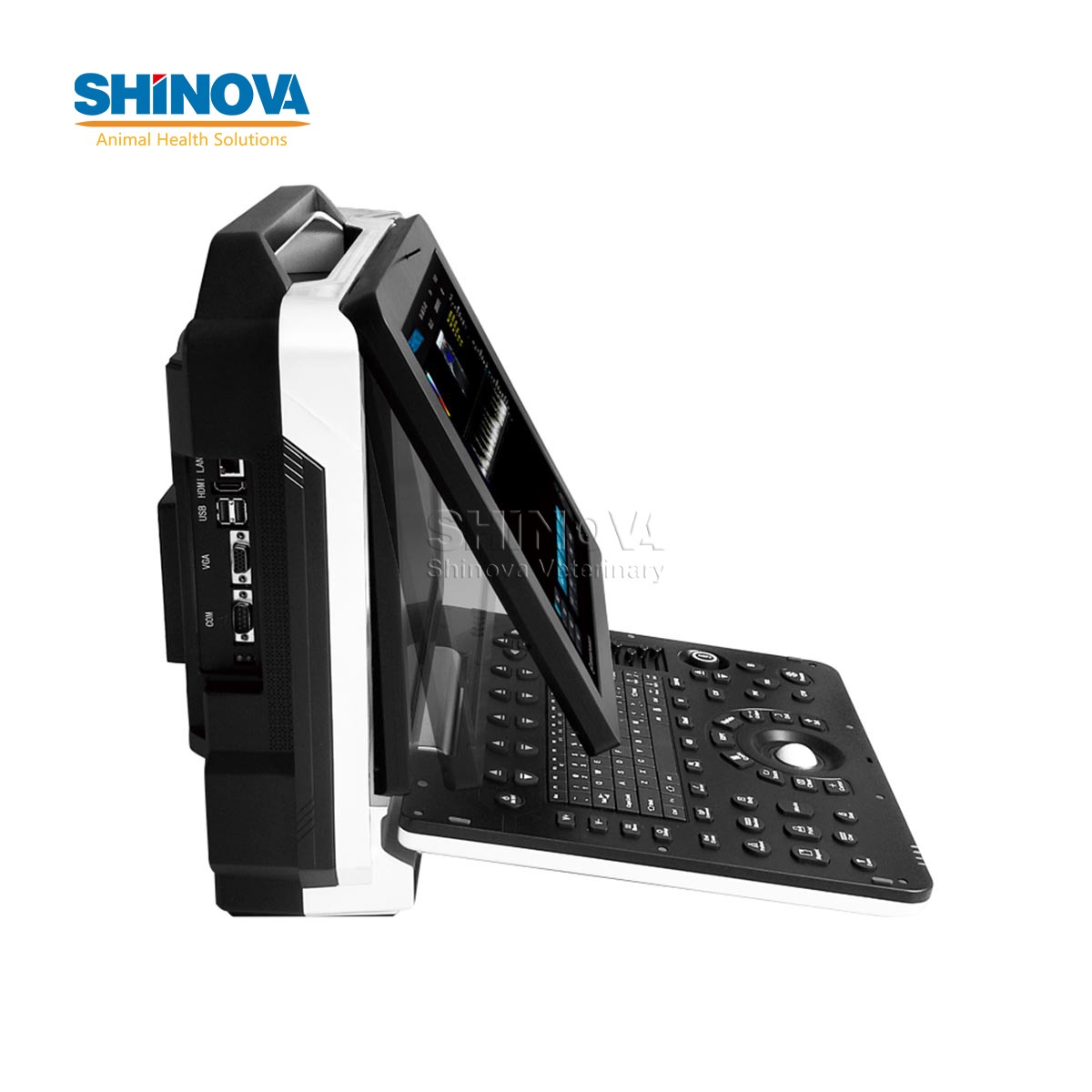

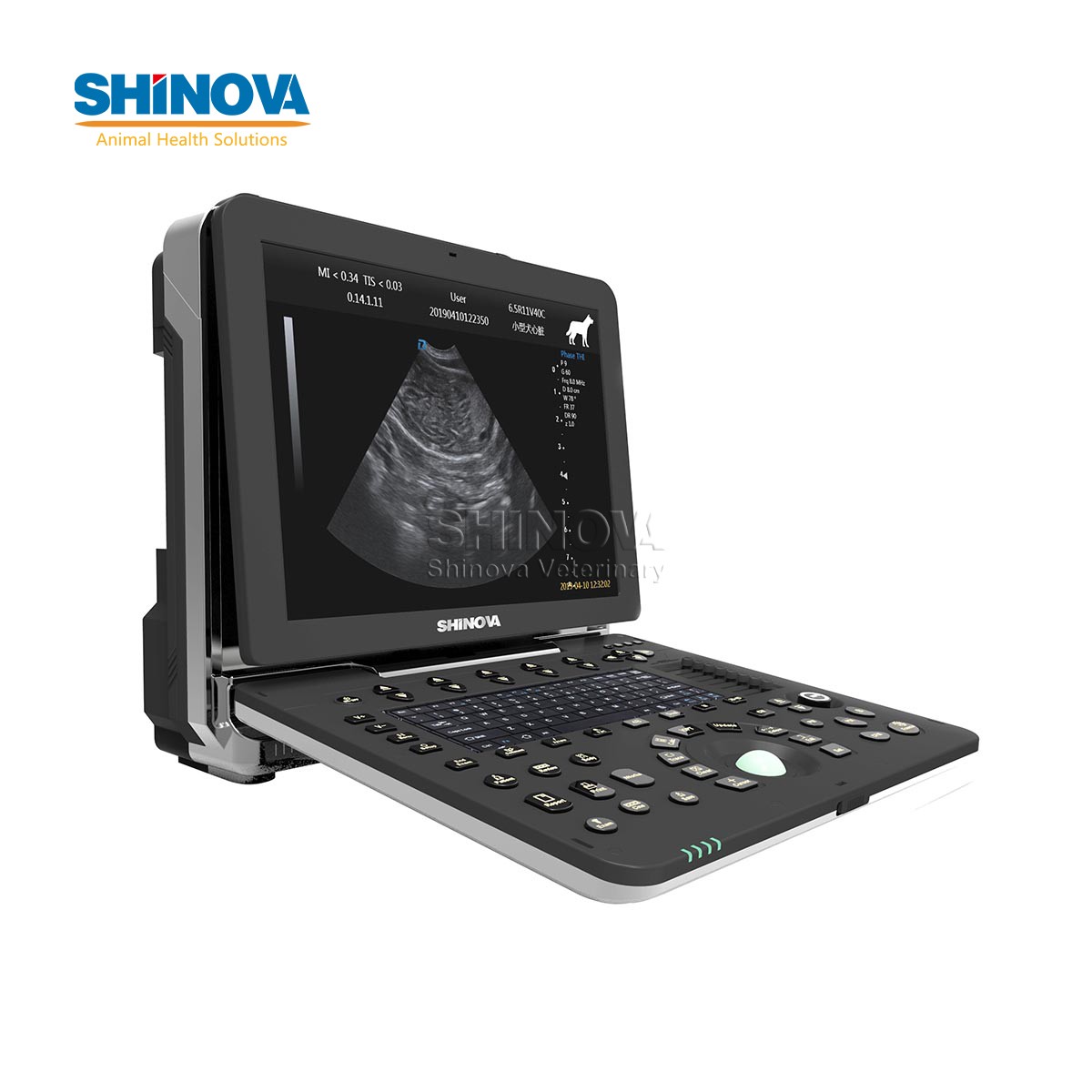

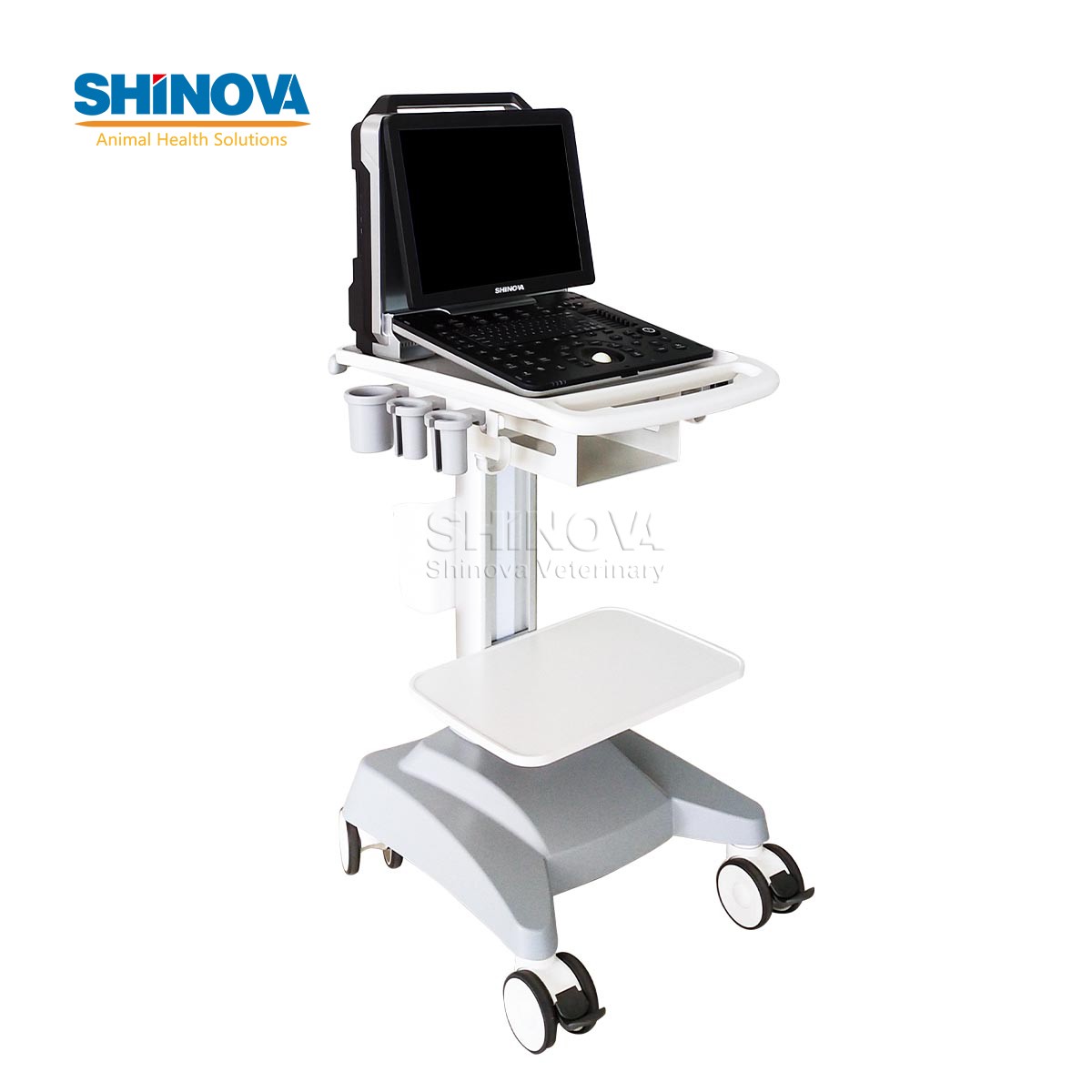

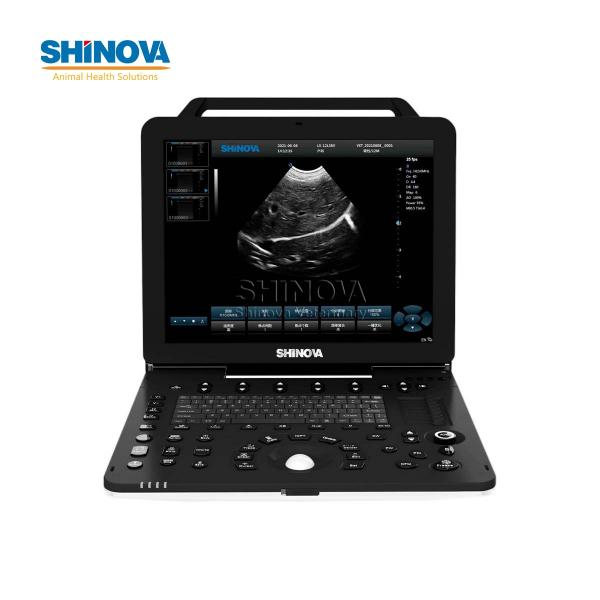

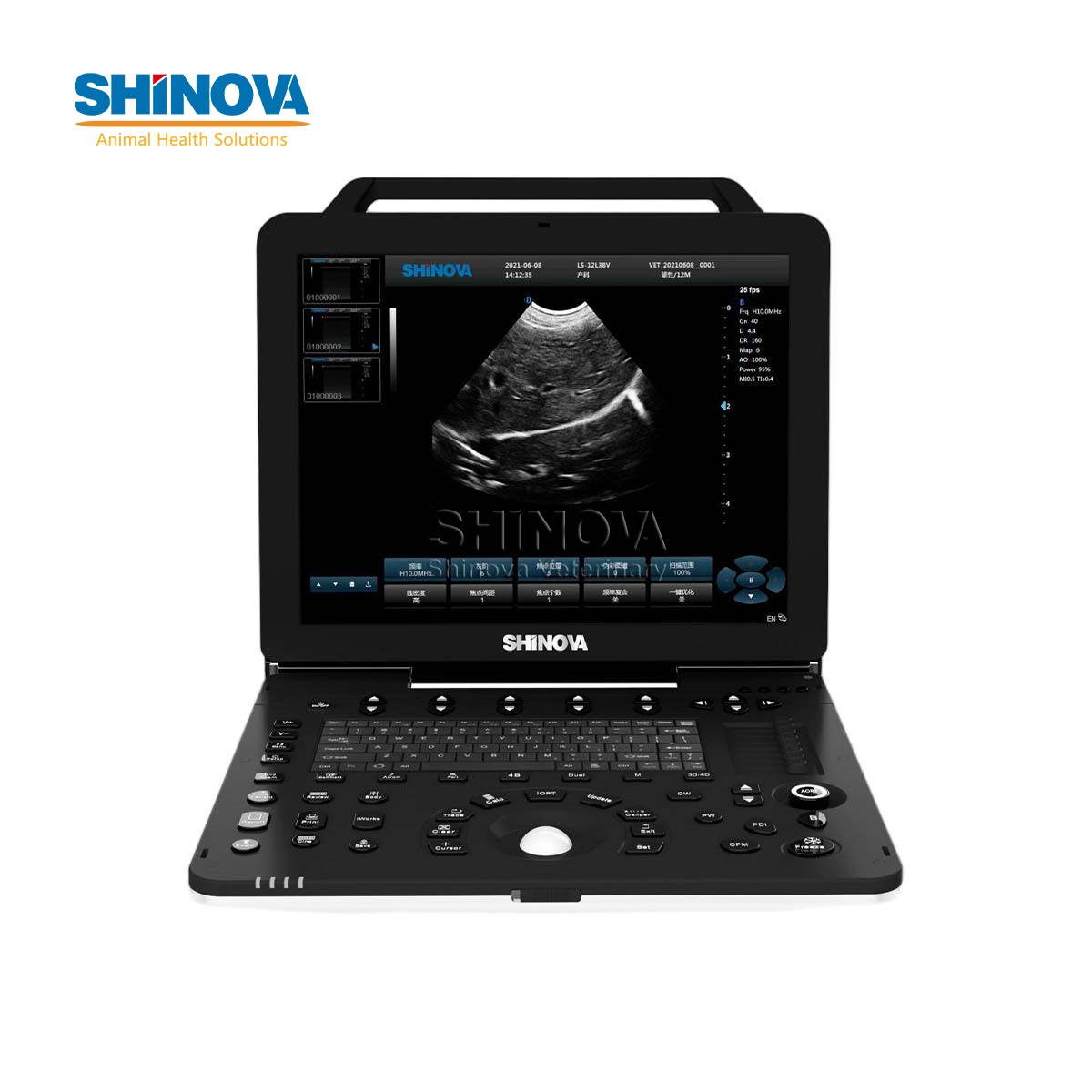

C) Portable Veterinary Design
• Compact portable structure
• Suitable for clinic and mobile applications
• Flexible for farm and field examinations
• Efficient operation for veterinary workflow
D) Standard Dual-Probe Configuration
Standard probes include:
• 3–8MHz Micro-Convex Probe
• 4–14MHz Linear Probe
Optional probes:
• Convex probe
• Phased array probe
• Veterinary rectal probe
• Volume probe
E) Veterinary Clinical Applications
Suitable for:
• Pregnancy diagnosis
• Abdominal examinations
• Cardiac imaging
• Reproductive system evaluation
• Musculoskeletal imaging
• Small animal examinations
• Livestock and equine diagnosis
F) Data Storage & Connectivity
• ≥256G digital storage
• USB image and video export
• DICOM support
• Dynamic and static image storage
• Network connectivity support
• Clinical report management
Specifications
Application: Veterinary Hospital / Animal Clinic / Farm / Research Institution
Type: Portable Veterinary Color Doppler Ultrasound
Display: Medical LCD Monitor
Imaging Modes: B / M / Color Doppler / PW / 4D
Standard Probes: 3–8MHz Micro-Convex Probe + 4–14MHz Linear Probe
Optional Probes: Convex / Phased Array / Rectal / Volume Probe
Storage: ≥256G Hard Drive
Language: Multi-language Support
Certification: CE, ISO
Warranty: 1 Year
Configurations
Standard Configuration
• DopScan 80V Main Unit ×1
• 3–8MHz Micro-Convex Probe ×1
• 4–14MHz Linear Probe ×1
• Power Adapter ×1
• User Manual ×1
Optional Accessories
• Veterinary Rectal Probe
• Phased Array Probe
• Volume Probe
• Foot Switch
• External Printer
