Descriptions

9" color touch-screen display

Intelligent calculation by inputting animal to calculate other parameters automatically

With pressure, volume, manual and other breathing modes, meet different clinical needs

Built-in high-precision sensor and valve control technology ensure the safety, stability and accuracy of pressure, flow and volume monitoring

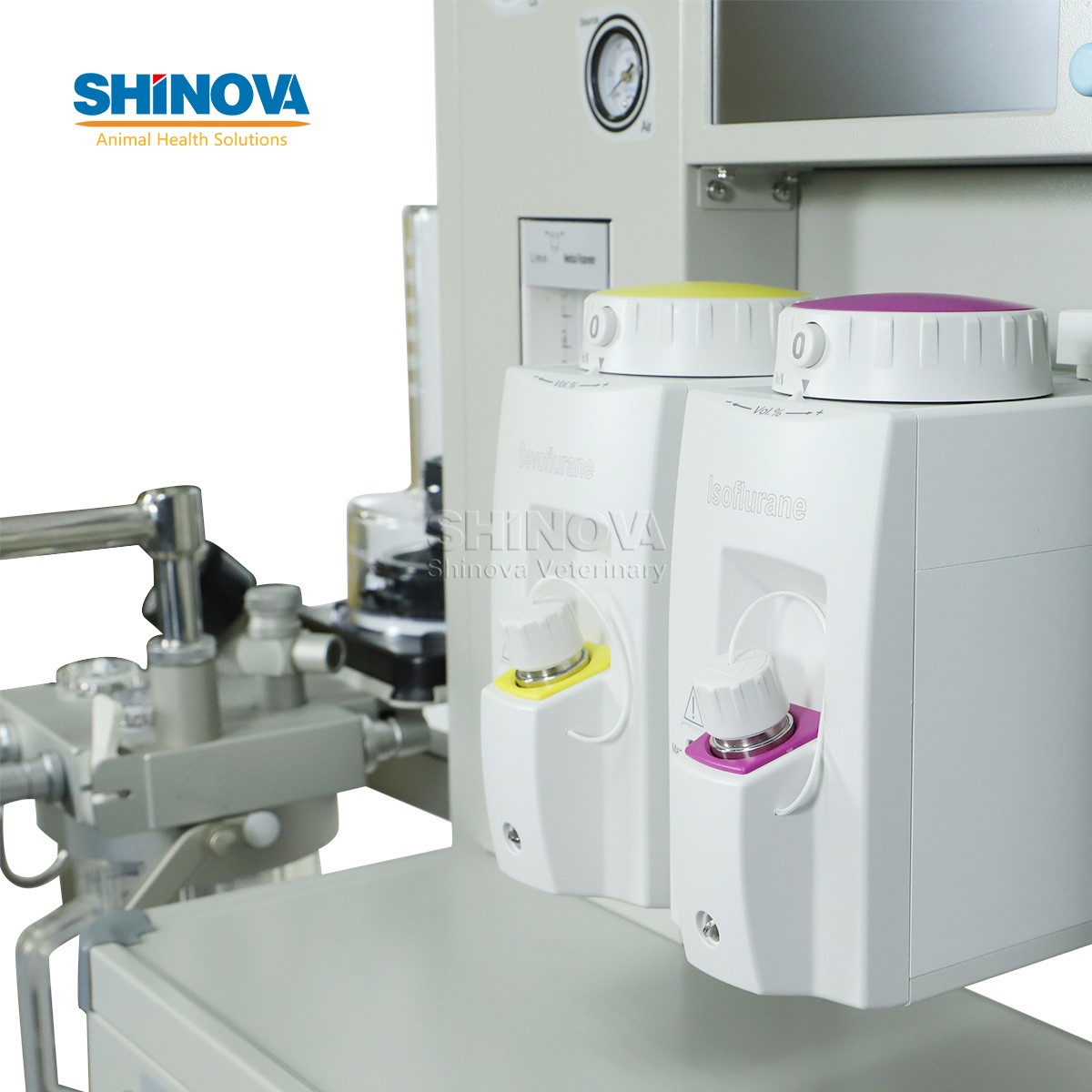

Equipped with high-precision anesthesia vaporizer
Integrated circuit, easy to install and remove
Non-breathing circuit interface at the front of the unit is convenient for small animals

Built-in proportional valve control system
Triple visual and audio alarm system to ensure safety during surgery

Dome light system provides better vision for doctors

Built-in battery to support continuous working more than two hours
Wide application to animals of different weights and sizes

Specifications

Anesthesia Main Unit:
Working mode: Closed, semi-closed, semi-open, open
Driving mode: Pneumatic drive and electronic control
Anesthesia gas source switch: Start or stop gas source
Pressure gauge: oxygen source pressure, oxygen working pressure
Anesthesia vaporizer: lsoflurane, sevoflurane, enflurane, halothane
Oxygen flush: 25L/min~75L/min

Flowmeter: double tube flowmeter, 0~1L/min, 1~10L/min
Application: 0.5-100kg animals

Anesthesia Ventilator:

Ventilation mode: VCV, PCV,Spont, Manual, Demo

Tidal volume: Automatic 20-1500ml, manual 5-1600ml

Bellow: 0-300ml, 300-1500ml

Waveform: Pressure, flow, volume

Loop: Pressure-volume, flow-volume

Breathing rate: 1~100bpm

1:E: 9.9:1 to 1:9.9

Inhalation time: 0.1~10s

Inspiratory pause: 0-50%

PEEP: Off, 3~20cmH₂O

Pressure support: 0~60cmH₂O

Pressure control: 5~60cmH₂O

Flow rate trigger: 0.5~20L/min

Pressure trigger: -1~20cmH₂O

Anesthesia Vaporizer:
With safety lock
Concentration range: lsoflurane: 0.2 to 5%, Sevoflurane: 0.2 to 8%, Halothane: 0.2 to 5%
Flow rate range: 0.2 to 15L/min

Suspension type: Selectatec
Anesthetic volume: 340ml (dry cavity), 300ml (wet cavity)
Monitoring Parameters:
Tidal volume, breathing rate, spontaneous breathing rate, l:E, spontaneous minute ventilation, minute ventilation peak, airway pressure, average airway pressure, PEEP, Inspiratory platform pressure, FiO₂
Alarm Parameters:
Tidal volume, minute ventilation volume, breathing rate, airway pressure, continuous airway pressure, negative pressure alarm, apnea alarm, supply pressure failure alarm, power supply alarm, low battery alarm, battery empty alarm, oxygen battery failure alarm, FiO₂(optional), FiCO₂(optional)
