Descriptions
Touch Screen

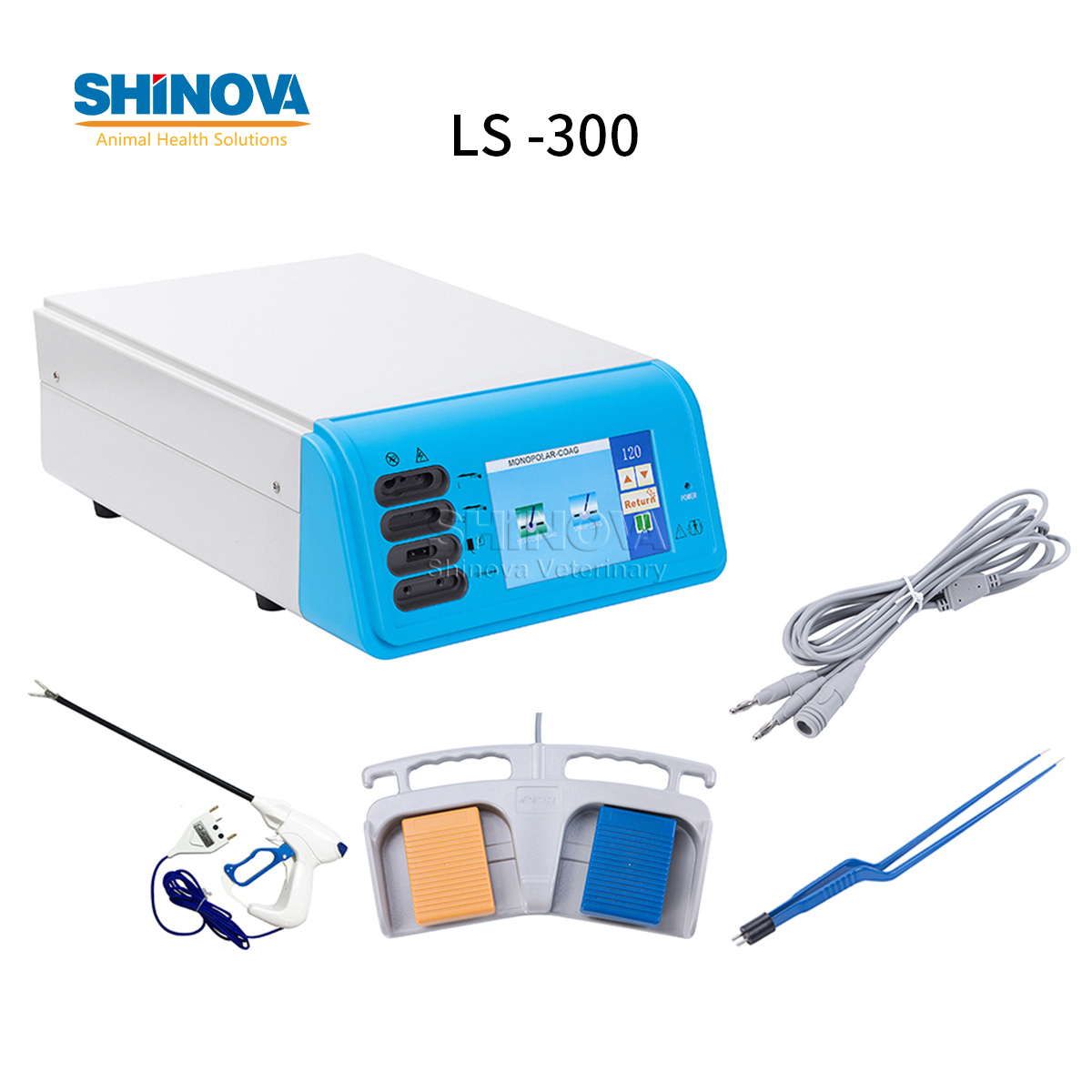

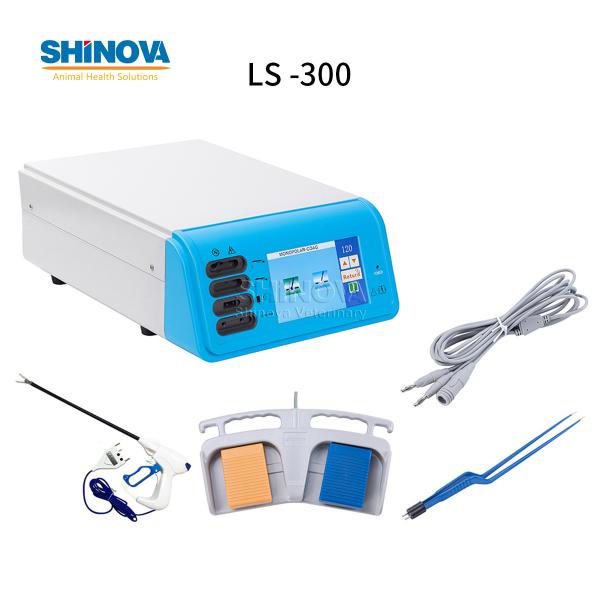

Shinova Electrosurgical Vessel Sealing Generator is controlled with a wide TFT LCD touch screen (8-inch), clean and shaped image quality, which provides the user with easy access to all diathermy functions. The settings or modes of operation are changed by touching icons on the screen. To ensure maximum ease of operation there are no extra buttons or knobs.
Automatic Self-test
Once switched on, Shinova’s generator performs a comprehensive internal test
Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately - ensuring that only the precise voltage needed is safely delivered to each tissue type.
Ligasure Vessel Sealing
With above mentioned Real-Time and instance response system, it enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation (Seal-safe modes).
Endoscopic Vessel Sealing
Vessel sealing under water with endoscopic instrument
Automatic Start /Stop
Under Bipolar cut and coagulation modes, user can choose Pedal control or Automatic control, under Automatic control.
Intelligent Device System
The intuitive design and user-friendly setup of the Shinova Electrosurgical Vessel Sealing Generator (diathermy) for us in the modern operating room, it features both monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
Specifications
Working Mode
Output Power
Bipolar Cut
120W
Bipolar Coag
Bipolar Coag: 120W
Seal Safe: 300W
Endo Safe: 100W
