Descriptions
Intelligent Device System

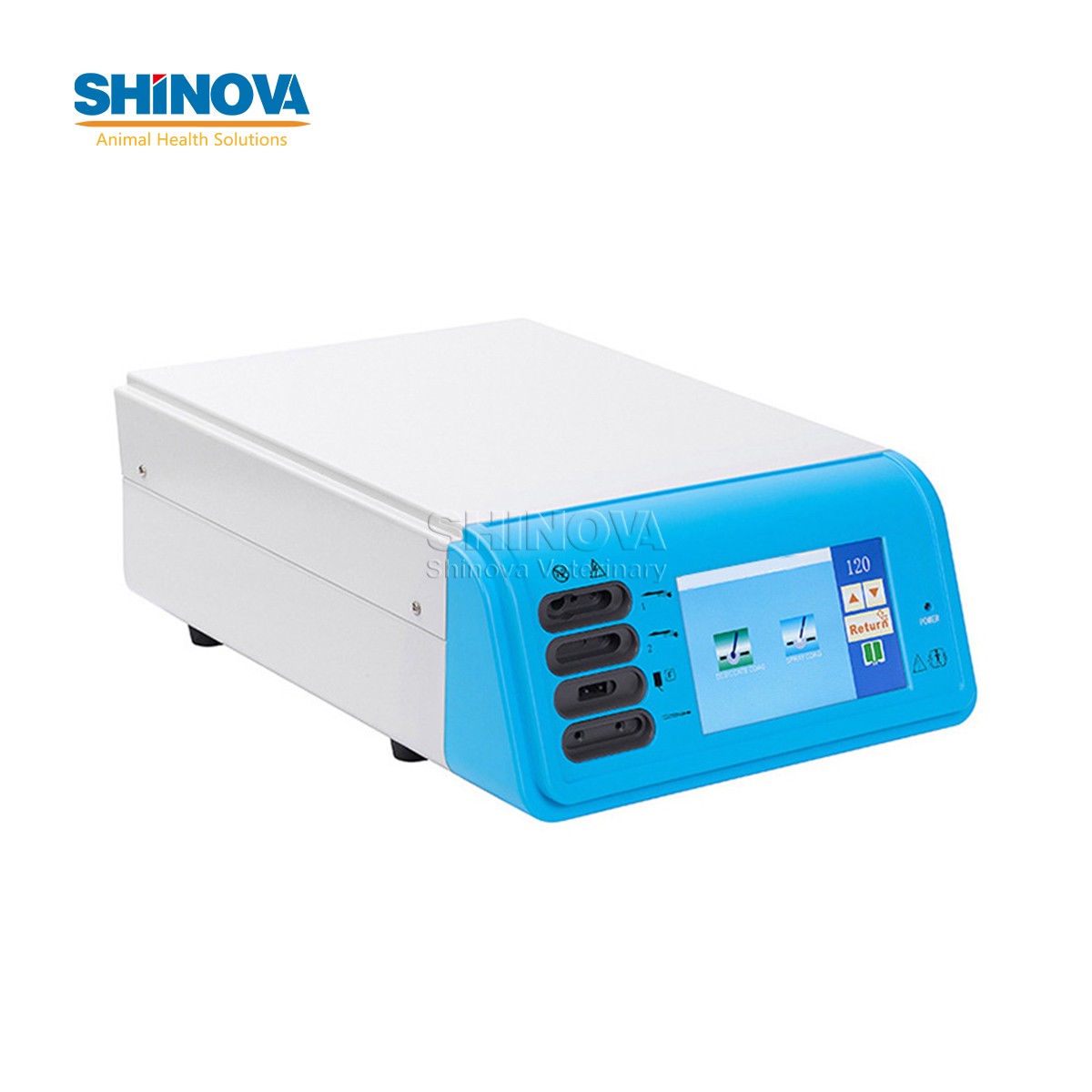

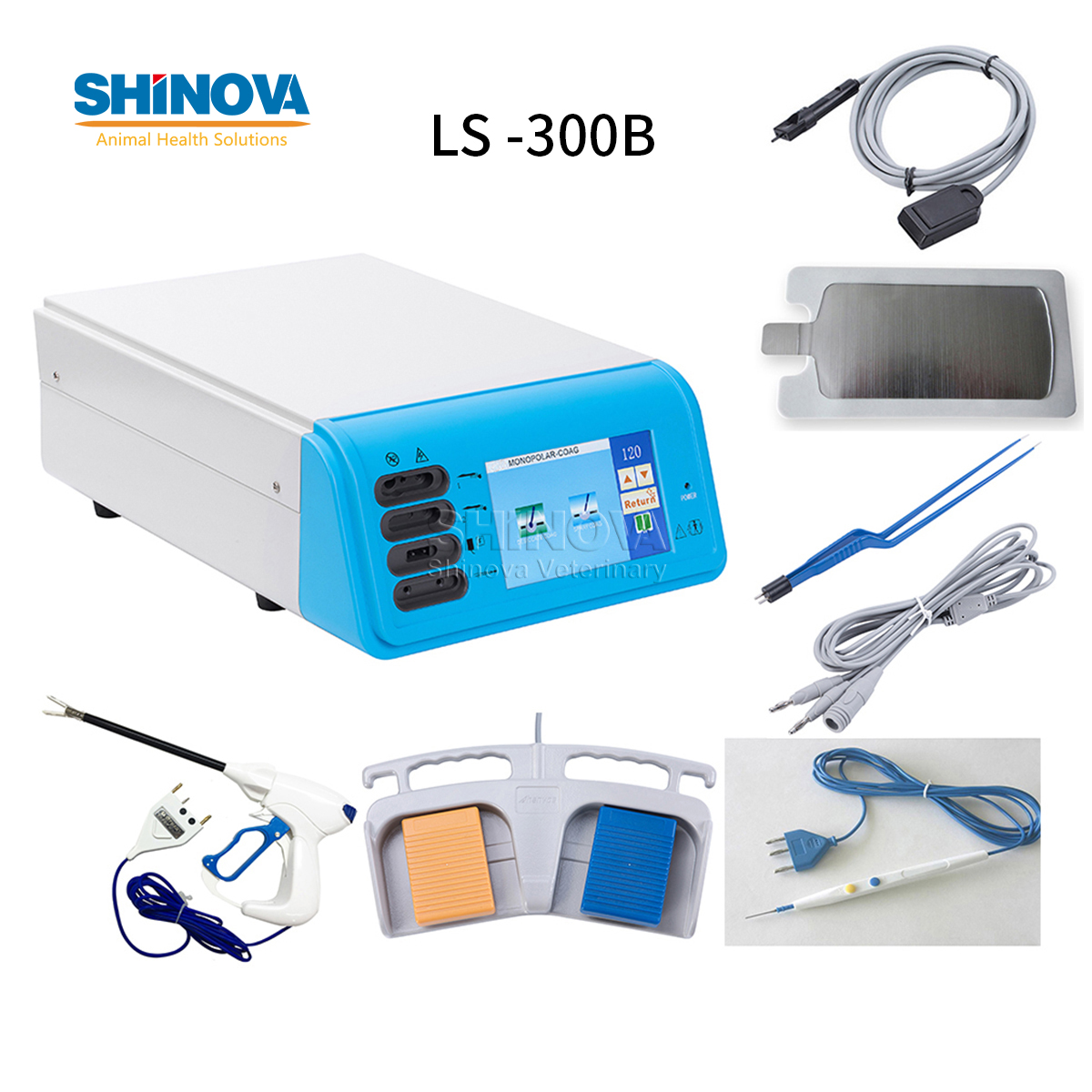

The intuitive design and user-friendly setup of the Shinova Electrosurgical Vessel Sealing Generator (diathermy) for us in the modern operating room, it features both monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
Touch Screen
Shinova Electrosurgical Vessel Sealing Generator is controlled with a wide TFT LCD touch screen (8-inch), clean and shaped image quality, which provides the user with easy access to all diathermy functions. The settings or modes of operation are changed by touching icons on the screen. To ensure maximum ease of operation there are no extra buttons or knobs.
REM (Return Electrode Monitoring)
Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Automatic Self-test
Once switched on, Shinova’s generator performs a comprehensive internal test
Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately - ensuring that only the precise voltage needed is safely delivered to each tissue type.
LigaSure Vessel Sealing
With above mentioned Real-Time and instance response system, it enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation (Seal-safe modes).
Automatic Start /Stop
Under Bipolar cut and coagulation modes, user can choose Pedal control or Automatic control, under Automatic control.
Compatible with Other Equipments
- Argon Plasma Coagulation System
- Optimum Smoke Evacuation System
Application of Use
General Surgery, Ligation Surgery, Gastroenterology Dermatology, Vascular Surgery, Obstetrics and Gynecology
Heart/Thoracic Surgery, ORL/ENT, Minimally Invasive Surgery (MSI) Cerebral surgery, Neurosurgery, Orthopedics & Plastic Surgery, Trans Urethral Resection (TUR) and etc.
Specifications
Working Mode
Output Power
Mono Cut
Pure cut
300W
Blend cut
250W
Mono Coag
Fulgurate Coag
120W
Spray Coag
100W
Bipolar Coag
Standard Coag
70W
Vessel Sealing
200W
Out put Frequency: 512KHz
Power Supply: 100-240V / 50-60Hz
Dimension: 34*16*47cm
Weight: 8.5KG
High Frequency Leakage:
Monopolar: < 150mA>
Bipolar: < 60mA>
Low Frequency Leakage:
Normal Polarity, Intact chassis ground: <10>
Normal Polarity, Ground open: < 50>
Reverse Polarity, Ground open: < 50>
Sink Current, 140V Applied, All inputs: < 50>
