Descriptions
Soft touch user panel
Digital displays of kV, mAs and time
High frequency inverter type generator
Overload protection for kV, mA, Time and Temp
Self-manageable APR function with memory keys
Specifications
l HF Generator
Maximum output power: 20kW
Range of tube current: 16~200mA
Inverter frequency: ≥30kHz
Tube voltage range of radiography: 40kv~125kv
Range of exposure time: 0.0025s~6.4s
mAs range: 0.5mAs~320mAs
Input voltage range: AC 220V±22V
Communication interface: RS-232
Other: Capacity lock automatically, fault diagnosis automatically, self-protection
l X-ray Tube
Max. Tube voltage: 125kV
Focus: Small focus:1.0mm Large focus:2.0mm
Anode input power: Small focus:20KW Large focus:40KW
Anode speed: 2800 R/M
Target angle: 17.5°
Anode heat content: 100kJ(140kHU)
l Veterinary Radiography Table
Size(L*W*H): 1220mm*700mm*830mm
Bearing weight: 150kg
Table movement: With wheels
Tabletop movements: Four ways
Tabletop position: By soundless manual brakes
l Grid
Brand: JPI
Size: 18”×18”
Grid ratio: 10:1
Grid density: 40L/cm
Focusing distance: 1500mm
l Flat Panel Detector
Material: CSI
Cassette Size: 17×17 inch
Active Area: 405mm×405mm
Pixel Matrix: 2912×2912
Pixel Size: 139μm
A/D Conversion: 16 Bit
Preview Image Time: 3s
Full Image Time: 5s
Weight: 4kg
l Imaging Workstation Computer and LCD monitor
CPU: ≥2.8GHz
Memory: 4GB
Disk Capacity: 500GB
Medical LCD: 19″ LCD

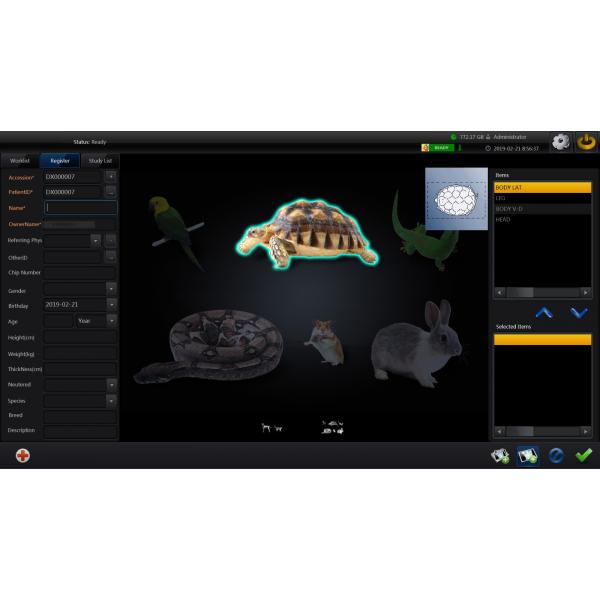

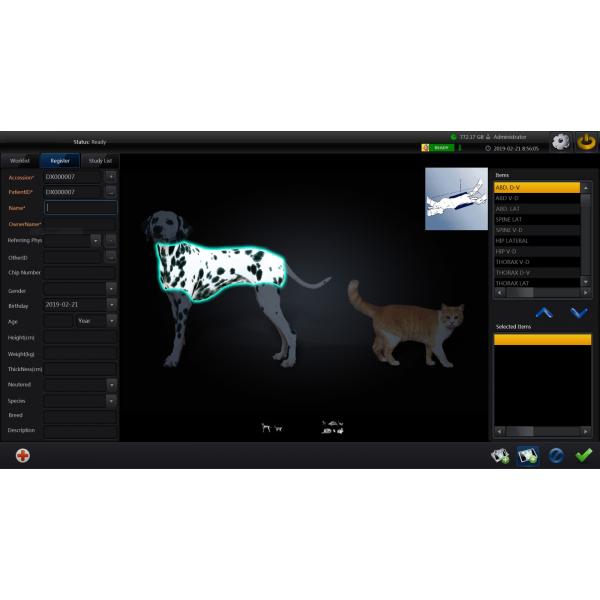

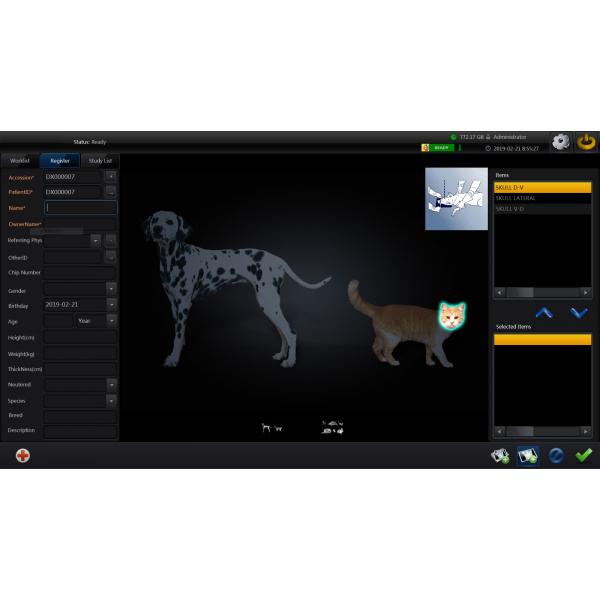

Function: Image acquisition, image zoom, image brightness adjustment, image contrast adjustment, image rotation, image rollovers
Connection: 100M network interface, Dicom 3.0 image transmission, and query, editing & print, etc.
Management: DR system to manage animals and image information
Configurations
200mA HF generator and Console
Collimator
X-ray tube (Toshiba tube is optional)
Veterinary radiography table
Grid
Flat panel detector
Imaging workstation computer and LCD monitor
