Descriptions
Applications :

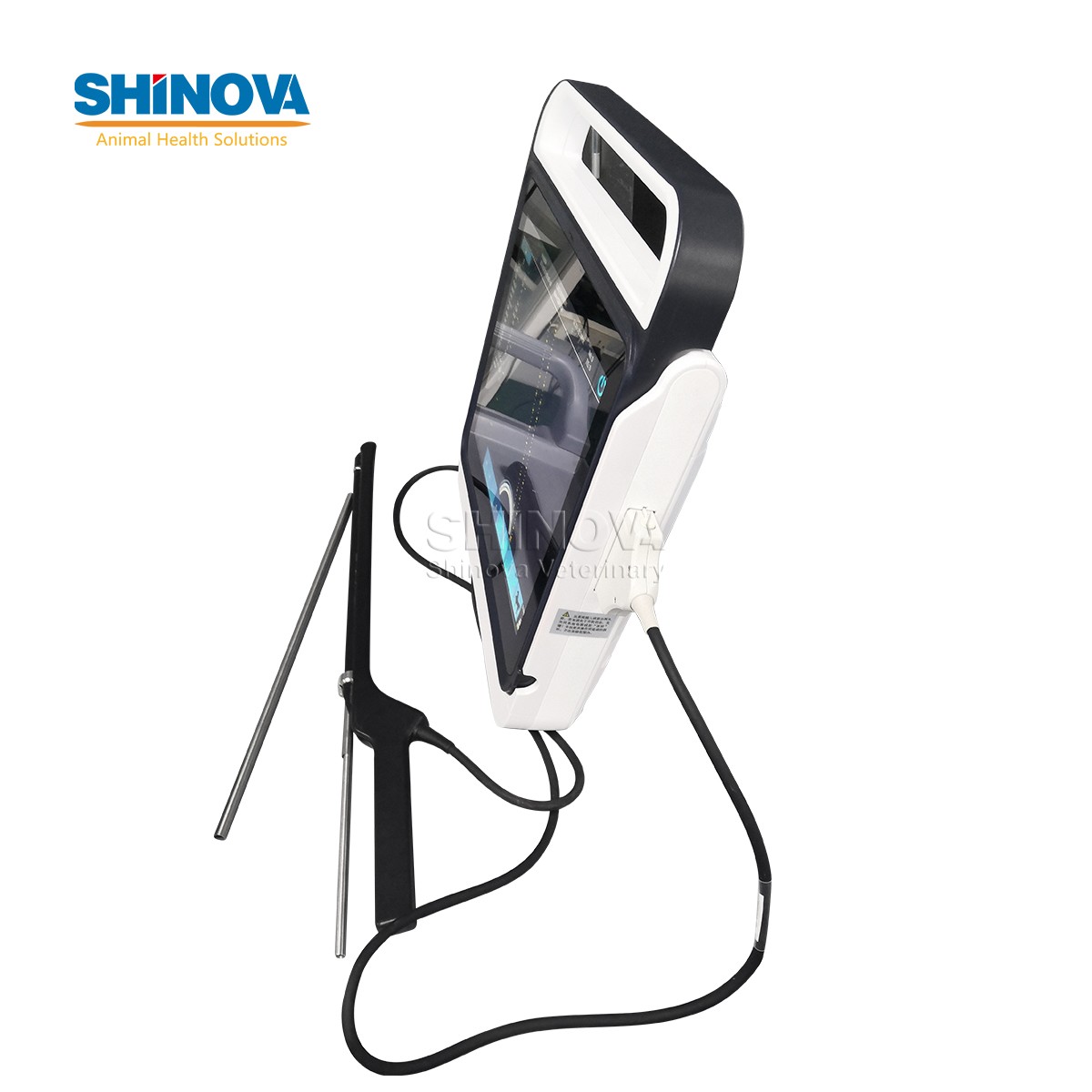

This product is mainly used for the application of OPU ovum collection, backfat and eye muscle area determination of pigs,
cattle and sheep and other animals, small animals and marine animals
Work conditions:
2.1 Power supply: AC220V±10%, 50Hz±1; ultrasonic examination applications, veterinary, cattle, Horses, pets (small
animals), pigs, exotic species, special animals, marine animals and small ruminants
2.2 Ambient temperature: -20°to50°C for pregnancy diagnosis and obstetric disease inspection;
Technical indicators configure
3.1 Display mode: color Doppler imaging system B, B+B, B+M ( M line position is adjustable), PD, Color, PWD
3.2 Weight and size: 1.2kg; 25.5×17×3cm
3.3 Machine interface: two USB interfaces, micro HDMI interface, charging interface
3.4 monitor: 10.1 inch screen, 1920*1200
3.5 Total gain: 0-100 adjustable, 6-segment TGC gain adjustable, automatic TGC adjustment.
3.6 Image post-processing: Doppler color Doppler ultrasound system, different parameters can be adjusted for different
inspection part，Frame Correlation, Enhancement, Contrast, Frequency, Focal Zone, Harmonics, etc. The image is clearly
visible, which is convenient for post-analysis image use
3.7 with ovum collection needle guide line indication
3.8 Software: Professional veterinary software version, which can measure distance, area, perimeter, volume, angle, back
fat, and eye muscle area through special veterinary professional software. Later software can be upgraded.
3.9 Connections: USB 2.0 image storage and viewing; 2 USB ports .Wireless WiFi connection and Bluetooth connection
3.10 OPU special 128 array element slightly convex horseshoe-shaped in ovum collection probe (4-9HZ) and handle (probe
and handle are designed as a whole, which is more convenient for disinfection);
Other probes are optional, and the scanning direction of the probe can be changed.
Optional: 128 array element (5-10MHz) animal-specific abdominal probe;
128 elements (4-8MHZ) rectal linear array probe;
128 elements (2-5MHZ) back fat eye muscle probe
128 elements (5-12MHz) high frequency linear array probe;
128 array elements (2-5MHz) large convex abdomen probe;128 element (5-10MHz) linear array probe;
64-element (2-4MHz) phased array probe
3.11 Measurements: distance; perimeter/area; volume;
3.12 Ultra-low power consumption: battery-powered continuous scanning time > 3.5 hours;
3.13 Recording function: in working state, real-time recording, automatic saving; recording time can be configured
3.14 Bluetooth keyboard (optional): remote control, remote real-time freezing and saving of images and videos.
3.15 Storage function: can store images and videos
3.16 Battery: High Efficiency Lithium Battery; Independent External Battery Charger; AC Adapter for Charging or Operation;
Output: 5V DC 3.5A;
Configration
4.1 Main unit:1 ;
4.2 128-element dedicated ovum collection hand probe (4-9MHZ) (including long needle cannula and one short needle): 1;
4.3 Lithium-ion battery (built-in): 1 ;
4.4 Charging adapter: 1;
4.5 Bluetooth keyboard (optional): 1;
4.6 One suitcase:1 ;
4.7 One thermostatic bath:1
