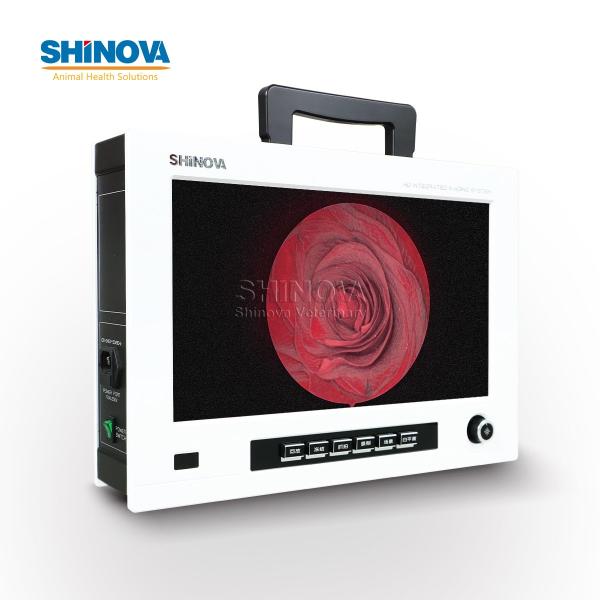

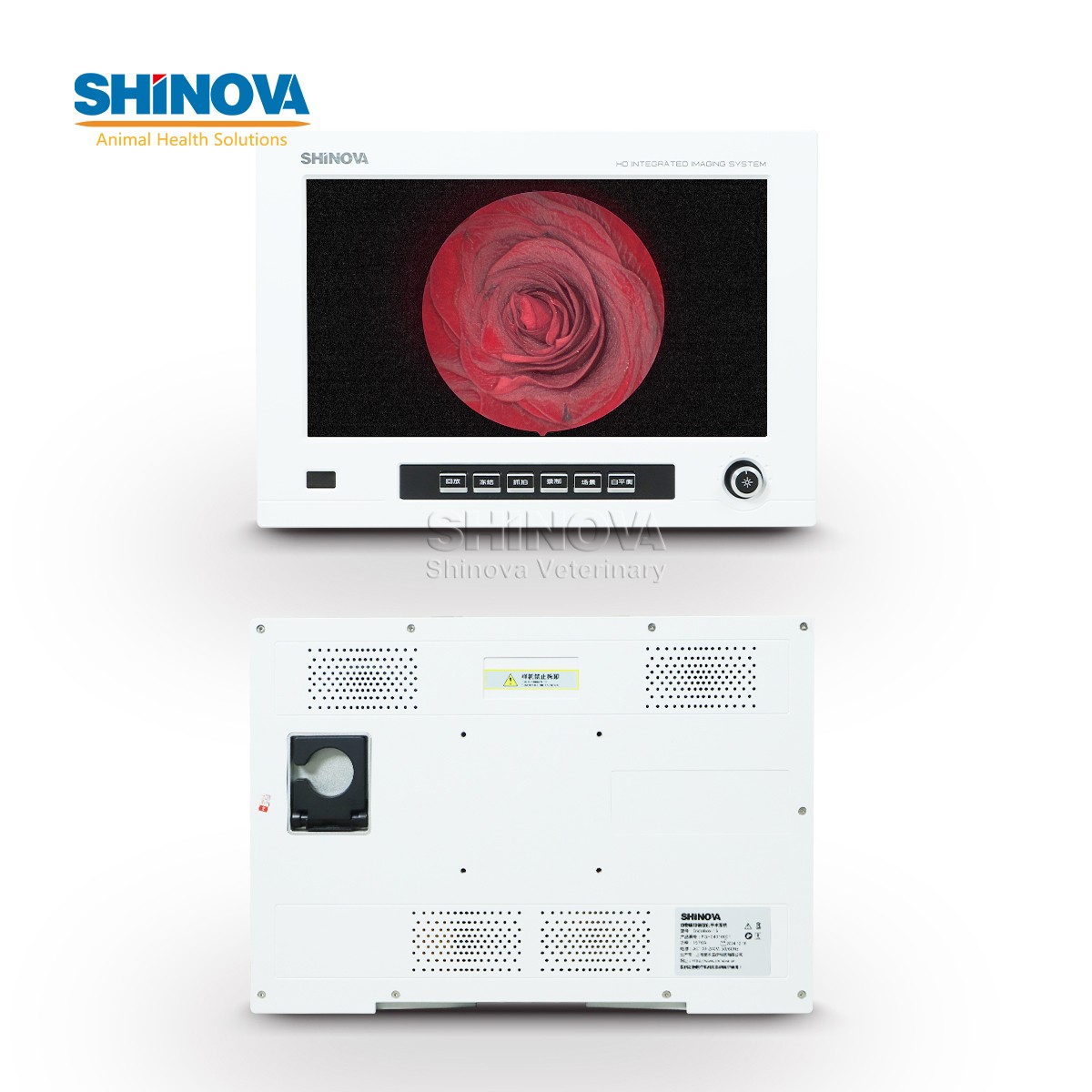

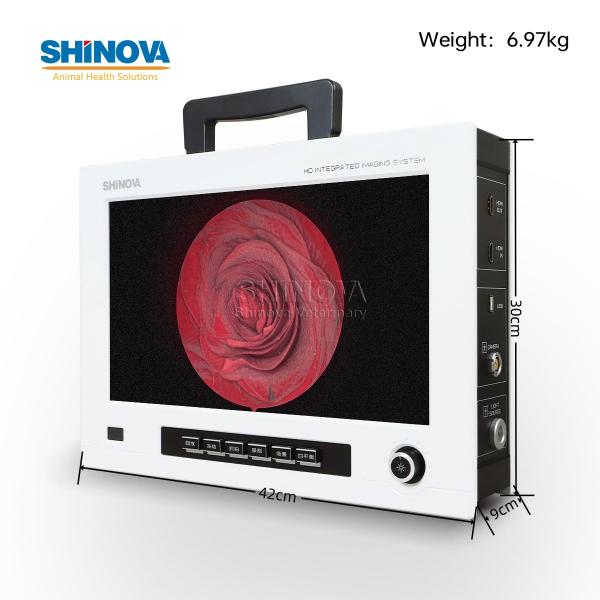

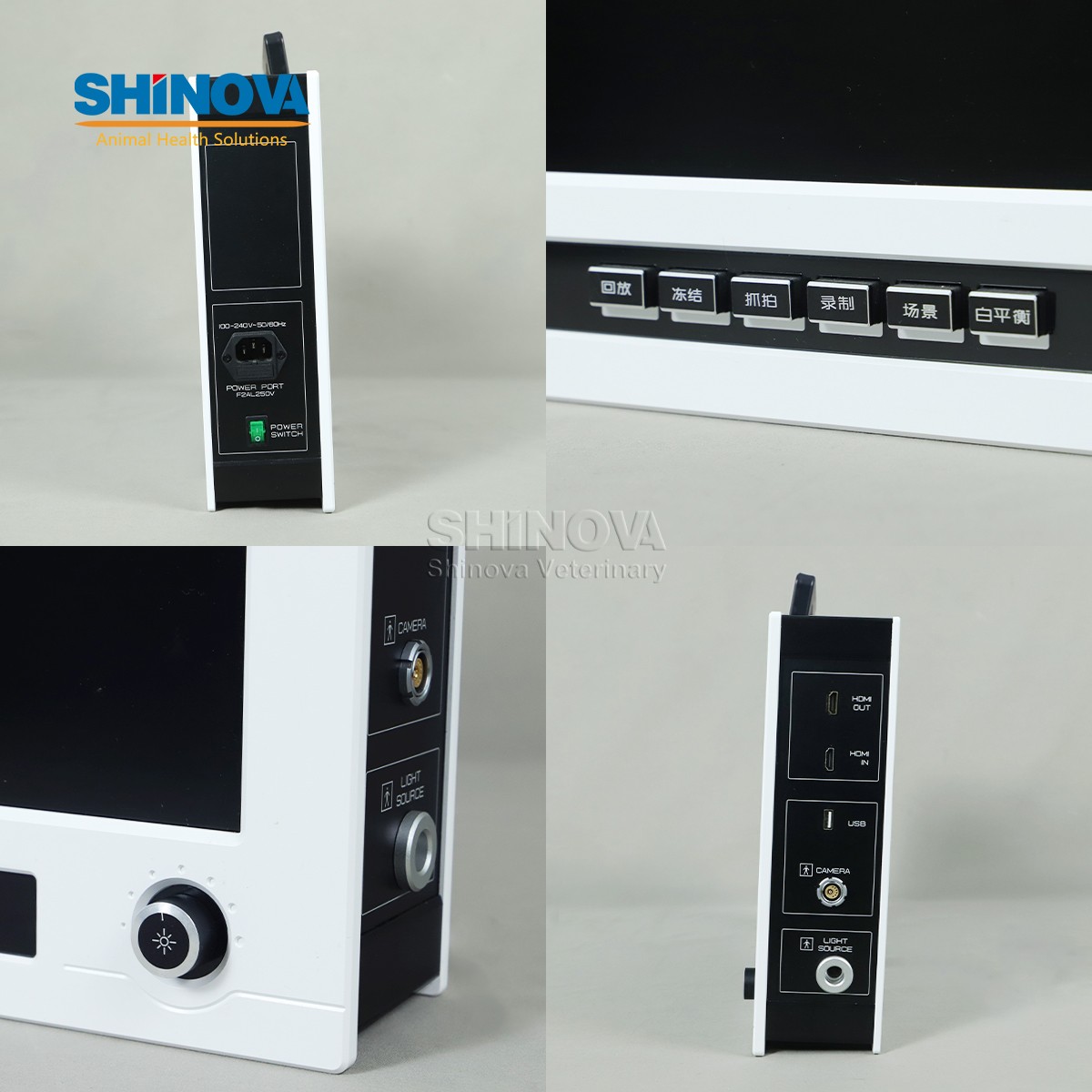

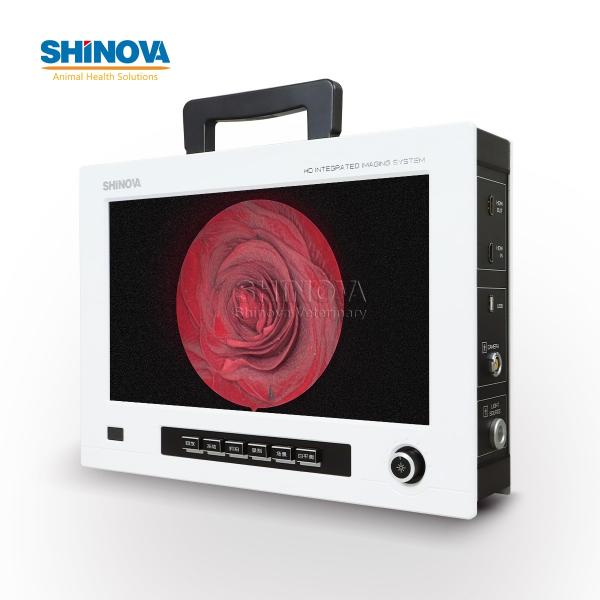

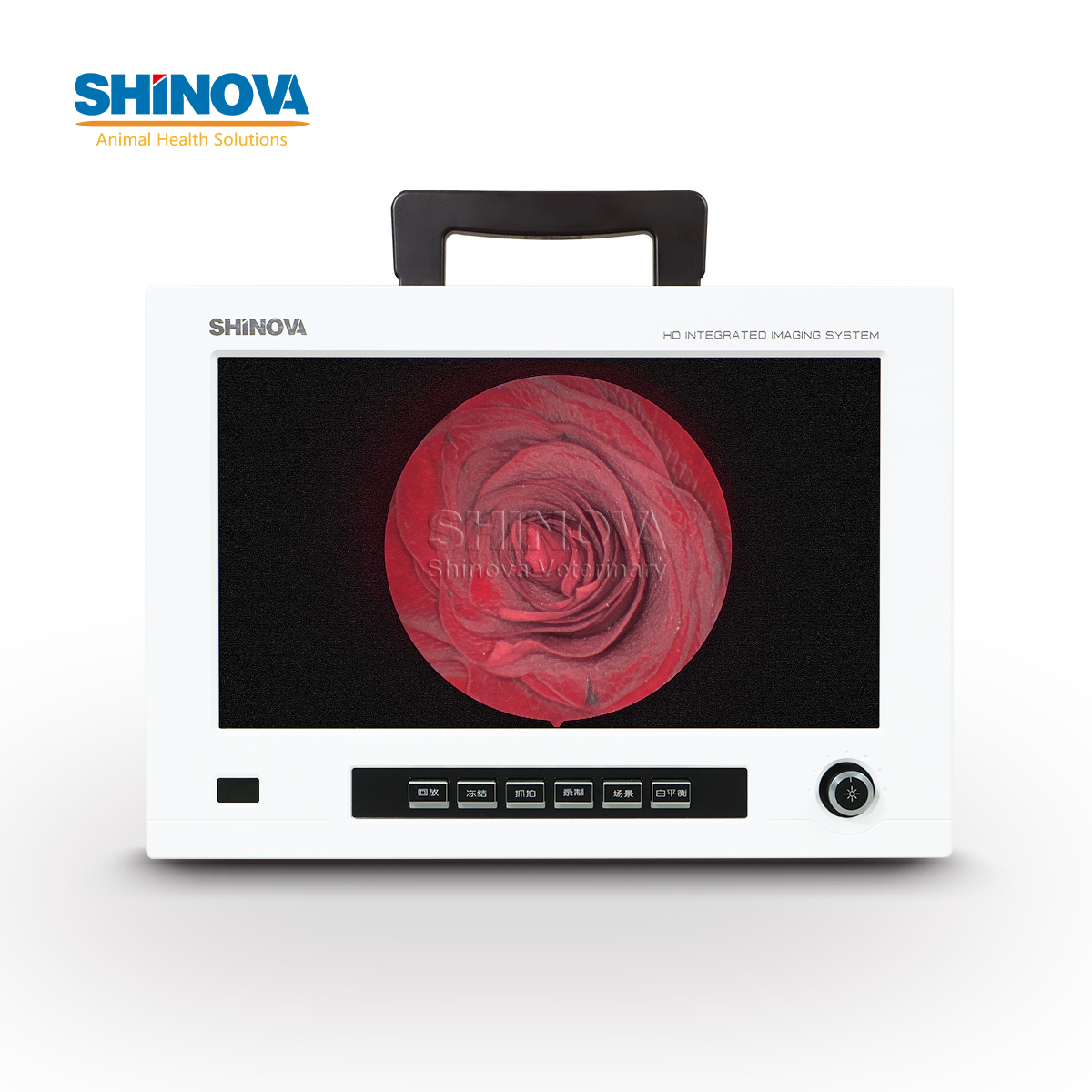

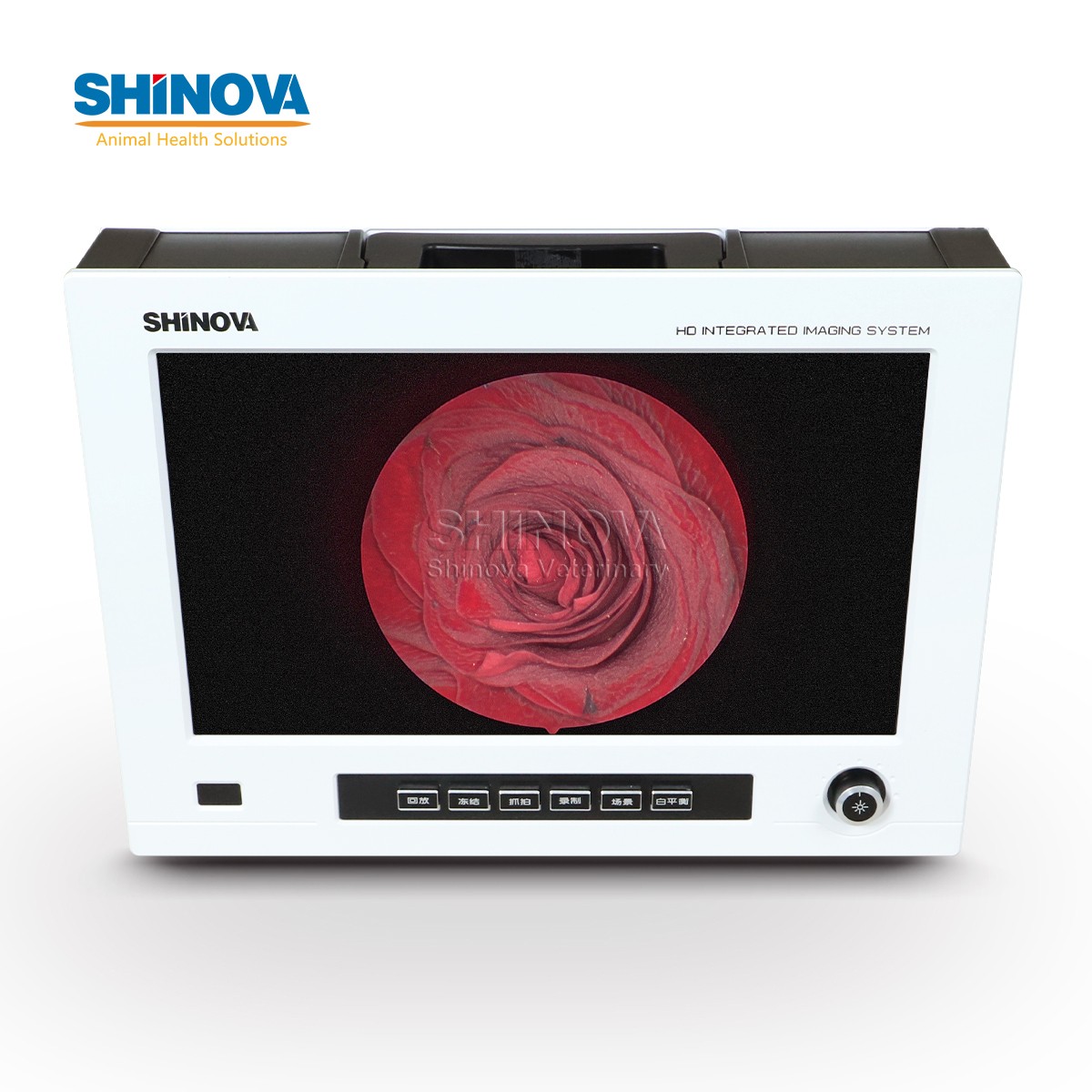

HD Veterinary Endoscope Camera System
Model: EndoBox-12/15/22/26/32
Features
Monitor/camera/light source and image recorder in a machine
Smaller size/Lighter weight/Easy to move
Portable power
Utilization in variable places and fields
Variable laying style/Adjust monitor position any time as required by the operator
Compatible with Optics/Electronic/Fiber endoscopy
Functions
Camera/Display/Illumination
Image recorder/Storage/Replay/Snapshot
Simultaneous second transmission
Network video transmission
Network telecast live/Live browse on network terminal
Full HD Monitor Technical Parameters
|
Size of Monitor
|
Display Scale
|
Resolution
|
Contrast Ratio
|
Luminance
|
|
12'
|
16:9
|
1280*800
|
800:1
|
700nit
|
|
15'
|
16:9
|
1920*1080
|
1000:1
|
800nit
|
|
22'
|
16:9
|
1920*1080
|
1000:1
|
800nit
|
|
26'
|
16:9
|
1920*1080
|
1000:1
|
800nit
|
|
32'
|
16:9
|
1920*1080
|
1400:1
|
800nit
|
Medical LED Light Source
Power: ≥30W
Color Temperature: 6500K
Illumination: ≥700,000Lux
Color Render Index: 93
Adjustment Mode: Stepless Adjustment
Integrated Control System
Control Method: Foot Switch/Remote Control
Wireless Remote Control: Infrared code full function remote control
Foot Switch: Record/Snapshot
Network Interface: Distance browsing or telecast live/Distance replay/Network backup
Camera
Sensor: 1/3inch Full HD CMOS
Resolution: 1920*1080
Scanning Method: Progressive Scanning
Scanning Frame Rate: 60fps
Minimum Illumination: 1Lux
Electronic Shutter: 1/60 ~ 1/10000s
White Balance: Manual/Auto
Back Light Compensation: Auto
Video Output Mode
Output Mode: HDMI second output simultaneously/Network output
Extended Mode: Any modes in common use
Full HD Recording & Storing Module
Storage Medium: Internal FLASH, External SD card interface
Video Recording Format: H.264,1920*1080P60
Snapshot Format: JPEG
Operation Option: Image freezing
Interface: Operation status displayed on the monitor simultaneously
