Descriptions

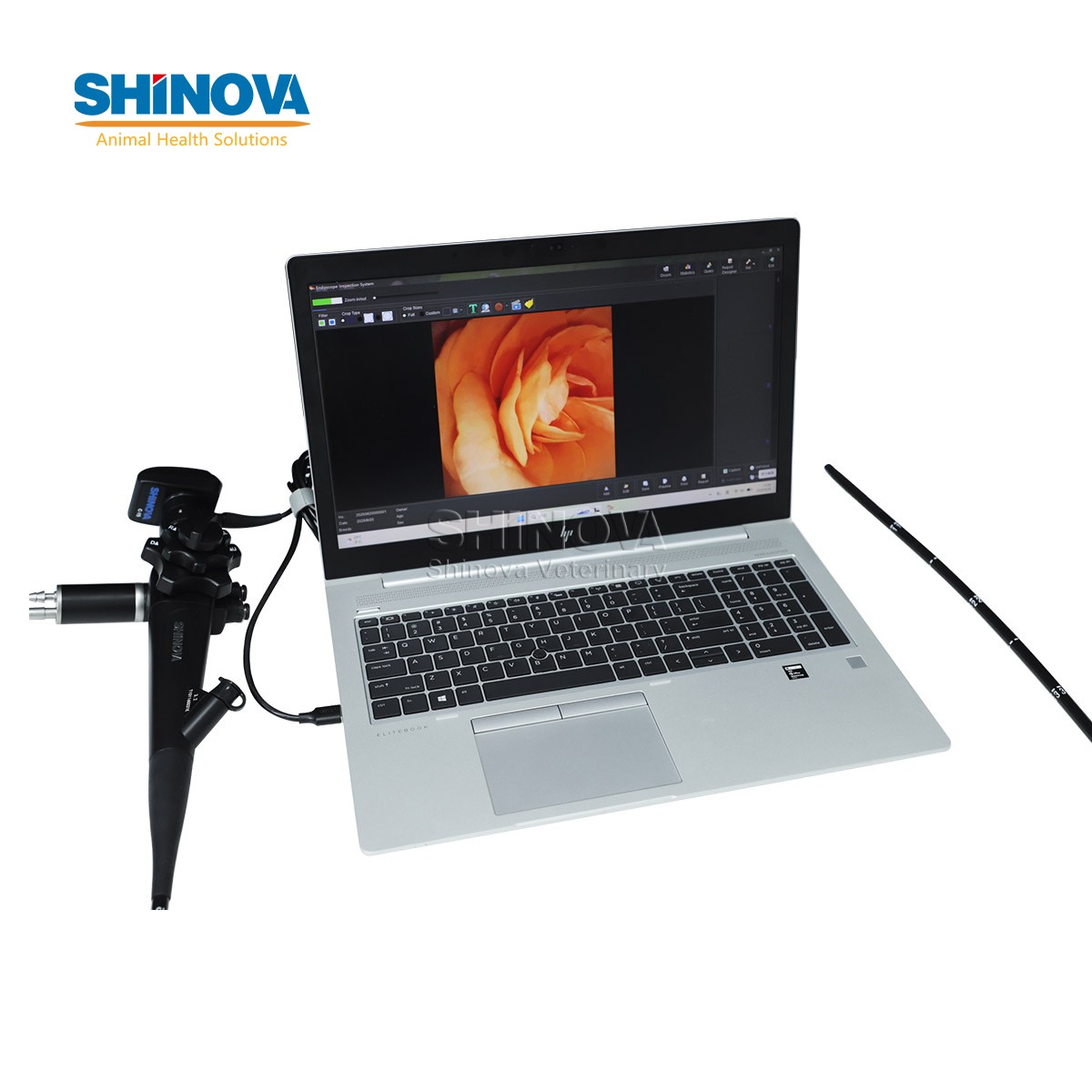

The SHINOVA MiniScope series combines high-definition endoscopic imaging with a compact handheld design for equine practice. With a 4.0-inch touchscreen image processor and a rechargeable battery, the system supports portable examinations in equine hospitals and mobile veterinary settings. Two working lengths provide options for respiratory and gastrointestinal examinations in horses.
High-definition imaging
Clear endoscopic views for visual examination and image documentation.

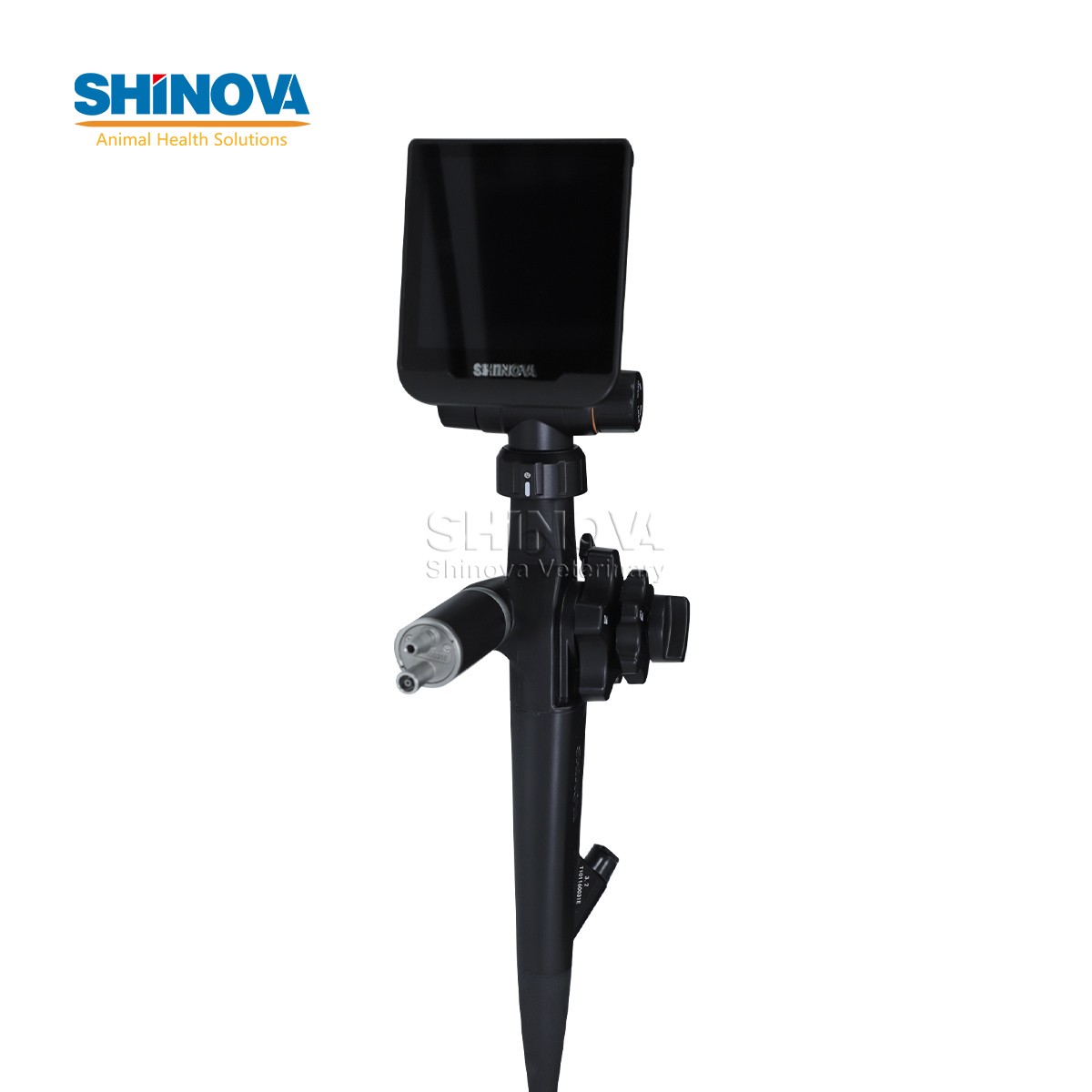

Portable handheld design
A compact format suited to equine work where portability is important.

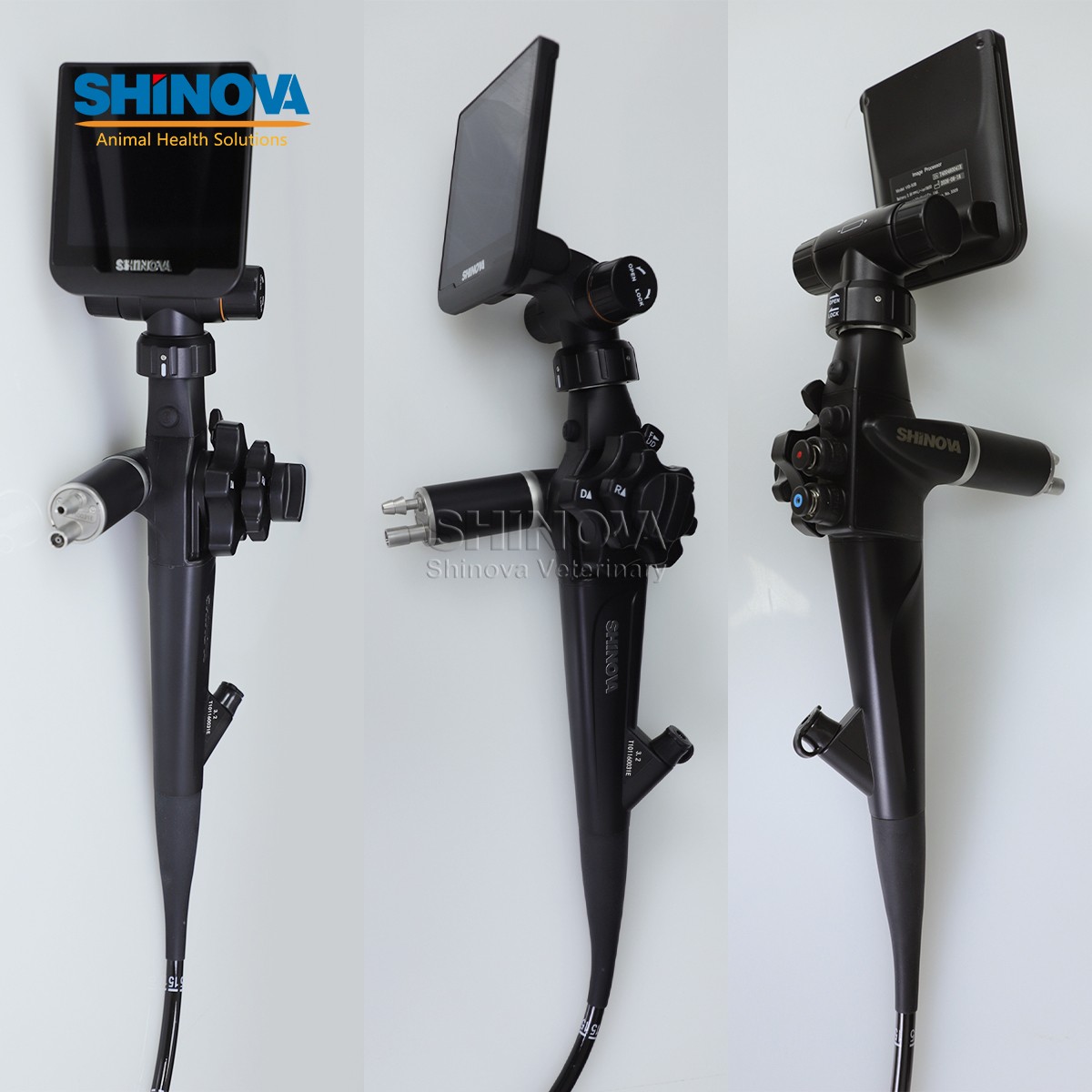

Integrated function buttons
Three handle buttons provide access to video recording, image capture and freeze / white balance functions.
Slim insertion tube with a large working channel
A 9.2 mm insertion tube incorporates a 3.2 mm working channel for compatible endoscopic instruments.
Four-direction tip control
Up/down of 180°/130° and left/right of 160°/160° support controlled positioning.
Air and water nozzle
An integrated air / water nozzle is provided on both models.

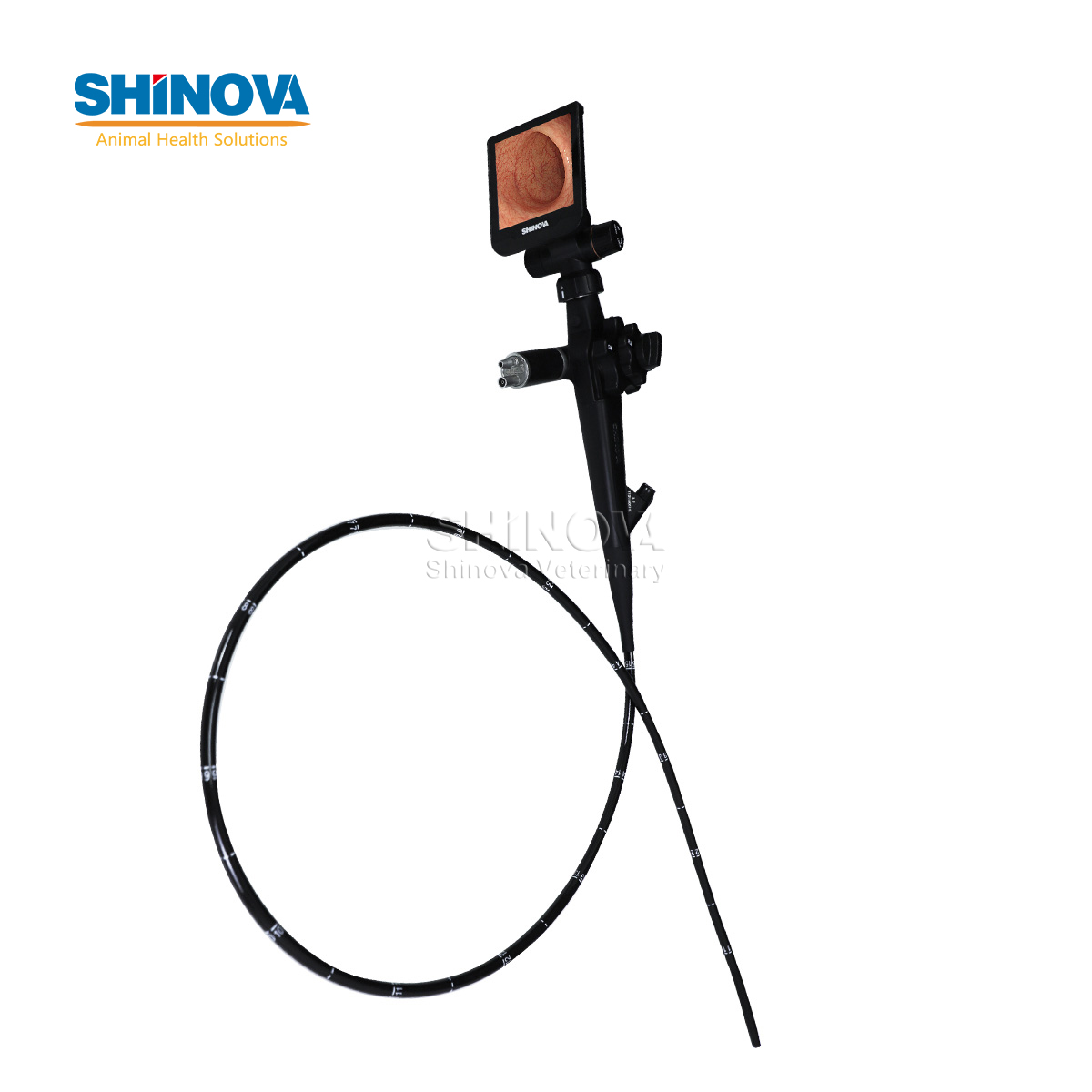

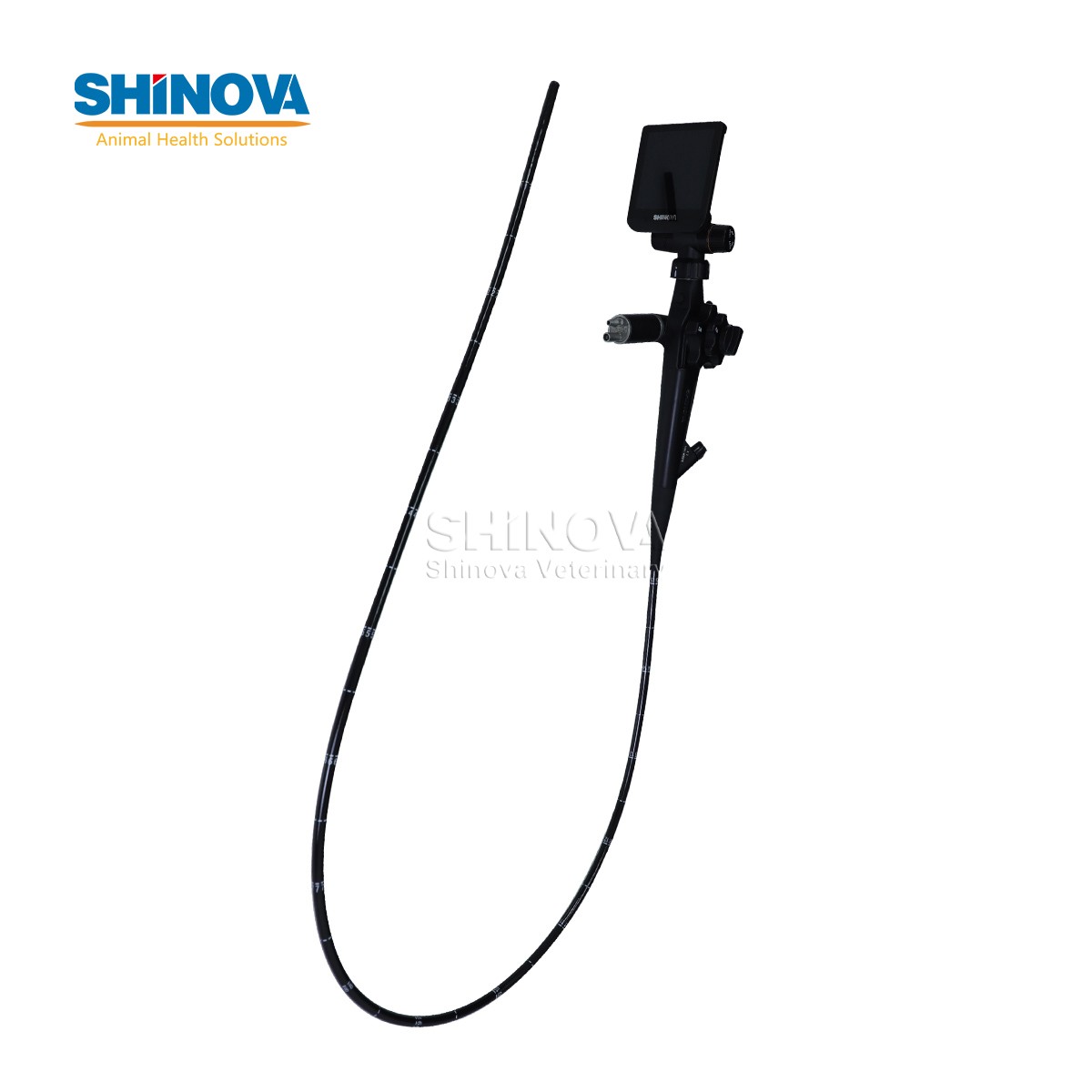

MiniScope 15P — With a 1500mm working length, this model is suited to equine respiratory tract examinations, including bronchoscopic inspection.
MiniScope 30P — With a 3000mm working length, this model provides extended reach for equine gastroscopy and gastrointestinal examination.
The series also supports endoscopic examination and treatment in areas such as the esophagus, uterus, and ear, nose and throat, where the selected scope dimensions and clinical requirements are appropriate.
Specifications
- Insertion Tube Diameter: 9.2 mm
- Working Channel Diameter: 3.2 mm
- Working Length: 1500 mm
- Field of View: 120°
- Depth of Field: 3–100 mm
- Tip Bending: Up 180°, Down 130°, Right 160°, Left 160°
- Function Buttons: 3
- Air / Water Nozzle: Yes

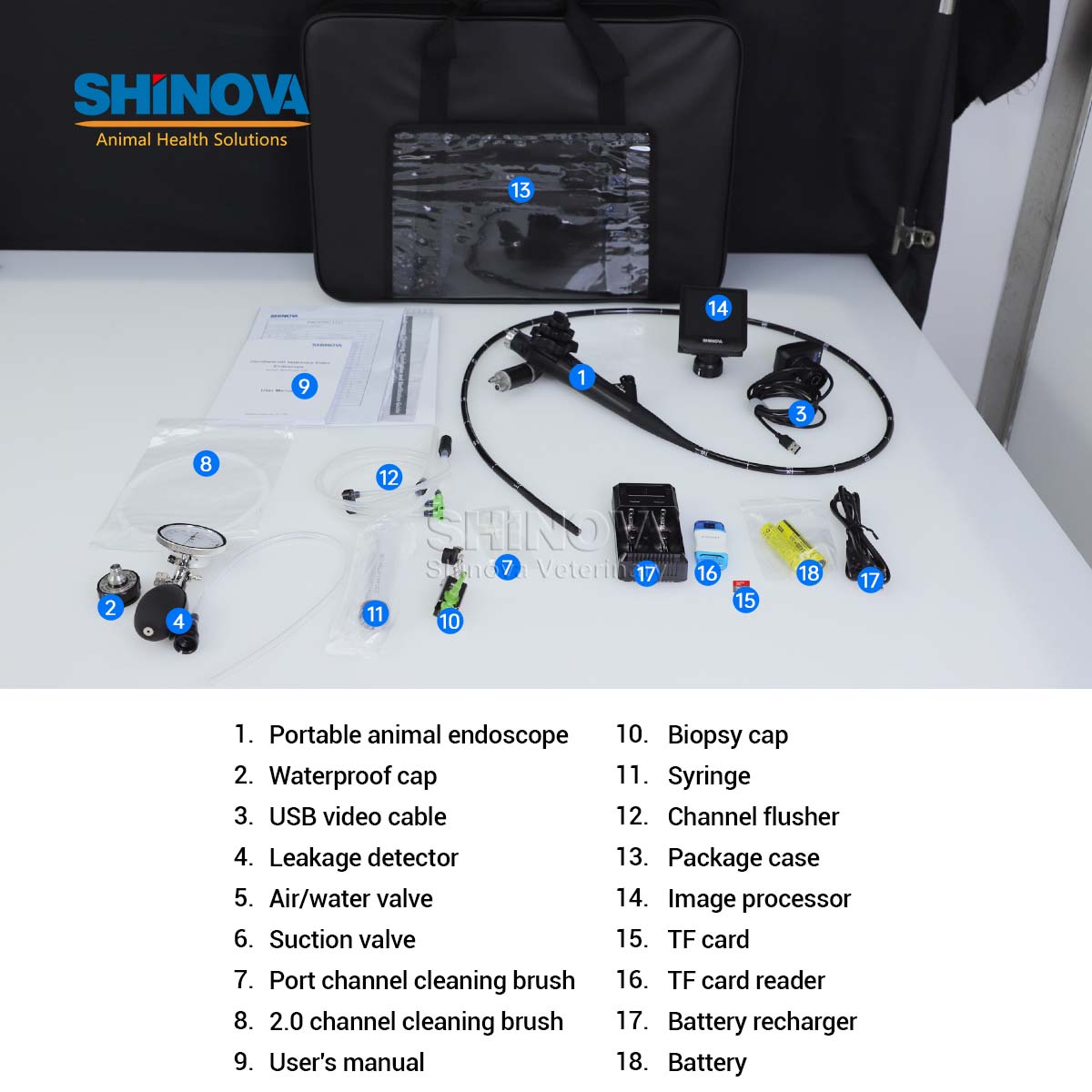

Configurations
Optional
VIS-50B Image Processor
• 4.0-inch touchscreen display.
• 64 GB TF memory card.
• Rechargeable battery supporting approximately 2.5 hours of operation.

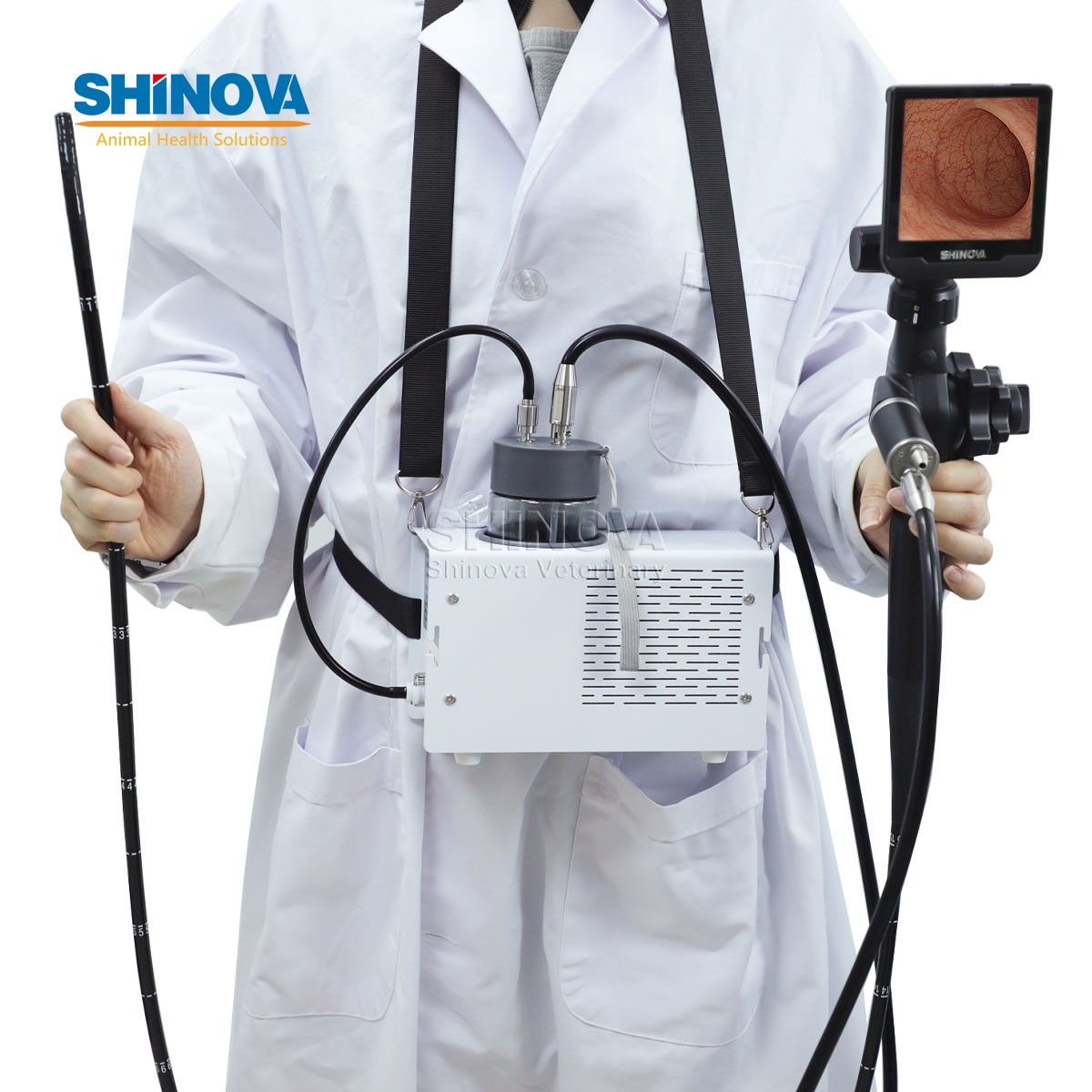

AP-55 Portable Irrigation and Insufflation System (optional)
Portable air and water support with an adjustable maximum air pump pressure range of 35–55 kPa.
